Viking Designer DGVU2004BSS Guía

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 02/05/10

Both models include

• Dimensioned to fit the majority of

standard sized cooktop cutouts

• Sealed burners with brass flame ports

and porcelain/cast iron caps

• One-piece tooled top with large spill

collection area around burners

• Heavy-duty stainless steel control

knobs with childproof, push-to-turn

safety feature

4B model includes

• Four burners

o Left front—15,000 Nat./LP (BTU)

o Left rear—4,000 Nat./LP (BTU)

o Right rear—12,000 Nat./LP (BTU)

o Right front—9,000 Nat./LP (BTU)

5B model includes

• Five burners

o Left front—15,000 Nat./LP (BTU)

o Left rear—4,000 Nat./LP (BTU)

o Center—9,000 Nat./LP (BTU)

o Right rear—12,000 Nat./LP (BTU)

o Right front—12,000 Nat./LP (BTU)

FINISH DETAILS FOR BOTH MODELS

• Stainless Steel (SS), Black (BK)

o Finish designates top. Black porcelain

grates, porcelain burner caps, and

knob grips.

• White (WH)

o Finish designates top. Gray porcelain

grates, porcelain burner caps, and

knob grips.

Standard Features & Accessories

Model Options

COOKING

Designer Built-In Gas 30”/36”W. Cooktop

DGVU200-4B

30”W. Four-Burner Cooktop

DGVU260-5B

36”W. Five-Burner Cooktop

ORDERING INSTRUCTIONS

First specify model number, and then color code (DGVU200-4BSS).

21”

(53.3 cm)

30-3/4 ”

(78.1cm)

30-3/4 ”

(78.1cm)

21”

(53.3)

36-3/4 ”

(93.3 cm)

36-3/4 ”

(93.3 cm)

COOKING

Designer Built-In Gas 30”/36”W. Cooktop

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 02/05/10

DGVU200-4B DGVU260-5B

Overall width 30-3/4” (78.1 cm) 36-3/4” (93.3 cm)

Overall height (top of grate to bottom) 4" (10.2 cm)

Overall depth (from rear) 21” (53.3 cm)

Dimensions & Specifications

OVERALL PRODUCT DIMENSIONS

DGVU200-4B

30”W. Four-Burner

Cooktop

DGVU260-5B

36"W. Five-Burner

Cooktop

30”W. Models 36”W. Models

4”

(10.2 cm)

2-13/16”

(7.2 cm)

7-3/16”

(18.4 cm)

4”

(10.2 cm)

2-13/16”

(7.2 cm)

7-3/16”

(18.4 cm)

FRONT VIEW FRONT VIEW

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 02/05/10

COOKING

Designer Built-In Gas 30”/36”W. Cooktop

2-1/2”

(6.4 cm)

36”min.

(91.4 cm)

2-1/2”

(6.4 cm)

36”min.

(91.4 cm)

18”min.

(45.7 cm)

13”max.

(33.0 cm)

8”min.

(20.3 cm)

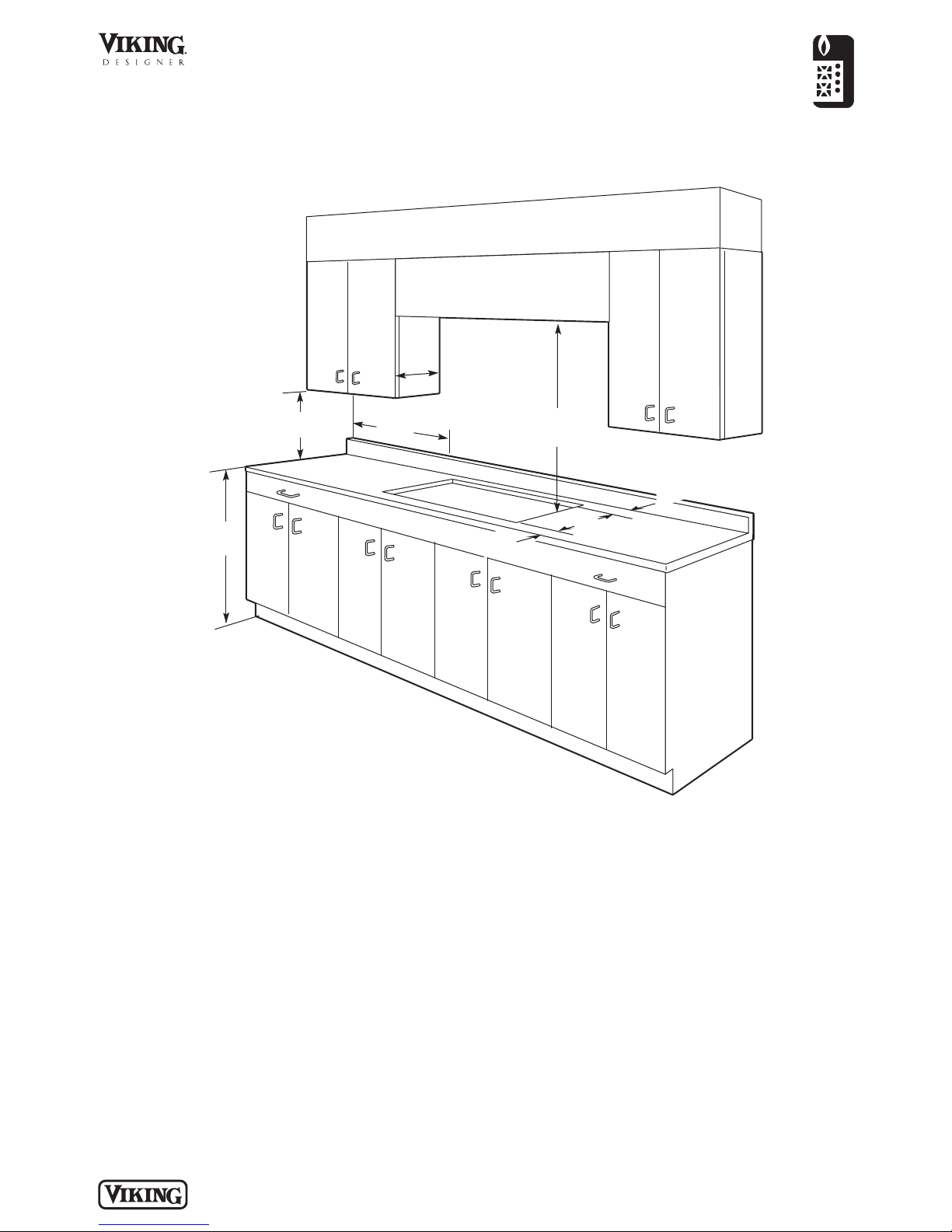

Minimum clearances from adjacent

combustible construction

• Sides—8” (20.3 cm)

• Rear—2-1/2” (6.4 cm) min.

• Within 8” (20.3 cm) side clearance; wall

cabinets no deeper than 13” (33.0 cm)

• Must be minimum 18” (45.7 cm) above

countertop

• Wall cabinets directly above cooktop

must be minimum 36” (91.4cm) above

the countertop.

1.The cooktop may be installed directly

to existing base cabinets.

2.The cooktop cannot be installed

directly adjacent to sidewalls, tall

cabinets, tall appliances, or other side

vertical surfaces above 36” (91.4 cm)

high. There must be a minimum of 8”

(20.3 cm) side clearance from the

cooktop to such combustible surfaces

above the 36” (91.4 cm) counter height.

3.Within the 8” (20.3 cm) side clearance

to combustible vertical surfaces above

36” (91.4 cm), the maximum wall

cabinet depth must be 13” (33.0 cm)

and wall cabinets within this 8” (20.3

cm) side clearance must be 18” (45.7

cm) above the 36” (91.4 cm) high

countertop.

4.Wall cabinet above the cooktop must

be a minimum of 36” (91.4 cm) above

the countertop for a full width of the

cooktop. This minimum height

requirement does not apply if a

rangehood is installed over the

cooking surface.

5.A 120-volt wall receptacle should be

located approximately 6” (15.2 cm)

below the countertop cutout and 12”

(30.5 cm) from the right side of the

cutout.

Warning

The use of cabinets for storage above

the appliance may result in a potential

burn hazard. If a cabinet storage is to be

provided the risk can be reduced by

installing a rangehood that projects

horizontally a minimum of 5" (12.7 cm)

beyond the bottom of the cabinets.

Dimensions & Specifications

CLEARANCE DIMENSIONS

Cutout opening

28-1/2”

(72.4 cm) min.

29”

(73.6 cm)

29-1/8”

(73.9 cm)

27”

(68.6 cm)

1-1/16”

(2.7 cm)

1-1/16”

(2.7 cm)

2-1/4”

(5.7 cm)

19”

(48.3 cm)

min.

19-5/8”

(49.8 cm)

max.

20-5/8”

(52.4 cm)

Cutout opening

19-5/8”

(49.8 cm)

max.

19”

(48.3 cm)

min.

34-1/2”

(87.6 cm) min.

35”

(88.9 cm) max.

34-7/8”

(88.6 cm)

33”

(83.8 cm))

15/16”

(2.4 cm)

15/16”

(2.4 cm)

2-1/4”

(5.7 cm)

20-5/8”

(52.4 cm)

DGVU200-4B DGVU260-5B

Cutout width 28-1/2” (72.4 cm) min. to 29” (73.6 cm) max. 34-1/2” (87.6 cm) min. to 35” (88.9 cm) max.

Cutout height 2-13/16” (7.3 cm) min.*

Cutout depth 19” (48.3 cm) min. to 19-5/8” (49.8 cm) max.

Surface burner rating

Left front 15,000 BTU Nat./LP (4.4 kW)

Left rear 4,000 BTU Nat./LP (1.0 kW)

Right rear 12,000 BTU Nat./LP (2.1 kW)

Right front 9,000 BTU Nat./LP (2.6 kW) 12,000 BTU Nat./LP (3.5 kW)

Center N/A 9,000 BTU Nat./LP (2.6 kW)

*Top of grate support should be 3/8” (1.0 cm) above countertop.

**There must be a 1” (2.5 cm) clearance under counter on all 4 sides of the cooktop.

COOKING

Designer Built-In Gas 30”/36”W. Cooktop

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 02/05/10

UTILITY

REQUIREMENTS

GAS

• Shipped natural gas

standard; to field

convert from natural

or LP/Propane, the

orifice spuds and

regulator must be

physically changed.

o All parts necessary

for conversion ship

with product.

• Accepts standard

residential 1/2”

(1.3 cm) ID gas

service line

• Gas manifold

pressure

o Natural gas 5.0”

W.C.P.

o LP/propane 10.0”

W.C.P.

ELECTRICAL

• 4-foot (121.9 cm)

cord included with

cooktop

• 3-wire with

ground/3-prong plug

• 120 V/60 Hz

• Maximum amp

usage—2.0

PLUMBING

Not applicable

Installation Requirements

ACCESS REQUIREMENTS

DGVU200-4B

30”W. Four-Burner

Cooktop

DGVU260-5B

36"W. Five-Burner

Cooktop

30”W. Cutout 36”W. Cutout

30”W. Cutout w/Downdraft 36”W. Cutout w/Downdraft

Compliance Information

WARRANTY INFORMATION*

• One-year full warranty—complete product

• Five-year limited warranty—surface burners

• Ninety-day limited warranty—cosmetic parts such as painted or decorative items

* For complete warranty see

Use & Care Guide

. Warranty valid on Viking products shipped within the United States and Canada.

COOKING

Designer Built-In Gas 30”/36”W. Cooktop

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 02/05/10
