PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE

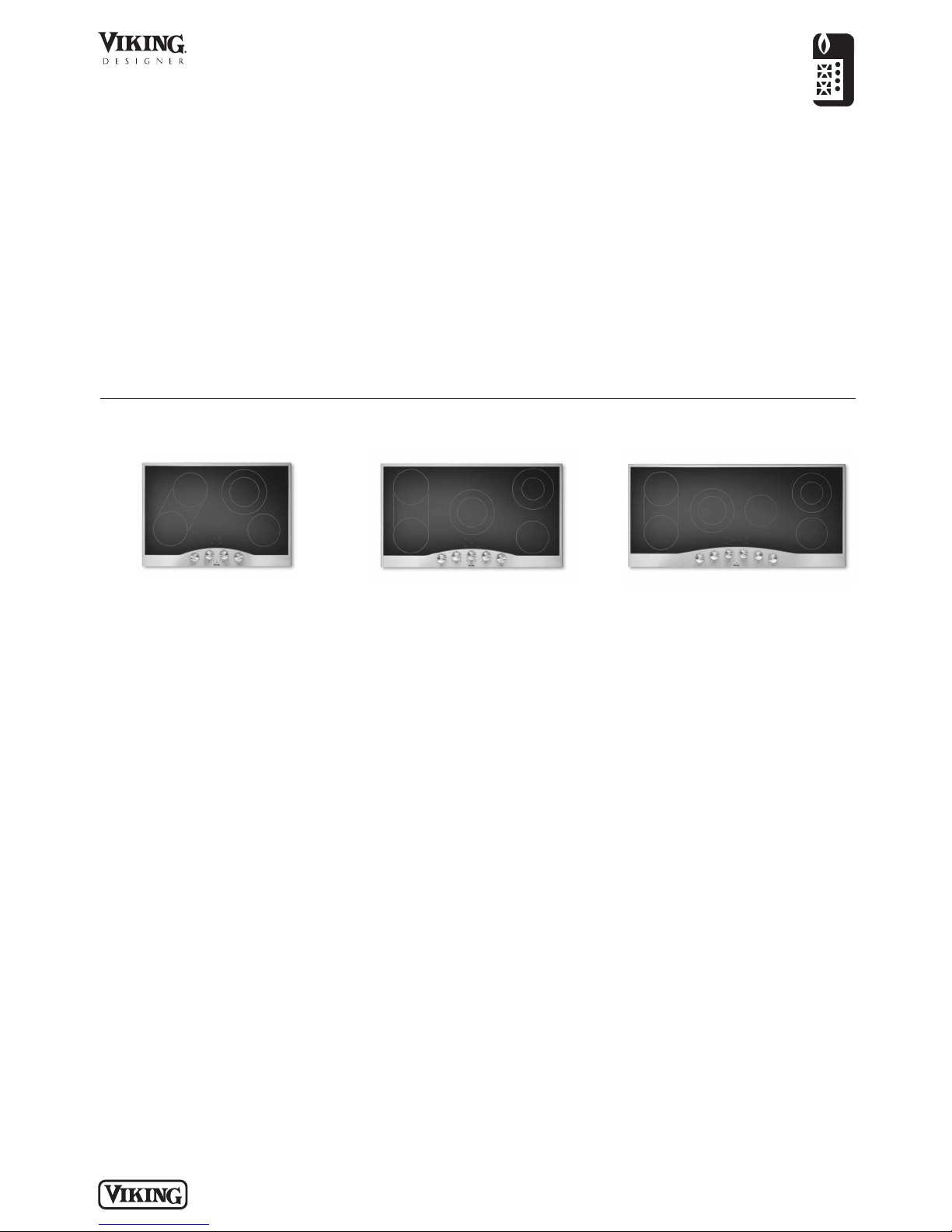

All models include
• Dimensioned to fit the majority of
similarly sized cooktop cutouts
• QuickCook™ surface elements utilize
ribbon element technology to reach
full power in about 3 seconds
• Strong, wear-resistant glass ceramic
top offers excellent cleanability
• Heavy-duty stainless steel control
knobs with childproof, push-to-turn
safety feature
4B model includes
• Four elements
o Left front— 7” 1,800 watts
o Left rear—7” 1,800 watts
o Bridge—800 watts
o Right rear (dual element)—9” 2,500
watts – 6” 1,000 watts
o Right front—6-1/2” 1,500 watts
5B model includes
• Five elements
o Left front— 7” 1,800 watts
o Left rear—7” 1,800 watts
o Bridge—800 watts
o Center (dual element)—9” 2,500
watts – 6” 1,000 watts
o Right rear (dual element)—8-1/4”
2,200 watts – 4-3/4” 750 watts
o Right front—6-1/2” 1,500 watts
6B model includes
• Six elements
o Left front—7” 1,800 watts
o Left rear—7” 1,800 watts
o Bridge—800 watts
o Left center (dual element)—9” 2,500
watts – 6” 1,000 watts
o Right center—6” 1,200 watts
o Right rear (dual element)—8-1/4”
2,200 watts – 4-3/4” 750 watts
o Right front—6-1/2” 1,500 watts
Standard Features & Accessories
Model Options

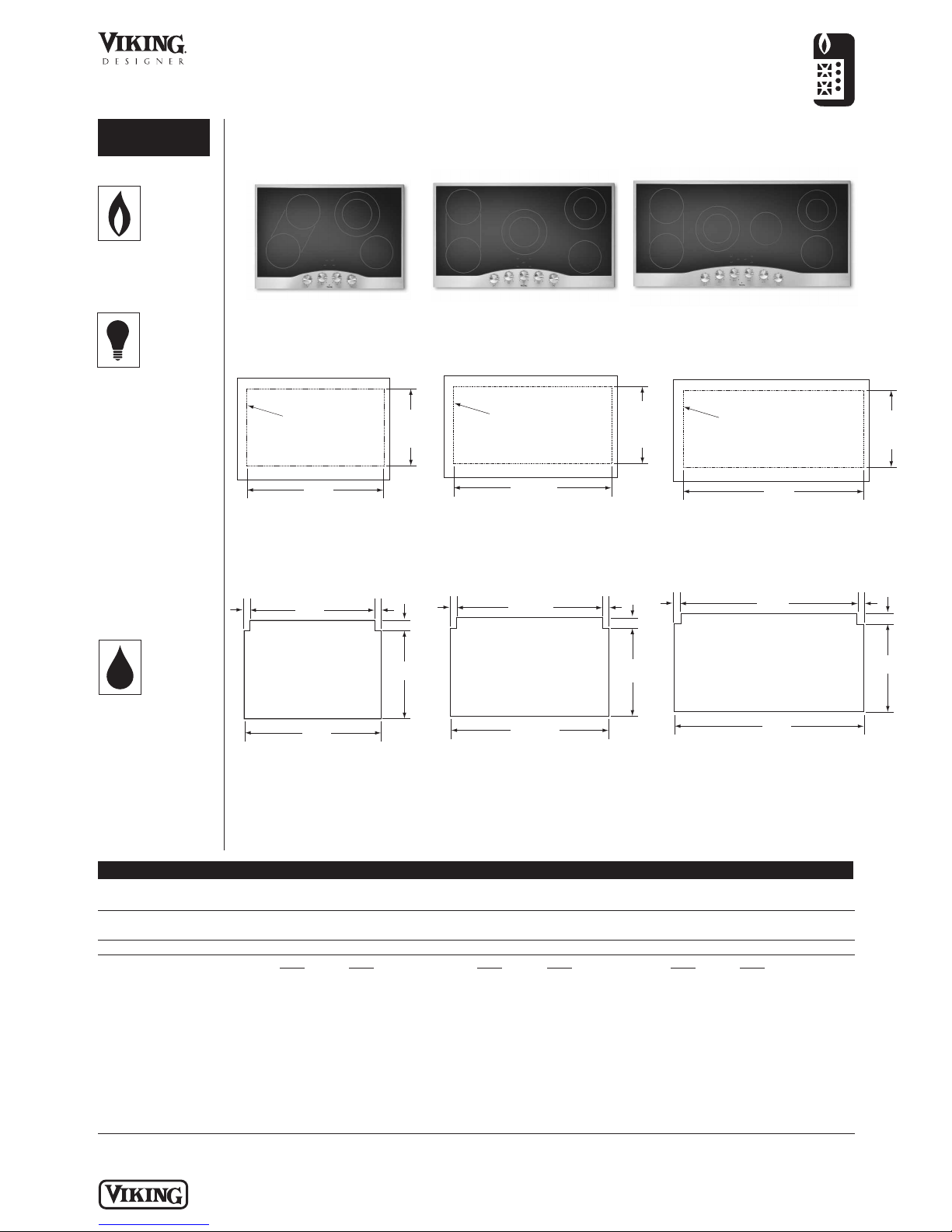

COOKING
Designer Built-In Electric Radiant
30”/36”/45”W. Glass Ceramic Cooktop
ORDERING INSTRUCTIONS
First specify model number, and then color code (DECU105-4BSS). If ordering optional brass trim, specify code at end (DECU105-4BSSBR).
DECU105-4B
30”W. Four-Element
Cooktop
FINISH DETAILS FOR BOTH MODELS
• Stainless Steel/Black (SB)
o Stainless steel trim, control panel, and
knobs
o Black glass and knob grips
• Stainless Steel/White (SW)
o Stainless steel trim, control panel, and
knobs
o White glass with gray knob grips
• Brass Trim Option (BR) Brass finish—
knobs. Brass components have a
durable protective coating for
maintenance-free normal use.
DECU165-5B
36”W. Five-Element
Cooktop
DECU155-6B
45”W. Six-Element
Cooktop
DECU105-4B
30”W. Four-Element
Cooktop
DECU165-5B
36”W. Five-Element
Cooktop
DECU155-6B
45”W. Six-Element
Cooktop
21”
(53.3 cm)
30-3/4”
(78.1 cm)
30-3/4”
(78.1 cm)
4-1/2”
( 11.4 cm)
3-1/2”
(8.9 cm)
3-1/16”
(7.8 cm)
21”
(53.3 cm)
36-3/4”
(93.3 cm)
36-3/4”
(93.3 cm)
4-1/2”
( 11.4 cm)
3-1/2”
(8.9 cm)
3-1/16”
(7.8 cm)
21”
(53.3 cm)
45”
(114.3 cm)
45”
(114.3 cm)
4-1/2”
( 11.4 cm)
3-1/2”
(8.9 cm)
3-1/16”
(7.8 cm)
COOKING
Designer Built-In Electric Radiant
30”/36”/45”W. Glass Ceramic Cooktop
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
DECU105-4B DECU165-5B DECU155-6B
Overall width 30-3/4” (78.1 cm) 36-3/4” (93.3 cm) 45” (114.3 cm)
Overall height (from bottom)
To top of knobs 4-1/2” (11.4 cm)
To top of cooking surface 3-1/2” (8.9 cm)
To bottom edge of frame 3-1/16” (7.8 cm)
Overall depth (from rear) 21” (53.3 cm)
Dimensions & Specifications

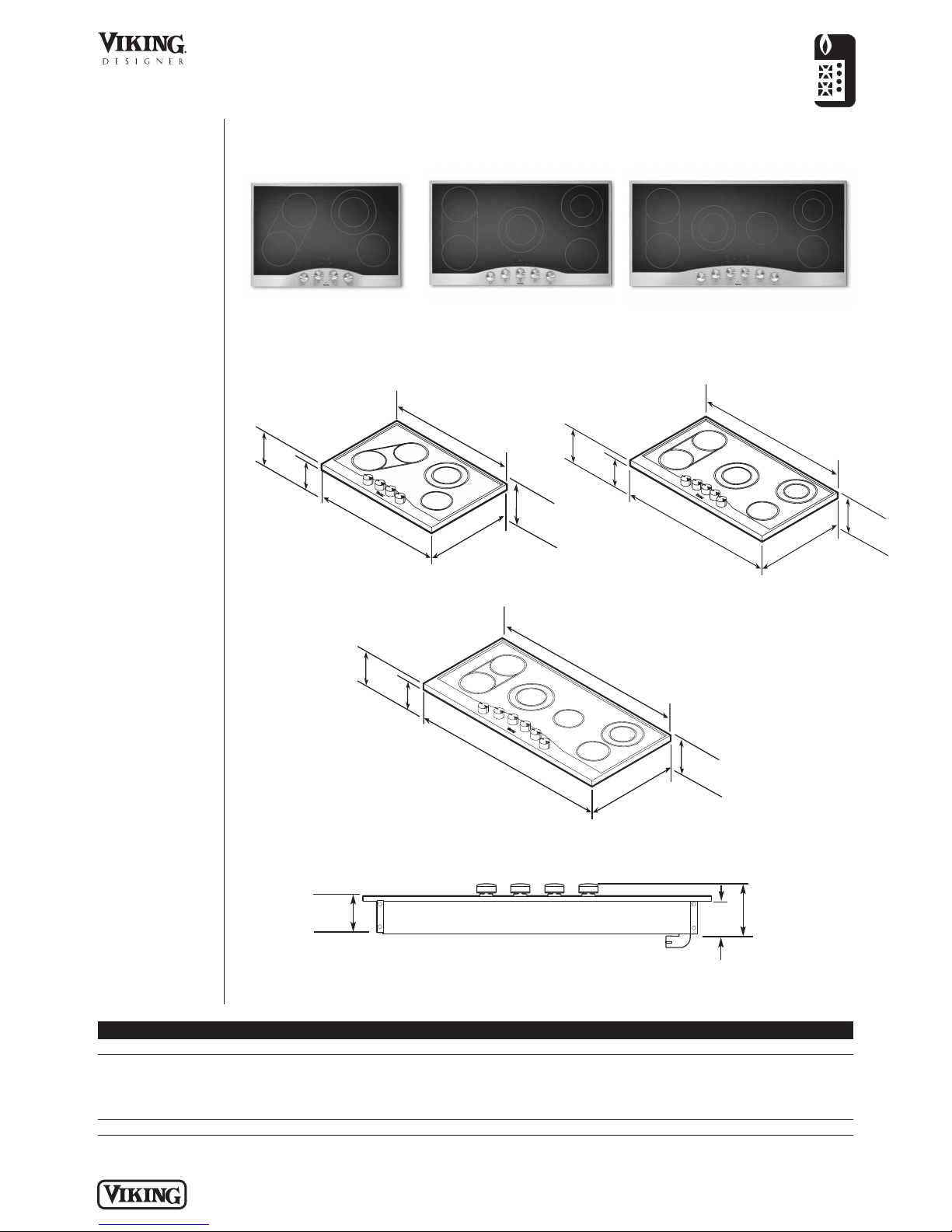

PRODUCT DIMENSIONS–OVERALL
30”W. Models
45”W. Models
36”W. Models
3-1/2”
(8.9 cm)
3-1/16”
(7.8 cm)
4-1/2”
(11.4 cm)
FRONT VIEW
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
COOKING
Designer Built-In Electric Radiant
30”/36”/45”W. Glass Ceramic Cooktop
18”min.
(45.7 cm)
6”min.
(15.2 cm)
3 1/8”
(7.9 cm)
0”min.
(0 cm)
36”min.
(91.4 cm)
36”min.
(91.4 cm)
13”max.
(33.0 cm)
Minimum clearances from adjacent
combustible construction
• Above countertop (36” [91.4 cm])
• Sides—6” (15.2 cm)
• Rear—0” (0 cm)
• Within 6” side clearance; wall cabinets
no deeper than 13” (33.0 cm)
• Must be minimum 18” (45.7 cm) above
countertop
• Wall cabinets directly above cooktop
must be minimum 36” (91.4cm) above
the countertop.
1.The cooktop may be installed directly
to existing base cabinets.
2.The cooktop cannot be installed
directly adjacent to sidewalls, tall
cabinets, tall appliances, or other side
vertical surfaces above 36” (91.4 cm)
high. There must be a minimum of 6”
(15.2 cm) side clearance from the
cooktop to such combustible surfaces
above the 36”(91.4 cm) counter
height.
3.Within the 6” (15.2 cm) side clearance
to combustible vertical surfaces above
36” (91.4 cm), the maximum wall
cabinet depth must be 13” (33.0 cm)
and wall cabinets within this 6”
(15.2 cm) side clearance must be 18”
(45.7 cm) above the 36” (91.4 cm) high
countertop.
4.Wall cabinets above the cooktop must
be a minimum of 36” (91.4 cm) above
the countertop for a full width of the
cooktop. This minimum height
requirement does not apply if a hood
is installed over the cooking surface.
The bottom of the hood should be 30”
(76.2 cm) min. to 36” (91.4 cm) above
the countertop. This would typically
result in the bottom of the hood being
66” (167.6 cm) to 72” (182.9 cm) above
the floor. Refer to the hood installation
instructions for further information.
Warning
The use of cabinets for storage above
the appliance may result in a potential
burn hazard. If a cabinet storage is to be
provided the risk can be reduced by
installing a hood that projects
horizontally a minimum of 5” (12.7 cm)
beyond the bottom of the cabinets.
Dimensions & Specifications

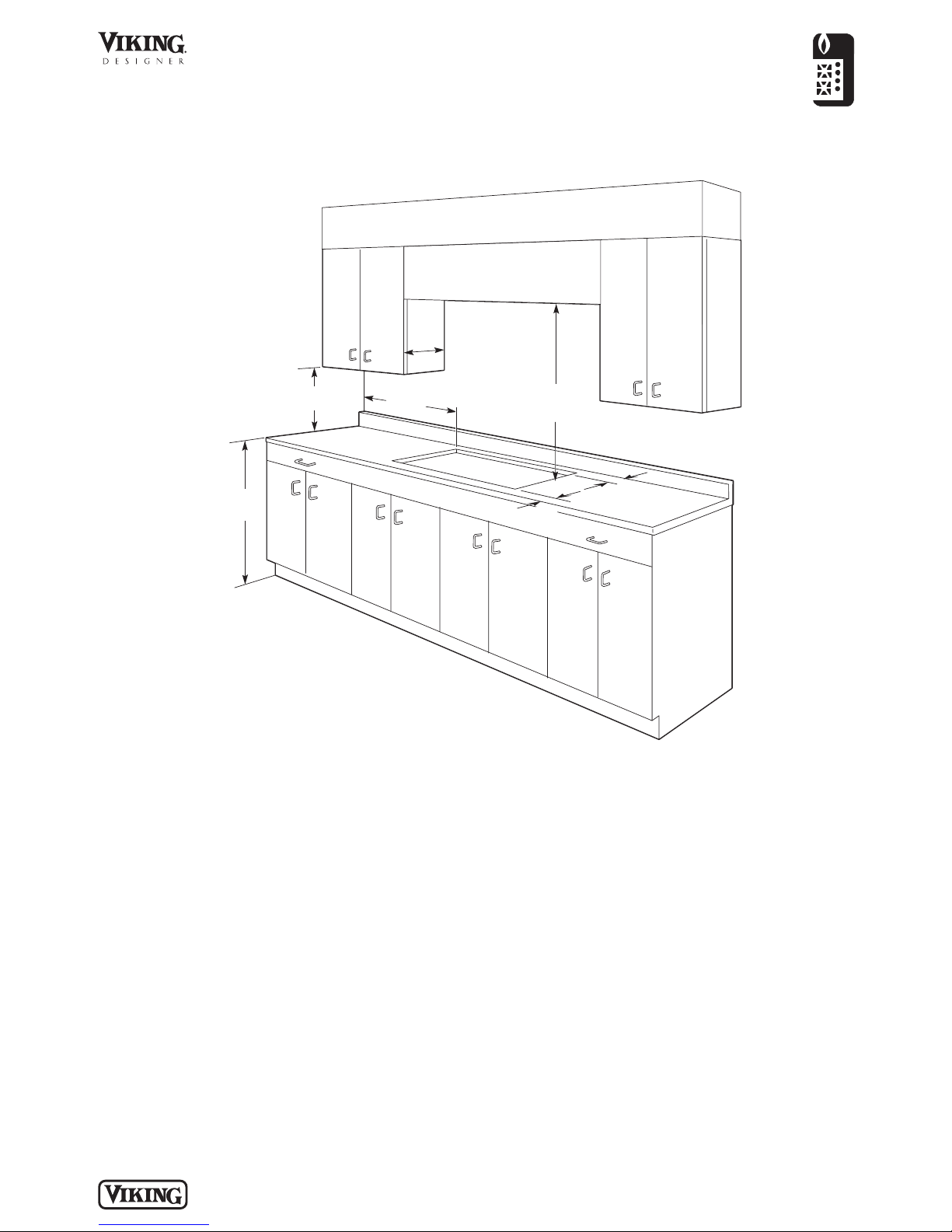

CLEARANCE DIMENSIONS
Cutout opening
28-5/8”
(72.7 cm) min.
to
29-7/8”
(75.9 cm) max.
27”
(68.6 cm)
1-1/16”
(2.7 cm)
1-1/16”
(2.7 cm) 2-1/4”
(5.7 cm)
19-3/4”
(50.2 cm) min.
to
20-1/8”
(51.1 cm) max.
20-5/8”
(52.4 cm)
29-1/8”
(73.9 cm)
Cutout opening
34-3/4”
(88.3 cm) min.
to
35-7/8”
(91.1 cm) max.
33”
(83.8 cm)
15/16”
(2.4 cm)
15/16”
(2.4 cm) 2-1/4”
(5.7 cm)
20-5/8”
(52.4 cm)
19-3/4”
(50.2 cm) min.
to
20-1/8”
(51.1 cm) max.
34-7/8”
(88.6 cm)
Cutout opening
42-7/8”
(108.9 cm) min.
to
44-1/8”
(112.1 cm) max.
42”
(106.7 cm)
7/16”
(1.1 cm) 7/16”
(1.1 cm) 2-1/4”
(5.7 cm)
20-5/8”
(52.4 cm)
19-3/4”
(50.2 cm) min.
to
20-1/8”
(51.1 cm) max.
42-7/8”
(108.9 cm)
30”W. Cutout 36”W. Cutout
30”W. Cutout
w/Downdraft
45”W. Cutout
36”W. Cutout
w/Downdraft
45”W. Cutout
w/Downdraft
DECU105-4B DECU165-5B DECU155-6B
Cutout width 28-5/8” (72.7 cm) min. 34-3/4” (88.3 cm) min. 42-7/8” (108.9 cm) min.
29-7/8” (75.9 cm) max. 35-7/8” (91.9 cm) max. 44-1/8” (112.1 cm) max.
Cutout height 3-1/8” (7.9 cm) min.
With conduit 4-1/8” (10.5 cm)
Cutout depth 19-3/4” (50.2 cm) min. to 20-1/8” (51.1 cm) max.
Surface burner rating 240V 208V 240V 208V 240V 208V
Right front 1,500 watts 1,125 watts 1,500 watts 1,125 watts 1,500 watts 1,125 watts
Right rear (dual element) 2,500/1,000 watts/1,875/750 watts 2,200/ 1,650/ 2,200/ 1,650 watts
1,000 watts 562 watts 950 watts
Center right N/A N/A 1,200 watts 900 watts
Center (dual element) N/A 2,500/ 1,875/ N/A
1,000 watts 750 watts
Center left (dual element) N/A N/A 2,500/ 1,875/
1,000 watts 750 watts
Left front 1,800 watts 1,350 watts 1,800 watts 1,350 watts 1,800 watts 1,350 watts
Bridge 800 watts 600 watts 800 watts 600 watts 800 watts 600 watts
Left rear 1,800 watts 1,350 watts 1,800 watts 1,350 watts 1,800 watts 1,350 watts
DECU105-4B
30”W. Four-Element
Cooktop
DECU165-5B
36”W. Five-Element
Cooktop
DECU155-6B
45”W. Six-Element
Cooktop
COOKING
Designer Built-In Electric Radiant
30”/36”/45”W. Glass Ceramic Cooktop
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
UTILITY
REQUIREMENTS
GAS
• Not applicable
ELECTRICAL
• 4-foot (121.9 cm)
flexible conduit
included*
• 3-wire conduit with a
No. 10 ground wire
• 240 – 208/120 V/60 Hz
• Maximum amp
usage—(240V/208V)
o 4B—35.0/30.0
o 5B—44.0/34.0
o 6B—49.0/42.0
• Do not use an
extension cord with
this appliance.
PLUMBING
Not applicable
Installation Requirements
ACCESS REQUIREMENTS
Note: Before cutting countertop cutout, check the inside clearance available from the inside back wall to the proposed
placement of the cooktop. A minimum of 1-3/4” (4.4 cm) is required from the back wall of the cooktop to the inside wall of
the back cabinet. This may require a distance greater than the 0” minimum approved distance.
Compliance Information
WARRANTY INFORMATION*
• One-year full warranty—complete product
• Five-year limited warranty—surface burners and electric elements
• Ninety-day limited warranty—cosmetic parts such as glass, painted, and decorative items
* For complete warranty see
Use & Care Guide
. Warranty valid on Viking products shipped within the United States and Canada.
COOKING
Designer Built-In Electric Radiant
30”/36”/45”W. Glass Ceramic Cooktop
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
