Viking DFWB300R Manual de usuario

Viking Range Corporation

111 Front Street

Greenwood, Mississippi 38930 USA

(662) 455-1200

For product in ormation,

call 1-888-VIKING1 (845-4641)

or visit the Viking Web site at

vikingrange.com

F20689 EN 082009J)

Viking Installation Guide

DDHK41 Designer Handle Kit

For Use with DFRB5 All Refrigerators, DFFB5 All Freezers

and DFWB Built-In Wine Cellars

IMPORTANT–Please Read and Follow!

2 3

•Be ore beginning, please read these instructions completely and care ully.

•Use caution during assembly to minimize scratches.

•Do not remove permanently a ixed labels, warnings or plates rom the product. This may

void the warranty.

•Please re er to the DFRB5, DFFB5 and DFWB Installation Instructions or more in ormation

on installing the door panel.

•The installer should leave instructions with the customer who should retain for local

inspector’s use and future reference.

Parts Included

Required Tools

Handle Installation

To Install:

Installation with Wooden Full Overlay

Custom Door Front

1. Locate the wooden custom panel.

2. Using the illustrations on the next page, layout the handle location on the panels. It is

recommended that masking tape be placed where the our holes will be drilled to help mark

the hole placement and to prevent any damage to the door when drilling the holes.

3. The Designer handle will be mounted using (4) o the #10 x 3/4” Hex head screws provided.

Using the 3/16”(0.5 cm) drill bit, drill completely through the door in the hole locations.

Using the 7/16” (1.1 cm) bit, counter-bore our holes 1/2” (1.2 cm) deep max. on the

BACKSIDE o the custom door panel.

4. Attach the Designer handle to the panel using (4) #10 x 3/4” screws provided.

Part Quantity

Designer Handles

#10 x 3/4” Hex Head Screws

Installation Instructions

(1)

(4)

Electric Drill

3/16” (0.5 cm) Drill Bit

7/16” (1.1 cm) Spade or Forstner Bit (Counterbore)

Tape Measure

Hex Head Screw Driver

Masking Tape and Pencil

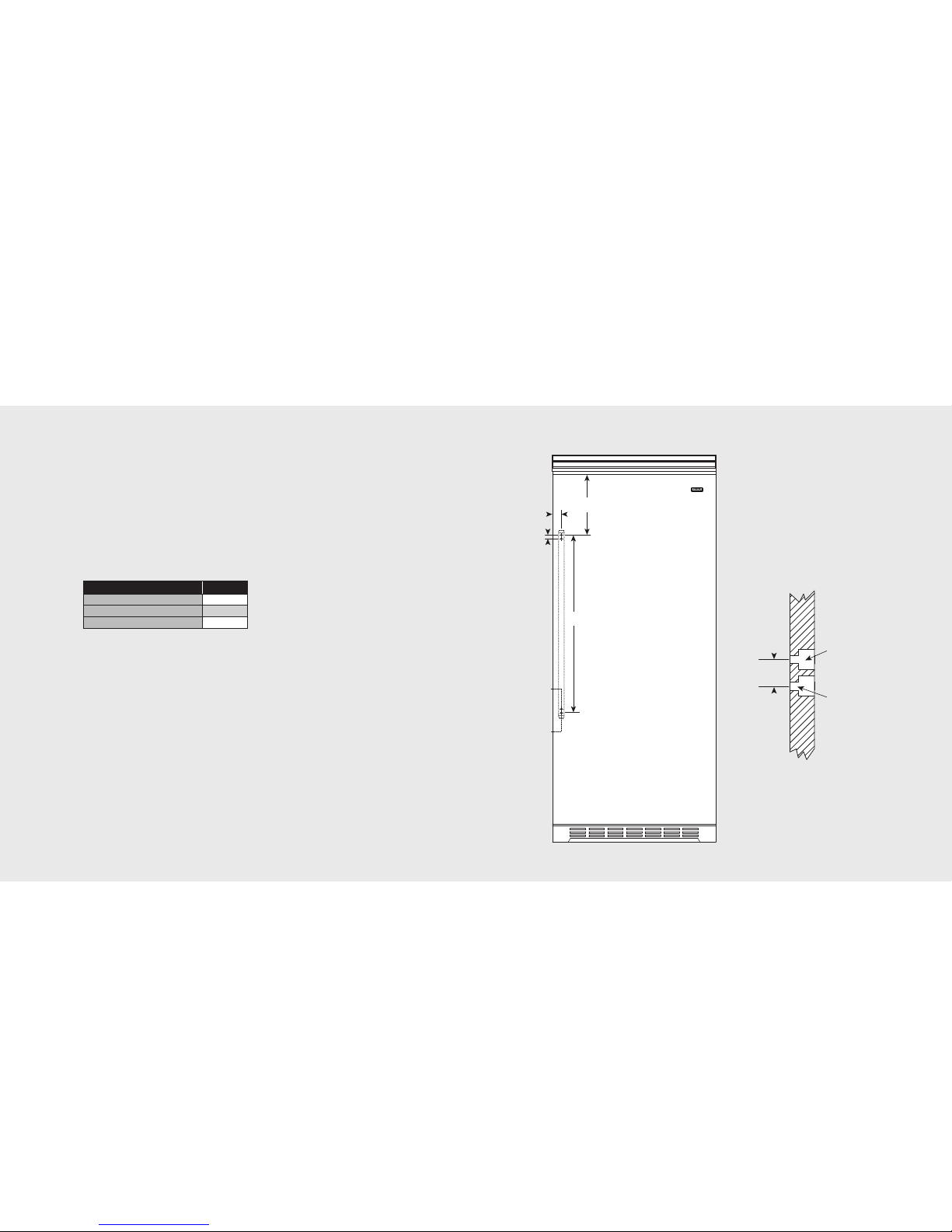

13-1/8”

(33.3 cm)

13/16”

(2.1 cm)

38-19/32”

(98.0 cm)

1-1/2”

(3.8 cm)

Section A-A

36 Custom Door

DFRB All Refrigerator/DFFB All Freezer

(Front View)

Designer Handle

3/4” (1.9 cm)

Full Overlay

Panel

3/16” (0.5 cm)

Thru Hole

7/16” (1.1 cm)

Counter Bore x 1/2”

Depth (max)

13/16”

(2.1 cm)

Handle Installation

4 5

13-1/8”

(33.3 cm)

13/16”

(2.1 cm)

38-19/32”

(98.0 cm)

1-1/2”

(3.8 cm)

Section A-A

30 Custom Door

DFRB All Refrigerator/DFFB All Freezer

(Front View)

Designer Handle

3/4” (1.9 cm)

Full Overlay

Panel

3/16” (0.5 cm)

Thru Hole

7/16” (1.1 cm)

Counter Bore x 1/2”

Depth (max)

13/16”

(2.1 cm)

Handle Installation

13/16”

(2.1 cm)

1-1/2”

(3.8 cm)

15/32”

(1.2 cm)

23-13/16”

(60.5 cm)

38-19/32”

(98.0 cm)

Section A-A

3/4” (1.9 cm)

Full Overlay

Panel

3/16” (0.5 cm)

Thru Hole

7/16” (1.1 cm)

Counter Bore x 1/2”

Depth (max)

13/16”

(2.1 cm)

Speci ications subject to change without notice.

Custom Door

DFWB Wine Cellar

(Front View)

Designer Handle
