MaxiiNetTM VI3010

Installation and Getting Started Guide

10 Port Series PoE+ L2 Plus Managed Switch

MaxiiNetTM Vi3010 Gigabit Managed Switch

Installation and Getting Started Guide

About This Guide

Purpose

Audience

Conventions

Warranty

This guide gives specific information on how to operate and use the management

functions of the switch.

The guide is intended for use by network administrators who are responsible for

operating and maintaining network equipment. Consequently, it assumes a basic

working knowledge of general switch functions, the Internet Protocol (IP), and

Simple Network Management Protocol (SNMP).

The following conventions are used throughout this guide to show information:

NOTE: Emphasizes important information or calls your

attention to related features or instructions.

WARNING:

Alerts you to a potential hazard that could

cause personal injury.

CAUTION:

Alerts you to a potential hazard that could

cause loss of data, or damage the system or

equipment.

See the Customer Support/Warranty booklet included with the product. A copy of

the specific warranty terms applicable to Vigitron’s products and replacement

parts can be obtained from Vigitron’s Sales and Service Office or authorized dealer.

Contents

About This Guide ...........................................................................................................................................................3

Compliances and Safety Statements .............................................................................................................................5

Introduction...................................................................................................................................................................8

Description of Hardware..............................................................................................................................................10

Network Planning ........................................................................................................................................................12

Installing the Switch.....................................................................................................................................................15

Operation of Web-Base Management.........................................................................................................................22

Making Network Connections .....................................................................................................................................24

Cable Labeling and Connection Records......................................................................................................................29

Troubleshooting...........................................................................................................................................................30

Power and Cooling Problems.......................................................................................................................................32

Cables ..........................................................................................................................................................................33

Specifications...............................................................................................................................................................37

Compliances ................................................................................................................................................................39

Warranty......................................................................................................................................................................42

Contact Information ....................................................................................................................................................43

Compliances and Safety Statements

FCC-Class A

CE Mark

Declaration of

Conformance for

EMI and Safety

(EEC)

UL Mark

EMC

This equipment has been tested and found to comply with the limits for a Class A

computing device pursuant to Subpart J of part 15 of FCC Rules, which are designed

to provide reasonable protection against such interference when operated in a

commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and if not

installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential

area is likely to cause harmful interferences in which case the user will be required

to correct the interferences at his own expense.

You are cautioned that changes or modifications not expressly approved by the

party responsible for compliance could void your authority to operate the

equipment.

You may use unshielded twisted-pair (UTP) for RJ-45 connections - Category 3 or

better for 10 Mbps connections, Category 5 or better for 100 Mbps connections,

and Category 5, 5e, or 6 for 1000 Mbps connections. For fiber optic connections,

you may use 50/125 or 62.5/125 micron multimode fiber or 9/125 micron single-

mode fiber.

This equipment has been tested and found to comply with the protection

requirements of European Emission Standard EN55022/EN61000-3 and the Generic

European Immunity Standard EN55024.

Ul 60950-1 Information Technology Equipment - Safety - Part 1:

General Requirements - Edition 2 - Revision Date 2014/05/13

EN55022(2006)+A1:2007/CISPR

22:2006+A1:2006

Class A

4K V CD, 8KV, AD

IEC61000-4-2 (2001)

3V/m

IEC61000-4-3( 2002)

1KV – (power line), 0.5KV – (signal line)

IEC61000-4-4(2004)

Line to Line: 1KV, Line to Earth: 2KV

IEC61000-4-5 (2001)

130dBuV(3V) Level 2

IEC61000-4-6 (2003)

1A/m

IEC61000-4-8 (2001)

Voltage dips:

>95%, 0.5period, 30%, 25periods

IEC61000-4-11(2001)

Voltage interruptions:

>95%, 250periods

CAUTION:

Circuit devices are sensitive to static electricity,

which can damage their delicate electronics. Dry weather

conditions or walking across a carpeted floor may cause you

to acquire a static electrical charge.

To protect your device, always:

Touch the metal chassis of your computer to ground the

static electrical charge before you pick up the circuit

device.

Pick up the device by holding it on the left and right edges

only.

If you need to use an outdoor device to connect to this

device with cable, then you need to add an arrester on the

cable between outdoor device and this device.

Fig. Add an arrester between outdoor device and this

switch

Supports SFP manufactured by Vigitron and others

conforming to MSA standards. Differences between

manufacturers may result in difference in performance or

provided information.

NOTE: The switch is an indoor device. If it will be used in an

outdoor environment or connected with an outdoor device,

then a lightning arrester must be used to protect the switch.

Publication

Revision History

WARNING:

Self-demolition on this product is strictly prohibited.

Damages caused by self-demolition will be charged for

repairing fees.

Do not place product outdoor or in a sandstorm.

Before installation, please make sure input the power

supply and product specifications are compatible to each

other.

To reduce the risk of electric shock. Disconnect all AC or

DC power cords and RPS cables to completely remove

power from the unit.

Before importing / exporting configuration, please make

sure the firmware version is always the same.

After the firmware upgrade, the switch will remove the

configuration automatically to latest firmware version.

The following publication gives specific information on how to operation and use the

management functions of the switch:

The User’s Manual

This section summarizes the changes in each revision of this guide.

Introduction

Overview

The Vi3010 PoE switch, next generation network solutions, is an affordable

managed switch that provides a reliable infrastructure for your business network.

These switches deliver more intelligent features you need to improve the

availability of your critical business applications, protect your sensitive information,

and optimize your network bandwidth to deliver information and applications

more effectively. Easy to set up and use, it provides the ideal combination of

affordability and capabilities for entry level networking, including small business or

enterprise application. It also helps you create a more efficient and better-

connected workforce.

The Vi3010 is an easy-implement managed Ethernet switch that provides ideal

flexibility to design suitable network infrastructure for business requirement.

However, unlike other entry-level switching solutions that provide advance

managed network capabilities only in the most expensive models, all of Vigitron’s

series switches support the advanced security management capabilities and

network features to support data, voice, security, and wireless technologies. These

switches are easy to deploy and configure. They provide stable and quality

performance network services your business needs.

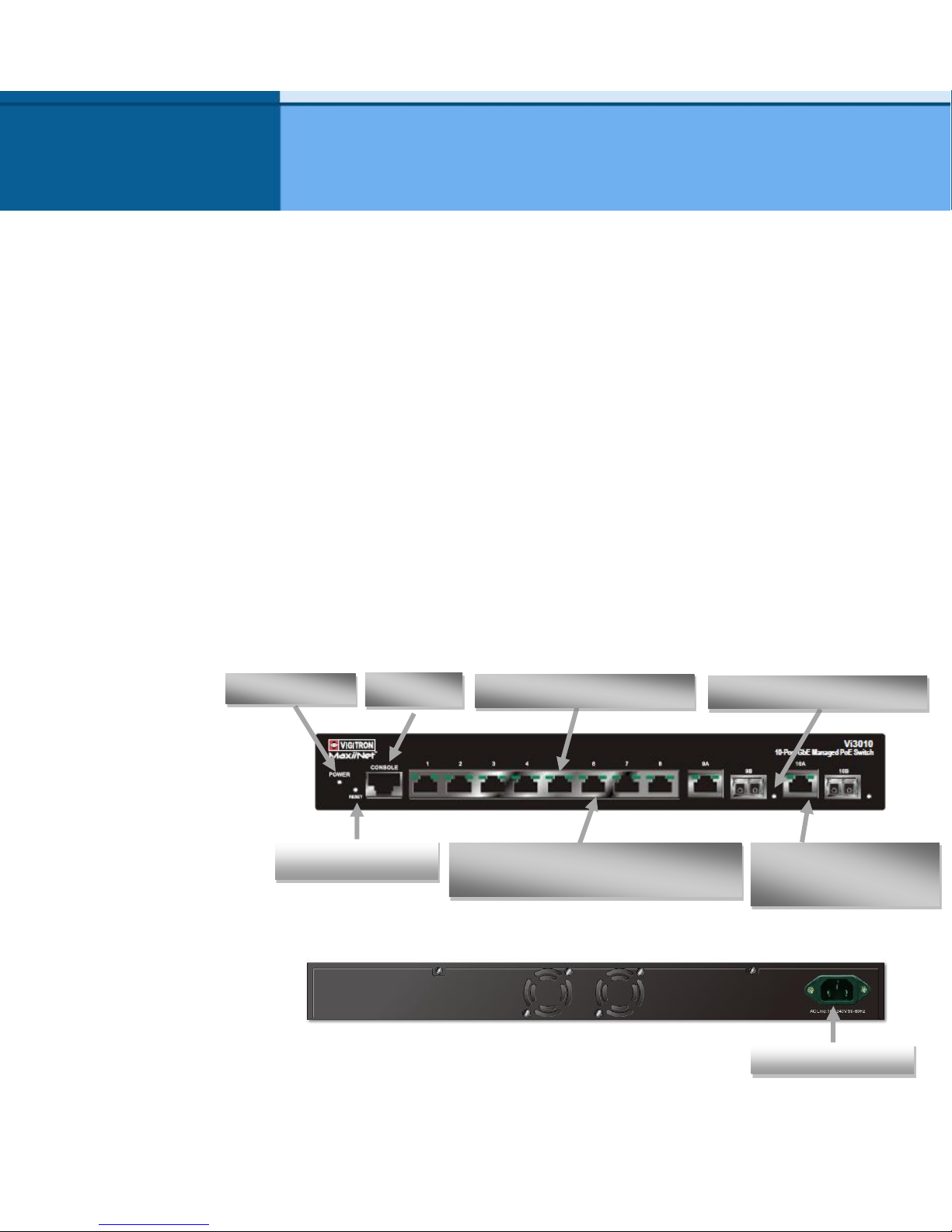

Front of the Switches

Back of the Switches

Power LED

Console

Switch TP Port LEDs

10/100/1G Base-T RJ-45

Ports

Reset/ Default

Switch SFP Port LEDs

TP and 100/1G

SFP Combo Ports

AC Power Cord

Switch

Architecture

Network

Management

Options

The switch performs a wire-speed, non-blocking switching fabric. This allows wire-

speed transport of multiple packets at low latency on all ports simultaneously. The

switch also features full-duplex capability on all ports, which effectively doubles

the bandwidth of each connection.

This switch uses store-and-forward technology to ensure maximum data integrity.

With this technology, the entire packet must be received into a buffer and checked

for validity before being forwarded. This prevents errors from being propagated

throughout the network.

The switch can also be managed over the network with a web browser or a Telnet

application. The switch includes a built-in network management agent that allows

it to be managed in-band by using SNMP or RMON (Groups 1, 2, 3, 9) protocols. It

also has an RJ-45 console port connector on the front panel for out-of-band

management. A PC may be connected to this port for configuration and monitoring

out-of-band via a null-modem serial cable (see Appendix B for wiring options).

NOTE: For a detailed description of the management

features, refer to the user’s manual.

Description of Hardware

1000Base-T Ports

SFP Transceiver

Slots

The switch contains 8/10 1000BASE-T RJ-45 ports. All RJ-45 ports support

automatic MDI/MDI-X operation, auto-negotiation, and IEEE 802.3x auto-

negotiation of flow control, so the optimum data rate, and transmission can be

selected automatically.

Vi3010 supports the Small Form Factor Pluggable (SFP) transceiver slots. The SFP

transceiver slots are shared with RJ-45 port 9 to 10. In the default configuration, if

a SFP transceiver (purchased separately) is installed in a slot and has a valid link on

the port, the associated RJ-45 port is disabled.

The following table shows a list of transceiver types which have been tested with

the switch. For an updated list of vendors supplying these transceivers, contact

your local dealer. For information on the recommended standards for fiber optic

cabling, see “1000 Mbps Gigabit Ethernet Collision Domain” on page 27.

Media

Standard

Fiber

Diameter

(microns)

Wavelength (nm)

Maximum Distance*

1000BASE-SX

50/125

62.5/125

850

550 m

275 m

1000BASE-LX/

LHX/ XD/ZX

9/125

1310

1550

1300

10 km

30.50 km

10 km

1000BASE-LX

Single Fiber

N/A

TX-1310/RX-1550

Tx-1550/RX-1310

20 km

1000BASE-T

N/A

100 m

100-FX

50/125

62.5/125

850

1550

2 km

15km

Table 1: Supported SFP Transceivers

NOTE: *Maximum distance may vary for different SFP

vendors.

Otros manuales para MAXIINET VI3010

Tabla de contenidos

Otros manuales de Cambiar de Vigitron

Vigitron

Vigitron MaxiiNet VI-3003WP Manual de usuario

Vigitron

Vigitron MaxiiPower VI2216LT Manual de usuario

Vigitron

Vigitron MaxiiNet Vi3105 Manual de usuario

Vigitron

Vigitron MaxiiNet Vi3205 Manual de usuario

Vigitron

Vigitron MaxiiNet Vi30005W Manual de usuario

Vigitron

Vigitron MaxiiNet VI3026 Guía de inicio rápido

Vigitron

Vigitron MaxiiNet Vi3305 Manual de usuario

Vigitron

Vigitron MaxiiNet Vi3305 Manual de usuario

Vigitron

Vigitron Vi6208 Manual de usuario

Vigitron

Vigitron Vi6204 Manual de usuario

Vigitron

Vigitron Vi22201 Manual de usuario

Vigitron

Vigitron MaxiiNet Vi30018 Guía de inicio rápido

Vigitron

Vigitron Vi3003W Manual de usuario

Vigitron

Vigitron MaxiiNet Vi30126 Series Manual de usuario

Vigitron

Vigitron MaxiiNet Vi32226 Guía de inicio rápido

Vigitron

Vigitron MaxiiNet Vi3003W Manual de usuario

Vigitron

Vigitron Vi3003 Manual de usuario

Vigitron

Vigitron MaxiiNet Vi3405 Manual de usuario

Vigitron

Vigitron MaxiiNet Vi3005 Manual de usuario

Vigitron

Vigitron MaxiiPower Vi2208A Manual de usuario

Vigitron

Vigitron MaxiiNet Vi3103 Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
