VigilLink VLSW-41H20ER Manual de usuario

VLSW-41H20ER

4x1 HDMI 2.0 Switch with Audio eARC 18Gbps

VER 1.1

Thank you for purchasing this product

Please read these instructions carefully for optimum performance and

safety before connecting, operating, or adjusting this product. Please keep

this manual for future reference.

A surge protection device is recommended.

This product contains sensitive electrical components that electrical spikes

may damage, surges, electric shocks, lightning strikes, etc. The use of

surge protection systems is highly recommended to protect and extend the

life of your equipment.

Table of Contents

Introduction.................................................................................................

Features.......................................................................................................

Package Contents.........................................................................................

Specifications...............................................................................................

Operation Controls and Functions. ...............................................................

5.1.

Front Panel. ........................................................................................

5.2.

Rear Panel. .........................................................................................

IR Remote. ...................................................................................................

Application Example. ...................................................................................

1/6

Introduction

This 18Gbps HDMI 4x1 Switcher can switch any four HDMI sources to one

HDMI display. It supports video resolution up to 4K2K@60Hz RGB/YCbCr

4:4:4. It supports ARC/eARC function (only for the “INPUT 1(eARC)” port),

10bit HDR, and CEC function. It also supports advanced EDID

management (AUTO/2.0CH/5.1CH/7.1CH selectable). Flexible control via

front panel buttons and IR remote control.

Features

☆HDMI 2.0b, HDCP 2.2 / 1.x and DVI 1.0 compliant

☆Video resolution up to 4K2K@60Hz RGB/YCbCr 4:4:4

☆Support 18Gbps video bandwidth

☆Support 3D, HDR, HDR10, HDR10+, Dolby Vision pass-through

☆Supported audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD,

Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master

Audio, DSD

☆Support auto/manual switching mode for input source

☆Support ARC/eARC function

☆Support advanced EDID management (AUTO/2.0CH/5.1CH/7.1CH

selectable)

☆Flexible control via front panel buttons or IR remote control

Package Contents

①1 × 18Gbps HDMI 4x1 Switcher

②1 × 5V/1A Power Adapter (USA Standard)

③1 × IR Remote

④1 × User Manual

2/6

Specifications

Technical

HDMI Compliance

HDMI 2.0b

HDCP Compliance

HDCP 2.2 / 1.x

Video Bandwidth

18 Gbps

Video Resolution

4Kx2K@24/30Hz, 4K2K@60Hz

Color Space RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0

Color Depth

8-bit, 10-bit, 12-bit (1080p@60Hz)

8-bit (4K2K@60Hz YUV4:4:4)

8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2 / 4:2:0)

HDMI Audio Formats

LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos,

DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master

Audio, DSD

HDR

Support HDR, HDR 10, HDR 10+, and Dolby vision

ESD Protection

Human-body Model: ±8kV (Air-gap discharge),

±4kV (Contact discharge)

Connection

Input

4×HDMI IN [Type A 19-pin female]

Output 1×HDMI OUT [Type A 19-pin female]

Control

1×SERVICE [Micro USB port]

Mechanical

Housing

Metal Enclosure

Color

Black

Dimensions

182mm(W) × 84mm(D) × 15.5mm(H)

Weight

370g

Power Supply

Input: AC100~240V 50/60Hz

Output: DC 5V/1A

Power Consumption

(

Max

)

Operating

Temperature 0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature

-20°C ~ 60°C / -4°F ~ 140°F

Relative Humidity

20~90% RH (non-condensing)

3/6

Operation Controls and Functions

5.1

Front Panel

AUTO IN 1 IN 2 IN 3 IN 4

AUTO 2.0 5.1 7.1

eARC

AUTO

NPUT EDID eARC ON/OFF

No.

Name

Function Description

1AUTO LED

When the auto-switching mode for the input source is

enabled, the AUTO LED is on.

2IN 1/2/3/4 LED

When the INPUT 1/2/3/4 port is connected to the

source signal, the corresponding IN 1/2/3/4 LED is

on.

AUTO/INPUT

button

Press this button to switch the input source's auto/manual

switching mode. When you hold this button for 2 seconds,

the device switches to the auto-switching mode, and the

AUTO LED is on. Press and hold this button for 2

seconds again, the device switches to the manual switching

mode, then you can tap this button 1/2/3/4 times to select

the input source for the INPUT 1/2/3/4 port, and the

corresponding IN 1/2/3/4 LED will be on.

Note: The device can detect signal source automatic lathe

lly in auto-switching mode. When one or several input

ports are connected to source devices, the output port will

output the signal from the last connected input source.

4EDID button and

status LED

Press the button to select EDID mode: AUTO/2.0/5.1/7.1

(AUTO means using TV EDID), and the corresponding

LED will be on.

5eARC button

and LED

Press the button to turn on/off ARC/eARC function. The

eARC LED will be on when you turn on the ARC/eARC

function.

6IR

IR receiver window. It only receives IR remote signal from

this product.

4/6

ARC

Press this button to turn on/off ARC/eARC

function. When ARC/eARC function is turned

on, the eARC LED on the front panel will be on.

Auto

2.0ch

Press these buttons to select different EDID

5.1ch

settings, and the corresponding LED on the

front panel will be on.

7.1ch

Auto

Source

Press this button to select auto switching or

manual switching mode.

In1

In2

In manual switching mode, press these buttons

In3

to select the input port.

In4

SERVICE DC 5V

OUTPUT (eARC)

INPUT 4

INPUT 3

INPUT 2

INPUT 1(eARC)

ARC

Auto 2.0ch

In1

In2 In3

Auto

Source

In4

5.1ch

7.1ch

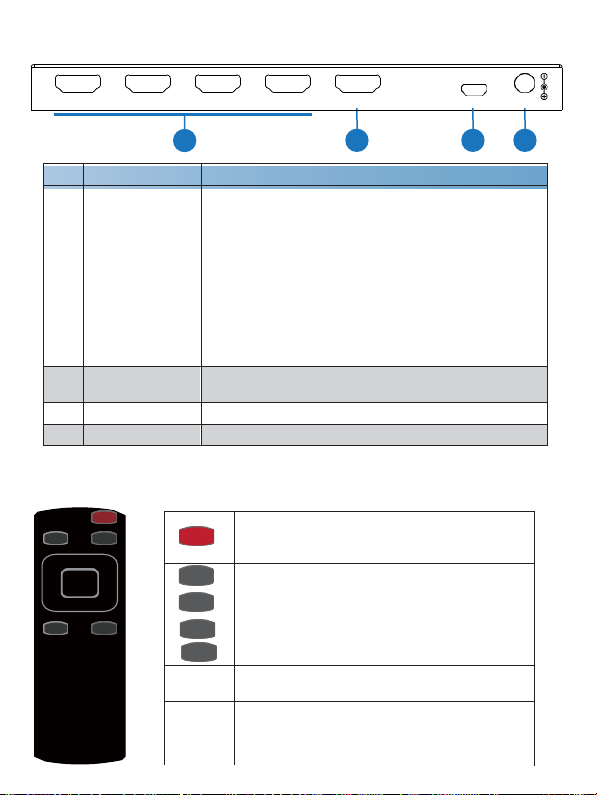

5.2

Rear Panel

No.

Name

Function Description

INPUT 1/2/3/4

port

HDMI input ports connect to HDMI source devices

such as DVDs, PS4, or Set-top boxes with HDMI

cables.

Note: When the ARC/eARC function is turned off,

connect the “INPUT 1(eARC)” port to the

HDMI source

device to work as a signal input port; When the ARC/

eARC function is turned on, connect the “INPUT 1

(eARC)” port to a Soundbar or amplifier to output the

audio signal extracted from “INPUT 2/3/4” port or

“OUTPUT (eARC)” port. Please refer to “7. Application

Example” for details.

2OUTPUT (eARC)

HDMI output port, connect to HDMI display device such

as HDTV or Projector with HDMI cable.

SERVICE

Firmware update port.

DC 5V

DC 5V power input port.

IR Remote

5/6

Application Example

Situation 1

When the ARC/eARC function is turned off, the connection diagram is as follows.

6/6

Situation 2

When the ARC/eARC function is turned on, select the input port 1 by pressing the “AUTO/

INPUT” button on the front panel or the In1 button on the IR remote, then connect the

“INPUT 1(eARC)” port to a Soundbar to output the audio signal returned from the

“OUTPUT (eARC)” port, as shown in the figure below. (For example, when a user watches

a TV APP, the Switcher will pass through TV eARC/ARC to the Soundbar.)

Note: If the HDTV supports ARC/eARC function, the Soundbar will receive the audio

signal returned from the HDTV and then emit the sound; otherwise, it will not emit sound.

7/6

Situation 3

When the ARC/eARC function is turned on, select the input port 2/3/4 by pressing the

“AUTO/INPUT” button on the front panel or the In2/3/4 button on the IR remote, then

connect the “INPUT 1(eARC)” port to a Soundbar to output the audio signal extracted

from “INPUTS 2/3/4” port, as shown below.

Note: Whether the HDTV supports ARC/eARC function, the Soundbar will receive the

audio signal extracted from the “INPUTS 2/3/4” port and then emit the sound.

HDMI and HDMI High-Definition Multimedia interface and the HDMI Logo are

trademarks or registered trademarks of HDMI Licensing LLC in the United States

and other countries.
