ViewSonic VS18289 Manual de usuario

PD1631

PD1631T

Pen Display

User Guide

Model No. VS18289

P/N: PD1631 | PD1631T

IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in

a safe manner, as well as registering your product for future service. Warranty information contained in this User

Guide will describe your limited coverage from ViewSonic®Corporation, which is also found on our web site at

http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right

corner of our website.

Thank you for choosing ViewSonic®

As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding

the world’s expectations for technological evolution, innovation, and simplicity.

At ViewSonic®, we believe that our products have the potential to make a positive

impact in the world, and we are confident that the ViewSonic® product you have

chosen will serve you well.

Once again, thank you for choosing ViewSonic®!

Safety Precautions

Please read the following  before you start using the device.

• Keep this user guide in a safe place for later reference.

• Read all warnings and follow all instrucons.

• Allow at least 4" (10 cm) clearance around the device to ensure proper

venlaon.

• Place the device in a well-venlated area. Do not place anything on the device

that prevents heat dissipaon.

• Do not use the device near water. To reduce the risk of re or electric shock, do

not expose the device to moisture.

• Avoid exposing the device to direct sunlight or other sources of sustained heat.

• Do not install near any heat sources such as radiators, heat registers, stoves, or

other devices (including ampliers) that may increase the temperature of the

device to dangerous levels.

• Use a so, dry cloth to clean the external housing. Please see the "Maintenance"

secon for more informaon.

• Oil may collect on the screen if you touch it. Please see the "Maintenance"

secon for more informaon.

• Do not touch the screen surface with sharp or hard objects, as it may cause

damage to the screen. Only use the supplied pen, or ngers for models that

support touch input.

• When moving the device, be careful not to drop or bump the device on anything.

• Do not place the device on an uneven or unstable surface. The device may fall

over resulng in an injury or a malfuncon.

• Do not place any heavy objects on the device or connecon cables.

• If smoke, an abnormal noise, or a strange odor is present, immediately turn the

device o and call your dealer or ViewSonic®. It is dangerous to connue using

the device.

• When connecng to a power outlet, DO NOT remove the grounding prong.

Please ensure grounding prongs are NEVER REMOVED.

• Protect the power cord from being treaded upon or pinched, parcularly at the

plug, and at the point where it emerges from the equipment. Ensure that the

power outlet is located near the equipment so that it is easily accessible.

• Only use aachments/accessories specied by the manufacturer.

• Disconnect the device if it is not going to be used for a long period of me.

Contents

Safety Precautions....................................................... 3

Introduction ................................................................ 6

Package Contents ...................................................................................................6

Product Overview...................................................................................................7

Initial Setup................................................................. 8

Making Connections.................................................... 9

Installing Drivers and Software...............................................................................9

Pen Display Driver ................................................................................................... 9

Connecting to Power ............................................................................................10

Connecting External Devices ................................................................................11

HDMI Connection.................................................................................................. 11

Audio Connection.................................................................................................. 12

VGA Connection .................................................................................................... 13

USB Connection..................................................................................................... 14

Touch Function Control......................................................................................... 15

Using the Pen Display................................................ 16

Adjusting the Viewing Angle.................................................................................16

Tilt Angle Adjustment............................................................................................ 16

Turning the Device On/Off ...................................................................................17

Using the Control Panel Keys................................................................................17

On-Screen Display (OSD) Menu............................................................................18

Hot Keys ................................................................................................................ 19

Configuring the Settings .......................................................................................21

General Operations............................................................................................... 21

On-Screen Display (OSD) Menu Tree .................................................................... 23

Pen Input Area Mapping.......................................................................................25

Appendix................................................................... 27

Specifications........................................................................................................27

Pen ........................................................................................................................ 28

Product Dimensions .............................................................................................29

Troubleshooting ...................................................................................................30

Pen ........................................................................................................................ 30

Maintenance.........................................................................................................31

General Precautions.............................................................................................. 31

Cleaning the Screen............................................................................................... 31

Cleaning the Case.................................................................................................. 31

Replacing a Pen Nib..............................................................................................32

Regulatory and Service Information .......................... 33

Compliance Information.......................................................................................33

FCC Compliance Statement................................................................................... 33

Industry Canada Statement................................................................................... 33

CE Conformity for European Countries ................................................................. 33

Declaration of RoHS2 Compliance......................................................................... 34

Indian Restriction of Hazardous Substances ......................................................... 35

Product Disposal at End of Product Life................................................................ 35

Customer Service .................................................................................................. 37

Limited Warranty .................................................................................................. 38

Mexico Limited Warranty...................................................................................... 41

Introduction

Package Contents

Pen Display HDMI cable (1.5 m) Pen Replacement Pen

nib x 3

Power Cord Nib removal tool USB Cable (1.8 m) AC/DC Power

Adapter

Pen Display

PD1631T

Quick Start Guide

クイックスタートガイド

Aan de slag

Pika-aloitusopas

Guide de démarrage rapide

Schnellstarthandbuch

Guida introduttiva

Przewodnik Szybki start

Guia de Início Rápido

Guía de inicio rápido

Snabbstartsguide

Panduan Mulai Cepat

Quick Start Guide

The contents included in your package may vary depending on your

country. Please contact your local reseller for more informaon.

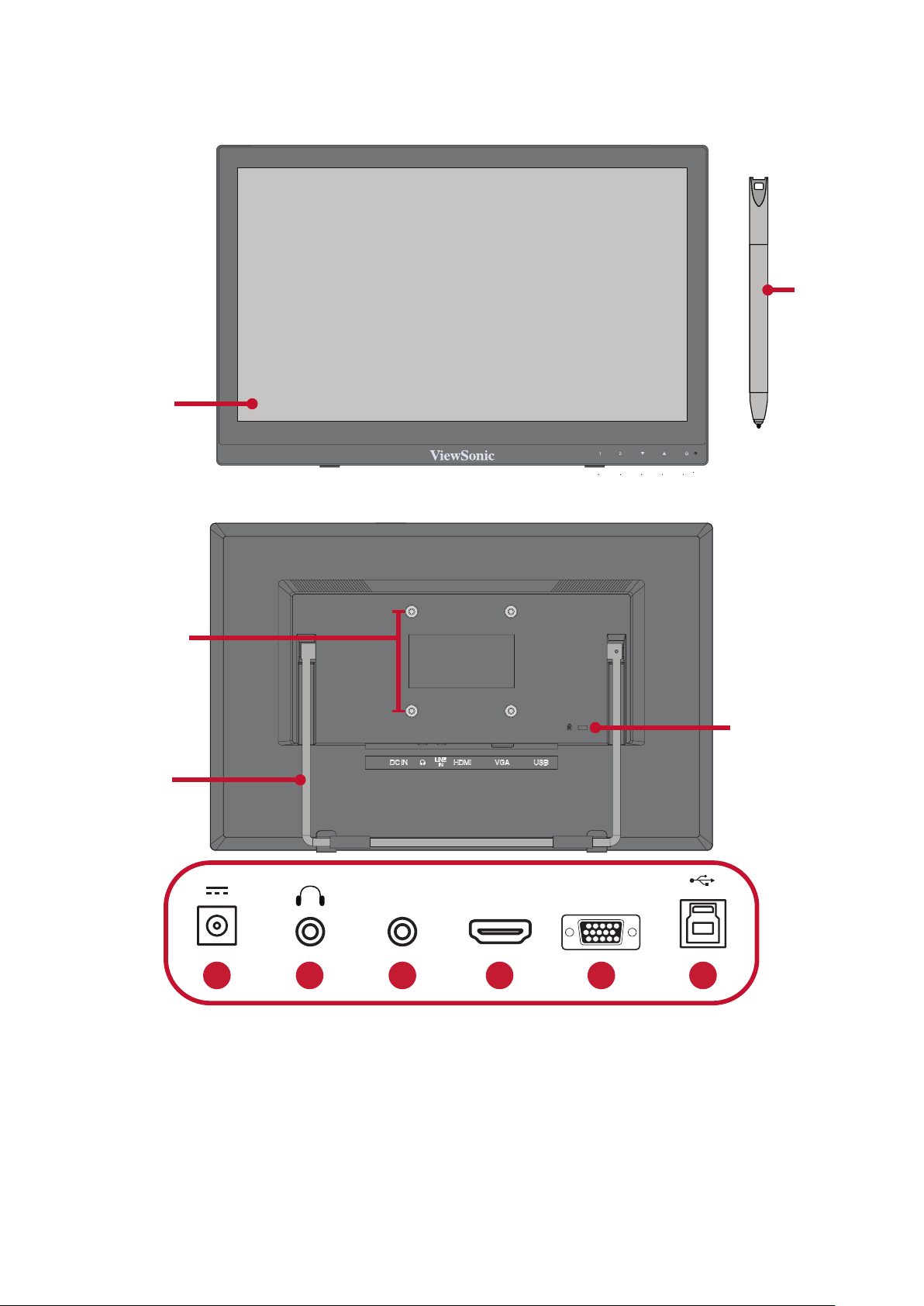

Product Overview

Front View

Rear View

HDMI

LINE

5 6

1 2 3 4

VGA

1. DC IN 2. Audio In 3. Audio Out

4. HDMI 5. VGA 6. USB Upstream

For more informaon about the 1/2/▲/▼key and its funcons, refer to “Hot Keys”

on page 19.

Display

Screen

Security Lock

Slot

Adjustable

Stand

Wall Mounng

Points

Pen





Refer to the table below for the standard dimensions for wall mount kits.

For use only with a UL cered wall mount kit/bracket. To obtain a wall-

mounng kit or height adjustment base, contact ViewSonic® or your

local dealer.

Maximum



(W x H)

Interface Pad

(W x H x D) Pad Hole 



14 kg 75 x 75 mm 115 x 115 x 2.6 mm Ø 5 mm M4 x 10 mm

4 pieces

Wall mount kits are sold separately.

1. Turn o the device and disconnect all cables.

2. Place the device on a at, stable surface with the screen facing down.

3. Aach the mounng bracket to the VESA mounng holes at the rear of the

display. Then secure it with four (4) screws (M4 x 10 mm).

75 mm

4. Follow the instrucons that come with the wall mounng kit to mount the

display.

75 mm





System Requirements:

Operang system: Windows XP/7/8/10 (32/64 bit)

PC I/O: USB 2.0/above

Before connecng and using the pen display, it is necessary to install the below

soware. The soware can be downloaded at:

hp://www.viewsonicglobal.com/q/PD1631

Pen Display Driver

1. Open the ViewSign Console installaon le and install the driver.

2. Aer the installaon completes, you will need to restart the computer.

For further ViewSign Console informaon, please visit:

hps://manuals.viewsonic.com/ViewSign_Soware

1010



1. Connect the power cord to the power adapter.

2. Connect the power adapter to the DC IN jack at the rear of the display.

3. Connect the power cord to a power outlet.
