ViewSonic PD1010 Manual de usuario

PD1010

Pen Display

User Guide

Model No. VS15039

For U.S.A.

This device complies with part 15 of FCC Rules. Operation is subject to

the following two conditions: (1) this device may not cause harmful interfer-

ence, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses, and can radi-

ate radio frequency energy, and if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particu-

lar installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

yReorient or relocate the receiving antenna.

yIncrease the separation between the equipment and receiver.

yConnect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

yConsult the dealer or an experienced radio/TV technician for help.

Warning: You are cautioned that changes or modications not expressly

approved by the party responsible for compliance could void your authority

to operate the equipment.

For Canada

CAN ICES-3 (B)/NMB-3(B)

Compliance Information

CE Conformity for European Countries

The device complies with the EMC Directive 2004/108/EC

and Low Voltage Directive 2006/95/EC.

Following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electri-

cal and Electronic Equipment Directive 2002/96/EC (WEEE).

The mark indicates the requirement NOT to dispose the equipment as

unsorted municipal waste, but use the return and collection systems

according to local law.

If the batteries, accumulators and button cells included with this

equipment, display the chemical symbol Hg, Cd, or Pb, then it means

that the battery has a heavy metal content of more than 0.0005%

Mercury or more than, 0.002% Cadmium, or more than 0.004% Lead.

iii

Important Safety Instructions

1. DO NOT place objects on top of the device, as objects may scratch the

screen.

2. DO NOT expose the device to dirty or dusty environments.

3. DO NOT place the device on an uneven or unstable surface.

4. DO NOT insert any foreign objects into the device.

5. DO NOT expose the device to strong magnetic or electrical eld.

6. DO NOT expose the device to direct sunlight as it can damage the LCD

Screen. Keep it away from heat sources.

7. DO NOT use the device in the rain.

8. Please check with your Local Authority or retailer for proper disposal of

electronic products.

9. The device may produce some heat during normal operation or

charging. To prevent discomfort or injury from heat exposure, DO NOT

leave the device on your lap.

10.POWER INPUT RATING: Refer to the rating label on the device. Only

use accessories specied by the manufacturer.

11.DO NOT use any sharp object to tap the screen.

12.Clean the touch screen with a soft cloth. If needed, dampen the cloth

slightly before cleaning. Never use abrasives or cleaning solutions.

13.Disconnect the device from an electrical outlet and power off before

cleaning the device.

14.DO NOT disassemble the device. Only a certied service technician

should perform repair.

15.Users have to use the connection to USB interfaces with USB 2.0

version or higher.

Declaration of RoHS Compliance

This product has been designed and manufactured in compliance with Di-

rective 2011/65/EU of the European Parliament and the Council on restric-

tion of the use of certain hazardous substances in electrical and electronic

equipment (RoHS Directive) and is deemed to comply with the maximum

concentration values issued by the European Technical Adaptation Commit-

tee (TAC) as shown below:

Substance Proposed Maximum

Concentration

Actual

Concentration

Lead (Pb) 0.1% < 0.1%

Mercury (Hg) 0.1% < 0.1%

Cadmium (Cd) 0.01% < 0.01%

Hexavalent Chromium

(Cr6+)0.1% < 0.1%

Polybrominated biphenyls

(PBB) 0.1% < 0.1%

Polybrominated diphenyl

ethers (PBDE) 0.1% < 0.1%

Certain components of products as stated above are exempted under the

Annex of the RoHS Directives as noted below:

Examples of exempted components are:

1. Mercury in compact uorescent lamps not exceeding 5 mg per lamp and

in other lamps not specically mentioned in the Annex of RoHS Direc-

tive.

2. Lead in glass of cathode ray tubes, electronic components, uorescent

tubes, and electronic ceramic parts (e.g. piezoelectronic devices).

3. Lead in high temperature type solders (i.e. lead-based alloys containing

85% by weight or more lead).

4. Lead as an allotting element in steel containing up to 0.35% lead by

weight, aluminium containing up to 0.4% lead by weight and as a cooper

alloy containing up to 4% lead by weight.

ViewSonic and the three birds logo are registered trademarks of ViewSonic

Corporation.

Disclaimer: ViewSonic Corporation shall not be liable for technical or edito-

rial errors or omissions contained herein; nor for incidental or consequential

damages resulting from furnishing this material, or the performance or use of

this product.

In the interest of continuing product improvement, ViewSonic Corporation

reserves the right to change product specications without notice. Informa-

tion in this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any

means, for any purpose without prior written permission from ViewSonic

Corporation.

Product Registration

To meet your future needs, and to receive any additional product informa-

tion as it becomes available, please register your product on the Internet at:

www.viewsonic.com.

For Your Records

Product Name: PD1010

ViewSonic Pen Display

Model Number: VS15039

Document Number: PD1010_UG_ENG Rev. 1A 03-28-13

Serial Number: ____________________________________

Purchase Date: ____________________________________

Product disposal at end of product life

ViewSonic respects the environment and is committed to working and living

green. Thank you for being part of Smarter, Greener Computing. Please visit

ViewSonic website to learn more.

USA & Canada: http://www.viewsonic.com/company/green/recycle-program/

Europe: http://www.viewsoniceurope.com/uk/support/recycling-information/

Taiwan: http://recycle.epa.gov.tw/recycle/index2.aspx

Contents

Compliance Information............................................................ i

Important Safety Instructions.................................................. iii

Declaration of RoHS Compliance........................................... iv

Product Registration................................................................ v

1. Introduction.......................................................................... 1

1.1 Packing List ..................................................................................... 1

1.2 Product Overview ............................................................................ 1

2. Installing and setup.............................................................. 3

2.1 Drivers Installing.............................................................................. 3

2.2 Display area setup........................................................................... 6

2.3 Handwriting Area Mapping .............................................................. 7

2.4 Additional Touch Function Settings ................................................. 9

3. Troubleshooting.................................................................11

3.1 Monitor problems........................................................................... 11

3.2 Interactive Pen Problems .............................................................. 12

4. Product Specication.........................................................13

4.1 Monitor .......................................................................................... 13

4.2 Interactive Pen .............................................................................. 14

5. Appendix............................................................................15

5.1 Replacing the Pen tip .................................................................... 15

Customer Support .................................................................16

Limited Warranty ...................................................................17

1. Introduction

1.1 Packing List

After unpacking, make sure that all of the following contents are included:

Pen Display

Pen Kits Package (including pen tip and stand)

USB Cable

Quick Start Guide

Driver and Software CD

If there is a defect or missing part, please contact the agency where you

purchased the product.

1.2 Product Overview

1.2.1 Front and Side View

①Display and pen touch area

②USB port: Signal input and power

③Control key buttons: Screen power, Brightness up, and Brightness

down.

④Power indication: Red for screen off; Amber for initiation; Green for

screen on.

⑤Kensington lock

1.2.2 Rear View

⑥Stand (x2)

⑦Foot rubber (x5)

⑧Interactive pen holder strap

⑨Rear label

Caution: Avoid the risk of electric shock. Do not open the shell by yourself..

Please contact maintenance personnel if any problem countered.

1.2.3 Interactive Pen

Interactive pen uses the electromagnetic resonance technology, and is

battery free.

2. Installing and setup

2.1 Drivers Installing

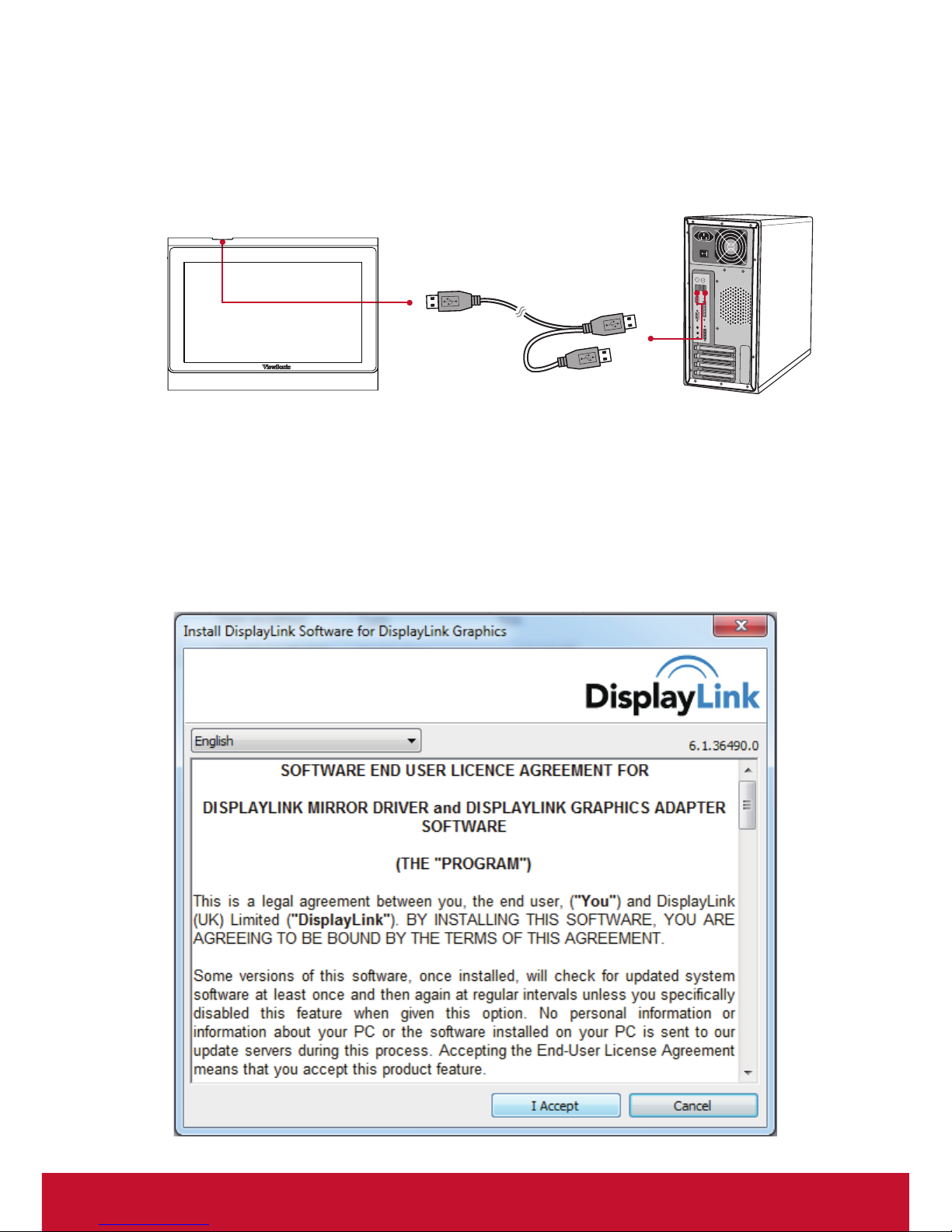

Connect the device with PC/ NB through the supplied USB cable as

below. The screen is black and the LED indicator shows red.

Note: When connecting the device to a PC/NB, plug in both of the USB

connectors to make sure there is sufcient power.

2.1.1 Install driver and software for DisplayLink Graphics

1) Open Drivers and Bundled Software CD, and click "DisplayLink-xx.

exe" to start the installation on Windows or "Displaylink Installer-

xx.dmg" on Mac OS.
