ViewSonic OptiSync VX710 Manual de usuario

ViewSonic®

- User Guide

- Guide de l'utilisateur

- Bedienungsanleitung

- Guía del usuario

- Guida dell'utente

- Guia do usuário

- Användarhandbok

- Käyttöopas

- Podręcznik użytkownika

- Használati útmutató

- Pyководство польэователя

- Uživatelská píruka

- ユーザーズガイド

- 使用手冊

- 사용자 안내서

VX710

LCD Display

ViewSonic VX710

Contents

Compliance Information.............................................................................. 1

Important Safety Instructions...................................................................... 2

Product Registration................................................................................... 3

Getting Started

Package Contents ...................................................................................... 4

Precautions ................................................................................................ 4

Quick Installation ........................................................................................ 5

Wall Mounting (Optional) ............................................................................ 6

Using the LCD Display

Setting the Timing Mode............................................................................. 7

OSD and Power Lock Settings................................................................... 7

Adjusting the Screen Image ....................................................................... 8

Main Menu Controls ................................................................................. 10

Other Information

Specifications ........................................................................................... 14

Troubleshooting........................................................................................ 15

Customer Support .................................................................................... 16

Cleaning the LCD Display ........................................................................ 17

Limited Warranty ...................................................................................... 18

ViewSonic VX710 1

Compliance Information

For U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses, and can radiate radio frequency energy, and if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Warning

To assure continued FCC compliance, the user must use grounded power supply cord and the

cables which are included with the equipment or specified. Also, any unauthorized changes or

modifications not expressly approved by the party responsible for compliance could void the

user's authority to operate this device.

For Canada

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing

Equipment Regulations.

Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le

matériel brouilleur du Canada.

For European Countries

CE Conformity

The device complies with the requirements of the EEC directive 89/336/EEC as

amended by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic

compatibility,” and 73/23/EEC as amended by 93/68/EEC Art.13 with regard to

“Safety.”

User Information for all Countries

Notice: Use the cables which are included with the unit or specified.

ViewSonic VX710 2

Important Safety Instructions

1. Read these instructions completely before using the equipment.

2. Keep these instructions in a safe place.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this equipment near water.

6. Clean with a soft, dry cloth. If further cleaning is required, see “Cleaning the Display” in

this guide for further instructions.

7. Do not block any ventilation openings. Install the equipment in accordance with the

manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other

devices (including amplifiers) that produce heat.

9. Do not attempt to circumvent the safety provisions of the polarized or grounding-type

plug. A polarized plug has two blades with one wider than the other. A grounding type

plug has two blades and a third grounding prong. The wide blade and the third prong are

provided for your safety. If the plug does not fit into your outlet, consult an electrician for

replacement of the outlet.

10. Protect the power cord from being tread upon or pinched, particularly at the plug, and the

point where if emerges from the equipment. Be sure that the power outlet is located near

the equipment so that it is easily accessible.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or

sold with the equipment. When a cart is used, use caution when moving the cart/

equipment combination to avoid injury from tipping over.

13. Unplug this equipment when it will be unused for long periods of time.

14. Refer all servicing to qualified service personnel. Service is required when the unit has

been damaged in any way, such as: if the power-supply cord or plug is damaged, if liquid

is spilled onto or objects fall into the unit, if the unit is exposed to rain or moisture, or if

the unit does not operate normally or has been dropped.

ViewSonic VX710 3

Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.

Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of

Microsoft Corporation in the United States and other countries.

ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered

trademarks of ViewSonic Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS and

DDC are trademarks of VESA.

ENERGY STAR®is a registered trademark of the U.S. Environmental Protection Agency (EPA).

As an ENERGY STAR®partner, ViewSonic Corporation has determined that this product meets

the ENERGY STAR®guidelines for energy efficiency.

Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or

omissions contained herein; nor for incidental or consequential damages resulting from

furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves the right

to change product specifications without notice. Information in this document may change

without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any

purpose without prior written permission from ViewSonic Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it becomes

available, please register your product on the Internet at: www.viewsonic.com. The ViewSonic

Wizard CD-ROM also provides an opportunity for you to print the registration form, which

you may mail or fax to ViewSonic.

Product disposal at end of product life

ViewSonic is concerned about the preservation of our environment. Please dispose of this

product properly at the end of its useful life. For TCO'03 recycling information, please refer to

our website:

1. USA: www.viewsonic.com/pdf/recyclePlus.pdf

2. Europe: www.viewsoniceurope.com

3. Taiwan: recycle.epa.gov.tw

For Your Records

Product Name:

Model Number:

Document Number:

Serial Number:

Purchase Date:

VX710

ViewSonic 17” LCD Display

VS10049

VX710-1_UG_ENG Rev. 1E 02-18-05

______________________________

ViewSonic VX710 4

Getting Started

Congratulations on your purchase of a ViewSonic®LCD display.

Important! Save the original box and all packing material for future shipping needs.

NOTE: The word “Windows” in this user guide refers to the following Microsoft operating

systems: Windows ‘95, Windows NT, Windows ‘98, Windows 2000, Windows Me

(Millennium), and Windows XP.

Package Contents

Your LCD display package includes:

• LCD display

• Power cord

• Video cable

• ViewSonic Wizard CD-ROM

• Quick Start Guide

NOTE: The CD includes the User Guide PDF files and INF/ICM display optimization files.

The INF file ensures compatibility with Windows operating systems, and the ICM file (Image

Color Matching) ensures accurate on-screen colors. ViewSonic recommends that you install

both the INF and ICM files.

Precautions

• Sit at least 18” from your LCD display.

•Avoid touching the screen. Skin oils are

difficult to remove.

•Never remove the rear cover. Your LCD

display contains high-voltage parts. You

may be seriously injured if you touch

them.

• Avoid exposing your LCD display to direct

sunlight or another heat source. Orient

your LCD display away from direct

sunlight to reduce glare.

• Always handle your LCD display with

care when moving it.

• Place your LCD display in a well

ventilated area. Do not place anything on

your LCD display that prevents heat

dissipation.

• Ensure the area around the LCD display is

clean and free of moisture.

• Do not place heavy objects on the LCD

display, video cable, or power cord.

• If smoke, an abnormal noise, or a strange

odor is present, immediately switch the

LCD display off and call your dealer or

ViewSonic. It is dangerous to continue

using the LCD display.

• Do not rub or apply pressure to the LCD

panel, as it may permanently damage the

screen.

ViewSonic VX710 5

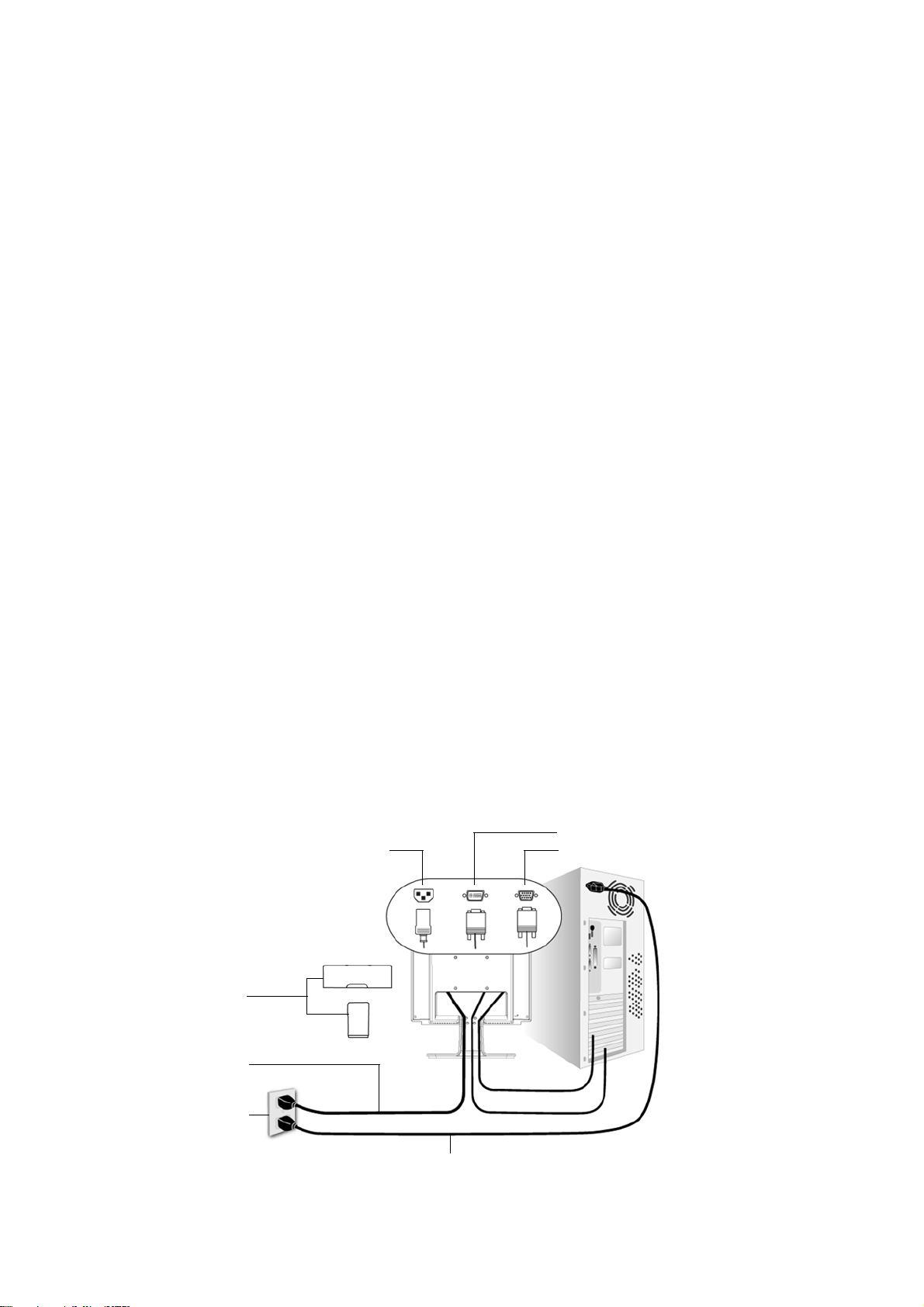

Quick Installation

1. Remove two rear panel covers

2. Connect power cord (and AC/DC

adapter if required)

3. Connect video cable

• Make sure both the LCD display and

computer are turned OFF.

• Connect the video cable from the LCD

display to the computer.

Macintosh users: Models older than G3

require a Macintosh adapter. Attach the

adapter to the computer and plug the video

cable into the adapter.

To order a ViewSonic®Macintosh adapter,

contact ViewSonic Customer Support.

4. Turn ON LCD Display and computer

Turn ON the LCD display, then turn ON

the computer. This sequence (LCD display

before computer) is important.

NOTE: Windows users may receive a

message asking them to install the INF

file. This is on the CD.

5. Insert the ViewSonic Wizard CD into

the computer’s CD drive.

Follow the on-screen instructions. If your

computer does not have a CD-ROM drive,

see “Customer Support” on page 16.

• Wait for the CD-ROM to auto-start.

NOTE: If the CD-ROM does not auto-

start: double-click on the CD-ROM icon in

the Windows Explorer, then double-click

on viewsonic.exe.

• Follow the on-screen instructions.

6. Windows users: Set the timing mode

(resolution and refresh rate)

Example: 1280 x 1024 @ 60 Hz.

For instructions on changing the resolution

and refresh rate, see the graphic card’s user

guide.

Installation is complete. Enjoy your new

ViewSonic LCD display.

To be best prepared for any future

customer service needs: print this user

guide and write the serial number in “For

Your Records” on page 3. (See back of

LCD display.)

You can register your product online at the

ViewSonic website for your region. See

the Customer Support table in this guide.

The ViewSonic Wizard CD-ROM also

provides an opportunity for you to print

the registration form which you may mail

or fax to ViewSonic.

AC IN

DVI

D-SUB

Power Code

AC Outlet

(Wall Socket)

Computer Power Cord

Rear panel

cover

ViewSonic VX710 6

Wall Mounting (Optional)

To obtain a wall-mounting kit, contact ViewSonic®or your local dealer. Refer to the

instructions that come with the base mounting kit. To convert your LCD display from a desk-

mounted to a wall-mounted display, do the following:

1. Verify that the Power button is turned OFF, then disconnect the power cord.

2. Lay the LCD display face down on a towel or blanket.

3. Remove the rear panel covers from the back of the LCD display.

4. Remove the four screws attaching the base.

5. Remove the Rubber Plugs from inside the four VESA screw holes.

6. Attach the mounting bracket from the VESA compatible wall mounting kit (100 mm x 100

mm distance).

7. Attach the LCD display to the wall, following the instructions in the wall-mounting kit.

Four VESA

screw holes

Four base screws

Rear panel

covers

ViewSonic VX710 7

Using the LCD Display

Setting the Timing Mode

Setting the timing mode is important for maximizing the quality of the screen image and

minimizing eye strain. The timing mode consists of the resolution (example 1280 x 1024) and

refresh rate (or vertical frequency; example 60 Hz). After setting the timing mode, use the

OSD (On Screen Display) controls to adjust the screen image.

For the best picture quality set your LCD display timing mode to:

VESA 1280 x 1024 @ 60Hz.

To set the Timing Mode:

1. Set the resolution: Right-click on the Windows desktop > Properties > Settings > set the

resolution.

2. Set the refresh rate: See your graphic card's user guide for instructions.

WA R N IN G : Do not set the graphics card in your computer to exceed a resolution of 1280 x

1024@75Hz or the maximum refresh rate of 85Hz at lower resolutions; doing so may result in

permanent damage to your LCD display.

OSD and Power Lock Settings

•OSD Lock: Press and hold [1] and the up arrowSfor 10 seconds. If any buttons are pressed

the message OSD Locked will display for few seconds.

•OSD Unlock: Press and hold [1] and the up arrowSagain for 10 seconds.

•Power Button Lock: Press and hold [1] and the down arrowTfor 10 seconds. If the power

button is pressed the message Power Button Locked will display for few seconds. With or

without this setting, after a power failure, your LCD display’s power will automatically turn

ON when power is restored.

•Power Button Unlock: Press and hold [1] and the down arrowTagain for 10 seconds.

ViewSonic VX710 8

Adjusting the Screen Image

Use the buttons on the front control panel to display and adjust the OSD controls which display

on the screen. The OSD controls are explained at the top of the next page and are defined in

“Main Menu Controls” on page 10.

Main Menu

with OSD controls

Front Control Panel

shown below in detail

Scrolls through menu options and adjusts the

displayed control.

Also a shortcut to display the Contrast adjustment

control screen.

Displays the control screen for the

highlighted control.

Also toggles between two controls on

some screens.

Also a shortcut to toggle analog and

digital connection.

Power light

Green = ON

Orange = Power Saving

Power On/Off

Displays the Main

Menu or exits the

control screen

and saves

adjustments.

Otros manuales para OptiSync VX710

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Monitor de ViewSonic

ViewSonic

ViewSonic VX1962wm - 19" LCD Monitor Guía de inicio rápido

ViewSonic

ViewSonic P75F+ Manual de usuario

ViewSonic

ViewSonic Optiquest Q110 Manual de usuario

ViewSonic

ViewSonic Optiquest Q7 VS10807 Manual de usuario

ViewSonic

ViewSonic VS18702 Manual de usuario

ViewSonic

ViewSonic G90f Manual de usuario

ViewSonic

ViewSonic VX2025wm VS10859 Manual de usuario

ViewSonic

ViewSonic EP1032r-T Manual de usuario

ViewSonic

ViewSonic VA930M - 19" LCD Monitor Manual de usuario

ViewSonic

ViewSonic VG2228WM-LED Manual de usuario

ViewSonic

ViewSonic VX2265wm - FuHzion - 22" LCD Monitor Manual de usuario

ViewSonic

ViewSonic VG2401mh Manual de usuario

ViewSonic

ViewSonic VA2435-h Manual de usuario

ViewSonic

ViewSonic P774B-2NT Series Manual de usuario

ViewSonic

ViewSonic VS17774 Manual de usuario

ViewSonic

ViewSonic VX724-1 VS10049 Manual de usuario

ViewSonic

ViewSonic CDE5510 Manual de usuario

ViewSonic

ViewSonic VS18522 Manual de usuario

ViewSonic

ViewSonic CDM4300R Manual de usuario

ViewSonic

ViewSonic ViewPanel VG151 Manual de usuario

ViewSonic

ViewSonic TD2340 Manual de usuario

ViewSonic

ViewSonic Optiquest VS12108 Guía de inicio rápido

ViewSonic

ViewSonic G220F - 21" CRT Display Manual de usuario

ViewSonic

ViewSonic VA712B - 17" LCD Monitor Manual de usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Philips

Philips 107C64 Manual de usuario

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación
