Getting Started

Congratulations on your purchase of a Optiquest Q110 color monitor!

Important: We recommend that you save the original box and all packing

material for future shipping needs.

NOTE: This product was designed for operation in the magnetic fields of the

hemisphere where it was purchased.

NOTE: The word “Windows” in this user guide refers to the following

Microsoft operating systems: Windows ‘95, Windows ‘98, Windows 2000,

Windows NT.

Package Contents

Your Q110 package includes:

• Q110 monitor

• Video cable

• Power cord

• User Guide

• INF and ICM installation files on diskette or CD-ROM

NOTE: The supplied INF file ensures compatibility with Windows operating

systems, and the ICM file (Image Color Matching) ensures accurate on-screen

colors. Optiquest®recommends that you install both files.

Precautions

• For best viewing conditions sit at least

18” from the monitor.

• AVOID TOUCHING THE SCREEN

WITH YOUR FINGERS. Oils from the

skin are difficult to remove.

• NEVER REMOVE THE REAR

COVER. The monitor contains high-

voltage parts. You may suffer serious

injury if you touch these parts.

• Avoid exposing the monitor to direct

sunlight or another heat source. The

monitor should be facing away from

direct sunlight to reduce glare.

• Do not place your monitor near a source

of water or moisture.

• Place your monitor in a well ventilated

area. Do not place anything on the

monitor that blocks the ventilation slots

or prevents adequate dissipation of heat.

• Do not place heavy objects on the

monitor, video cable, or power cord.

• If smoke, abnormal noise, or strange

odor is present, immediately switch the

monitor off and call your dealer or

ViewSonic. It is dangerous to operate

your monitor under these conditions.

• Keep the monitor away from magnets,

motors, transformers and televisions.

4 Optiquest Q110

Quick Installation

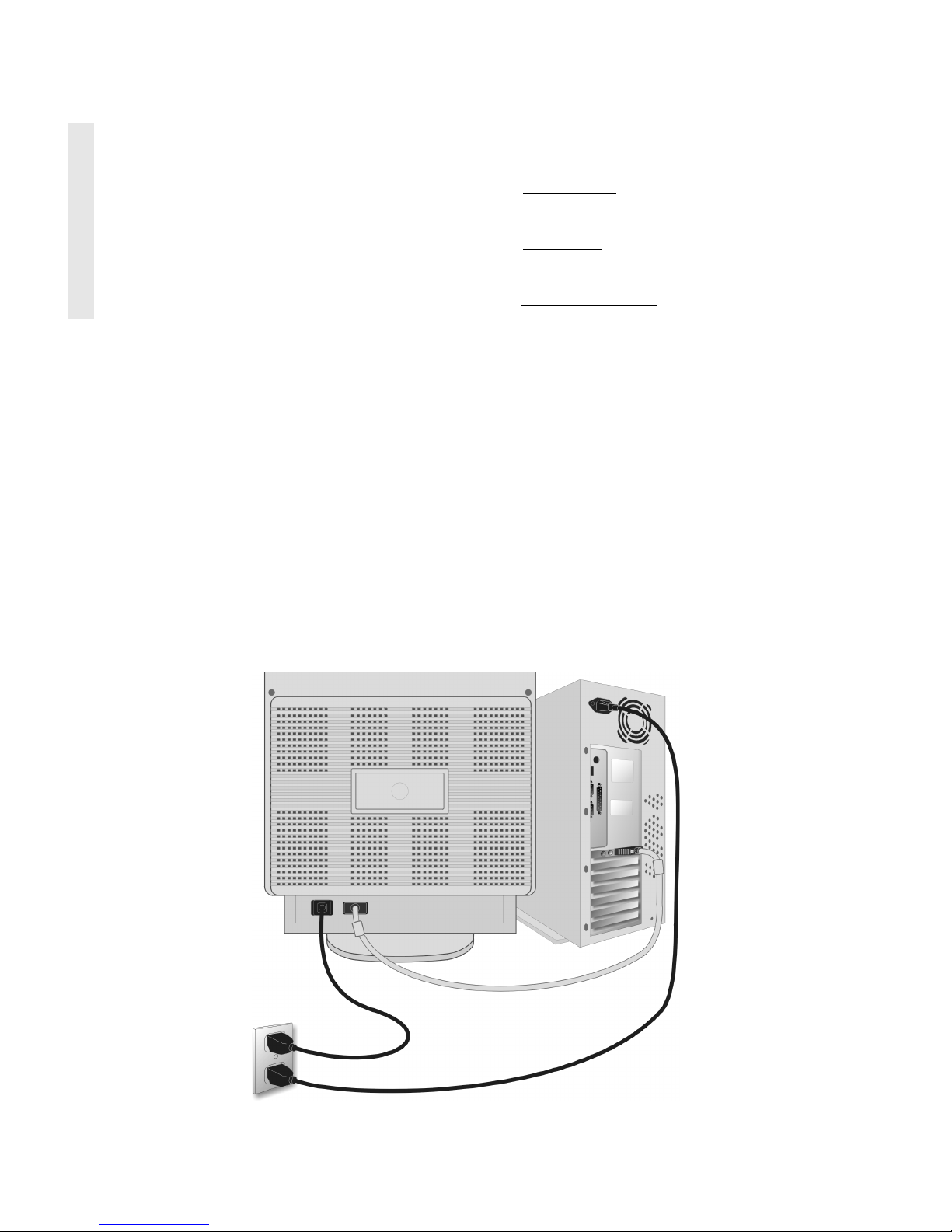

1 Connect video cable

Make sure both the monitor and computer

are powered OFF.

Connect the video cable to the computer,

then to the monitor.

Macintosh users: Models older than G3

require a Macintosh adapter. Attach the

adapter to the computer and plug the video

cable into the adapter.

To order a Macintosh adapter, contact your

reseller.

2 Connect power cord

Connect the power cord from the monitor to

a properly grounded AC outlet.

3 Power-ON monitor and computer

Power-ON the monitor, then power-ON the

computer. This sequence (monitor before

computer) is very important.

NOTE: At this point Windows 98 users may

receive a message asking them to install the

Q110 INF file.

4 Install INF and ICM files

For CD-ROM: Insert the CD-ROM, select

“Monitor Drivers,” and follow the on-screen

instructions.

For diskette: Insert your diskette and run

install.exe. Follow the on-screen

instructions.

5 Windows users: Set the Timing

Mode (resolution and refresh rate)

Example: 1024 X 768 @ 75Hz.

For instructions on changing the resolution

and refresh rate, see the user guide for your

computer's graphics card.

Installation is complete. Enjoy your new

Q110 monitor!

To be best prepared for any future customer

service needs:

Write the serial number (see back of the

monitor) in “For your Records” on page 2 of

this guide.

Internet at:

www.optiquest.com

AC Outlet

Video Cable

Power Cords

Optiquest Q110 5

Using the Monitor

Setting the Timing Mode

Setting the timing mode is important for maximizing the quality of the

screen image and minimizing eye strain. The timing mode consists of the

resolution (example 1280 x 1024) and refresh rate (or vertical frequency;

example 75 Hz). After setting the timing mode, use the OnView®controls

to adjust the screen image.

The recommended timing modes for this monitor are:

VESA 1280 x 1024 @ 75 Hz and VESA 1600 x 1200 @ 75 Hz.

To set the Timing Mode:

1Set the resolution: Right-click on the Windows®desktop > Properties >

Settings > Desktop Area (Screen Area for Windows 98 and newer) > set the

resolution.

2Set the refresh rate: See your graphic card's user guide for instructions.

NOTE: To minimize the adjustments required for an optimal screen image,

selectatimingmodefromthePreset Timing Modes table below.

WARNING: Do NOT set the graphics card in your computer to exceed the

maximum refresh rate for each resolution (see below). Doing so may result in

permanent damage to your monitor.

(NI = Non Interlaced)

Preset Timing Modes

VGA 640 x 400 @ 70 Hz

VESA®640 x 480 @ 60 Hz

VESA 640 x 480 @ 75 Hz

VESA 640 x 480 @ 85 Hz

VESA 800 x 600 @ 75 Hz

VESA 800 x 600 @ 85 Hz

VESA 1024 x 768 @ 75 Hz

VESA 1024 x 768 @ 85 Hz

VESA 1280 x 1024 @ 75 Hz

VESA 1280 x 1024 @ 85 Hz

VESA 1600 x 1200 @ 75 Hz

Macintosh 832 x 624 @ 75 Hz

Macintosh 1024 x 768 @ 75 Hz

Macintosh 1152 x 870 @ 75 Hz

Timing Modes with Maximum Refresh Rates

1600 x 1200 NI @ 77 Hz

1280 x 1024 NI @ 90 Hz

1152 x 870 NI @ 105 Hz

1024 x 768 NI @ 118 Hz

800 600 NI @ 149 Hz

640 x 480 NI @ 160 Hz

6 Optiquest Q110

Adjusting the Screen Image

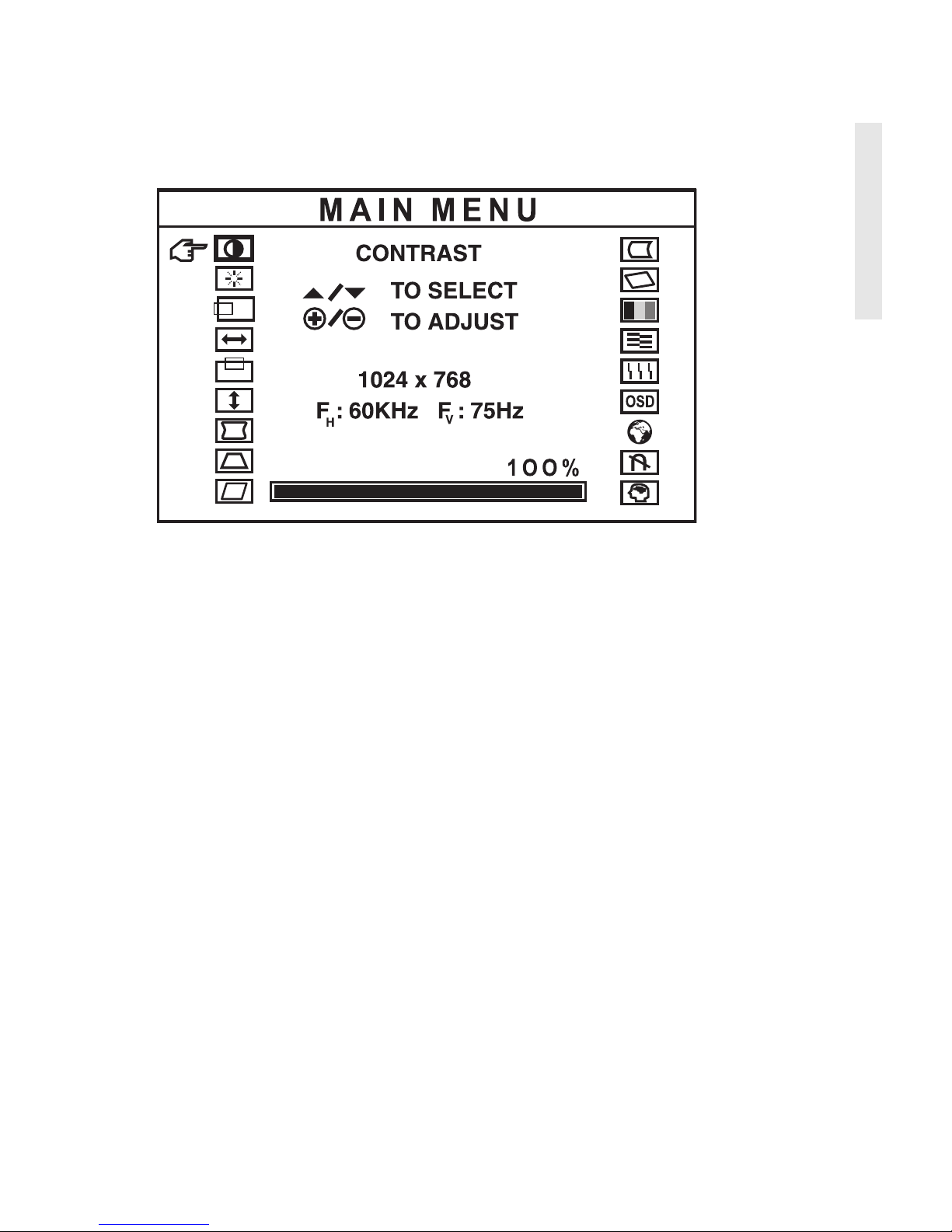

Beginning with the Main Menu shown below, use the buttons on the front

control panel to adjust the OnView®controls which display on the screen. The

OnView controls are explained in the four steps at the top of the next page and

are further explained on pages 8-11.

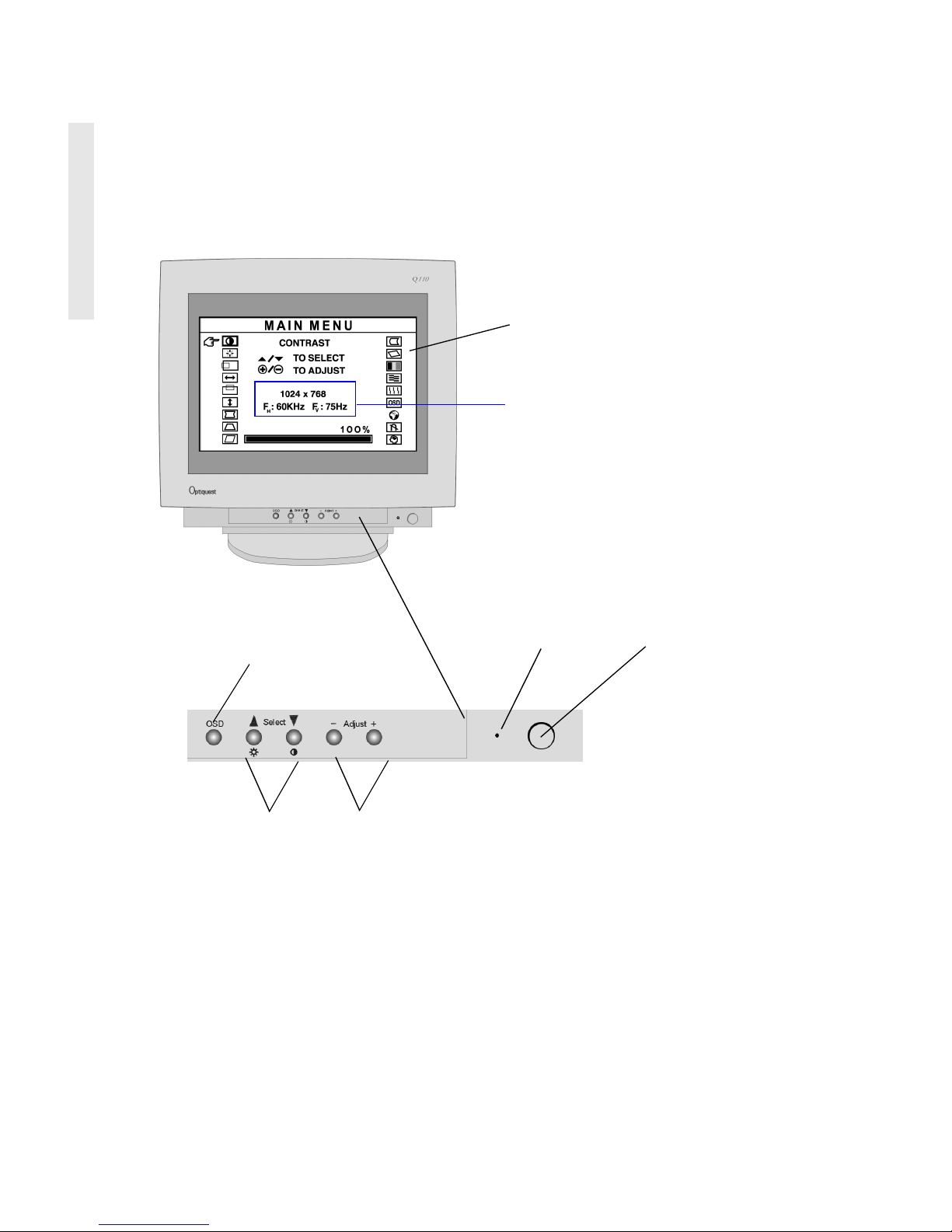

Main Menu with

Front Control Panel

Power On/Off

Power Light

Displays Main Menu; also

saves changes/exits Main

Scrolls Up/Down

menu options

Adjusts selected control;

also, toggles between pair

of controls on some control

screens.

Menu.

OnView controls

1024x768 = resolution

Fh = Horizontal Frequency

(scan rate)

Fv = Vertical Frequency

(refresh rate)

Timing Mode:

Optiquest Q110 7

To adjust the screen image:

1To display the Main Menu, press the OSD button on the front control panel.

2To select a control you want to adjust, press either of the Select buttons (▼

or ▲) on the front control panel.

NOTE: Some controls on the Main Menu have two sub-options. For

example OSD includes H. OSD and V. OSD options. To toggle between the

pair of controls, first press the (+)or(

-) button, then press ▼or ▲.

3To adjust the selected control, press the (+)and(

-) buttons.

Your adjustment will be saved automatically.

4To Exit the Main Menu menu, press the OSD button.

8 Optiquest Q110

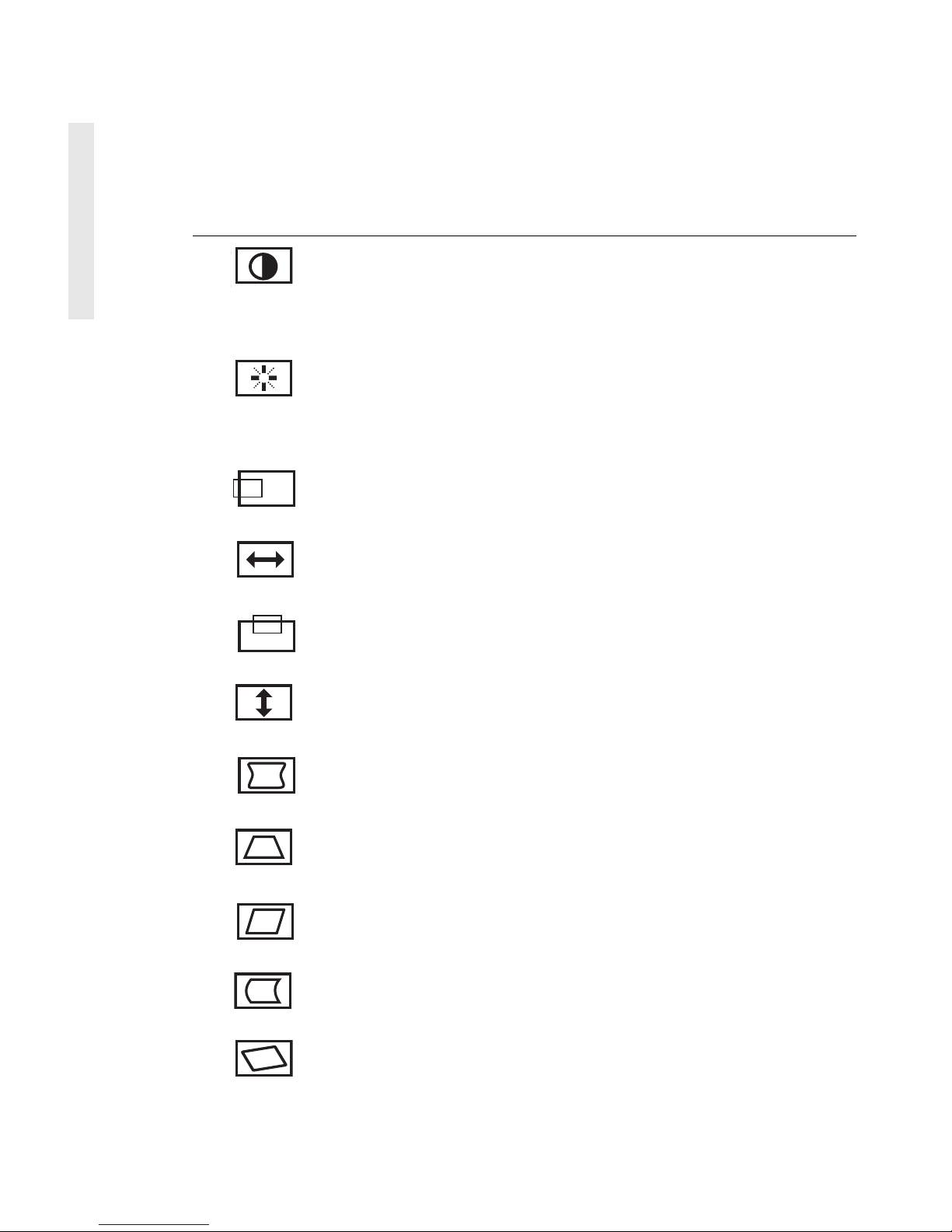

Main Menu Controls

The menu items shown below can be adjusted by using the (+) (-) buttons on the

front control panel.

Control Explanation

Contrast adjusts the difference between the image

background (black level) and the foreground (white level).

Shortcut: Before displaying the Main Menu, press ▼ to

display the Contrast control screen.

Brightness adjusts the background black level of the screen

image.

Shortcut: Before displaying the Main Menu, press ▲to

display the Brightness control screen.

H-Position(Horizontal Position) oves the screen image

left or right.

H-Size(Horizontal Size ) adjusts the width of the screen

image.

V-Position(Vertical Position) moves the screen image up

or down.

V-Size(Vertical Size) adjusts the height of the screen

image.

Side-Pin straightens curves along the vertical edges of the

screen image that bow inward or outward.

Trapezoid makes the vertical edges of the screen image

parallel.

Parallelogram slants the vertical edges of the screen image.

Pin Balance straightens curves along the vertical edges of

the screen image that bow in the same direction.

Rotation rotates the entire screen image.

Optiquest Q110 9

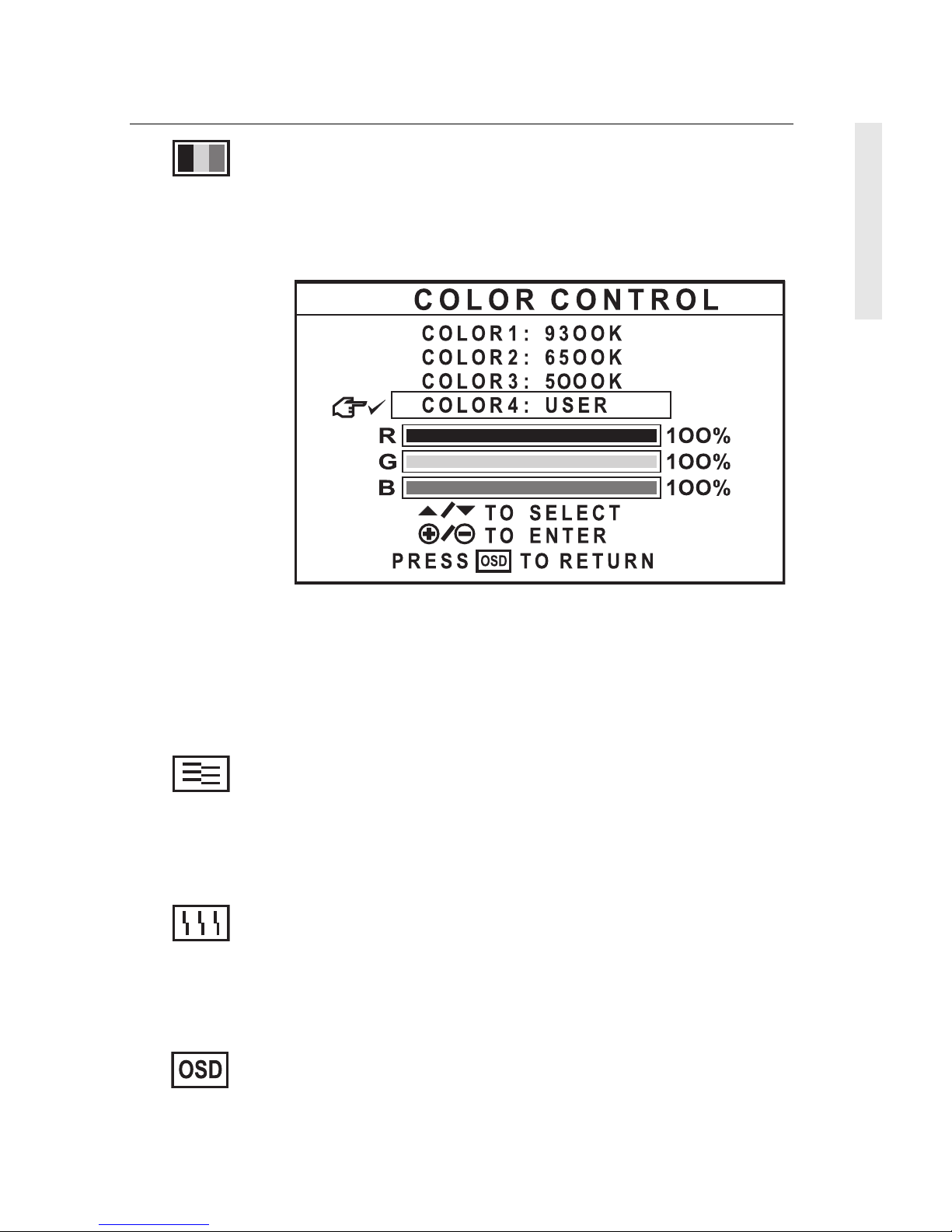

Color Control provides several color options: three preset

color temperatures and User,which allows you to adjust red

(R), green (G), and blue (B).

NOTE: The factory setting for this product is 9300K (9300

Kelvin).

9300K —Adds blue to the screen image for cooler white

(often used in office settings with fluorescent lighting).

6500K —Adds red to the screen image for warmer white

and richer red.

5000K —Adds blue and green to the screen image.

User —Individual adjustments for red, green, and blue.

H- Moire (Horizontal Moire) reduces vertical interference

patterns that appear as ripples, waves, or unwanted

background color textures.

NOTE: Interference patterns of this type are most

noticeable when viewing images having closely spaced

lines or finely detailed patterns.

V-Moire(Vertical Moire) reduces horizontal interference

patterns that appear as ripples, waves, or unwanted

background color textures.

NOTE: Interference patterns of this type are most

noticeable when viewing images having closely spaced

lines or finely detailed patterns.

H-OSD(Horizontal On-Screen Display) allows you to

move the OnView menu and control screens horizontally.

Control Explanation (Continued)

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Monitor de ViewSonic

ViewSonic

ViewSonic VA2261-6 Manual de usuario

ViewSonic

ViewSonic CD4620 - 46" LCD Flat Panel Display Manual de usuario

ViewSonic

ViewSonic E71F Manual de usuario

ViewSonic

ViewSonic UltraBrite A90f+ Manual de usuario

ViewSonic

ViewSonic E95f+SB Manual de usuario

ViewSonic

ViewSonic VG732m Manual de usuario

ViewSonic

ViewSonic VX1932WM-LED - 19" LCD Monitor Manual de usuario

ViewSonic

ViewSonic VX1940w-3 Manual de usuario

ViewSonic

ViewSonic VSD231 Manual de usuario

ViewSonic

ViewSonic VA1903WB - 19" LCD Monitor Manual de usuario

ViewSonic

ViewSonic CDE4803-H Manual de usuario

ViewSonic

ViewSonic VA1938wa-LED Manual de usuario

ViewSonic

ViewSonic VPW5500 Manual de usuario

ViewSonic

ViewSonic PT770 - 17" CRT Display Guía del administrador

ViewSonic

ViewSonic VA3209U-4K Manual de usuario

ViewSonic

ViewSonic VX2776-4K-mhdu Manual de usuario

ViewSonic

ViewSonic N4200W - NextVision - 42" LCD Flat Panel... Manual de usuario

ViewSonic

ViewSonic VG2030m-1 Manual de usuario

ViewSonic

ViewSonic ViewPanel VGI50 Manual de usuario

ViewSonic

ViewSonic VTA900 Manual de usuario

ViewSonic

ViewSonic VA3209U-2K Manual de usuario

ViewSonic

ViewSonic ViewPanel VP150m Manual de usuario

ViewSonic

ViewSonic XG270QG Manual de usuario

ViewSonic

ViewSonic VA951S Manual de usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Philips

Philips 107C64 Manual de usuario

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación
