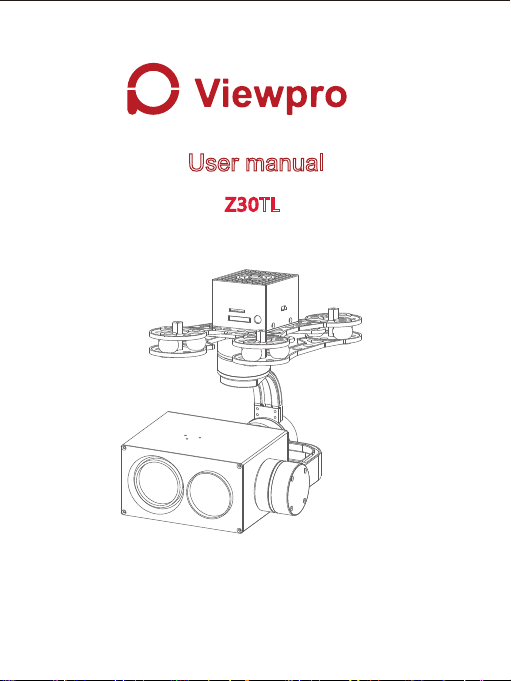

Viewpro Z30TL Manual de usuario

User manual

30x Zoom Laser Night Vision Object Tracking Camera Gimbal

Images are for reference only, please subject to the actual product.

Z30TL

Z30TL Pinpoint-precision Gimbal

1. …………… 2

2. ………………………………………………………2

3. Gimbal description

…

…………………………………………………………………3

4. Packing list …… ………………………………………………………………………4

5. Gimbal dimension …………………………………………………………………4

6. Installing ………………………………………………………………………………5

7. Mechanics@Electronic characteristics ……………………………………5

8. Working characteristics ……………………………………………………………5

9. Gimbal’s signal wire box ………………………………………………………6

Gimbal introduction ………………………… ………………………

Object tracking function …

-1-

Contents

30x Starlight HD Zoom Camera

1. ………………………1130x Starlight camera introduction …………

…

……

…

……

…

2. Light supplement characteristics …………………………………………………13

10. Gimbal’s connection of control box and wiring instructions …………………7

…………

Object Tracking Function

Gimbal Introduction

Z30TL is a pinpoint-precision professional 3-axis gimbal with a 30x 1080P

starlight night vision network camera which features high stability, small size,

light weight and low power consumption. The 3-axis gimbal based on FOC

motor control technology, adopts pinpoint-precision encoder in each motor.

Z30TL can be applied in various fields like public security surveillance, fire

fighting, electric power etc.

The speed of Z30TL gimbal is adjustable, LOW speed mode is used for

large zoom range, the control will be more accurate; Fast speed mode is

used for small zooming range, which makes the gimbal control sensitive

and quick. Also the one-key to center function will allow the gimbal return t

o initial position automatically and rapidly.

-2-

1. Function description

2. Tracking Performance

Build-in normalization, cross-correlation and tracking algorithm,

combining with object missing recapture algorithm, achieve stable

track of the target.

Support custom characters of user OSD, adaptive gate, cross cursor,

tracking information display.

1) Update rate of deviation pixel 50Hz

2) Output delay of deviation pixel <15ms

3) Minimum object contrast 5%

4) The minimal signal-to-noise ratio (SNR) 4

5) Minimum object size 16*16 pixel

6) Maximum object size 160*160 pixel

7) Tracking speed 32 pixel/frame

8) The mean square root values of pulse noise in the object position<0.5

pixel

Z30TL supports PWM and serial command control, suitable for close

range remote control or remote data command control.

!Please make sure that the motor is not stopped by any object during

the rotation, if the gimbal is blocked during rotation, please remove

the obstruction immediately.

-3-

Gimbal Description

[1] Gimbal fixed copper cylinder

[2] Damping balls

[3] Upper damping board

[4] Lower damping board

[5] YAW axis motorr

[6] Roll axis motor

[7] Pitch axis motor

[8] Light supplement

[9] HD zoom camera

[1]

[2]

[3]

[4]

[5]

[6]

[7]

[9]

[8]

Screw pack*1

(M3*5mm button head hexagon screw*12)

Packing list

Gimbal*1 Screw pack*1

Copper cylindersr*4 Damping balls*12

Gimbal Dimension

Unit ：mm

-4-

106

S.bu s/Rx

Roll/ Tx

Pitc h

Yaw

Mode

Zoom

Focus

Pic/ Rec

Multi

163

158

164

Input voltage

Dynamic current

Size

3S~ 4S

1000mA@12V

L163*W 164*H158mm

Idle current

Working

environment temp

Weight

800mA@12V

-20℃~ +80℃

1265g

Working Characteristics

Mechanics@Electronic Characteristics

Installing

Pitch/Tilt: Pitch angle range of action : ±90

Roll: Roll angle range of action : ±85°

Yaw/Pan: Yaw angle range of action : ±150°

-5-

Vibration angle: Pitch/Roll: ±0.02°, Yaw：±0.03°

Size:49*45.4*35.7 Unit : mm

-6-

Gimbal’s Signal Wire Box

S.bus/Rx

Roll/Tx

Pitch

Yaw

Mode

Zoom

Focus

Pic/Rec

Multi

-7-

Connection of Control Box and Wiring Instruction

HDMI: micro HDMI OUTPUT

1080P 60fps default

SD card: max 128G, class10

FAT32 or exFAT format

PWM in

5V output

GND

TTL 115200/8/1/N

USER BOARD

GND

S.bus/Rx

Roll/Tx

Pitch

Yaw

Mode

Zoom

Focus

Pic/Rec

Multi

-8-

S.bus/Rx: connect to Rx2 for track function.

Roll/ Tx: connect to Tx2 for track function.

Pitch: PWM in, pitch control

1. Pitch up

2. Pitch stop

Pitch down

W e h av e p r o t o co l f o r

co n t r o l t h e g i m b al

a n d c a m e r a, p l e as e

co n t a ct o u r t ech n i c al

su p p o r t f o r d e t a i l

d o c.

USER BOARD /

GPS module

GND

TTL 115200/8/1/N

Yaw:PWM in, Yaw control

1. Yaw right

2. Yaw stop

3. Yaw left

Mode: Change the speed / home position

Position 1: Lowest speed for pitch and yaw.

Position 2: Middle speed for pitch and yaw.

Position 3: Highest speed for pitch and yaw. The speed is continuously quickly

from 1 to 3.

One click: Home position.

Two click: Look down.

Three click: Yaw not followed by frame.

Four click: Yaw followed by frame.

Five click: Restore the factory settings.

(Click = from 2 to 3 and back to 2 quickly)

1. Zoom tele

2. Stop zoom

3. Zoom wide

ZOOM: Zoom the camera Focus: Focus the camera

-9-

Zoom laser light tele

Stop zoom laser

Zoom laser light
