Viessmann Vitocell 100-E Instrucciones de funcionamiento

Installation and service instructions

for contractors

VIESMANN

Vitocell 100-E

Type SVPB

Heating water buffer cylinder

600 to 950 l

For applicability, see the last page

VITOCELL 100-E

5686 953 GB 10/2016 Please keep safe.

Please follow these safety instructions closely to

prevent accidents and material losses.

Safety instructions explained

!Please note

This symbol warns against the risk of material

losses and environmental pollution.

Note

Details identified by the word "Note" contain additional

information.

Target group

These instructions are exclusively intended for author-

ised contractors.

■Work on electrical equipment must only be carried

out by a qualified electrician.

■The system must be commissioned by the system

installer or a qualified person authorised by the

installer.

Regulations to be observed

■National installation regulations

■Statutory regulations for the prevention of accidents

■Statutory regulations for the protection of the envi-

ronment

■Codes of Practice of the relevant trade associations

■All relevant safety regulations as defined by DIN, EN,

DVGW, VDE and locally applicable standards

aÖNORM, EN and ÖVE

cSEV, SUVA, SVTI, SWKI and SVGW

Working on the system

■Isolate the system from the power supply (e.g. by

removing the separate fuse or by means of a mains

isolator) and check that it is no longer 'live'.

■Safeguard the system against reconnection.

!Please note

Electronic assemblies can be damaged by elec-

trostatic discharge.

Prior to commencing work, touch earthed

objects such as heating or water pipes to dis-

charge static loads.

Repair work

!Please note

Repairing components that fulfil a safety func-

tion can compromise the safe operation of your

system.

Replace faulty components with genuine

Viessmann spare parts.

Auxiliary components, spare and wearing parts

!Please note

Spare and wearing parts that have not been tes-

ted together with the system can compromise its

function. Installing non-authorised components

and making non-approved modifications or con-

versions can compromise safety and may inva-

lidate our warranty.

For replacements, use only original spare parts

supplied or approved by Viessmann.

Safety instructions

5686 953 GB

1. Information Disposal of packaging ............................................................................ 4

Symbols ................................................................................................. 4

Intended use .......................................................................................... 5

Product information ................................................................................ 5

2. Preparing for installation Connections ........................................................................................... 6

3. Installation sequence Siting the cylinder .................................................................................. 7

Fitting the lower thermal insulation mat and aligning the cylinder body 7

Fitting the thermometer sensor (if supplied) and cylinder temperature

sensor .................................................................................................... 8

Mounting the Vitotrans ........................................................................... 9

Fitting the thermal insulation jacket ....................................................... 11

Fitting the cover strips ............................................................................ 12

Fitting the cover ..................................................................................... 14

Making the connections on the heating water side ................................ 14

Connecting the equipotential bonding ................................................... 15

4. Parts lists Overview of assemblies ......................................................................... 17

Thermal insulation ................................................................................. 18

Cylinder .................................................................................................. 20

5. Commissioning/service

reports

................................................................................................................ 22

6. Specification ................................................................................................................ 23

7. Disposal Final decommissioning and disposal ..................................................... 24

8. Keyword index ................................................................................................................ 25

Index

5686 953 GB

Please dispose of packaging waste in line with statu-

tory regulations.

DE: Use the disposal system organised by

Viessmann.

AT: Use the ARA statutory disposal system (Altstoff

Recycling Austria AG, licence number 5766).

CH: Packaging waste is disposed of by the HVAC

contractor.

Symbols

Symbol Meaning

Reference to other document containing

further information

Step in a diagram:

The numbers correspond to the order in

which the steps are carried out.

Warning of material losses and environ-

mental pollution

Live electrical area

Pay particular attention.

■Component must audibly click into place.

■Acoustic signal

■Fit new component.

■In conjunction with a tool: Clean the sur-

face.

Dispose of component correctly.

Dispose of component at a suitable collec-

tion point. Do not dispose of component in

domestic waste.

Information

Disposal of packaging

5686 953 GB

Information

The appliance is only intended to be installed and

operated in sealed unvented systems that comply with

EN 12828 / DIN 1988, or solar thermal systems that

comply with EN 12977, with due attention paid to the

associated installation, service and operating instruc-

tions. DHW cylinders are only designed to store and

heat water of potable water quality. Heating water buf-

fer cylinders are only designed to hold fill water of pot-

able water quality. Only operate solar collectors with

the heat transfer medium approved by the manufac-

turer.

Intended use presupposes that a fixed installation in

conjunction with permissible, system-specific compo-

nents has been carried out.

Commercial or industrial usage for a purpose other

than heating the building or DHW shall be deemed

inappropriate.

Any usage beyond this must be approved by the man-

ufacturer for the individual case.

Incorrect usage or operation of the appliance (e.g. the

appliance being opened by the system user) is prohibi-

ted and results in an exclusion of liability.

Incorrect usage also occurs if the components in the

system are modified from their intended use (e.g.

through direct DHW heating in the collector).

Adhere to statutory regulations, especially concerning

the hygiene of potable water.

Product information

Vitocell 100-E, type SVPB (600, 750 and 950 l

capacity)

■Steel heating water buffer cylinder for storing heating

water in combination with heat pumps, solar thermal

systems, solid fuel boilers and heat recovery.

■With the option to fit a Vitotrans 353

■Suitable for systems to EN 12 828 and DIN 4753.

■For dimensions and weight, see page 23.

Information

Intended use

5686 953 GB

Information

Front

Back

AThermometer sensor fixing (underneath the thermal

insulation)

BThermometer, up to 4 pce (accessories)

CHeating water flow G 1

DReturn stratification G 1

EHeating water return G 1

AHeating water flow 1 (to the heating circuits)/air

vent valve

BHeating water flow 2 (from the heat generator)

CClamping system for cylinder temperature sensor

(behind the thermal insulation)

DThermometer sensor fixing (behind the thermal in-

sulation)

EHeating water flow 3

FHeating water return 1

GClamping system for cylinder temperature sensor 2

and thermometer sensor (behind the thermal insu-

lation)

HHeating water return 2 (from the heating circuits)

KClamping system for cylinder temperature sensor 3

and thermometer sensor (behind the thermal insu-

lation)

LHeating water return 3 (from the heating circuits)

MClamping system for cylinder temperature sensor 4

(behind the thermal insulation)

NHeating water return 4 (to the heat generator)/drain

OThermometer sensor fixing (behind the thermal in-

sulation)

Preparing for installation

Connections

5686 953 GB

Installation

!Please note

Exposure to frost can damage the appliance.

Install the buffer cylinder in a room that is free

from the risk of frost and draughts. Otherwise,

the buffer cylinder must be drained if there is a

risk of frost while it is not in use.

■Provide adequate clearance from the wall to allow for

operation of the temperature controller (if installed).

■Placing the heating water buffer cylinder on a plinth

will make the room easier to clean.

■Use adjustable feet to level the buffer cylinder.

!Please note

The thermal insulation must not come into con-

tact with naked flames.

Exercise caution when welding and brazing.

Fitting the lower thermal insulation mat and aligning the cylinder body

Fig. 1

ABag containing type plate

BBag containing 3 adjustable feet

3. Insert the adjustable feet into the supports as far

as they will go, then adjust them to level the cylin-

der body.

Note

Never extend the adjustable feet beyond a total

length of 35 mm.

Installation sequence

Siting the cylinder

5686 953 GB

Installation

Fig. 2

1. Guide the thermometer sensor through the cover

strip and insert the thermometer.

2. Guide the upper thermometer sensor through the

lifting eye, insert it into the clamping bracket as far

as it will go and tighten the wing nut.

Note

The cover strip is held in its vertical position by the

coiled capillaries. This is necessary for the remain-

der of the installation.

3. Route the thermometer sensor capillaries to the

back of the cylinder.

4. Undo the nuts.

5. Place the clamping system onto the threaded studs

and align.

6. Tighten the nuts.

7. Depending on where the sensor is being fitted,

secure the thermometer sensor in the clamping

bracket or push as far as it will go into clamping

systems A.

Push cylinder temperature sensor into the

clamping system as far as it will go.

Note

■Never wrap insulating tape around the sensors.

■When the thermal insulation is being fitted, the

cylinder temperature sensor leads are routed

outwards through the apertures (slots) in the rear

cover strip.

Installation sequence

Fitting the thermometer sensor (if supplied) and cylinder temperature sensor

5686 953 GB

Installation

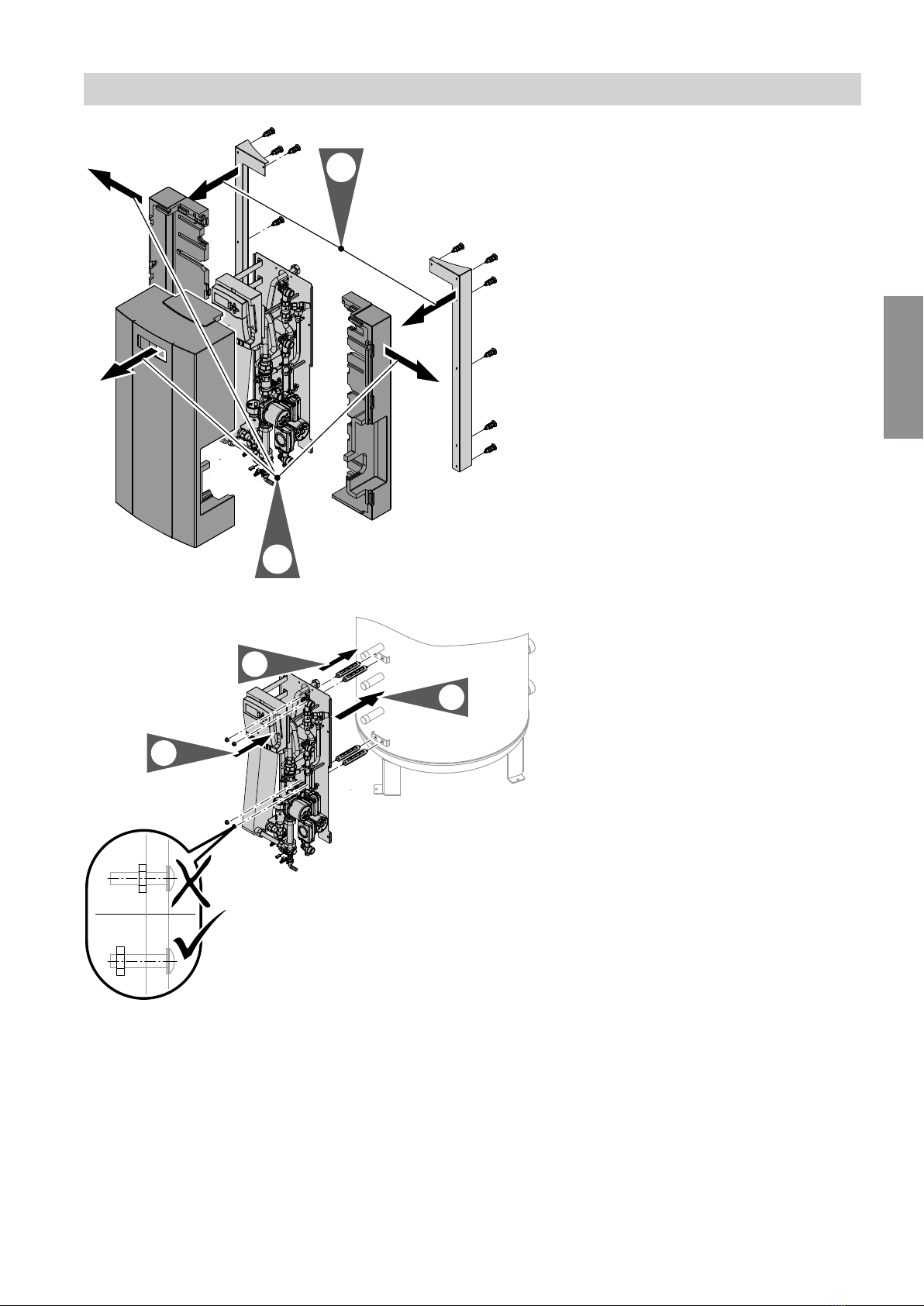

Fig. 3

Fig. 4

1. Fit the bolts to the cylinder body.

2. Mount the module.

3. Turn the nuts onto the bolts by hand.

Installation sequence

Mounting the Vitotrans

5686 953 GB

Installation

DE F

Fig. 5

1. Connect heating water flow connection pipe A to

connection D on the Vitotrans.

2. Connect heating water return connection pipe B

to connection E on the Vitotrans.

3. Connect return stratification connection pipe C to

connection F on the Vitotrans.

4. Connect the pipes to the cylinder connections.

Installation sequence

Mounting the Vitotrans (cont.)

5686 953 GB

Installation

Otros manuales para Vitocell 100-E

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Calentador de agua de Viessmann

Viessmann

Viessmann Vitodens 200-W System Instrucciones de funcionamiento

Viessmann

Viessmann VITOCELL 300B Manual de usuario

Viessmann

Viessmann Vitotron 100 Guía rápida

Viessmann

Viessmann VITOCELL-H 300 Manual de usuario

Viessmann

Viessmann VITOWELL comfort Manual de usuario

Viessmann

Viessmann VITOWELL comfort Manual de usuario

Viessmann

Viessmann VITOCELL 100-B Instrucciones de funcionamiento

Viessmann

Viessmann Vitotherm ES4.A10 K Guía rápida

Viessmann

Viessmann Vitodens 111-W Manual de usuario

Viessmann

Viessmann Vitocell 360-M Guía rápida

Viessmann

Viessmann VITOCELL 300B Instrucciones de funcionamiento

Viessmann

Viessmann VITOCELL 300 EVI Series Manual de usuario

Viessmann

Viessmann Vitocell 100-E Guía rápida

Viessmann

Viessmann VITOWELL EASY P1 Manual de usuario

Viessmann

Viessmann EVBB-A Guía rápida

Viessmann

Viessmann Vitocell 100 Instrucciones de funcionamiento

Viessmann

Viessmann Vitocell 100-B CVB Series Manual de usuario

Viessmann

Viessmann VITOWELL EASY D1 Manual de usuario

Viessmann

Viessmann VITODENS Manual de usuario

Viessmann

Viessmann VITOTRANS 300 Manual de usuario

Viessmann

Viessmann VITOCELL 100-B Manual de usuario

Viessmann

Viessmann VITOCELL 300V Manual de usuario

Viessmann

Viessmann Vitocell-V 100 200 Manual de usuario

Viessmann

Viessmann Vitocell 100-E Guía rápida

Manuales populares de Calentador de agua de otras marcas

Kenmore

Kenmore 153.582400 Manual de usuario

Applimo

Applimo Edel AIR Manual de usuario

STIEBEL ELTRON

STIEBEL ELTRON Eltronom SHU 5 S Manual de usuario

clage

clage E-Mini Series Manual de usuario

Toyotomi

Toyotomi Oil Miser OM-180 Manual de usuario

Bradford White

Bradford White EF Series Manual de usuario

Eccotemp

Eccotemp 40-H Manual de usuario

Dimplex

Dimplex ECSd125-580 Guía

Dux

Dux 32FCR6N Manual de usuario

Toyotomi

Toyotomi Oil Miser OM-148 (Type D) Guía de solución de problemas

Noritz

Noritz N-132M Manual de instrucciones

TESY

TESY GCV7/4S 10047 Hoja de especificaciones

A.O. Smith

A.O. Smith Gphe 50 Manual de usuario

Koryo

Koryo KWHZF15Y Manual de usuario

Pentair

Pentair PSC-14-4-02 Manual de usuario

GE 40M06AAG Instrucciones de montaje

Thermor

Thermor AEROMAX SPLIT 2 Manual de usuario

American Hometec

American Hometec AHQ-B03X Manual de usuario
