Technical Data Manual

VITODENS

100-W

5601 189 v1.1 09/2011

Vitodens 100-W

WB1B Series

Wall-Mounted, gas-fired condensing boiler

with optional on demand hot water CombiPLUS Kit

Heating input: 37 to 118 MBH

10.8 to 34.5 kW

Model Nos. and pricing: see Price List

Vitodens 100-W, WB1B

(with pre-installed coaxial vent pipe adaptor) CombiPLUS Kit

Gas-Fired Wall-Mounted Condensing Boiler with modulating

stainless steel MatriX cylinder burner, stainless steel Inox-

Radial heat exchanger for room air independent operation

(using a direct vent system) or room air dependent operation.

Optional CombiPLUS Kit providing reliable on demand hot

water without a DHW tank is available.

5601 189 v1.1

Vitodens 100-W, WB1B Technical Data

Product Information

General

Equipped with a Viessmann stainless steel heat exchanger

for lasting performance and reliability and a modulating

MatriX cylinder gas burner, the Vitodens 100-W wall-

mounted condensing boiler is the perfect combination of

value, quality and Viessmann technology.

The benefits at a glance:

Outstanding efficiency

of 94.0 % A.F.U.E. on all models.

Lasting performance

with Viessmann-made SA240 316Ti stainless steel

Inox-Radial heat exchanger constructed to ASME

Section IV and CSA B51.

Low-emission

with fully-modulating stainless steel MatriX cylinder

burner. Factory calibration eliminates adjustments in

the field.

< 29 ppm NOx (at 3% O2)

< 40 ppm CO (at 3% O2)

Control variety

Integrated boiler control interfaces with any level of

external control - from room thermostat to outdoor

reset and more.

Compact, lightweight wall mount design

and zero clearance to combustibles make it a great

choice for limited-space installations.

Extremely quiet operation

quieter than most refrigerators.

< 50 dBA [at 3.3 ft. (1 meter)]

Easy installation, service and maintenance

with all pipe connections located at the bottom

and serviceable components (including electrical

connections) easily accessible from the front.

Multiple venting options

- Horizontal or vertical sealed combustion

coaxial, PP(s) vent system (Viessmann supplied).

- Horizontal, vertical or hybrid sealed combustion

double-pipe CPVC vent system (field supplied).

- Horizontal or vertical single pipe CPVC vent system

(field supplied).

- Horizontal or vertical single or double pipe PP(s),

flexible vent system (Viessmann supplied).

Suitable for high altitude levels

of up to 10,000 ft. (3,000 m) without deration.

Built-in automatic frost protection

allows boiler to be shut off for an extended period

of time while protecting it against freeze-up.

Reliable on demand hot water

with an optional CombiPLUS kit (no DHW tank required).

- Plate type heat exchanger

- Built-in diverting valve

- Built-in Grundfos 3-speed pump

- Built-in pressure bypass valve

- Built-in water hammer arrester

- Built-in flow sensor

- Built-in temperature sensor

- Supplied with a pressure relief valve rated at 150 psi

Note: Check the boiler rating plate on the Vitodens 100-W,

models WB1B-26 or WB1B-35 to ensure it states

compatibility with the CombiPLUS kit.

Limited lifetime warranty

in residential applications.

5601 189 v1.1

Vitodens 100-W, WB1B Technical Data General

Product Information

Boiler cross-section

Legend

AStainless steel MatriX cylinder burner

BInox-Radial stainless steel heat exchanger

CBurner blower

DGas and hydronic connections

EBoiler control

Standard Equipment:

Wall-mount boiler and installation fittings c/w 30 psi

pressure relief valve, pressure gage, gas shut-off valve,

two fill/drain valves, all mounting hardware, outdoor

temperature sensor, and LP conversion kit.

CombiPLUS cross-section

Legend

F Plate-type heat exchanger

GBoiler / DHW pump

H Flow sensor

I Pressure by-pass valve

J Diverting valve

Note: Products may not look exactly as illustrated.

J I H

5601 189 v1.1

Vitodens 100-W, WB1B Technical Data

Specifications

Technical Data

Standard heating boiler

Boiler Model No. WB1B 26 WB1B 35

Natural gas and LPG

CSA input

CSA output/DOE 1

heating capacity

Net I=B=R rating 2

MBH

37-91

10.8-26.7

34-83

9.9-24.3

37-118

10.8-34.6

34-108

9.9-31.6

Heat exchanger surface area

ft.2

10.23

0.95

10.23

0.95

Min. gas supply pressure

Natural gas

LPG

“w.c.

Max. gas supply pressure 3

Natural gas and LPG “w.c. 14 14

A.F.U.E. % 94.0 94.0

Weight

lbs

34.1

Shipping weight

lbs

Boiler water content USG

0.87

3.3

0.87

3.3

Boiler max. flow rate 4

GPM

L/hr.

6.2

1400

6.2

1400

Max. operating pressure

(max. allowable working pressure)

at 210º F (99º C)

psig

bar

Boiler water temperature

- Adjustable high limit (AHL) range

- space heating (steady state)

- DHW production (set-point)

- Fixed high limit (FHL)

ºF (ºC)

86 to 176 (30 to 80)

176 (80)

210 (99)

Boiler connections

Boiler heating supply and return

Pressure relief valve

Drain valve

NPTM (male) “

NPTF (female) “

(male thread) “

c“

Dimensions

Overall depth

Overall width

Overall height

inches

14d

360

15 c

400

28 b

725

14d

360

15 c

400

28b

725

1Output based on 140º F (60º C), 120º F (49º C) system supply / return temperature.

2Net I=B=R rating based on piping and pick-up allowance of 1.15.

3If the gas supply pressure exceeds the maximum gas supply pressure value,

a separate gas pressure regulator must be installed upstream of the heating system.

4See “System Flow Rates” on pages 20 to 25 in this manual.

5601 189 v1.1

Vitodens 100-W, WB1B Technical Data

Specifications (continued)

Technical Data

Boiler Model No. WB1B 26 WB1B 35

Gas supply connection

NPTF

(female)” c c

Flue gas 5

Temperature at boiler

return temperature of

86º F (30º C)

- at rated full load

- at rated partial load

Temperature at boiler

return temperature of 140º F (60º C)

ºF (ºC)

127 (53)

90 (32)

167 (75)

131 (55)

90 (32)

172 (78)

Flue gas value

Mass flow rate (of flue gas)

- at rated full load

- at rated partial load

Available draught

lbs/h

kg/h

lbs/h

kg/h

mbar

79.2

36.0

33.0

15.0

100

1.0

100.1

45.5

33.0

15.0

100

1.0

Flue gas temperature

sensor limit ºF (ºC) 230 (110) 230 (110)

Average condensate

flow rate 6

with natural gas

- TS/TR=122 / 86º F (50 / 30º C) USG/day

L/day

1.95-2.3

8-9

2.5-2.8

9.4-10.5

Condensate

connection 7

hose

nozzle

Ø in 1 1

Boiler flue gas

connection 8

in (mm) 2e(60) 2e(60)

Combustion air supply coaxial

connection 8 single

outer Ø in (mm) 4 (100)

2e(60)

4 (100)

2e(60)

Noise level (at 1 meter)

- at full load

- at partial load

(dB)

High altitude (factory set) 9ft. (m) 0-5,000 (0-1,500) 0-5,000 (0-1,500)

Standard heating boiler (continued)

5Measured flue gas temperature with a combustion air temperature of 68° F (20° C).

6Based on typical boiler cycles, including partial load conditions.

7Requires 1”(25) mm tubing. See Vitodens 100-W Installation Instructions for details.

8For detailed information refer to the Vitodens Venting System Installation Instructions.

9For 5,000 to 10,000 ft. (1,500 to 3,048 m) operation, a control programming change is required.

Refer to the Installation and Service Instructions for details.

u For information regarding other Viessmann System Technology componentry,

please reference documentation of respective product.

5601 189 v1.1

Vitodens 100-W, WB1B Technical Data

Specifications (continued)

Technical Data

Boiler Model No. WB1B 26 WB1B 35

DHW supply temperature ºF (ºC) 140 (60) 140 (60)

Continuous draw rate 1

with DCW temp. of 56º F (13º C)

USG/h

L/h

374

147

556

Continuous draw rate 2

at ∆t= 63º F (35K)

USG/h

L/h

156

589

216

800

Maximum allowable working

pressure (potable water) psi 150 150

Test pressure psi 300 300

Connections, DHW and DCW NPTM (male) “ b“b“

Connections to boiler supply/return

and to heating supply/return

NPTM (male) “ c“c“

Dimensions

Overall depth

Overall width

Overall height

Height with pipe connector

inches

9.8

250

432

8.7

223

331

9.8

250

432

8.7

223

331

Integrated pump flow rate

DHW production @ 23 ft. (9.8 m)

Head pressure

Heating system operation

with system side additional

drop in pressure of max. 6 ft. of

water (1.8 m)

USG/min.

L/h

USG/min.

L/h

5.63

1278

6.2

1408

5.63

1278

6.2

1408

Weight lbs

CombiPLUS (Integrated with the Boiler)

1Based on boiler max. output and boiler supply temperature of 176º F (80º C).

2DCW and DHW temperature rise would be proportional. Maximum DHW supply temperature is 140º F (60º C).

5601 189 v1.1

Vitodens 100-W, WB1B Technical Data Dimensions

Boiler dimensions without bottom piping connections

Connections Vitodens 100-W, WB1B 26, 35

Legend

Connections

ACondensate drain, plastic hose Ø 0.87” (22 mm)

BBoiler water supply, NPT ¾” (male thread)

CGas connection, NPT ¾” (male thread)

DBoiler water return, NPT ¾” (male thread)

ECombustion air opening for double pipe system

FCombustion air opening for coaxial system

Dimensions

a See illustration for dimensions

b 15¾” (400 mm)

c 2f” (68 mm)

d 28½” (725 mm)

e 47/8” (123 mm)

f 6d” (156 mm)

g 14d” (360 mm)

h 5” (125 mm)

j 12” (305 mm)

k 1a” (31 mm)

m 77/8” (200 mm)

n 3d” (80 mm)

Front view Side view Top view

Note: If using the optional CombiPLUS see page 9.

5601 189 v1.1

Vitodens 100-W, WB1B Technical Data

Dimensions

Boiler dimensions with piping connections

Piping connections for Vitodens 100-W,

WB1B 26 and 35 (factory supplied)

Legend

BWR Boiler water return, ¾”

BWS Boiler water supply, ¾”

BD Boiler drain

BF Boiler fill

GC Gas connection, ¾” NPTM (male thread)

PRV Pressure relief valve

PG Pressure gage

VC Venting connection

CAI Combustion air inlet connection (optional)

Note: If using the optional CombiPLUS see page 9.

5601 189 v1.1

Vitodens 100-W, WB1B Technical Data Dimensions

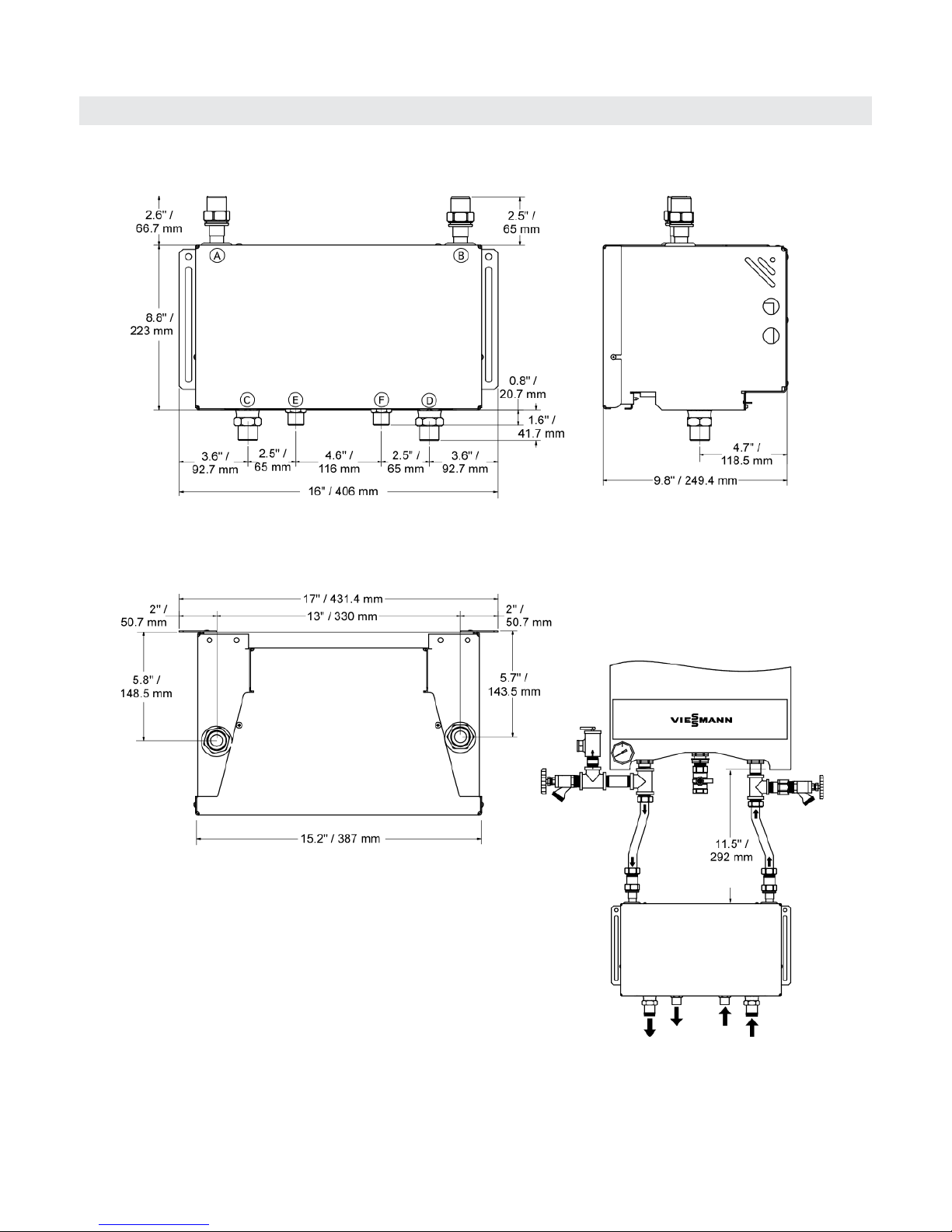

CombiPLUS dimensions and piping connections

CombiPLUS Connections

Top view

Side view

Front view

A B

C DE F

Front view

Legend

ABoiler water supply, NPTM ¾” (male thread)

BBoiler water return, NPTM ¾” (male thread)

CSystem water supply, NPTM ¾” (male thread)

DSystem water return, NPTM ¾” (male thread)

EDHW, NPTM ½” (male thread)

FDCW, NPTM ½” (male thread)

with 7”

flex pipes

5601 189 v1.1

Vitodens 100-W, WB1B Technical Data

Boiler minimum clearances

Dimensions

Recommended minimum boiler and CombiPLUS Kit

clearances to combustibles

AL = Alcove

CL = Closet

*1Refer to the Installation Instructions

of the Vitodens Venting System

for details.

Note: The Vitodens 100-W boiler has passed the zero

inches vent clearance to combustibles testing

requirements dictated by the boiler latest

Harmonized Standard ANSI Z21.13. CSA 4.9.2007

and therefore is listed for zero clearance to

combustibles when vented with a single-wall special

venting system (AL-29-4C material) or UL/ULC-listed

CPVC/PP(s) gas vent material. The zero inches vent

clearance to combustibles for the Vitodens 100-W

boiler supercedes the clearance to combustibles

listing that appears on the special venting system

label.

CombiPLUS installation options

Min. distance between the boiler and CombiPLUS with

Viessmann supplied 7” flex piping connection fittings.

Shown is the maximum distance between the boiler

and CombiPLUS using field supplied fittings and pipes.

Note: The maximum distance between

the boiler and the CombiPLUS

is restricted by the

communication

cable to 36” (915 mm).

Recommended minimum boiler service clearances

Front

Side

Back

Top

7”/178mm

Top Front Rear Left Right Vent

pipe*1

0 0 AL,

00 0 0

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Caldera de Viessmann

Viessmann

Viessmann VITOGAS 100 Instrucciones de funcionamiento

Viessmann

Viessmann Vitocell 050-E Guía rápida

Viessmann

Viessmann Vitocrossal 200 CM2 500 Instrucciones de funcionamiento

Viessmann

Viessmann Vitodens 222-F B2TB Guía del usuario

Viessmann

Viessmann Vitocell 300-V 300 Manual de usuario

Viessmann

Viessmann VITOLADENS 300-W Instrucciones de funcionamiento

Viessmann

Viessmann Vitocell 340-M Instrucciones de funcionamiento

Viessmann

Viessmann VITOCROSSAL 300 Instrucciones de funcionamiento

Viessmann

Viessmann VITOCROSSAL 200 Manual de usuario

Viessmann

Viessmann VITODENS 200 Instrucciones de funcionamiento

Viessmann

Viessmann VITODENS Manual de usuario

Viessmann

Viessmann Vitodens 100-W WB1B Series Manual de usuario

Viessmann

Viessmann Vitodens 100 Guía rápida

Viessmann

Viessmann VITODENS 333-F WS3A Instrucciones de funcionamiento

Viessmann

Viessmann Vitodens 200-W B2HE Guía rápida

Viessmann

Viessmann VITOROND 200 VD2A-125 Manual de usuario

Viessmann

Viessmann VITOCELL 100-B Manual de instrucciones

Viessmann

Viessmann Vitodens 222-F Guía rápida

Viessmann

Viessmann Vitodens 111-W Guía rápida

Viessmann

Viessmann WB1A Series Guía rápida

Viessmann

Viessmann Vitoplus 300 Instrucciones de funcionamiento

Viessmann

Viessmann VITORADIAL 300-T Instrucciones de funcionamiento

Viessmann

Viessmann VITODENS 200 Guía de inicio rápido

Viessmann

Viessmann Vitodens 100-W B1HA Manual de instrucciones

Manuales populares de Caldera de otras marcas

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Manual de usuario

Radijator

Radijator BIO max 23.1 Manual de usuario

Brunner

Brunner BSV 20 Manual de usuario

Buderus

Buderus Logamax GB062-24 KDE H V2 Manual de usuario

Potterton

Potterton 50e Hoja de datos

UTICA BOILERS

UTICA BOILERS TriFire Manual de usuario

Joannes

Joannes LADY Series Manual

ECR International

ECR International UB90-125 Manual de instrucciones

Froling

Froling FHG Turbo 3000 Manual de usuario

Froling

Froling P4 Pellet 8 - 105 Manual de usuario

U.S. Boiler Company

U.S. Boiler Company K2 Manual de usuario

Henrad

Henrad C95 FF Manual de usuario

NeOvo

NeOvo EcoNox EF 36 Manual de usuario

Potterton

Potterton PROMAX SL 12 Manual de usuario

Eco Hometec

Eco Hometec EC 25 COMPACT Manual de usuario

Baxi

Baxi Prime 1.24 Manual de usuario

REXNOVA

REXNOVA ISA 20 BITHERMAL Manual de usuario

Radiant

Radiant R2K 55 Manual
