Videofied OMV601 Manual de usuario

PAGE 1 OMV601 Quick Start Guide

915 MHz radio

(Spread Spectrum,

encrypted);

minimum 9/9

required for

communication

Mandatory MB110

mounting kit (included)

Outdoor Control Panel (XTO-IP630)

Position is set

on arming

Indicator

LED

Programming/INIT

button

Single screw for

easy removal/ﬁeld

maintenance

Height

(H)

Mounting Angle °

Max Distance (D)

Accelerometer tamper (tilt/rotation detection)

OROR = TAMPER

D (ft) MOUNTING ANGLE

5° 10° 15° 20° 30°

()

8.5 40 30 23 20

943 30 24 20

9.5 45 33 26 23 16.5

10.5 49 36 30 23 16.5

11 52 39 30 26 18

12 42 33 26 19.5

13 45 33 29 19.5

8.5 <H<13

Mounting Angle > 5 °

3TAMPER PROTECTION

1HARDWARE & PROGRAMMING

2MOUNTING INFORMATION

PAGE 2 OMV601 Quick Start Guide

Push on the loosened screws with a

screwdriver to pop out the lens frame

Place the lens onto the lens frame.

The fail-safe notch should be on the

bottom le for correct placement of

the lens and/or masking overlay.

Loosen the lens frame screws with a

manual screwdriver

Input/output

(I/O) terminal

OUT+

OUT–

IN3

IN2

IN1

GND

OUT+

OUT–

IN3

IN2

IN1

GND

IN1 or IN2 : + =INTRUSION + +

IN3 : or + =TAMPER

OUT : + =(3 seconds)

Fig. 1

5INPUTS/OUTPUTS

4LENS REPLACEMENT

PAGE 3 OMV601 Quick Start Guide

C1 C2 C3 C4 C5P1 P2

M1 M2 M3 M4 M5 M6 M7 M8

L2L1 L3 L4 L5 L6 L7 L8 L9

L4 L5 L6

C2 C3 C4

P1 P2

Adjust sensitivity

Rename: detector_name $1

3D VIEW TOP VIEW

TOP VIEW 40 / 12m

26 / 8m

46 / 14m

13 / 4m

3 / 1m

Vertical lens requires a

masking overlay (shown

right). See Fig. 1 in

Section 4. for assembly.

Punch out section(s)

where detection is desired

D (ft) MOUNTING ANGLE

5° 10° 15° 20° 30°

()

8.5 52 11 26 21.5

955 40 30 23 16.5

9.5 59 43 31.5 24.5 18

10.5 45 33 26 18

11 49 36 28 20

12 52 38 30 21.5

13 55 40 33 23

6MASKING KIT

7VERTICAL CURTAIN LENS

PAGE 4 OMV601 Quick Start Guide

Adjust sensitivity

Rename: detector_name $8

Adjust sensitivity

Rename: detector_name $2

Mount and angle OMV to achieve

detection ~3 . above ground

Aim PIR beam at a small area or

object of value/interest

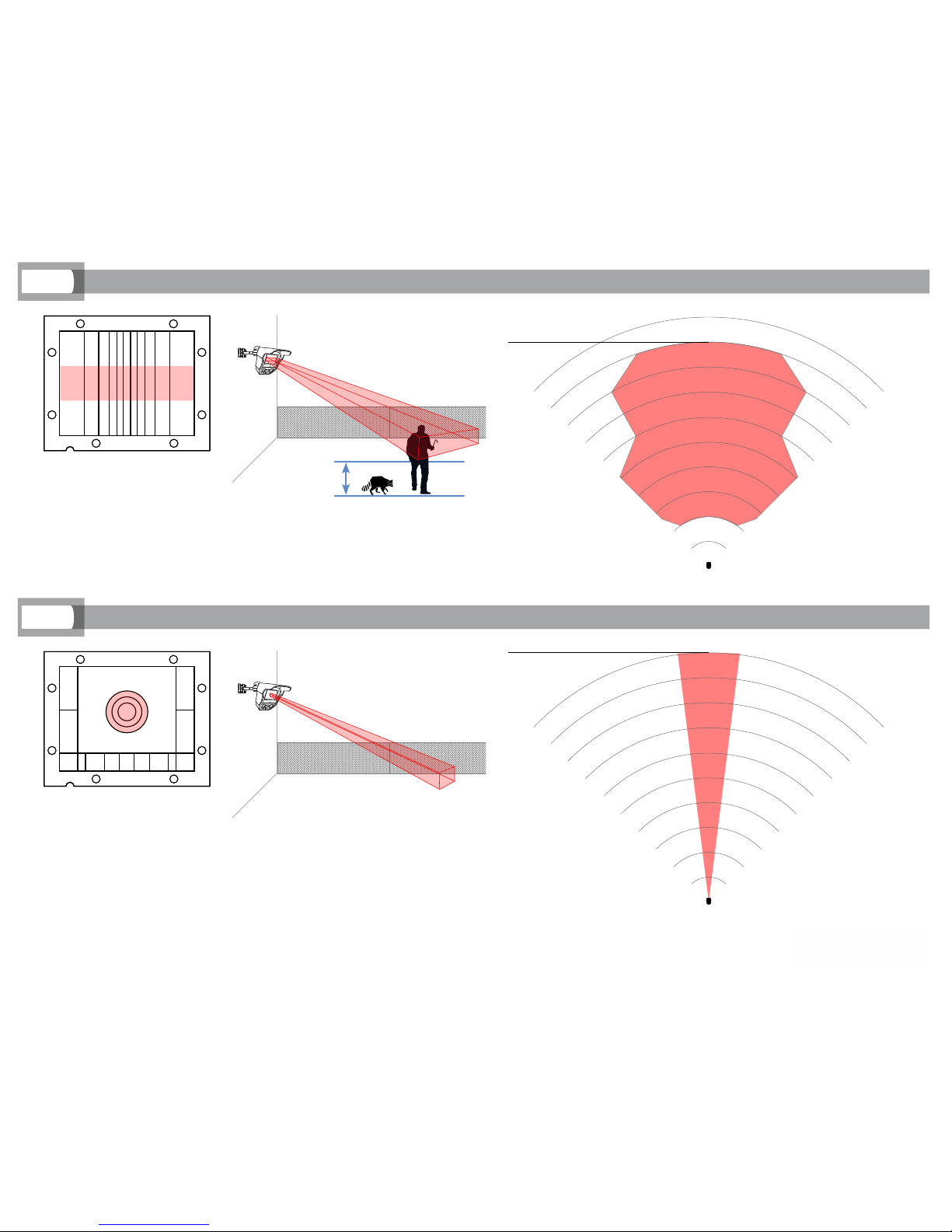

3D VIEW

TOP VIEW

60 / 18m

65.6 / 20m

9LONG RANGE BEAM LENS

8HORIZONTAL CURTAIN LENS
