Viconics VTR8300 Series Guía del usuario

Fan Coil Unit Application Guide

VTR8300/VT8300 Series Room Controllers

Fan Coil Unit Controller SeriesApplication Guide

028-0444-00 www.viconics.com | sales@viconics.com January 2015

Commercial interface (local override)

Power Part Number Description Humidity Onboard

PIR

Communication

VTR8300A50xxB

BACnet

fan coil terminal equipment controller

No No BACnet®

VTR8300A55xxB

BACnet

fan coil terminal equipment controller

No Yes BACnet®

VTR8350A50xxB

BACnet

fan coil terminal equipment controller

Yes No BACnet®

VTR8350A55xxB

BACnet

fan coil terminal equipment controller

Yes Yes BACnet®

This new cost-effective solution for upgrading line-voltage fan coil unit thermostats requires only two components; the VTR8300 Terminal

Equipment Controller and the SC3000 Relay Pack. This solution allows existing line voltage wiring between the fan coil unit and temperature

controller to be re-used, thereby reducing overall costs and installation time.

The SC3000 Relay Pack features an onboard universal voltage power supply and line-voltage relays which directly drive fractional

horsepower fan motors and valves. This eliminates the need to install and wire costly pilot relays and transformers. The Relay Pack is not

required for the VT8300 Series models.

VTR8300 AND SC3000 | LINE-VOLTAGE FAN COIL TERMINAL EQUIPMENT CONTROLLERS AND RELAY PACKS

Transformer Relay Packs for VTR8300 Series

Power Part Number Description

SC3500E5000 Transformer relay pack ﬁve relay fan outputs

SC3504E5000 Transformer relay pack ﬁve relay fan outputs, and four inputs

SC3514E5000 Transformer relay pack ﬁve relay outputs, smart VDC OCC output, and four inputs

SC3400E5000 Transformer relay pack four relay outputs and smart VDC output

SC3404E5000 Transformer relay pack four relay outputs, smart VDC output, and four inputs

SC3300E5000 Transformer relay pack three relay fan outputs

ZigBee Pro Module for VT(R)8300 Series

Power

Part Number Description

VCM8000V5045P Optional ZigBee Pro module for VT8300 Series room controllers.

Fan Coil Unit Controller SeriesApplication Guide

028-0444-00 www.viconics.com | sales@viconics.com January 2015

Wireless Accessories for VT(R)8300 Series

Power Part Number Description

SED-DOR-P-5000 Wireless door switch

SED-WIN-P-5000 Wireless window switch

SED-CMS-P-5045 Wireless ceiling mounted motion sensor

SED-WDS-P-5045 Wireless window and door switch

SED-WMS-P-5045 Wireless wall mounted motion sensor

This new cost-effective solution for upgrading low-voltage fan coil unit thermostats requires only the VT8300 Terminal Equipment Controller.

The VT8300 Terminal Equipment Controller can also be used along with a SC1300 or SC2300 Relay Pack for mixed-voltage solutions,

when control of both line-voltage and low-voltage end devices is required.

Commercial and Hospitality Interface (Local Override and Degrees C/F Selection)

Power Part Number Description Humidity PIR

Sensor

Communication

VT8300U50XXB

BACnet

fan coil terminal equipment controller

No No BACnet®

VT8300U55xxB

BACnet

fan coil terminal equipment controller

No Yes BACnet®

VT8350U50xxB

BACnet

fan coil terminal equipment controller

Yes No BACnet®

VT8350U55xxB

BACnet

fan coil terminal equipment controller

Yes Yes BACnet®

VT8300 LOW-VOLTAGE 24 VAC FAN COIL TERMINAL EQUIPMENT CONTROLLERS

Mixed-voltage Relay Packs for VT8300 Series

Part Number Description

SC1300E5045

3 on/off outputs, 110/130V 3 speed

SC2300E5045

3 on/off outputs, 220/240V 3 speed

Fan Coil Unit Controller SeriesApplication Guide

028-0444-00 www.viconics.com | sales@viconics.com January 2015

SC3500E5000

2 POSITION

COOLING VALVE

Cooling Coil

2 POSITION

HEATING VALVE

Heating Coil

Door Switch

SED-DOR-P-5000

Airflow Direction

Fan

VTR8300

Conﬁguration

Parameter Name Conﬁguration Settings

Fan Menu L-M-H-A

Fan cont. heat. On

BI1 Motion NO or Motion NC (remote PIR sensor only)

BI2 Door Dry

Pulsed heating Off

Pipe no. 4

Seq. operation Ht - Cl

VTR83X0A5XXXB WITH SC3500E5000 RELAY AND VCM8000V5045P ZIGBEE PRO MODULE: HEATING/

COOLING 4-PIPE FAN COIL UNIT WITH 3-SPEED FAN AND 2-POSITION VALVES WITH WIRELESS DOOR SWITCH

Onboard

PIR Sensor

AND / OR

OR*

Wired Remote

PIR Sensor

Wireless Remote

PIR Sensor

* Wired remote sensor cannot be used at the same time as wireless remote sensor(s).

Fan Coil Unit Controller SeriesApplication Guide

028-0444-00 www.viconics.com | sales@viconics.com January 2015

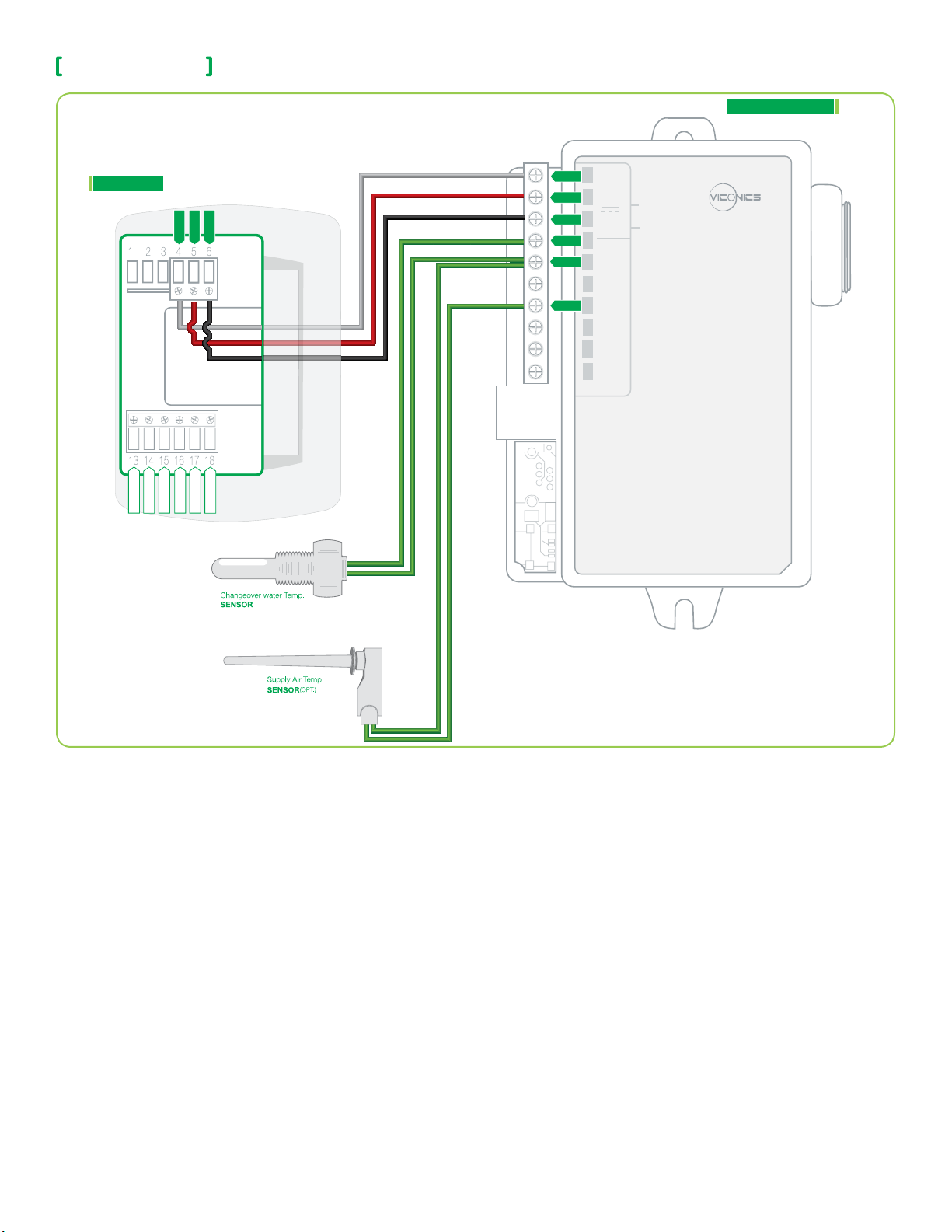

Tx/Rx

7 Vdc

Com

SC3500E5000

VTR8300

BACnet+

BACnet-

BACnet REF

UI 16 - BI1

UI 17 - BI2

SCom

Tx / Rx

7 VDC

Com

Sequence of Operation and Wiring

Occupied Mode

Setpoints revert to those deﬁned by occupied cooling and heating.

Stand-by Mode (only available when PIR motion detector

sensor is used)

Setpoints revert to those deﬁned by stand-by cooling and heating.

Unoccupied Mode

Setpoints revert to those deﬁned by unoccupied heating and

cooling.

Occupied Override Mode

System reverts to occupied mode for duration determined by

“ToccTime” parameter.

On Call for Cool

Cooling valve opens to maintain room temperature. Heating valve

closed.

On Call for Heat

Heating valve opens to maintain room temperature. Cooling valve

closed.

Wireless Door Switch

Wireless door switch automatically toggles occupancy.

Options

• Wireless adapter modules for BACnet models are available.

(see Appendix B for network wiring).

• Can be conﬁgured for 2-pipe systems (without changeover).

• Binary inputs can be conﬁgured to control occupancy via door

or window contact, remote motion sensor, or remote night

setback.

Fan Coil Unit Controller SeriesApplication Guide

028-0444-00 www.viconics.com | sales@viconics.com January 2015

VTR8350A5XXXB WITH SC3404E5000 RELAY: COOLING AND ELECTRIC HEAT 2-PIPE FAN COIL UNIT WITH

3-SPEED FAN, DEHUMIDIFICATION AND 2-POSITION VALVES

Conﬁguration

parameter name Conﬁguration settings

Fan menu L-M-H-A

Fan cont. heat On

Pulsed heating On

Pipe no. 2

Seq. operation Ht-Cl

Cooling Coil Electric Heating

SSR

SOLID STATE RELAY

(GENERIC)

SC3404E5000

2 POSITION

COOLING VALVE

VTR8300

Airflow Direction

Fan

Fan Coil Unit Controller SeriesApplication Guide

028-0444-00 www.viconics.com | sales@viconics.com January 2015

Tx/Rx

7 Vdc

Com

RUI 1

SCom

RBI 2

Heat -

Heat +

SOLIDSTATE

RELAY

(4-32Vdc)

(-)

(+)

SC3404E5000

VTR8300

BACnet+

BACnet-

BACnet REF

UI 16 - BI1

UI 17 - BI2

SCom

Tx / Rx

7 VDC

Com

Sequence of Operation and Wiring

Occupied Mode

Setpoints revert to those deﬁned by occupied cooling and heating.

Stand-by Mode (only available when PIR motion detector

sensor is used)

Setpoints revert to those deﬁned by stand-by cooling and heating.

Unoccupied Mode

Setpoints revert to those deﬁned by unoccupied heating and

cooling.

Occupied Override Mode

System reverts to occupied mode for duration determined by

“ToccTime” parameter.

On Call for Cool

Cooling valve opens to maintain room temperature.

On Call for Heat

Electric heat operates to maintain room temperature. Cooling valve

closes and dehumidiﬁcation is disabled.

On a Demand for Dehumidiﬁcation

Dehumidiﬁcation achieved via cooling coil using reheat if necessary.

Dehumidiﬁcation only allowed in COOL mode or if cooling is enabled

in AUTO mode.

Dehumidiﬁcation disabled if room temperature falls below low

ambient lockout temperature, which is cooling setpoint minus

conﬁguration deﬁned deadband value.

Options

• Wireless adapter modules for BACnet models are available.

(see Appendix B for network wiring).

• Remote wall mount or return duct sensor ready.

• Can be conﬁgured for 2-pipe systems with changeover.

• Binary inputs can be conﬁgured to control occupancy via

door or window contact, remote motion sensor, remote night

setback, or provide alarms for service or ﬁlter monitoring.

• Universal input can be conﬁgured for changeover sensor.

Fan Coil Unit Controller SeriesApplication Guide

028-0444-00 www.viconics.com | sales@viconics.com January 2015

VTR83X0A5XXXB WITH SC3504E5000 RELAY AND VCM8000V5045P ZIGBEE PRO MODULE: HEATING/

COOLING WITH CHANGEOVER SENSOR 2-PIPE FAN COIL UNIT WITH 3-SPEED FAN AND WIRELESSS WINDOW

SWITCH

Conﬁguration

Parameter Name Conﬁguration Settings

Fan Menu L-M-H-A

Fan cont On

BI1 Window

RUI1 COS

Pipe No 2

Seq. operation Cool

Changeover Sensor: 10K Ohm type 2

Supply Sensor: 10K Ohm type 2

SC3504E5000

2 POSITION

Cooling / Heating Coil Supply Sensor

Airflow Direction

Fan

VTR8300

COOLING VALVE / HEATING VALVE

Window Switch

SED-WIN-P-5000

SENSOR

C/O

SENSOR

Onboard

PIR Sensor

Fan Coil Unit Controller SeriesApplication Guide

028-0444-00 www.viconics.com | sales@viconics.com January 2015

Tx/Rx

7 Vdc

Com

RUI 1

SCom

RBI 2

SC3504E5000

VTR8300

BACnet+

BACnet-

BACnet REF

UI 16 - BI1

UI 17 - BI2

SCom

Tx / Rx

7 VDC

Com

Sequence of Operation and Wiring

Occupied Mode

Setpoints revert to those deﬁned by occupied cooling and heating.

Stand-by Mode (only available when PIR motion detector

sensor is used)

Setpoints revert to those deﬁned by stand-by cooling and heating.

Unoccupied Mode

Setpoints revert to those deﬁned by unoccupied heating and

cooling.

Occupied Override Mode

System reverts to occupied mode for duration determined by

“ToccTime” parameter.

On Call for Cool

If supply water temperature is less than 24°C (75F), valve opens to

maintain room temperature, else valve closes.

On Call for Heat

If supply water temperature is greater than 25°C (77F), valve opens

to maintain room temperature, else the valve closes.

Supply Air Sensor

Only used for monitoring. Shows automatically if sensor is

connected.

Wireless Window Switch

Wireless window switch automatically locks out heating/cooling

when window is opened.

Options

• Wireless adapter modules for BACnet models are available.

(see Appendix B for network wiring).

• Remote wall mount or return duct sensor ready.

• Binary inputs can be conﬁgured to control occupancy via

door or window contact, remote motion sensor, remote night

setback, or provide alarms for service or ﬁlter monitoring.

Fan Coil Unit Controller SeriesApplication Guide

028-0444-00 www.viconics.com | sales@viconics.com January 2015

VTR8350A5XXXB WITH SC3400E5000 RELAY: COOLING AND ELECTRIC HEAT 2-PIPE FAN COIL UNIT WITH

3-SPEED FAN, DEHUMIDIFICATION AND 2-POSITION VALVES

Conﬁguration

parameter name Conﬁguration settings

Fan menu L-M-H-A

Fan cont. heat. On

Pulsed Heating On

Pipe No 2

Seq. operation Cool-Rht

Cooling Coil Electric Heating

SSR

SOLID STATE RELAY

(GENERIC)

SC3400E5000

2 POSITION

COOLING VALVE

Airflow Direction

Fan

VTR8300

Otros manuales para VTR8300 Series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Controladores de Viconics

Viconics

Viconics VT7225 series Manual de usuario

Viconics

Viconics VT7600 Series Manual de usuario

Viconics

Viconics VT7200 F 5000 B Manual de usuario

Viconics

Viconics VT7600E Series Manual de usuario

Viconics

Viconics VT8000 Series Manual de usuario

Viconics

Viconics VZ7656F1000W Manual de usuario

Viconics

Viconics VTR8300 Series Manual de usuario

Viconics

Viconics VZ8250 Manual de usuario

Viconics

Viconics VT7225 series Manual de usuario

Viconics

Viconics VT8000 Series Manual de usuario

Viconics

Viconics VT76 Series Manual de uso y cuidado

Viconics

Viconics VT7200 Series Manual de usuario

Viconics

Viconics VT8000 Series Manual de usuario

Viconics

Viconics VT8000 Series Manual de usuario

Viconics

Viconics VTR7300 Series Manual de usuario

Viconics

Viconics R850 Series Manual de usuario

Viconics

Viconics VC3000 Series Manual de usuario

Viconics

Viconics VT7600E Series Manual de usuario

Viconics

Viconics VT8000 Series Manual de usuario

Viconics

Viconics R820 REV2 Series Manual de usuario

Viconics

Viconics VT8000 Series Manual de usuario

Viconics

Viconics R820 REV2 Series Manual de usuario

Viconics

Viconics VT7600F Series Manual de usuario

Viconics

Viconics ZigBee Pro VT8000 Series Manual de usuario

Manuales populares de Controladores de otras marcas

Digiplex

Digiplex DGP-848 Instrucciones de funcionamiento

YASKAWA

YASKAWA SGM series Manual de usuario

Sinope

Sinope Calypso RM3500ZB Manual de usuario

Isimet

Isimet DLA Series Style 2 Manual de instalación

LSIS

LSIS sv-ip5a Manual de usuario

Rockwell Automation

Rockwell Automation 1769-L31 Manual de usuario

Airflow

Airflow Uno hab Manual de usuario

ABB

ABB ACS580-01 drives Manual de usuario

Panasonic

Panasonic GM1 Series Manual de usuario

Emerson

Emerson SW93 Manual de usuario

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manual de usuario

Panasonic

Panasonic FP? Positioning Unit RTEX Manual de usuario

Samson

Samson Type 5824 Manual de servicio

Alpha IP

Alpha IP MIOB 21001 Manual de usuario

Siemens

Siemens OpenAir GMA 1 Series Manual de usuario

Surecom

Surecom SR-629 Manual de usuario

Fishman

Fishman TriplePlay Manual de usuario

Regulus

Regulus SRS1 T Manual de usuario
