QUICK CARD

T-BERD/MTS 5800 Portable Network Tester

https://www.viavisolutions.com/en-us/ethernet-test

VIAVI//Public

Ethernet Y.1564 Layer 2 Multiple Streams

This document shows how to configure and run a Y.1564 Layer 2 Multiple Stream test for

Metro Ethernet Service Activation.

EQUIPMENT REQUIREMENTS

•T-BERD/MTS 5800 equipped with the

following:

oBERT software release V26.0 or greater

oTest options:

▪C510M1GE for 10 Megabit to 1 Gigabit

Ethernet

▪C510GELAN for 10 Gigabit Ethernet

▪C525GELAN for 25 Gigabit Ethernet

▪C540GELAN for 40 Gigabit Ethernet

▪C5100GELAN for 100 Gigabit Ethernet

▪C5COS for multiple stream traffic

generation

•SFP or QSFP optical transceiver to match the

line under test

•CAT 5E or fiber optic jumper cables to match

the line under test

•Fiber optic inspection microscope (VIAVI

P5000i or FiberChek Probe)

•Fiber optic cleaning supplies

Figure 1: Equipment Requirements

FIBER INSPECTION GUIDELINES

•Use the VIAVI P5000i or FiberChek Probe

microscope to inspect both sides of every

connection being used (OCC Port, Launch

Cable, bulkhead connectors, patch cables,

etc.)

•Focus fiber on the screen. If dirty, clean the

end-face.

•If it appears clean, run inspection test.

•If it fails, clean the fiber and re-run inspection

test. Repeat until it passes.

Figure 2: Inspect Before You Connect

[Type here]

QUICK CARD

T-BERD/MTS 5800 Portable Network Tester

https://www.viavisolutions.com/en-us/ethernet-test

VIAVI//Public

CONNECT TO FIBER UNDER TEST

1. For copper 10/100/1000BASE-T interface

testing with the T-BERD/MTS 5800v2,

connect the Port 1 10/100/1000 RJ-45 jack to

the port under test using CAT 5E or better

cable.

Figure 3: T-BERD 5800v2

2. For copper 10/100/1000BASE-T interface

testing with the T-BERD/MTS 5800-100G,

insert a copper SFP into the Port 1

SFP+/SFP28 slot and connect to the port

under test using CAT 5E or better cable.

3. For optical interfaces:

•Insert desired SFP, QSFP, or CFP4 into the

Port 1 slot on the top of T-BERD.

•Inspect and, if necessary, clean all SFPs,

fibers, and bulkheads, as described on page 1.

•Connect the SFP or QSFP to the port under

test using a Single Mode or Multimode jumper

cable compatible with the interface under test.

Figure 4: T-BERD 5800-100G

LAUNCH TEST

1. Press the Power button to turn on the test

set.

2. Using the Select Test menu, Quick Launch

menu, or Job Manager, launch an Ethernet,

Y.1564 SAMComplete, L2 Multiple

Streams, Terminate test on port 1 for the

desired physical interface. For example:

Ethernet ►10/100/1000 ► Y.1564

SAMComplete►L2 Multiple Streams ►P1

Terminate.

3. Tap the button next to

“Start a New Configuration (reset to

defaults)”

Figure 5: Start a New Configuration

[Type here]

QUICK CARD

T-BERD/MTS 5800 Portable Network Tester

https://www.viavisolutions.com/en-us/ethernet-test

VIAVI//Public

CONFIGURE TEST

1. Tap the button 3 times to display

the Network Services screen. Set Number

of Services to the number of streams you

wish to test.CH TEST

LAUNCH

Figure 6: Configure Network Services settings

2. Tap the button to display the

Network Tagging screen. Configure

Encapsulation and VLAN settings to match

the line under test.

Figure 7: Configure Network Tagging

3. Tap the button to display the SLA

Throughput screen. Set CIR and EIR to the

desired traffic loads for each service. If the

service is policed, check the Policing boxes

for each service. Otherwise, uncheck the

Policing boxes.

Figure 8: Configure SLA Throughput settings

[Type here]

QUICK CARD

T-BERD/MTS 5800 Portable Network Tester

https://www.viavisolutions.com/en-us/ethernet-test

VIAVI//Public

4. Tap the button to display the SLA

Burst screen. Tap Yes after the Would you

like to perform burst testing? Prompt and

enter the CBS for each service.

Figure 9: Configure SLA Burst settings

5. Tap the button to display the SLA

Performance screen. Check all boxes for

which a Pass/Fail Threshold is known. Enter

the Threshold for each selection.

Figure 10: Configure SLA Performance settings

[Type here]

QUICK CARD

T-BERD/MTS 5800 Portable Network Tester

Product specifications and descriptions in this

document are subject to change without notice.

Patented as described at viavisolutions.com/patents

To reach the VIAVI office nearest you,

visit viavisolutions.com/contact

+1 844 GO VIAVI

(+1 844 468-4284)

VIAVI//Public

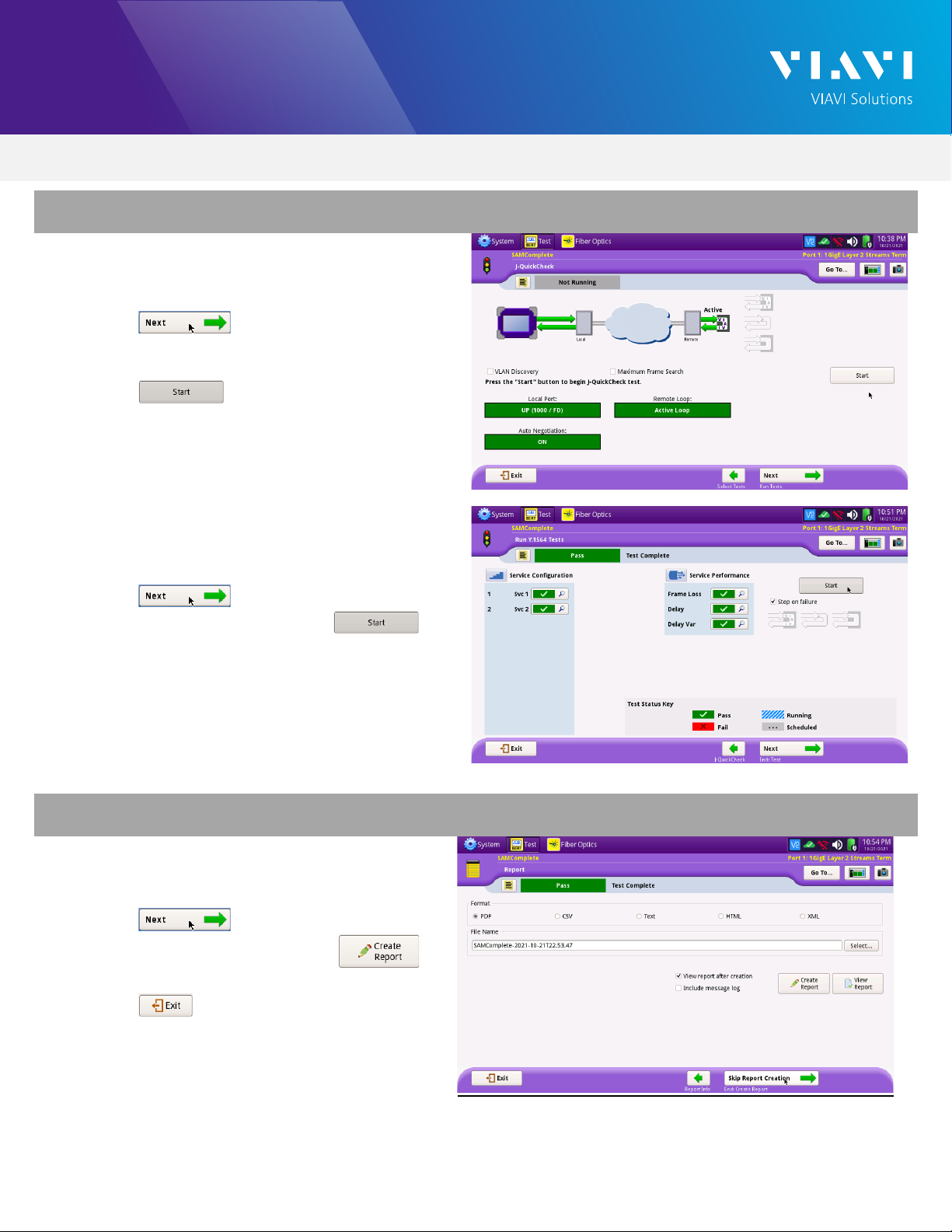

RUN TEST

1. Tap the button 5 times to display

the

J-QuickCheck screen.

Tap the button. Verify that the

Remote Loop is recognized.

Figure 11: J-QuickCheck

2. Tap the button to display the Run

Y.1564 Tests screen. Tap the

button. Wait for the test to complete and verify

that all tests pass with green or blue

checkmarks.

Figure 12: Run Y.1564 Test

SAVE REPORT

1. Tap the button three times to

display the Report screen. Tap .

2. Tap the button three times to close

the report and exit the Y.1564 test.

Figure 13: Create Report
