Safety precautions

– Contact a professional electrician to install the control

as well as for setting of the DIP switches on the rear

panel of the device, because the power supply requires

a power supply of 230VAC, 50 Hz.

– Check the control system for signs of mechanical

damage after unpacking. If you notice any shipping

damage, do not start up the control system and notify

your supplier immediately.

– The control system should only be used for the purpose

specified by the manufacturer (refer to the operating

instructions). Any changes or modifications thereof are

not permissible and will result in loss of all warranty

claims.

– If the control unit cannot be operated without presenting

a hazard, it must be switched off and prevented from

being switched on unintentionally.

– When performing work on the windows, controls or

connected shades, protect them against unauthorised

or unintentional operation.

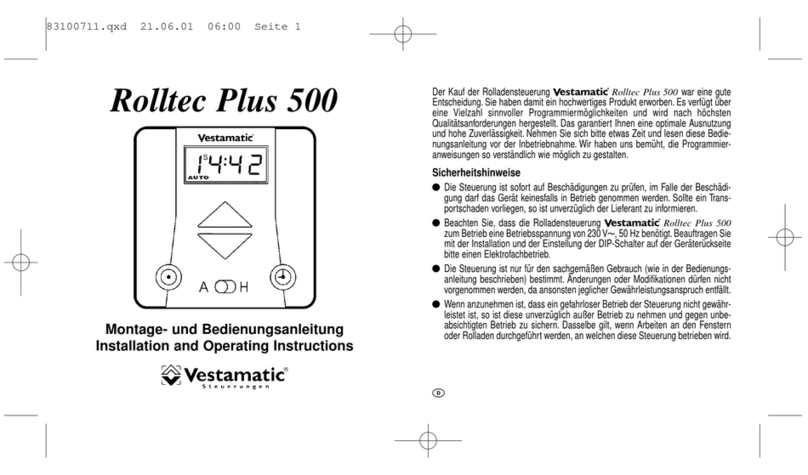

Installation and Operating Instructions

Rolltec Plus G/S

Roller Shutter Control

Art.-no. 01805050

Introduction General page 43

Manual mode page 44

Automatic mode page 45

Programming General page 46

the basic Summer/winter time page 47

functions Current time page 48

Note page 49

Up time page 50

Down time page 51

Random generator page 52

Programming Week function page 53

the special Astro function / Run time correction page 54 – 57

functions Astro function – Germany page 58

Astro function – Europe page 59

Reverse function page 60

Example for DIP switch setting page 61

- 41 - G

Contents

G/S functions General page 62

Functional description broken glass sensor page 63

Functional description sun protection page 64

Setting the response (sun intensity) page 65

Troubleshooting page 66

Installation Notes for professional electricians page 67 – 68

Installation instructions / Technical data page 69

Wiring diagram page 70

Installation broken glass sensor page 71 – 72

Installation lux sensor page 73 – 74

Wiring diagram Inside back cover

Overview operating elements Inside back cover

- 42 -

Contents

The delivery extent of the control includes the following items:

1. Cover cap

2. Control

3. Supporting frame for control

4. Adjustment tool

5. JUNG Cover frame, 1-fold, “CD 500”

In case of power failure, the entire display starts flashing. Yet, the

previously programmed times remain saved for several years.

The times or functions, you have previously programmed, can be

checked by performing a quick run (i. e. g. test of the sun protection).

Press the time and day button simultaneously for 3 seconds to activate

the quick run. The time function will now run 60 times faster. Shortly

tap the time and day button simultaneously to stop the quick run.

- 43 - G

General Introduction

The control features a selector switch with which manual mode (H) or

automatic mode (A) can be selected.

Push the selector switch to (H), all the way to right until you hear the

“click”, in order to activate the manual mode.

All automatic functions are now disabled. Pressing the up or down

button will move the roller shutters up or down.

Simply press the opposite button to stop the motion, i.e.:

press the down button, if the roller shutter is moving up,

press the up button, if the roller shutter is moving down.

Accurate positioning of the roller shutter is guaranteed because the

roller shutter will only move up or down again after the up or down

button has been pressed.

- 44 -

Introduction Manual mode

Push the selector switch to (A), all the way to the left until you hear

the “click”, in order to activate the automatic mode.

The automatic mode is now activated and the roller shutter will

move up and down at the programmed times. Regardless of the

programmed times, it is still possible to move the roller shutter up

and down by pressing the up or down button and the programming

remains unaffected.

If you press the up or down button longer than 2 seconds, the roller

shutter moves up or down.

Simply press the opposite button to stop the motion, i.e.:

press the down button, if the roller shutter is moving up,

press the up button, if the roller shutter is moving down.

The roller shutter will only move up or down again after the up or

down button has been pressed.

By simply pushing the selector switch to manual mode (H), the auto-

matic mode can be interrupted for an extended period of time.

After selecting automatic mode again, the control will execute the

last pending command from the automatic mode. The last pending

command will also be executed when resetting after power failure.

- 45 - G

Automatic mode Introduction

After the installation has been completed correctly (for instructions

please see pages 67 to 74), you can start programming.

Carefully pull to remove the cover cap and press the reset button with

the delivered adjustment tool or something else suitable.

Pressing the reset button will activate the default times pre-programmed

by the manufacturer.

Current time – 0ß8:0ß0

Up time – 0ß6:0ß0

Down time – 2ß0:0ß0

On the following pages, you will find instructions how to customize

these times to your personal requirements.

- 46 -

Basic functions General

IMPORTANT!

Please note that the control cannot be programmed in case

of power failure.

The display will indicate which time has been set.

The (S) in the upper left hand corner of the display stands for summer

time.

(0S9:0ß0)

The (W) in the upper right hand corner of the display stands for

winter time.

(0ß8:0W0)

If the present setting is incorrect and does not correspond with the

current time, you can simply update the time by pressing the summer/

winter button. The selected setting will appear in the display and the

time will be changed by one hour.

- 47 - G

Summer/winter time Basic functions

By operating the combination of set and time button you can set the

current time.

Setting the time can be performed as follows:

1. Press the set button first and keep it pressed, then:

A. Press the time button and keep it pressed to fast forward the

time.

B. Shortly tap the time button to slow forward the time.

2. Press the time button first and keep it pressed, then:

A. Press the set button and keep it pressed to fast reverse the

time.

B. Shortly tap the set button to slow reverse the time.

- 48 -

Basic functions Current time

The control is delivered with the following manufacturer’s default up

and down times (day function is activated):

Daily up time – 0ß6:0ß0 p.m.

Daily down time – 2ß0:0ß0 a.m.

Please find the manufacturer’s default DIP switch settings in the

tables on page 58 and page 61.

- 49 - G

Note Basic functions

IMPORTANT!

It is important to push the selector switch

“automatic/

manual-mode” to

automatic mode (A), in order to be able

to perform the following programming steps.

Check the current setting. If the selector switch is not set on

(A), correct the setting by pushing it all the way to the left

until you hear the “click”.

By operating the combination of set and up button you can set the

up time.

Setting the up time can be performed as follows:

1. Press the set button first and keep it pressed, then:

A. Press the up button and keep it pressed to fast forward the

up time.

B. Shortly tap the up button to slow forward the up time.

2. Press the up button first and keep it pressed, then:

A. Press the set button and keep it pressed to fast reverse the

up time.

B. Shortly tap the set button to slow reverse the up time.

The display will now indicate the set value. Once the programming

buttons are no longer operated, the display will indicate the current

time again. Tapping the up button will check the set value and the

display will again indicate the previously set up time. After approx.

2 seconds, the display will indicate the current time again.

- 50 -

Basic functions Up time

By operating the combination of set and down button you can set

the down time.

Setting the down time can be performed as follows:

1. Press the set button first and keep it pressed, then:

A. Press the down button and keep it pressed to fast forward the

down time.

B. Shortly tap the down button to slow forward the down time.

2. Press the down button first and keep it pressed, then:

A. Press the set button and keep it pressed to fast reverse the

down time.

B. Shortly tap the set button to slow reverse the down time.

The display will now indicate the set value. Once the programming

buttons are no longer operated, the display will indicate the current

time again. Tapping the down button will check the set value and the

display will again indicate the previously set down time. After approx.

2 seconds, the display will indicate the current time again.

- 51 - G

Down time Basic functions

The random generator generates the so-called random time which

causes the roller shutters to move up or down with a deviation of

+/-15 minutes to the previously programmed times(*).

The “randomly” moving up and down roller shutters give the impres-

sion of an inhabited house and thus provide additional protection in

case the house owner is absent for an extended period of time.

Simply press the random button to activate the random generator.

The display will now indicate

a (Z) in the upper right hand

corner. (0ß8:0ß0Z

Press the random button again to deactivate the random generator.

The random generator is now turned off, the (Z) in the display will

disappear and the roller shutter will move up and down accurately at

the times you have previously programmed.

(*)Annotation: If the Astro function is activated, the times will deviate

by +/-15 minutes from the actual sunrise and sunset

times.

- 52 -

Basic functions Random generator

NOTE!

The random generator will disable any previously set reverse

function (please see page 60).

The week function enables you to program a particular up and down

time for each individual day of the week.

In order to activate the week function, all DIP switches in the rear of

the housing must be set according to the table on page 61.

The following times were preset for this operation mode by the

manufacturer:

Up time Monday through Friday – 0ß6:0ß0

Down time Monday through Friday – 2ß0:0ß0

Saturday / Sunday – no preset time

If you wish different up or down

times, perform the following steps: (QS8:0ß0)

Press the day button. The display

will show a new day of the week

after every press. (0w8:0ß0)… etc.

Perform the steps described on page 50 and 51 to program the up

and down times for the currently displayed day.

- 53 - G

Week function Special functions

The Astro function is basically an electronical calendar. Depending

on the stored sunrise and sunset times, the up or down times are

automatically corrected under consideration of the geographical

location of your residence. This correction is based on the up or down

times you previously set.

For more information on the programming of the Astro function please

see page 56.

Example:

You have activated the Astro function and previously programmed

the following up and down times according to the instructions on

page 50 and page 51:

Up time – 0ß6:3ß0 (½ an hour before sunrise according to

the diagram on page 57)

Down time – 1ß9:3ß0 (½ an hour before sunset according to

the diagram on page 57)

Given the current calendar week 14.

In this example, the roller shutter does not move up at 6:30, as pro-

grammed but moves up at 7:00 when the sun rises.

In the evening, it moves down at 19:30 at the programmed time.

- 54 -

Special functions Astro function

Note:

If the up time is programmed before sunrise, the roller shutter moves

up at sunrise.

If the up time is programmed after sunrise, the roller shutter moves

up at the programmed up time.

If the down time is programmed after sunset, the roller shutter moves

down at sunset.

If the down time is programmed before sunset, the roller shutter moves

down at the programmed down time.

- 55 - G

IMPORTANT!

Activating the Astro function automatically disables the

week function.

Astro function Special functions

Activating the Astro function and setting the current calendar week

will be performed in one programming step.

First press the set button and keep it pressed. Then press the day

button twice.

The display will indicate

the following: (ßßßß0ß1A

Now set the current calendar week by pressing the day button.

Keep pressing the set button. Each additional pressing of the day

button will move to the next calendar week.

After you have set the current calendar week and released both but-

tons, the Astro function will be activated. The display will now switch

to the current time. The display will continue to indicate the (A) in the

upper right hand corner.

Keep the set button pressed and press the day button until the dis-

play indicates “ 0ß0 ” in order to deactivate the Astro function.

- 56 -

Special functions Astro function

NOTE!

In order to obtain optimum performance of the Astro func-

tion, the geographical location of your residence must be set

by means of the DIP switches (see tables on page 58 and 59).

Below the switching sequence is presented in the course of an entire year under con-

sideration of summer/winter time, at an up time preset at 6:30 and a down time preset

at 19:30. These times relate to 10° of eastern longitude and 50° of northern latitude

which corresponds to the geographical location of the city of Würzburg. Setting DIP

switch 6 to “ON” will delay the down time of the roller shutter by 30 minutes.

Run time

correction:

- 57 -

DIP 6 Correction

OFF no delay

ON down command 30 minutes delayed

Astro function/Run time correction Special functions

G- 58 -

DIP 2 DIP 3 DIP 4 DIP 5 Area

OFF OFF OFF OFF Schleswig-Holstein, Northern Lower-Saxony

OFF OFF OFF ON Mecklenburg-Vorpommern

OFF OFF ON OFF

North-Rhine Westphalia, Southern Lower-Saxony

OFF OFF ON ON Brandenburg, Saxony-Anhalt

OFF ON OFF OFF Rhineland-Palatinate, Saarland, Hesse

OFF ON OFF ON Saxony, Thuringia

OFF ON ON OFF Baden-Württemberg

OFF ON ON ON Bavaria

Special functions Astro function – Germany

= Manufacturer’s default setting:

Schleswig-Holstein,

Northern Lower-Saxony

The respective DIP switches are located on the rear panel of the control.

Y12345C

Tabla de contenidos

Otros manuales de Unidad de control de Vestamatic

Vestamatic

Vestamatic Vesta Building Controller Manual de usuario

Vestamatic

Vestamatic MC BS4 Manual de usuario

Vestamatic

Vestamatic Excellence Manual de usuario

Vestamatic

Vestamatic IF SMI RS-485 DIN RAIL Series Manual de usuario

Vestamatic

Vestamatic Touch Centre XL 4C Wired Manual de usuario

Vestamatic

Vestamatic Rolltec Plus 500 Manual de usuario

Vestamatic

Vestamatic VestaLogo 500 Manual de usuario

Vestamatic

Vestamatic Rolltec Pro Manual de usuario

Vestamatic

Vestamatic Rollmat Plus V3.1 Manual de usuario

Vestamatic

Vestamatic IF SMI KNX 24VDC Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
