VESPA 150 Guía de instalación

OPERATlON AND MAINTENANCE

OPERATION AND MAINTENANCE

2nd EDITION Drw N. 2~2~OM PONTEDERA WORKS'

The descrlpllons ond lIIostrollons In this booklet ore not 10 be loken os binding on the Monoloctorer. The essenllol leotores 01 Ihe model described

and Illustrated herein remaining unaltered, the rlAGGIO firm reserves therefore the right 10 corry out at any moment, without being obliged 10 bring

this booklet up-tD-dote In due course, modUicotlonsthot moy occur concerning machineunits and ports. or delivery 0'accessories,thotthe thm deems

to be convenient on Improvement purposesor for what may con:ern manufacturingor commercial requirements.

NOTICE

In order, to keep their VESPA in perfect running conditions and not to

invalidate the guarantee offered by the contract, customers should always have

their machines repaired by sale agents or authorized service stations. Demand

original Piagg~o spare parts exclusively.

Special care should be taken in regard to fuel mixture which should be

of a good quality gasoline and oil of make. grade and in the amount prescribed

in this booklet, page 19.

INDEX OF MAIN DIRECTIONS

Introduction

Controls scheme

Identification data

Main specifIcation

Engine: description

Frame: d9scription

pag. 3

Electric wiring

Accessories

Operation

Maintenance

Lubrication chart

Fault finding .

Pag. 14

}} 26

INTRODUCTION

The "PIAGGIO Co" welcoming you in the family of the Vespa owners, wishes

to thank you for your preference, trusting that this scooter will be of your full

satisfaction.

For its own characteristics (comfort, low fuel consumption, noiseless running,

neatness etc.) the Vespa can have a large field of use; for work reasons as well

as tourist trips, both along large highways and narrow farm roads.

Long and hard rides will not worry you and, driving the Vespa, you will soon

realize its excellent performances.

This booklet, in which are described the simple instructions for the use and

maintenance, will enable you to know better your own Vespa and use it in

the most suitable way.

- 3

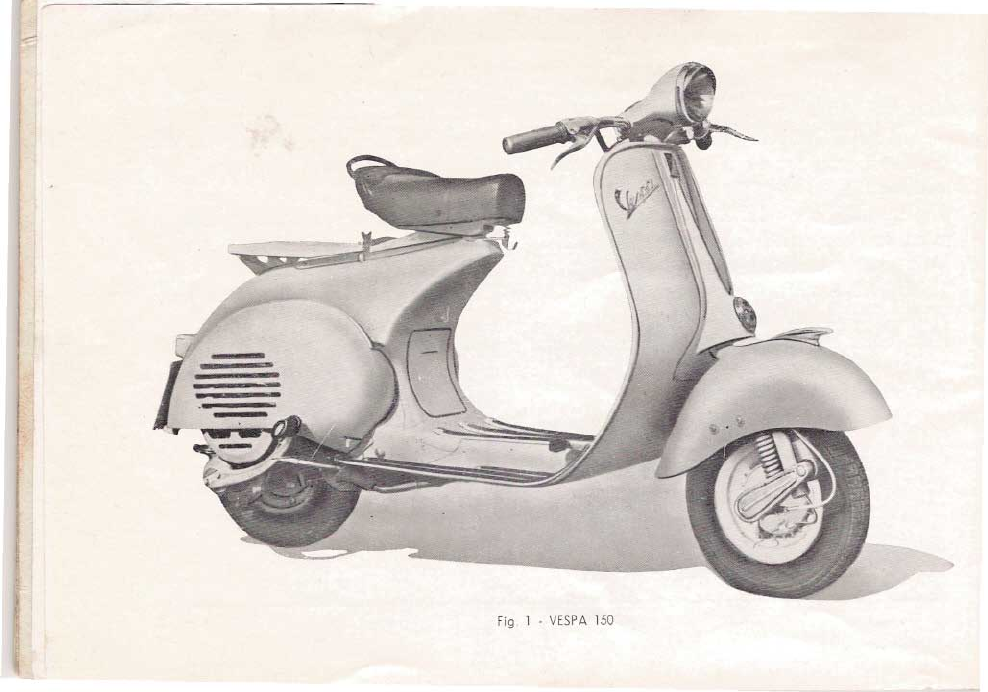

Fig 1 .VESPA150

Fig. f-VESPA controls

1. Switch, horn button, earth contact - 2. Gear shift clutch control - .3. Front brake lever - 4. Horn - 5. Rear brake pedal

6. Soutter of carburotlor housing. 7. Kickstarter - 8. Fuel cock - 9. Choke - 10. Filling cap. - 11. Throttl. control grip

-5

-IDENTIFICATION DATA

Fig. 3 - Stamping on engine

Serial numbers with prefixes are stam-

ped on both engine and frame, in the

positions indicated on Figs. 3 and 4

respectively.

Such numbers and prefixes indentify

the Vespa as prescribed by law and

are repeated on the test card and

other documents of the Vespa.

Fig. 4 - Stamping on frame

Fig. 5 . Scheme of Ihe engine ~

1. Spork plug. 2. Plug lead. 3. Cylinder head. 4. 1

Piston. 5. Cylinder - 6. Connecting rod - 7. Flywheel

8. Generating Coil - 9. low tension coil . 10. ./I .

,,~

~';~'LJVJ

PERFORMANCE

Fuel consumption at economic speed:

2.2liters to100Kms (107

miles per USA gal.; 120

miles per imp. gal.).

Max speed: 80 Km h (50 m. p. h.)

Garrying capacity: 2 persons and 10Kg.

of luggage.

Range: 370 Km. (230mls)

MAIN SPECIFICATION

Wheel base. . . 1165mm. (45.8 in)

Max width on han-

dlebars . 770 .. (30.3.. )

Max length. . . 1700 " (66.9.. )

Max height. . . 10qO .. (40.9.. )

Minimum height of floorboard

220 .. (8.7" )

Minimum turning circle 1500 mm. (59" )

Weight (without fuel) 92 Kg. (200Ibs)

ENGINE

Cycle: Single cylinder, two - stroke,

with reverse flow scavenge and de-

flector piston.

Bore.

Stroke . .

Displacement

. 57 mm.' (2.2qin.)

. 57 mm. (2.2qin.)

.145.6 cc. (8.88cu.in.)

Compression ratio: 6.3 to 1.

Ignition: by an external coil with pri-

mary winding fed by another coil in-

side the flywheel magneto. Sparkplug:

either Marelli CW 225 D, or AC q5 L.

Ignition timing with spark advance of

28 + 10.

Lubrication: by mixture for piston-

cylinder and gudgeon pin -con. rod-

crankshaft-main bearings units.

Both clutch and gear box operate in

oil bath.

Feeding: Fuel feed to the carburettor

is provided for by gravity directly from

the tank with gasoline-oil mixture.

Carburettor with float -chamber. Fuel

tank with total capacity 8.2 liters (2.17

USA gals 1.8 imp. gals) and emergency

reserve.

Three way cock (" open" - ., closed" -

reserve ,,) with sediment bowl.

Cooling: by a centrifugal fan.

Transmission: The engine is installed

on the swinging bracket of the rea'r su-

spension and drives directly the rear

wheel through clutch, cush drive and

gear box.

Clutch: Wet type; steel plates with

cork inserts.

Control by lever, on left hand side of

handlebars (see fig. 2), and adjustable

cable.

Gear box: 3-speed drive with mesh

gears in oil bath.

Its adjustable twistgrip control is cou-

pled with that of the clutch, on left

hand side of handlebars.

Engine to wheel transmission ratios:

First:

Second:

Third:

12. 2 to 1

7.46 to 1

4.73 to 1

Starting: By means of kickstarter, right

hand side of scooter.

- 9
