VX-820ATEX SERIES OPERATING MANUAL

WARNING!: ATEX INTRINSICALLY SAFE RADIO

The VX-820ATEX is approved for use in potentially explosive atmospheres according to the ATEX EC

Directive 94/9/EC.

The Intrinsically safe protection rating for the VX-820ATEX is ll 2G Ex ib llC T4 Gb (Approved for

Zone 1, Equipment Group II, Gas Group C Temperature Class T4).

The ATEX protection rating for these models is only maintained provided:

The equipment shall not be directly installed or used in any process where its enclosure might be electro-

statically charged by the rapid flow of a non-conductive media.

Use ONLY FNB-V100LIEX Battery Pack. Use of other batteries will invalidate the ATEX Approval.

Battery charging must occur ONLY in non - potentially explosive atmospheres.

Use ONLY ATEX approved accessories in the potentially explosive atmospheres. Connect and disconnect

these accessories only outside the potentially explosive atmospheres.

Ensure that there is no external damage to the radio, antenna or battery before entering the potentially

explosive atmospheres, as it might compromise the safety of the unit. eg an antenna with a damaged end or

insulation must be replaced before use in any potentially explosive atmospheres.

Servicing of ATEX radios can only be carried out Vertex Standard IS authorized personnel, who are aware of

the special parts required and the proceedures necessary to maintain the ATEX protection rating for these

products. Consult your authorized Vertex Standard Dealer for details.

Check the ATEX classification of each accessory listed on page 27 before using. Use of an ATEX accessory

with a lower rating than that of the radio itself will reduce the radio ATEX rating to that of the lower level.

Ambient temp range for the radio is –10 °C to +55 °C.

VX-820ATEX SERIES OPERATING MANUAL

WARNING!: RF EXPOSURE REQUIREMENTS

This Radio has been tested and complies with the 1999/519/EC RF exposure limits. In addition, it complies with

the following Standards and Guidelines:

ANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Fre-

quency Electromagnetic Fields, 3 kHz to 300 GHz.

ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the Measurement of Potentially Hazardous Elec-

tromagnetic Fields - RF and Microwave.

WARNING:

This radio generates RF electromagnetic energy during transmit mode. This radio is designed for and

classified as Occupational Use Only, meaning it must be used only during the course of employment by

individuals aware of the hazards, and the ways to minimize such hazards. This radio is not intended for

use by the General Population in an uncontrolled environment.

This radio is NOT approved for use by the general population in an uncontrolled exposure environ-

ment. This radio is restricted to occupational use, work related operations only where the radio opera-

tor must have the knowledge to control his or her RF exposure conditions.

When transmitting, hold the radio in a vertical position with its microphone 5 cm away from your

mouth and keep the antenna at least 5 cm away from your head and body.

The radio must be used with a maximum operating duty cycle not exceeding 50%, in typical Push-to-

Talk configurations.

DO NOT transmit for more than 50% of total radio use time (50% duty cycle). Transmitting more

than 50% of the time can cause RF exposure compliance requirements to be exceeded.

The radio is transmitting when the red LED on the top of the radio is illuminated. You can cause the

radio to transmit by pressing the PTT button.

VX-820ATEX SERIES OPERATING MANUAL

SAR compliance for body-worn use was only demonstrated for the specific belt-clip (CLIP-820). Other

body-worn accessories or configurations may NOT comply with the RF exposure requirements and

should be avoided.

DO NOT use the radio in Body Worn configurations with the following accessories unless the associ-

ated conditions are met:

CLIP-820 Belt Clip: (1) During transmission there must be at least a 4cm distance between the radio

and the body. (2) for monitoring purposes using the speaker or Vertex Standard authorized speaker

mic accessories only; (3) for carrying purposes.

Always use Vertex Standard authorized accessories.

The information listed above provides the user with the information needed to make him or her aware

of RF exposure, and what to do to assure themselves that the unit is operated within the RF Exposure

limits of this radio.

Electromagnetic Interference/Compatibility

During transmissions, this radio generates RF energy that can possibly cause interference with

other devices or systems. To avoid such interference, turn off the radio in areas where signs are

posted to do so.

Do not operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospi-

tals, health care facilities, aircraft, and blasting sites.

WARNING!: RF EXPOSURE REQUIREMENTS

VX-820ATEX SERIES OPERATING MANUAL

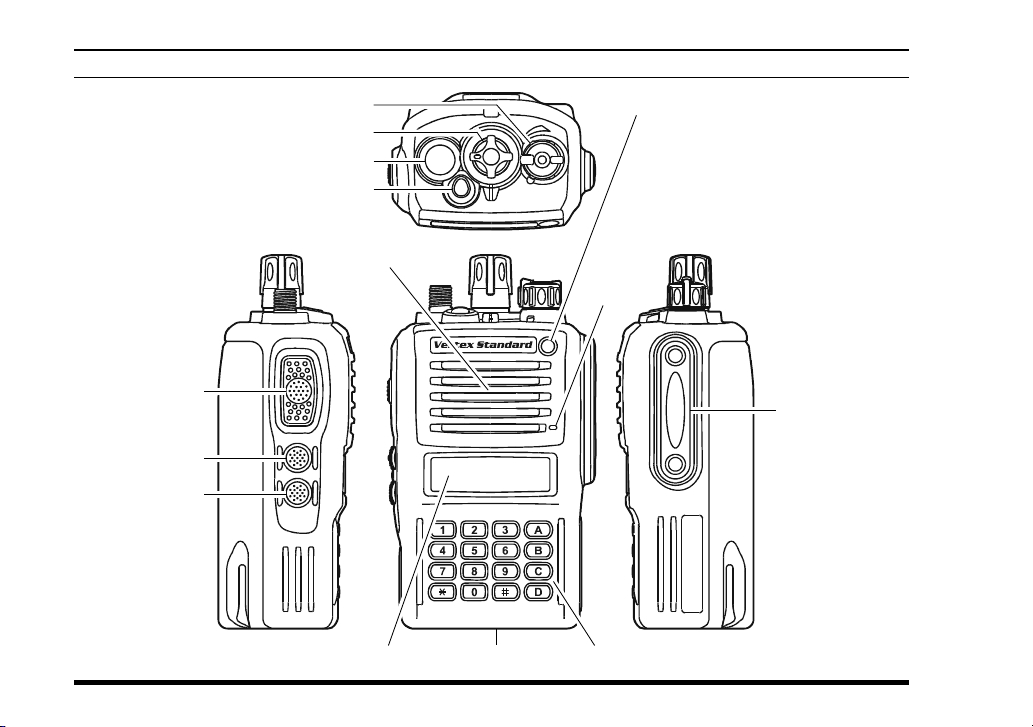

CONTROLS & CONNECTORS (16-KEY VERSION)

PTT Switch

MONITOR Button

LAMP Button

MIC/SP Jack

(External MIC/SP)

Battery Pack LatchLCD (Liquid Crystal Display)

Speaker

Microphone

LED Indicator

Steady Red:

Transmitting in progress

Blinking Green:

Busy Channel

Steady Green:

Tone Squelch in defeated condition

Dealer Programmed Color:

Emergency, 5-Tone Decoded, or

2-Tone Decoded

16-Button DTMF Keypad

Antenna Jack

TOP SEL Key

CH (Channel)Selector

VOL/PWR Knob

: one of “Flashing in white,”

“Continuation changes in

sequential colors,” or “tog-

gling the two colors.”

VX-820ATEX SERIES OPERATING MANUAL

ABC D

CONTROLS & CONNECTORS (4-KEY VERSION)

PTT Switch

MONITOR Button

LAMP Button

MIC/SP Jack

(External MIC/SP)

Battery Pack LatchLCD (Liquid Crystal Display)

Speaker

Microphone

LED Indicator

Steady Red:

Transmitting in progress

Blinking Green:

Busy Channel

Steady Green:

Tone Squelch in defeated condition

Dealer Programmed Color:

Emergency, 5-Tone Decoded, or

2-Tone Decoded

4-Button Programmable Key

Antenna Jack

TOP SEL Key

CH (Channel)Selector

VOL/PWR Knob

: one of “Flashing in white,”

“Continuation changes in

sequential colors,” or “tog-

gling the two colors.”

VX-820ATEX SERIES OPERATING MANUAL

CONTROLS & CONNECTORS (NON-LCD VERSION)

PTT Switch

MONITOR Button

LAMP Button

MIC/SP Jack

(External MIC/SP)

Battery Pack Latch

Speaker

Microphone

LED Indicator

Steady Red:

Transmitting in progress

Blinking Green:

Busy Channel

Steady Green:

Tone Squelch in defeated condition

Dealer Programmed Color:

Emergency, 5-Tone Decoded, or

2-Tone Decoded

Antenna Jack

TOP SEL Key

CH (Channel)Selector

VOL/PWR Knob

: one of “Flashing in white,”

“Continuation changes in

sequential colors,” or “tog-

gling the two colors.”

VX-820ATEX SERIES OPERATING MANUAL

LCD ICONS & INDICATORS (16-KEY & 4-KEY VERSIONS)

12 Character Alpha-numeric Display

SUB-LCD

888: Channel Group Number

-P-: Priority Channel

-H-: Home Channel

In: ARTS “In Range”

Out: ARTS “Out of Range”

RSSI Indicator (four steps)

Encryption is activated

Option SW (Key Function)

is activated

Low Transmit Power Mode On

“DUAL WATCH” is activated

This channel on “SCAN” List

Priority Scan is activated

“CALL” Indicator

Receiver Monitor

“Talk-Around” is enabled

Battery Indicator

“Group Scan” is enabled

BATTERY TERMINALS

Maximum Input Voltage: 8.4 V DC

Maximum Input Current:1A

Maximum Input Power:8.4W

Maximum Internal Capacitance: 31.4 µF

VX-820ATEX SERIES OPERATING MANUAL

BEFORE YOU BEGIN

Battery Pack Installation and Removal

To install the battery, hold the transceiver with

your left hand, so your palm is over the speaker

and your thumb is on the top of the belt clip. Care-

fully mate the battery’s four insertion slots with

their corresponding alignment tabs on the trans-

ceiver case, while tilting the Belt Clip outward.

Proper alignment occurs with the battery pack

offset about 1 cm from the top edge of the battery

compartment.

Guide the pack on to the tabs with a slight inward

pressure, then slide the battery pack upward, un-

til it locks in place with a “Click.”

To remove the battery, turn the radio off and re-

move any protective cases. Slide the Battery Pack

Latch on the bottom of the radio toward the front

panel while sliding the battery down about 1 cm.

Then lift the battery out from the radio while un-

folding the Belt Clip.

1) Do not remove/install the Battery Pack

in a potentially explosive atmospheres.

2) Do not attempt to open any of the rechargeable

Lithium-Ion packs, as they could explode if acci-

dentally short-circuited.

Low Battery Indication

As the battery discharges during use, the voltage

gradually becomes lower. When the battery voltage

becomes to low, substitute a freshly charged battery

and recharge the depleted pack. The LED indicator

on the top of the radio will blink red when the bat-

tery voltage is low.

Tilt the Belt Clip

Insert the Battery Pack

Tabla de contenidos

Otros manuales de Transceptor de Vertex Standard

Vertex Standard

Vertex Standard Pilot VXA-210 Manual de usuario

Vertex Standard

Vertex Standard VX-424A Manual de usuario

Vertex Standard

Vertex Standard VX-160EU Manual de usuario

Vertex Standard

Vertex Standard VX-2100 Series Manual de usuario

Vertex Standard

Vertex Standard VX-1210 Manual de usuario

Vertex Standard

Vertex Standard VXA-150 Manual de usuario

Vertex Standard

Vertex Standard EVX-534 Manual de usuario

Vertex Standard

Vertex Standard VX-5500V Manual de usuario

Vertex Standard

Vertex Standard VX-4000 Series Manual de usuario

Vertex Standard

Vertex Standard FT-950 Manual de usuario

Vertex Standard

Vertex Standard VX-6000V Manual de usuario

Vertex Standard

Vertex Standard VX-410 Series Manual de usuario

Vertex Standard

Vertex Standard VX-160U Manual de usuario

Vertex Standard

Vertex Standard VX-160V Manual de usuario

Vertex Standard

Vertex Standard VM-3500E Manual de usuario

Vertex Standard

Vertex Standard EVX-531 Manual de usuario

Vertex Standard

Vertex Standard DMU-2000 Instrucciones generales

Vertex Standard

Vertex Standard GX1255S Manual de usuario

Vertex Standard

Vertex Standard VXA-150 Manual de usuario

Vertex Standard

Vertex Standard Pilot III Manual de usuario

Vertex Standard

Vertex Standard VX-210A Manual de usuario

Vertex Standard

Vertex Standard VX-230 Series Manual de usuario

Vertex Standard

Vertex Standard VX-4000L Manual de usuario

Vertex Standard

Vertex Standard VX-920 series Manual de usuario

Manuales populares de Transceptor de otras marcas

Yaesu

Yaesu FT-7B Manual de usuario

Kenwood

Kenwood ProTalk TK-3201 Manual de usuario

Texas Instruments

Texas Instruments TLK10232 Manual de usuario

Mizuho

Mizuho MX-2 Guía del producto

Kenwood

Kenwood TK-3180 Manual de operación y mantenimiento

Blitz

Blitz MJ-398U Manual de usuario

Utilicom

Utilicom LongRanger 2050 Manual de usuario

Standart

Standart HX290UKA Manual de usuario

Altronix

Altronix Pace1PTM Manual de usuario

Kirisun

Kirisun PT2208 Manual de usuario

ELECRAFT

ELECRAFT KX2 Manual de usuario

Zodiac

Zodiac K3 Manual de usuario

Assa Abloy

Assa Abloy SecureComm HKC GSM-WIFI U Manual de usuario

Kenwood

Kenwood TK-2217 Manual de usuario

Siemens

Siemens PSO 4000 Manual de usuario

Kenwood

Kenwood TS-590SG Manual de usuario

Midland

Midland G8E-BT Manual

ComNav

ComNav Mariner X2 Manual de usuario
