Verkada CM41-S Manual de usuario
Document
Document Details
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © Verkada Inc. All rights reserved.
V1.1 (20230301)
(V1.0 first published 20220415)
Firmware
Firmware version can be verified on
Verkada Command command.verkada.com.
2
Introduction

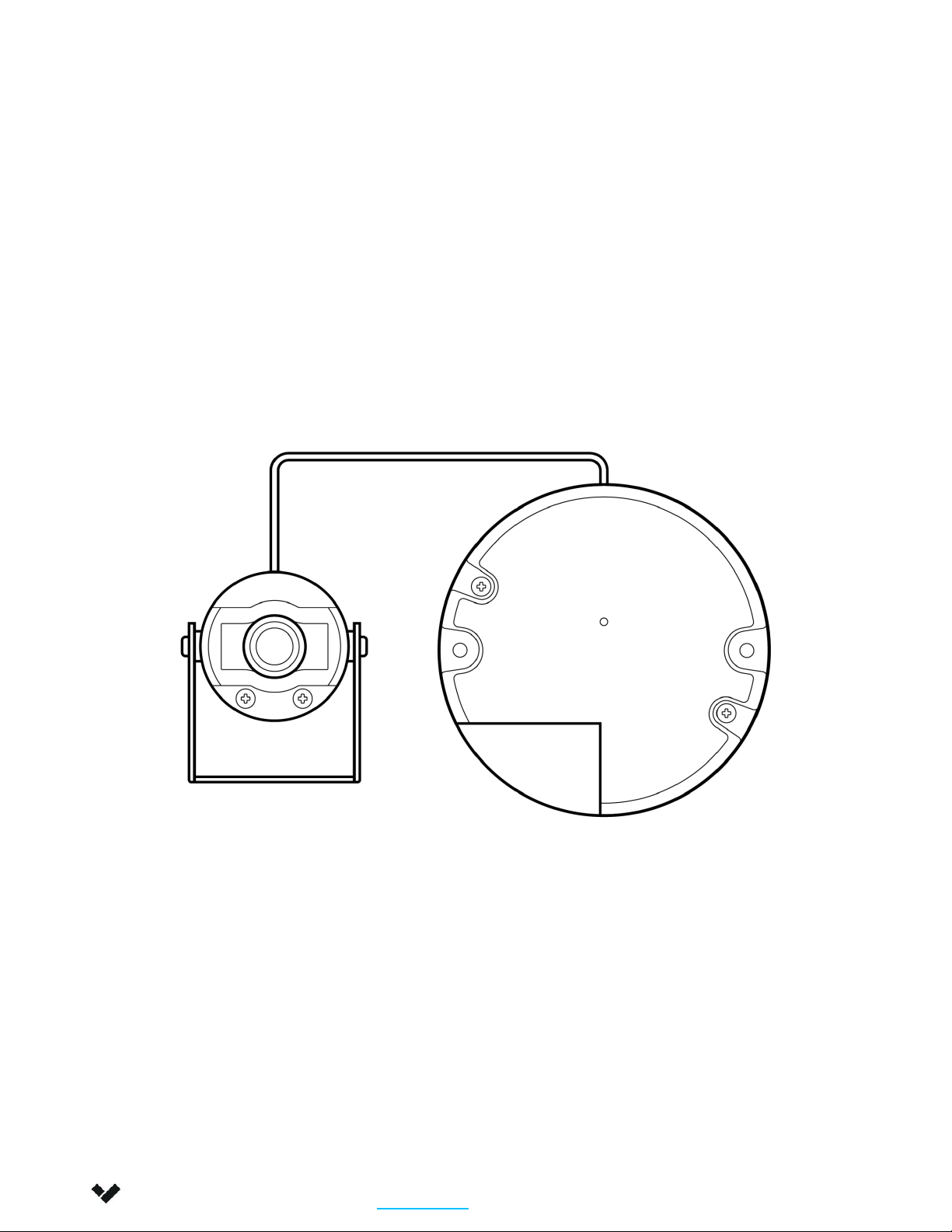

What’s in the box
What you’ll need
●A working Internet connection
●802.3af Power over Ethernet (PoE)
switch, or a PoE injector
●A smartphone or laptop
●A Phillips screwdriver or power drill
with a Phillips driver bit
●1/8-inch (3mm) drill bit for pilot holes
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © Verkada Inc. All rights reserved.
CM41-S Camera module CM41-S Hub Mount plate
Connect
Connect the camera to an 802.3af Power
over Ethernet port on your network.
For camera registration and setup, proceed
to www.verkada.com/start.
3
2 Camera module mounting screws
& 2 Hub mounting screws
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © Verkada Inc. All rights reserved.
4
Introduction
LED Behaviors
Regular operation
Solid Orange
Camera is on and booting up.
Flashing Orange
Camera is updating firmware.
Solid Blue
Camera is running, connected,
and recording data.
Network errors
1 Blue, 1 Orange
Camera is connected to the PoE, but
unable to connect to the Switch.
1 Blue, 2 Orange
Camera has not received an IP address.
1 Blue, 3 Orange
Camera has detected duplicate IP
addresses on the LAN.
1 Blue, 4 Orange
Camera is not able reach the router.
The LED will flash in a specific order,
depending on the error state. You will
see 1 blue flash, followed by a number of
orange flashes.
Example of 1 Blue, 5 Orange flash sequence
1 Blue, 5 Orange
Camera is not able to resolve Verkada
hostnames.
1 Blue, 6 Orange
Camera is not able to receive a
response from the NTP Server.
1 Blue, 7 Orange
Camera is not able to certify the SSL
connection, likely due to SSL inspection.
1 Blue, 8 Orange
Verkada endpoints are not reachable
after boot up.
Status LED
–
Installation

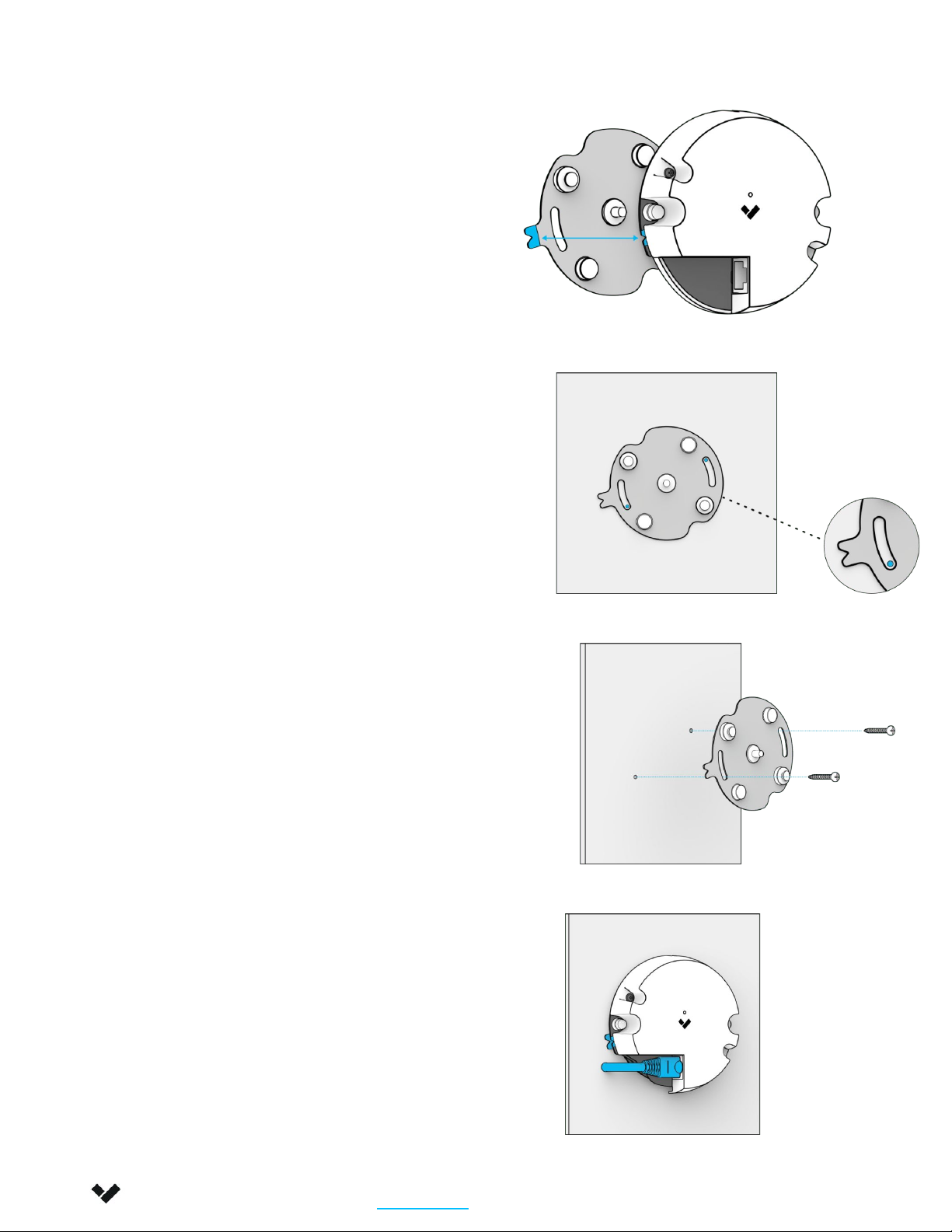

Hub Mounting
1. Ensure the blue notches on
the hub and the mount
plate are aligned, and pull
to remove the mount plate.
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © Verkada Inc. All rights reserved.
5
2. Use the mount plate to
mark holes for mounting
screws.
3. Drill 1/8 inch pilot holes.
Drive the hub mounting
screws through the mount
plate directly into the the
pilot holes.
4. Connect the RJ45 cable.
Line up the blue notches on
the mount plate and the
hub and place the hub over
the center pin on the mount
plate.
Installation
Lens Module Mounting
1. Place the camera module
in the desired mounting
position. Use the camera
module mounting bracket
to mark holes for mounting
screws.
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © Verkada Inc. All rights reserved.
6
2. Drill 1/8 inch pilot holes.
Drive the camera module
mounting screws through
the mounting bracket
directly into the the pilot
holes.
3. Adjust the camera module
to the desired position and
viewing angle.
4. For installs against a
transparent window, ensure
that the flat portion of the
lens rubber is pressed firmly
against the surface of the
window.
Appendix
CM41-S Compliance
Caution 1. Maintenance and repair work must always be carried out by qualified technical personnel.
Disconnect power from the unit when performing a maintenance task.
2. Wiring methods used for the connection of the equipment to earth shall be in accordance with the
National Electrical Code,ANSI/ NFPA 70, and the Canadian Electrical Code, Part 1, CSA C22.1.
3. The product must be installed and protected in a location that is not easily accessible, and is away
from impacts or heavy vibration.
4. The camera is only to be connected to PoE networks without routing to outside plants.
5. If powered by a power adapter, the adapter should be properly grounded.
6. Please contact certified dealers for power adapters.
PoE
Adapter
To reduce potential safety issues, only use the PoE adapter provided with the product, a replacement PoE
adapter provided by Verkada, or a PoE adapter purchased as an accessory from Verkada.
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © Verkada Inc. All rights reserved.
7
Verkada Inc. 405 E 4th Ave, San Mateo, CA 94401
All specifications are subject to change without notice
Copyright © Verkada Inc. All rights reserved.
8
Appendix
Support
Thank you for purchasing this Verkada product. If for any
reason you're experiencing issues or need assistance, please
contact our 24/7 Technical Support Team immediately.
Sincerely,
The Verkada Team
verkada.com/support
