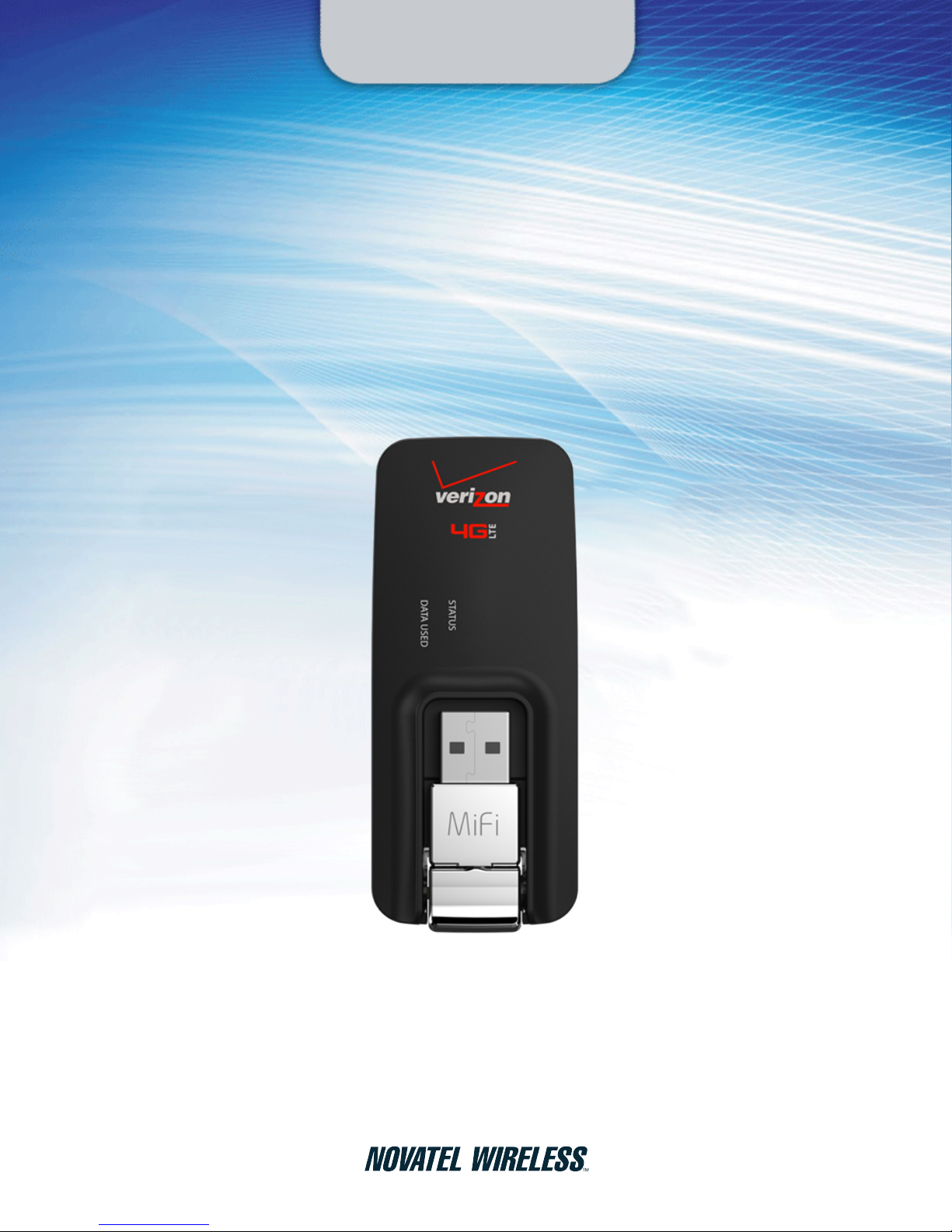

MiFi 4G LTE Global

USB Modem U620L

Linux Integration Guide

Version 1.0 July10, 2015

NOVATEL WIRELESS COPYRIGHT STATEMENT

to change without notice and should not be construed as a commitment by Novatel Wireless, Inc.

NOVATEL WIRELESS TRADEMARKS AND SERVICE MARKS

Novatel Wireless is a trademark of Novatel Wireless, Inc., and the other trademarks, logos, and service

marks (collectively the “Trademarks”) used in this user manual are the property of Novatel Wireless or

their respective owners. Nothing contained in this user manual should be construed as granting by

implication, estoppel, or otherwise, a license or right of use of Novatel Wireless or any other Trademark

displayed in this user manual without the written permission of Novatel Wireless or its respective

owners.

Novatel Wireless, and the Novatel Wireless logo are all trademarks of Novatel Wireless, Inc.

MiFi® and the MiFi logo are registered trademarks of Novatel Wireless, Inc.

iii

General Disclaimer

From time to time, Novatel Wireless, in its sole discretion, may make available for download on its

website (www.novatelwireless.com), or may transmit via mail or email, updates or upgrades to, or new

releases of, the firmware, software, or documentation for its products (collectively, 'New Materials'). Use

of such New Materials is subject to the terms and conditions set forth below, and may be subject to

additional terms and conditions as set forth in Novatel Wireless's Technical Support Policy (posted on its

website) and/or any written agreement between the user and Novatel Wireless.

All New Materials are provided AS IS. Novatel Wireless makes no warranty or representation with

respect to the merchantability, suitability, functionality, accuracy, or completeness of any such New

Materials. The user of such New Materials assumes all risk (known or unknown) of such use. Novatel

Wireless reserves all rights in such New Materials. The user shall have only a revocable and limited

license to use such New Materials in connection with the products for which they are intended.

Distribution or modification of any New Materials without Novatel Wireless's consent is strictly

prohibited.

IN NO EVENT WILL NOVATEL WIRELESS BE RESPONSIBLE FOR ANY INCIDENTAL, INDIRECT,

CONSEQUENTIAL, OR SPECIAL DAMAGES AS A RESULT OF THE USE OF ANY NEW MATERIALS. NOVATEL

WIRELESS'S MAXIMUM LIABILITY FOR ANY CLAIM BASED ON THE NEW MATERIALS SHALL NOT EXCEED

FIFTY U.S. DOLLARS ($50).

Version Verification

To ensure you have the latest version of this document, visit the Novatel Wireless IoT Technical

Documentation site at documentation.nvtl.com.

Contents

Introduction 1

Overview 2

Prerequisites 3

Known Issues 4

End User Mode 5

Enumerating CDC-ECMInterface 6

Enterprise Mode 7

Enumerating CDC-ECM + Modem Interfaces 8

Introduction

Overview

Prerequisites

Known Issues

Overview

The MiFi U620L implements the Remote Network Driver Interface Specification (RNDIS) network

interface based on Microsoft RNDIS 6.0. Although this integration may not be supported in the Linux

environment, the MiFi U620L does support Linux configurations.

This guide outlines the basic information needed to successfully integrate the MiFi U620L into a Linux

platform. The two main sections in the guide are:

lEnd-User Mode: Enumerating CDC-ECM interface

In this mode, the device is used for a WWAN connection to the Internet for such activities as

browsing or connecting to a VPN.

lEnterprise Mode: Enumerating CDC-ECM and Modem interfaces (Optional)

In this mode, the Modem interface allows users to send AT commands to the device to

configure, query, or manage the Internet connection.

NOTE: The information included in this guide is based on Ubuntu running a Kernel version 3.16.0-

30.generic and these instructions can be extended to other kernel versions with no or minimum

changes (as appropriate).

U620L Linux Integration Guide 2

U620L Linux Integration Guide 3

Prerequisites

The following items are prerequisites for the Linux integrations:

lusb_modeswitch—Utility used for switching USB configurations. This utility should be installed

on the Linux machine.

NOTE: An Internet connection is required for this installation.

To install the utility:

4Enter the following command:

# sudo apt-get install usb_modeswitch

lLinux Kernel source files—Files required to enable the MiFi U620Lto enumerate the Modem

interface. Download the files from this site: https://www.kernel.org/.

Known Issues

The usb_modeswitch utility has crashed on some Linux distributions presenting the following error

message.

Despite receiving this message, the Ethernet Interface gets enumerated correctly and the laptop gets an

IP address from the device. This is a tool-related issue and you can safely ignore this error.

U620L Linux Integration Guide 4

End User Mode

Enumerating CDC-ECM Interface

Enumerating CDC-ECMInterface

By default, the MiFi U620L device is in End-User Mode. This means that only the RNDIS configuration is

exposed. For the device to get a WWAN IPAddress assignment, you must switch the configuration to

CDC-ECM.

To switch the configuration and initiate the DHCPrequest:

1. Verify that your device is in End-User Mode by issuing the following command:

# lsusb

If the device is in End-User Mode, the response is:

ID 1410:9020 Novatel Wireless

2. If the device is in End-User Mode, uninstall the RNDISdriver by issuing the following command:

# sudo rmmod rndis_host

3. Switch the device to CDC-ECM configuration by issuing the following command:

# sudo usb_modeswitch –v 0x1410 –p 0x9020 –u 2

Once these steps are complete, the CDC-ECM interface is enabled on the device and the device

expects a DHCP Request from the Linux server.

4. Initiate the DHCP Request to the U620L to get the WWAN IP Addresses assigned to Linux by

issuing the following command:

# sudo dhclient eth1

NOTE: Replace eth1 with the appropriate Ethernet interface enumeration on your setup.

U620L Linux Integration Guide 6
