Verizon Wireless Jetpack Pantech MHS800L Manual de usuario
Verizon Ellipsis™ Jetpack ® 4G LTE Mobile Hotspot
(Pantech MHS800L)
ExternalAntenna Port Guide
Primary
ExternalAntenna Port
When Using 1 Antenna
Connect Antenna To This Port
Secondary
ExternalAntenna Port
When Using Dual Antennas
Connect an Antenna To Each Port
Page 1 of 3
Warning: The MHS800L external antenna ports can be fragile. Using excessive
force when connecting or disconnecting your adapter cable can damaged the
modem's internal antenna. To avoid damaging your modem - Be Gentle.
The Verizon Ellipsis™ Jetpack ® 4G LTE Pantech MHS800L
Mobile Hotspot Has 2 Antenna Ports
MIMO (Multiple In / Multiple Out)
Connect Dual Antennas to take full advantage of Hi-Speed MIMO 4G LTE Device capabilities
Page 2 of 3
Increase Speeds & Range
An external antenna can improve performance when in fringe areas.
To attach an external antenna first flip open the antenna cover(s).
The Verizon Pantech MHS800L has two antenna ports for LTE MIMO capability.
If you are only connecting a single antenna you should use Antenna Port - 2
For convenient placement you can attach the antenna(s) to your laptop screen.
Verizon Ellipsis™ Jetpack ® 4G LTE Mobile Hotspot
(Pantech MHS800L)
Antenna Port -2
Antenna Port -2
Antenna Port -1

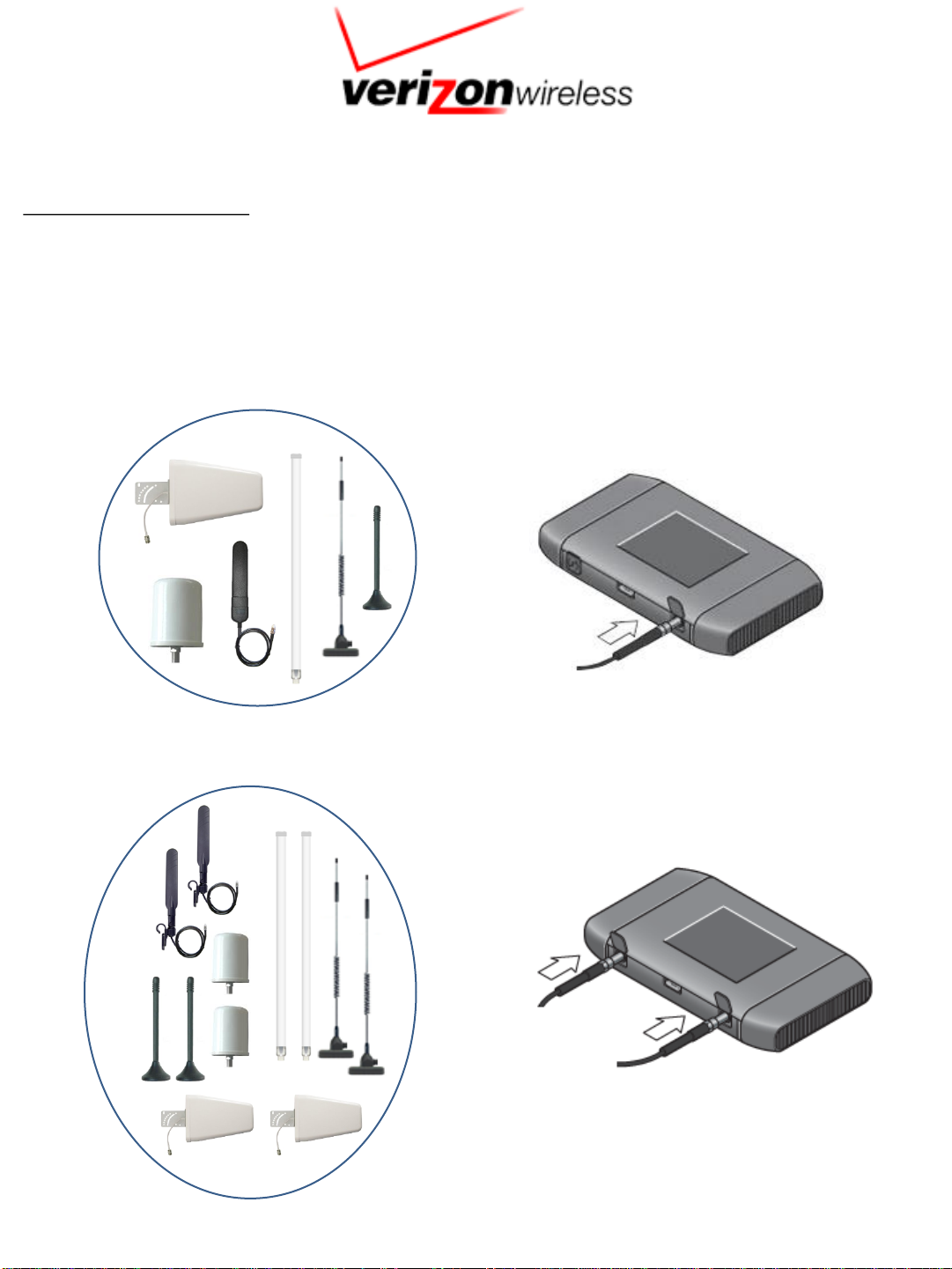

Single Antenna Solutions
3G 4G LTE
Dual Antenna Solutions
MIMO 3G 4G LTE
3G 4G LTE Antenna Solution
4G LTE MIMO Antenna Solution
MIMO (Multiple In / Multiple Out)
Connect Dual Antennas to take full advantage of Hi-Speed MIMO 4G LTE Device capabilities
Page 3 of 3
Antenna Port -2
Antenna Port -2
Increase Speeds & Range
An external antenna can improve performance when in fringe areas.
To attach an external antenna first flip open the antenna cover(s).
The Verizon Pantech MHS800L has two antenna ports for LTE MIMO capability.
If you are only connecting a single antenna you should use Antenna Port - 2
For convenient placement you can attach the antenna(s) to your laptop screen.
4G LTE MIMO Antenna Solution
3G 4G LTE Antenna Solution
Antenna Port -1
Verizon Ellipsis™ Jetpack ® 4G LTE Mobile Hotspot
(Pantech MHS800L)
