VeriFone VX 805 Manual de usuario

One Blue Hill Plaza, 16th Floor, PO Box 1546

Pearl River, NY 10965

1-800-PC-AMERICA, 1-800-722-6374

(Voice) 845-920-0800 (Fax) 845-920-0880

VeriFone VX 805 with Valutec

(Mellennia) through Datacap

This document provides step-by-step instructions on installing the VeriFone VX 805, configuring settings,

and processing gift cards in CRE/RPE using Valutec through DataCap. You must be on version 12.8015 or

higher to use this gift card processor with the VX 805.

Note: You must have a Deployment ID for the computer acting as the GIFTePay server created prior to

attempting this installation. You must also have a License for each station that is processing

transactions through the GIFTePay server. If you do not have them, please contact your reseller or

processor for information on how to obtain them.

TABLE OF CONTENTS

INSTALLING THE VX 805 DRIVER 3

INSTALLING DSIPDCX CONTROL (REQUIRED ON EACH PC USING A VX 805) 7

INSTALLING GIFTEPAY (REQUIRED ON PC THAT WILL ACT AS DATACAP SERVER ONLY) 10

CONFIGURING CRE/RPE FOR GIFT CARD (REQUIRED ON EACH PC THAT WILL PROCESS GIFT CARD

PAYMENTS) 16

CONFIGURING CRE/RPE FOR LOYALTY (REQUIRED ON EACH PC THAT WILL TRACK LOYALTY) 18

ACTIVATING A GIFT CARD 20

ADDING FUNDS TO AN ACTIVATED GIFT CARD 22

PERFORMING A GIFT CARD SALE 25

PERFORMING A MANUAL GIFT CARD SALE 28

PERFORMING A GIFT CARD REFUND 30

ASSOCIATING VALUTEC CARDS WITH EXISTING CUSTOMERS 32

ACCUMULATE POINTS WITH VALUTEC LOYALTY 33

Installing the VX 805 driver

Leave the VX805 pin pad DISCONNECTED from the computer before installing the driver.

Download the VX 805 driver from the following link:

http://download2.pcamerica.com/drivers/Manufacturer/Verifone/VX805_Driver.zip

1. Locate the downloaded file VX805_Driver.zip. Right-

click on the file and extract its contents.

2. Right-click on the VX805_Driver.exe file that was just

extracted and click on Run as administrator.

3. Accept the agreement and click on Next.

4. Wait while the driver installs. When it is finished the

installer window will close automatically.

5. On the VX 805, first take the USB connector.

6. Then connect it to any available USB port on the

computer.

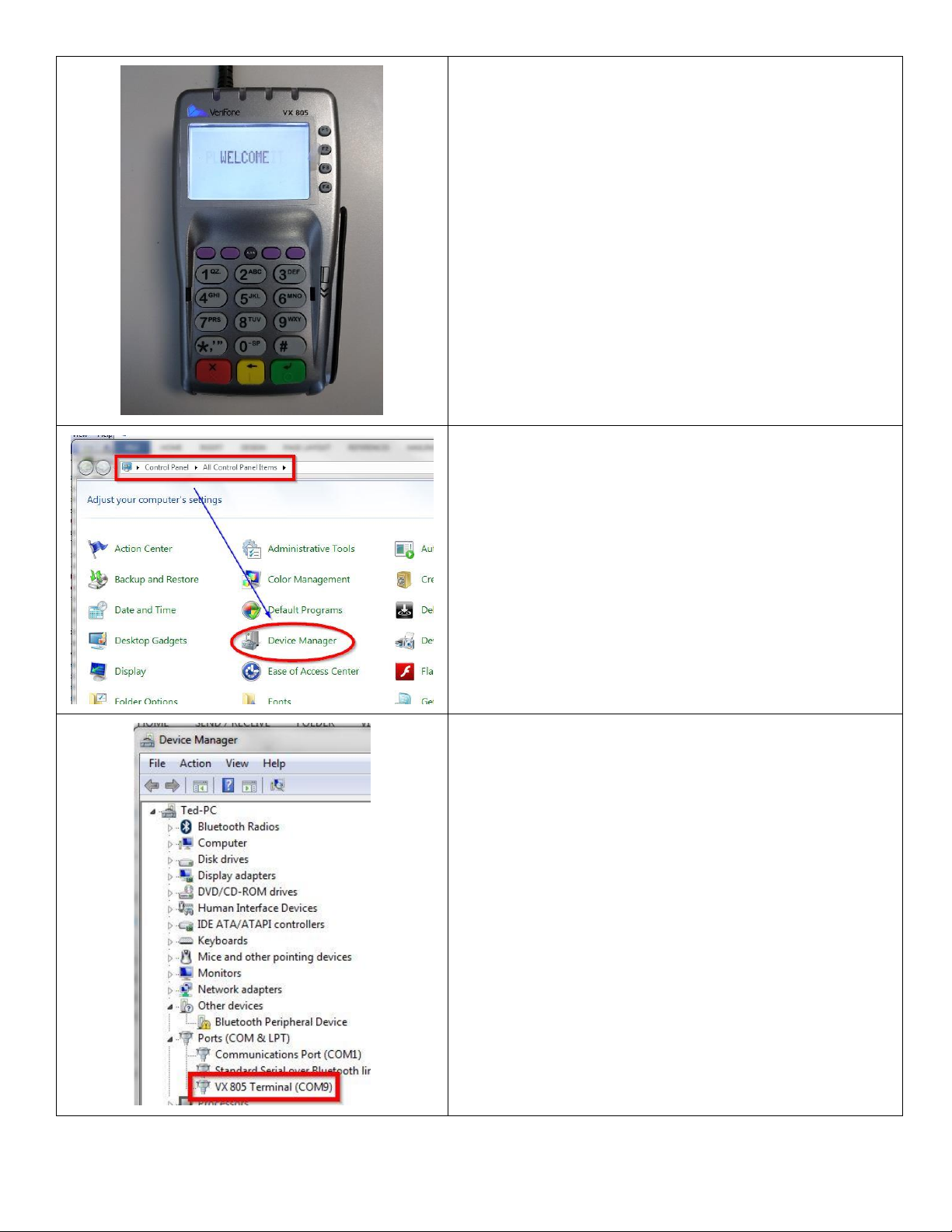

7. The screen should display a Welcome message when

fully booted.

8. In Windows, go to Control Panel > Device Manager.

9. Expand the Ports branch. You should now see the VX

805 with a COM port assigned to it in parenthesis. This

is usually configured for COM9.

10. In Windows Control Panel > Programs and Features,

11. An entry for VeriFone Vx Installer version should also

be created if the driver installed correctly.

Installing dsiPDCX control (required on each PC using a VX 805)

Download the latest dsiPDCX control software for Valutec from the following link:

http://www.datacapepay.com/epay50/1229/

1. Under dsiPDCX 1.4*, click on

Download.

2. Right-click on the dsiPDCX-14*-

Install201*****-W8.exe file and

click on Run as administrator.

3. Click Next.

4. Accept the agreement and click

Next.

5. Enter a User Name and

Organization then click Next.

6. Click Install.

7. Click Finish.

8. Click on Yes when prompted to

restart the computer.

Installing GIFTePay (required on PC that will act as DataCap server only)

If the Computer that is running GIFTePay is turned off, all other stations will not be able to process Gift Cards.

Download the latest GIFTePay software from the following link:

http://www.datacapepay.com/epay50/1229/

1. Right-click on the dsiPDCX-

14*-Install201*****-

W8.exe file and click on Run

as administrator.

2. Click Next

3. Accept the agreement and

click Next.
