VeriFone VX 805 Manual de usuario

One Blue Hill Plaza, 16th Floor, PO Box 1546

Pearl River, NY 10965

1-800-PC-AMERICA, 1-800-722-6374

(Voice) 845-920-0800 (Fax) 845-920-0880

Verifone VX 805 with Elavon Processing

This document provides step-by-step instructions on installing the Verifone VX 805, configuring settings,

and processing transactions in CRE using Elavon through DataCap.

Note: You must have a Deployment ID for the computer acting as the NetEpay server created prior to

attempting this installation. You must also have a License for each station that is processing

transactions through the NetEpay server. If you do not have them, please contact your reseller or

processor for information on how to obtain them.

TABLE OF CONTENTS

REVISION HISTORY 3

INSTALLING THE VX 805 DRIVER 4

INSTALLING DSIEMVUS CONTROL (REQUIRED ON EACH PC USING A VX 805) 8

INSTALLING DSIPDCX CONTROL (REQUIRED ON EACH PC USING A VX 805) 11

INSTALLING NETEPAY (REQUIRED ON PC THAT WILL ACT AS DATACAP SERVER ONLY) 14

CONFIGURING SETTINGS IN CRE/RPE (REQUIRED ON EACH PC THAT WILL PROCESS CARD PAYMENTS) 19

CONFIGURING CASH BACK WITH A DEBIT CARD & EBT CASH SALES 20

CONFIGURING THE VX 805 TO ACCEPT EBT CARDS 21

RINGING UP AN EMV CREDIT CARD SALE USING THE CHIP READER 22

PERFORMING A DEBIT SALE WITH CASHBACK 25

PERFORMING A EBT FOODSTAMP SALE 29

PERFORMING A EBT CASH SALE WITH CASHBACK 31

PERFORMING A MANUAL ENTRY SALE 33

PERFORMING A MANUAL ENTRY EBT FOODSTAMP SALE 37

PERFORMING A BATCH SETTLEMENT 40

Revision History

Document Version

Date

Author

Description of Changes

1.0

January 19, 2018

1st Release

2.2

April 6, 2018

Updated links to Datacap

Software

Installation notes:

The merchant is responsible for contacting their Reseller and obtaining a Merchant Number, as well as

having a Deployment ID created on DataCap’s PSCS Server prior to installation.

You must be running CRE/RPE version 12.8031 or higher to use this device. To install the required

version of CRE/RPE Windows 7 or above is required.

The click here for the pinpad’s supported application load for version supported by DataCap & Elavon.

The NETePay software only needs to be installed on 1 station which will act as the DataCap server.

It is recommended to install the NETePay Software on a back office computer that can act as a server.

The VX 805 driver, dsiPDCX software, and dsiEMVUS software needs to be installed on each station

that will process card payments.

A settlement command (manual settlement or auto settlement set in CRE/RPE) CANNOT be sent to the

processor from CRE/RPE. The settlement must be set to auto settle through the processor.

Device encryption is configured by the processor prior to deployment.

Installing the VX 805 driver

Download the VX 805 driver from the following link:

http://download2.pcamerica.com/drivers/Manufacturer/Verifone/VX805_Driver.zip

1. Locate the downloaded file

VX805_Driver.zip. Right-click on the

file and extract its contents.

2. Right-click on the VX805_Driver.exe

file that was just extracted and click on

Run as administrator.

3. Accept the agreement and click on

Next.

4. Wait while the driver installs. When it

is finished the installer window will

close automatically.

5. On the VX 805, take the USB

connector,

6. and connect it to any available USB

port on the computer.

7. The screen should display a Welcome

message when fully booted.

8. In Windows, go to Control Panel >

Device Manager.

9. Expand the Ports branch. You should

now see the VX 805 with a COM port

assigned to it in parenthesis. This is

usually configured for COM9.

10. In Windows Control Panel > Programs

and Features,

11. Look for entry named Verifone Vx

Installer version should also be

created if the driver installed correctly.

Installing dsiEMVUS control (required on each PC using a VX 805)

Download the latest dsiEMVUS control software for Elavon from the following link, Select NETePay5.0 to expand the list,

and select Elavon Host EMV –ELH.

1. Under dsiEMVUS 1.** Click on Download.

2. Right-click on the dsiEMVUS-100-

Install201*****-W8.exe file and click on

Run as administrator.

3. Click on Next.

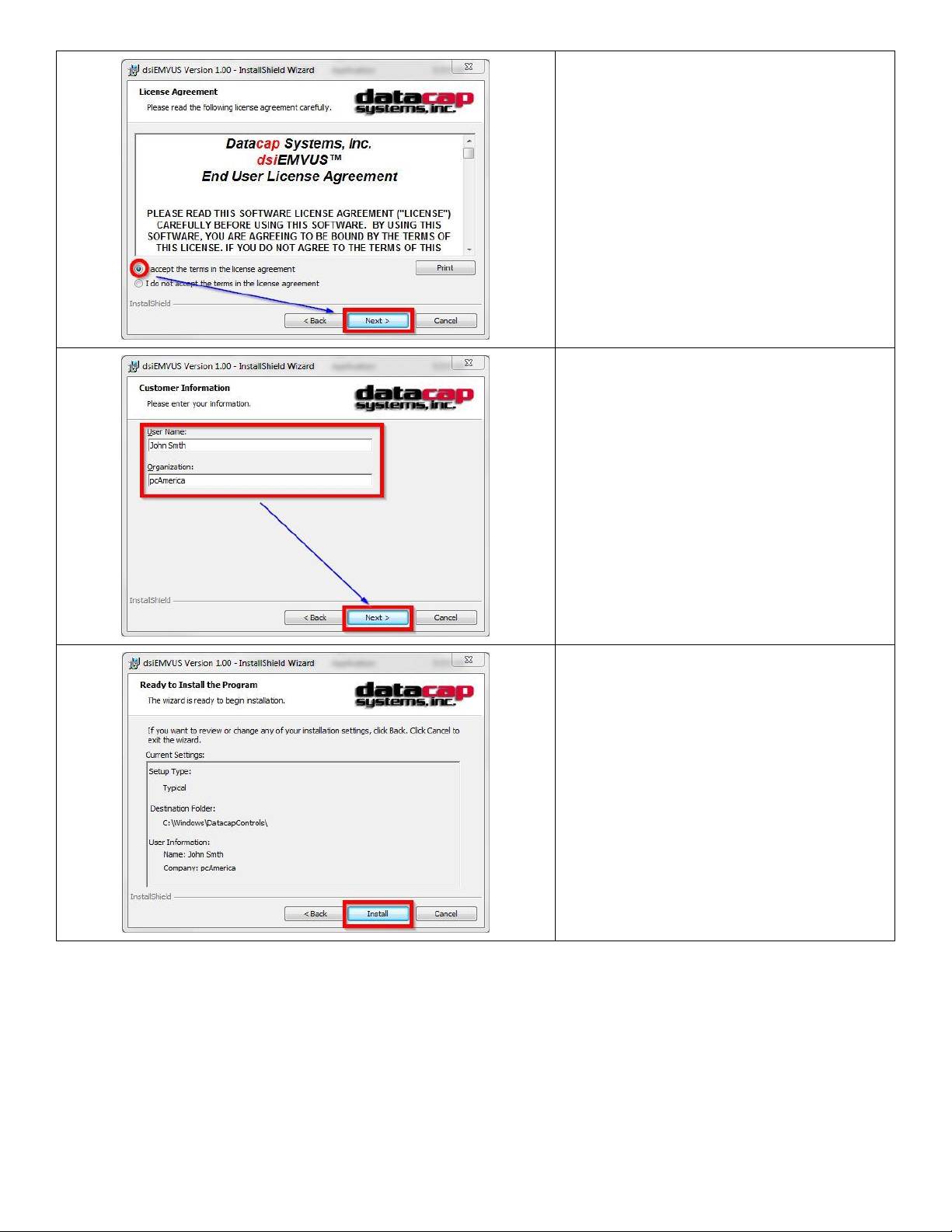

4. Accept the agreement and click Next.

5. Enter a User Name and Organization

then click Next.

6. Click on Install.

7. Click on Finish.

8. Click on Yes when prompted to restart.
