Vent-Axia Lo-Carbon iQ Manual de usuario

Vent-Axia Lo-Carbon

Intelligent extract fan for bathrooms or toilets

Lo-Carbon iQ In-Box Leaflet.indd 1 14/11/2013 13:41:15

2 T: 0844 856 0590

Thank you for choosing this product from Vent-Axia.

Before installing and using the fan, read through this manual /

these instructions for use. Then keep it safe so that you can use it for

reference in future.

Warning!

This product is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they are supervised or have

been given instruction concerning use of the product by a person

responsible for their safety.

Children should be supervised to ensure that they do not play with

the product.

Lo-Carbon iQ In-Box Leaflet.indd 2 14/11/2013 13:41:15

3 W: www.vent-axia.com/iq

Lo-Carbon iQ Fan

CONTENTS

4 DESCRIPTION OF FUNCTIONS

5 INSTALLATION GUIDE

1. Contents

2. Installation

3. Wiring

4. Installation options

5. Connecting the pullcord switch

6. Factory settings

7. Setting functions

10 ADVANCED FUNCTIONS

1. Setting humidity sensitivity mode

2. Pause function with momentary switch

12 LED INDICATORS

13 MAINTENANCE

15 WARRANTY

15 RECYCLING

16 ACCESSORIES

17 TECHNICAL DATA

18 TROUBLESHOOTING GUIDE

Lo-Carbon iQ In-Box Leaflet.indd 3 14/11/2013 13:41:15

4 T: 0844 856 0590

DESCRIPTION OF FUNCTIONS

• Automatic moisture detection system

Vent-Axia Lo-Carbon iQ is equipped with fully automatic

humidity control, which means the fan learns to run only

when it can make a difference.

• Timer

Selectable delay time – 5, 15 or 30 minutes.

• Speed control

The integral speed control allows you to adjust the noise

level and capacity to meet your needs.

• Continuous Trickle operation

Leave the fan running continuously if you need basic

ventilation in the home. This also eliminates the risk of

draughts in case of wall mounting.

• Airing function

If the fan has been inactive for 26 hours, an airing

programme will run for 60 minutes.

• Pause function

The fan can be paused for one hour using the power cord.

• Multi-pole switch

The fan is fitted with a multi-pole switch, which means that an

external switch is not required.

• LED indicators

A light-emitting diode with three different colours indicates

which mode the fan is in at any one time.

• 12-Volt motor

The motor is a long-life motor, with a life span of approx.

60,000 hours. This type of motor also runs silently.

Lo-Carbon iQ In-Box Leaflet.indd 4 14/11/2013 13:41:15

5 W: www.vent-axia.com/iq

Lo-Carbon iQ Fan

INSTALLATION GUIDE

1. Contents

The packaging should contain the following:

• Fan

• 2 adapters, 1 x Ø98 mm and 1 x Ø118 mm

• Manual

• Accessory bag with 4 screws and plugs, a pull cord with

toggle, and insulation for the standard cable type (FK)

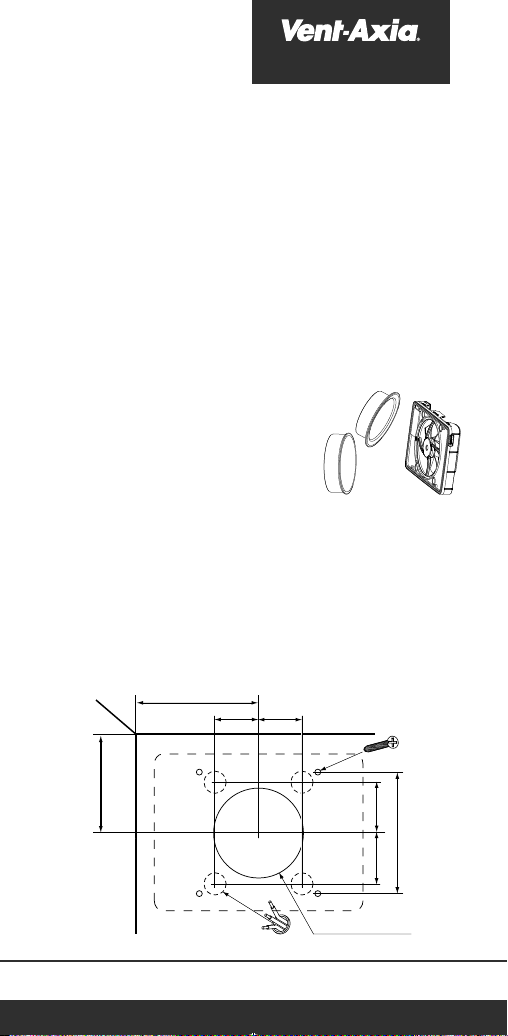

2. Installation

The fan can be installed on a wall or on

a ceiling. See the diagram below for

installation dimensions. The fan must not

be installed in an environment where the

temperature exceeds 50°C. Attach an

appropriate adapter to the fan's chassis,

Ø98 (1) for a Ø100 duct or Ø118 (2) for

a Ø125 duct.

The fan can also be installed and used without an adapter, so that

it is mounted completely on the surface, e.g. in the case of ducts

less than Ø98.When installing the fan, check that there is a seal

between the pipe/duct and wall/ceiling to prevent humid air from

penetrating the wall or ceiling. Use the accompanying screw and

plug, if necessary.

Ø100 alt. Ø125

Min 120

Min 80

#124

Alt. x4

Lo-Carbon iQ In-Box Leaflet.indd 5 14/11/2013 13:41:16

6 T: 0844 856 0590

Cable entries

A=surface

B=concealed

3. Wiring

• Installation work should be performed by a qualified

electrician.

• The fan is double insulated and must not be earthed.

• The fan is fitted with a multi-pole switch and does not require

a pre-wired external switch.

1 Push the multi-pole switch up to position 0 – OFF.

2 The cable can be installed either along the surface using

entries A in the chassis or concealed using the B inlets in the

chassis. Both options are shown below. Use the insulating

sleeve supplied for the cable (FK).

3 If you use any of the B inlets, remove the concealed round plas-

tic cover by tapping inside the break-off notch from the inside

out to the back with a screwdriver, for example.

OFF

Lo-Carbon iQ In-Box Leaflet.indd 6 14/11/2013 13:41:16

7 W: www.vent-axia.com/iq

Lo-Carbon iQ Fan

4. Installation options

The fan can be installed in any of three ways depending on

the desired function, as detailed below:

1 Humidity control only, see diagram 1

The fan is connected to constant phase (L) and

neutral (N) for automatic humidity control.

The timer can be activated manually by installing a pull cord

and pulling it (see page 8).

2 Humidity control + timer with light switch,

see diagram 2

The fan is connected to constant phase (L) and

neutral (N) for automatic humidity control.

Switched live (SL) is connected to activate the fan's timer, i.e.

when the bathroom light is switched on,

current is present at switched live. This option

provides a 90-second start delay.

3 Humidity control + timer with retractive switch,

see diagram 3

The fan is connected to constant phase (L) and

neutral (N) for automatic humidity control.

Switched live (SL) is connected to activate the fan's

timer using a retractive switch.

This option gives direct start-up of the fan.

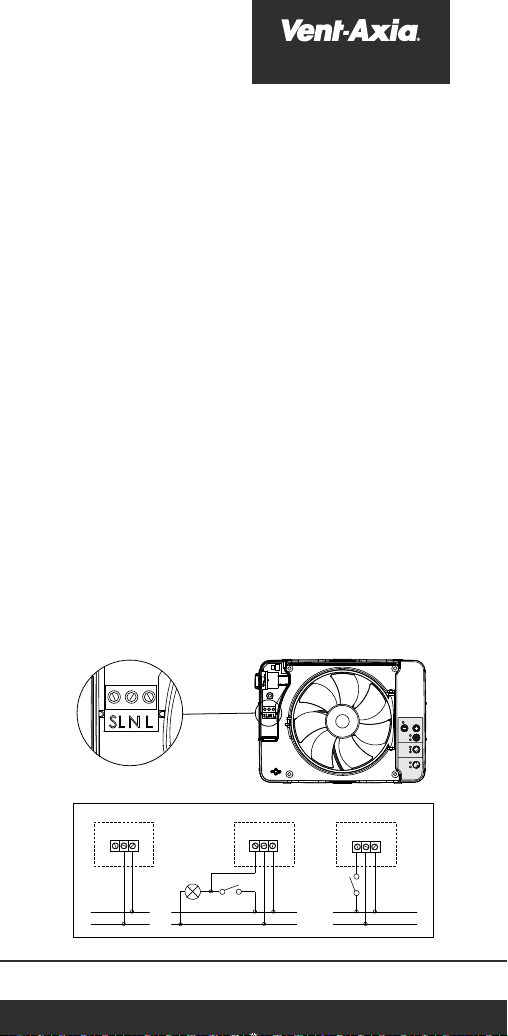

Wiring diagram

1 2 3

SL N L SL N L SL N L

TIMER

HUMIDITY

TIMER

CONSTANT

SPEED

SILENT

MAX

MIN

1 2 3

SL N L SL N L SL N L

TIMER

HUMIDITY

TIMER

CONSTANT

SPEED

SILENT

MAX

MIN

Lo-Carbon iQ In-Box Leaflet.indd 7 14/11/2013 13:41:17

8 T: 0844 856 0590

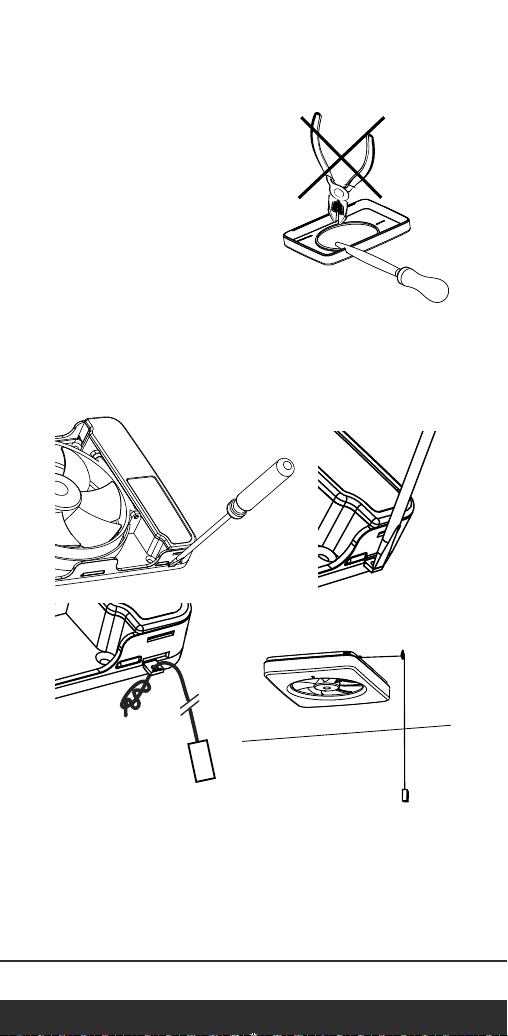

5. Connecting the pull cord switch

A pull cord can be installed for activating the timer manually or for

pausing the fan. Remove the mounting plate using a screwdriver, for

example, and thread the accompanying pull cord through the hole.

• Once installation is complete, push the safety switch down

to position I – ON, to make the fan active again.

When the fan is connected to the power supply, it performs a self-

test where electronics, LEDs and operation of the motor are all

tested. The fan is now ready for use.

NB!

Use an ordinary round file to

create a smooth cut-out at a

suitable place in the front cover.

Do NOT use pliers or similar

tools, as these may cause the

cover to crack.

Lo-Carbon iQ In-Box Leaflet.indd 8 14/11/2013 13:41:18

9 W: www.vent-axia.com/iq

Lo-Carbon iQ Fan

6. Factory setting

• timer – 5 minutes

• humidity speed – silent

(70% of max.)

• timer speed – 70% of max.

• constant operation – off

Restore factory settings

Hold the S-button in for

a minimum of 5 seconds.

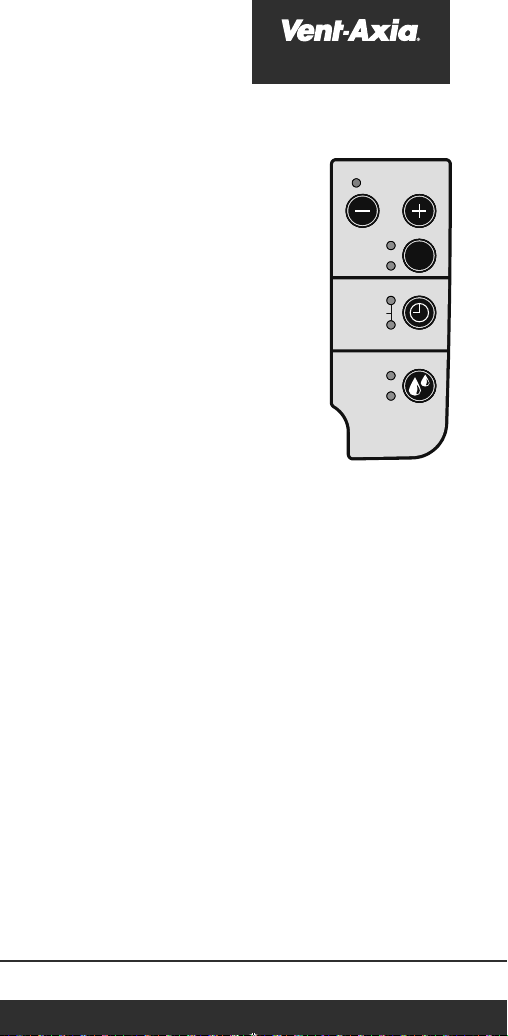

7. Setting functions

Possible adaptation to meet your needs:

1. Setting fan speed for timer operation.

Press the S-button until the timer light comes on.

Use the SPEED buttons to set the speed.

Restore the factory default timer speed by pressing

both the SPEED buttons simultaneously.

2. Delay time

Set the timer to 5, 15 or 30 minutes.

3. Humidity mode / humidity

Set to silent or max. capacity – small or large bathroom.

4. Continuous Trickle operation

Press the S-button until the "CONSTANT" light comes on.

Select the fan speed using the SPEED buttons.

To turn off continuous trickle operation: press the S-button until

the "CONSTANT" light goes off.

TIMER

HUMIDITY

TIMER

CONSTANT

SPEED

SILENT

MAX

MIN

Lo-Carbon iQ In-Box Leaflet.indd 9 14/11/2013 13:41:19

10 T: 0844 856 0590

ADVANCED FUNCTIONS

1. Selecting humidity sensitivity mode

Bathroom climates may vary depending on a number of factors:

room size, the presence of any natural draught ventilation,

temperature, etc. These factors may have a bearing on fan humidity

response, causing it to start too quickly or too slowly.

The factory setting is position 2: normal humidity response, which

works best in most cases. There is also the option of completely

switching off the humidity function.

1) Press the Speed + and

Humidity mode buttons

simultaneously (the blue and yellow

LEDs flash quickly).

Press the Humidity Mode button until

the desired humidity

sensitivity mode is selected.

Position 1: the Silent LED

comes on – fast humidity response.

Position 2: the Max LED

comes on – normal humidity

response.

Position 3: The Silent and Max LEDs

come on together

– slow humidity response.

Position 4: Both the Silent

and Max LEDs stay off

– humidity control is

deactivated.

2) Press the Speed + and

Humidity Mode buttons at

the same time (The blue and

yellow LEDs stop flashing).

TIMER

HUMIDITY

TIMER

CONSTANT

SPEED

SILENT

MAX

MIN

TIMER

HUMIDITY

TIMER

CONSTANT

SPEED

SILENT

MAX

MIN

TIMER

HUMIDITY

TIMER

CONSTANT

SPEED

SILENT

MAX

MIN

Lo-Carbon iQ In-Box Leaflet.indd 10 14/11/2013 13:41:19
