Velleman DVR4H3 Manual de usuario

DVR4H3

4-CH. H.264 DVR + ETHERNET + USB + VGA + 4 x AUDIO + ALARM INPUTS

+ MOBILE

4-KANAALS H.264 DVR + ETHERNET + USB + VGA + 4 x AUDIO +

ALARMINGANGEN + MOBILE

ENREGISTREUR NUMÉRIQUE H.264 À 4 CANAU + ETHERNET + USB + VGA

+ 4 x AUDIO + ENTRÉES ALARME + MOBILE

VIDEOGRABADORA DIGITAL H.264 DE 4 CANALES + ETHERNET + USB +

VGA + 4 x AUDIO + ENTRADAS ALARMA + MOBILE

4-KANAL H.264 DVR + ETHERNET + USB + VGA + 4 x AUDIO +

ALARMEINGÄNGE

+ MOBILE

QUICK INSTALLATION GUIDE 3

BEKNOPTE INSTALLATIEHANDLEIDING 11

GUIDE D’INSTALLATION RAPIDE 19

GUÍA RÁPIDA 27

SCHNELLEINSTIEG 35

DVR4H3

18/01/2012 ©elleman nv

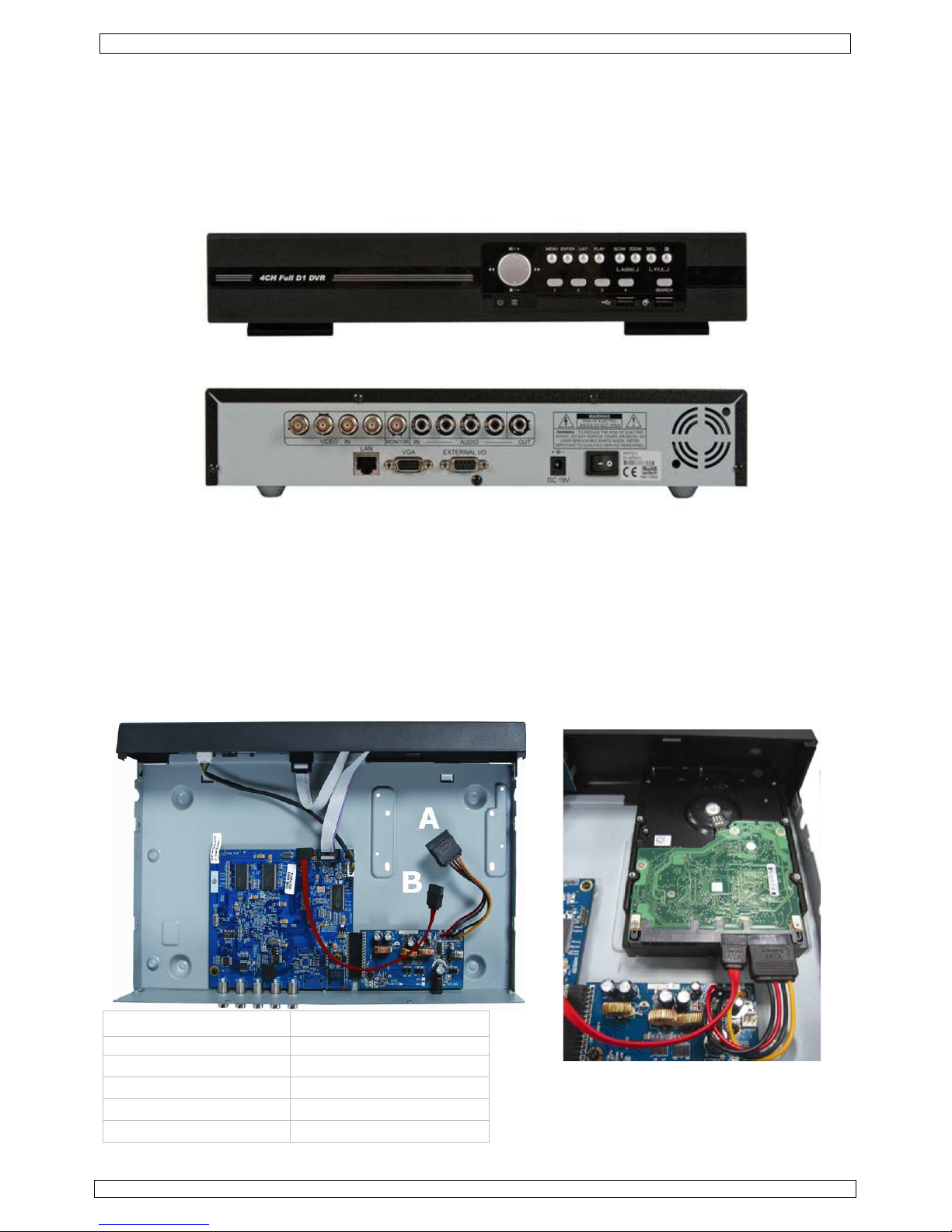

FRONT IEW – OORZIJDE – UE FRONTALE

ISTA FRONTAL – ORDERANSICHT

REAR IEW – ACHTERZIJDE – UE ARRIÈRE ISTA POSTERIOR –

HINTERANSICHT

*HDD not included - *Harde schijf niet

meegeleverd - *Disque dur non inclus -

*Disco duro no incluido -

*Festplatte nicht

mitgeliefert

A B

power supply data bus (SATA)

voeding databus (SATA)

alimentation bus de données (SATA)

alimentación bus de datos (SATA)

Stromversorgung Datenbus (SATA)

Figure 1

DVR4H3 Rev. 01

18/01/2012 ©elleman nv

Quick installation guide

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its

lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted

municipal waste; it should be taken to a specialized company for recycling. This device

should be returned to your distributor or to a local recycling service. Respect the local

environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing elleman! Please read the manual thoroughly before bringing this device into

service. If the device was damaged in transit, do not install or use it and contact your dealer. Damage

caused by disregard of certain guidelines in this manual is not covered by the warranty and the

dealer will not accept responsibility for any ensuing defects or problems.

NOTICE:

This document is a Quick installation guide. For more details, refer to the full user manual which

can be found on the included CD-ROM.

Package content:

•1x D R4H3

•1x power adaptor 100-240 AC 50/60Hz to 19 DC 2.21A + power cable

•1x mounting bracket for HDD + screws

•1x CD-ROM containing the full user manual

2. Safety Instructions

Keep the device away from children and unauthorised users.

Risk of electroshock when opening the cover. Touching live wires can cause life-

threatening electroshocks.

Always disconnect mains power when the device is not in use or when servicing or

maintenance activities are performed. Handle the power cord by the plug only.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

Indoor use only

Keep this device away

form rain, moisture, splashing and dripping liquids. Never put

object filled with liquid on top.

Keep this device away from dust.

Keep this device away from extreme heat. Make sure the ventilation openings are

clear at all times. For sufficient air circulation, leave at least 1” (±2.5 cm) in front of

the openings.

Protect this device from shocks and abuse. Avoid brute force when operating the

device.

•Familiarise yourself with the functions of the device before actually using it.

•All modifications of the device are forbidden for safety reasons.

•Only use the device for its intended purpose. Using the device in an unauthorised way will void the

warranty.

•Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and

the dealer will not accept responsibility for any ensuing defects or problems.

•Do not use this product to violate privacy laws or perform other illegal activities.

DVR4H3 Rev. 01

18/01/2012 ©elleman nv

4. Features

•GUI display and USB mouse control

•Gmail integration supports notification through Google mail server and any other mail support

•local and remote control completely independent

•H.264 video compression technology

ohighly improves video quality for live viewing and recording

orecording file size is minimized for longest recording time

olower bit rate required for fastest network transfer

•multiplex: allows live display, recording, playback, and backup at the same time

•supports video output for composite & GA simultaneously

•backup function: supports USB 2.0 flash drive backup

•advanced mobile surveillance via free EAGLE EYES software:

oCompatible with iPad, iPhone, Android Tablet, Android Smartphone, Blackberry,

Windows Mobile and Symbian

•remote surveillance on PC for operating systems:

ocompatible with Windows & MAC operating system

ofor web browsers: compatible with Internet Explorer, Mozilla Firefox, Google Chrome

& Safari

ofor CMS software: company-developed and free software " ideo iewer, on both

Windows and MAC operating systems

oalso via Apple's media player, QuickTime

•intelligent motion trigger recording

oadvanced motion detection

oscheduled motion detection recording (with 1 adjustable parameter)

oquick search function (time/motion/alarm)

oonly the channel with an event will be recorded to effectively save a significant

amount of hard disc space

•multi-language OSD: English, French, Dutch, German, Italian, Portuguese, Spanish, Czech,

Hungarian and Greek

•A/ support: supports 4 audio inputs and 1 audio output for sound recording

•full user manual: English, French, German, Spanish

•supports SATA HDD

•PTZ control: supports PELCO-D protocol

•alarm I/O: 4 inputs, 1 output

•supports daylight-saving function

•supports manual / timer / motion / network recording functions

•system auto recovery after power reconnected

•hard disks in option: 500GB (HD500GB/S) or 1TGB (HD1TB/S) (not included)

•supports TCP/IP, PPPoE, DHCP and DDNS network connection

5. Overview

Refer to the illustrations on page 2 of this manual.

Front panel

LED

indications

HDD reading or recording activities on the hard disk

ALARM an alarm was triggered

TIMER timed recording is enabled

PLAY the D R is in playing mode

POWER D R power is on

NA IGATE

Press one of the four positions on the navigate button to move the

cursor up ( ), down ( ), left ( ) or right ( ).

In play-back mode, press the buttons to play/pause ( ), stop

( ), fast rewind ( ) or fast forward ( ) the play-back file.

In setting mode, press the up ( ) or down ( ) button to change

the setting in the menu.

MENU Press to enter the main menu.

ENTER Press to confirm settings

LIST List the information of the recorded files.

QUICK SEARCH / RECORD / MOTION / ALARM / TIMER / FULL LIST

DVR4H3 Rev. 01

18/01/2012 ©elleman nv

PLAY Press to play the recorded video.

SLOW In playback mode, press to play the recorded file slowly.

ZOOM In live or playback mode, press to enlarge the image of the selected channel.

SEQ Press to show all screens sequentially in full screen mode. Press again to quit.

4CH: Press to show the 4 channel display mode.

1 ~4 Press a button to select the corresponding channel.

Enter time search mode. Set time range and press START to see all recordings within

the time range.

AUDIO = SLOW + ZOOM

Press SLOW and ZOOM simultaneous to select live or play-back sounds.

P.T.Z. = SLOW +

Press SLOW and simultaneous to enter or exit PTZ control mode.

USB port

(2x)

Connect a USB flash drive for video backup to one USB port; connect a USB mouse

to the other.

Note: do not connect two USB flash drives or USB mice at the same time.

rear panel

LAN port Connect the D R to a local network by plugging a network cable into this port.

GA connector for video monitor*

AUDIO IN 4 audio input channels to connect four external audio sources

e.g. from cameras

with audio.

AUDIO OUT 1 audio output to connect to an audio device, e.g. a speaker (mono).

IDEO IN 4 video input channels to connect 4 external video sources e.g. cameras.

MONITOR 1 video output channel to connect the D R to the main monitor.

EXTERNAL I/O use a 9 pin DSUB connector to connect external signals e.g. alarm, PTZ, ...

power switch

19 DC Power supply input.

6. Hardware setup

Installing the Hard Disk Drive (HDD)

Refer to the illustrations on page 2 of this manual.

•Obtain a suitable HDD (not included), type SATA (Serial Advanced Technology Attachment). The

HDD must be formatted.

•Make sure to unplug the device from the mains before servicing and do not touch any electronic

circuitry to avoid electrostatic discharge.

•Unscrew the 6 screws (1 on either side and 4 on the back) that hold the cover in place.

•Lift the cover (back first).

•Screw the mounting brackets on the HDD (screws included).

Note: the PCB must be facing upwards when mounting the HDD into the D R.

•Connect the SATA data cable and power supply to the HDD.

•Screw the HDD on the bottom of the D R housing PCB facing upwards using the included screws.

•Close the cover (front first) and secure it with the 6 screws.

Connecting a video monitor

•Obtain a suitable monitor (not included) and connect it to the BNC or GA video output port on the

back of the D R.

Connecting the power supply

•Plug the DC output connector of the included power adaptor into the 19 DC power input at the

back of the D R.

WARNING: only use the included adaptor.

•Plug the included power cable into the adaptor input connector and plug the other end into the

mains. Do not switch the D R on yet.

Connecting a camera

•Obtain up to four suitable cameras (not included). Each camera needs its own power supply.

DVR4H3 Rev. 01

18/01/2012 ©elleman nv

•Connect the video output of the camera to either video input at the back of the D R. The number

next to the input connectors represents the channel number. Connector type is BNC.

Connecting audio

•The DVR supports four audio inputs. Connect the audio output of an audio source to an audio

input of the D R. Make sure to connect the audio channel to the corresponding video channel.

Connector type is BNC.

•There is also an audio output connector. Connect an audio device e.g. a speaker to this connector

when desired. Connector type is BNC.

Connecting Local Area Network (LAN)

•Connect the D R to a local network by plugging a network cable into the LAN port at the back of

the D R. Connector type is 8P8C (RJ45). Setup is done through the OSD.

7. Preliminary settings

•Make sure the connected cameras are on and set the power switch at the rear of the device to the

on-position. It takes about 15 to 30 seconds to start up.

Menu overview

•Press the MENU button and enter the password to go into the menu list.

Note: default admin password is “0000” (4 times zero).

QUICK START GENERAL - TIME SETUP

DATE SETUP DATE INFO - DAYLIGHT

SYSTEM TOOLS - SYSTEM INFO – BACKUP DATA – BACKUP LOG

EVENT

INFORMATION

QUICK SEARCH - E ENT SEARCH - HDD INFO - E ENT LOG

ADVANCED

CONFIG

CAMERA – DETECTION – ALERT – NETWORK – DISPLAY – RECORD -

REMOTE

SCHEDULE

SETTING

RECORD – DETECTION - ALARM

For more details, refer to the full user manual.

Setting date and time

•Before using the D R the time and date should be set to get a valid time stamp.

•Press the MENU button and enter the admin password to go into the menu list.

•Select the QUICK START menu item.

•Use the NA IGATION button to move to the TIME SETUP menu item. Select it to set date and

time.

Note: once recording started, do not change date or time as this will make it very difficult to

find back the recorded files.

Note: when using the D R for the first time and the correct time is set, leave it on for at

least 48 hours.

Password setting

•Press the MENU button and enter the password to go into the menu list.

DVR4H3 Rev. 01

18/01/2012 ©elleman nv

•Select the SYSTEM menu item.

•Go to TOOLS. Select ADMIN PASSWORD (or OPERATOR PASSWORD) and press the ENTER button

to set the password.

Note: an operator can not access the main menu, only the quick menu bar (see below).

•Press the cursor up ( ) or down ( ) button to select the value of the first number and press

enter to save and go to the next character, or use the mouse to select the desired value. Repeat

this for all four password numbers.

Note: default admin password is “0000” (4 times zero).

Record settings

•Press the MENU button and enter the password to go into the menu list.

•Select the QUICK START menu item.

•Select the GENERAL menu item using the NA IGATION button.

•Set the image size, image quality and images per second for recording.

•Refer to the full user manual on the included CD-ROM for more details.

Audio playback

•Press the SLOW and ZOOM button simultaneously to select the desired audio channel or use the

quick menu bar (see below). The current audio channel is indicated in the status bar.

Switch users

•The D R can be accessed as administrator ( ) or operator ( ), icons are indicated in the status

bar.

•To switch between users, click on the user icon ( or ) to lock the current session ( ).

•Press on the key lock icon ( ) than enter the password of the desired profile.

8. Operation

Display

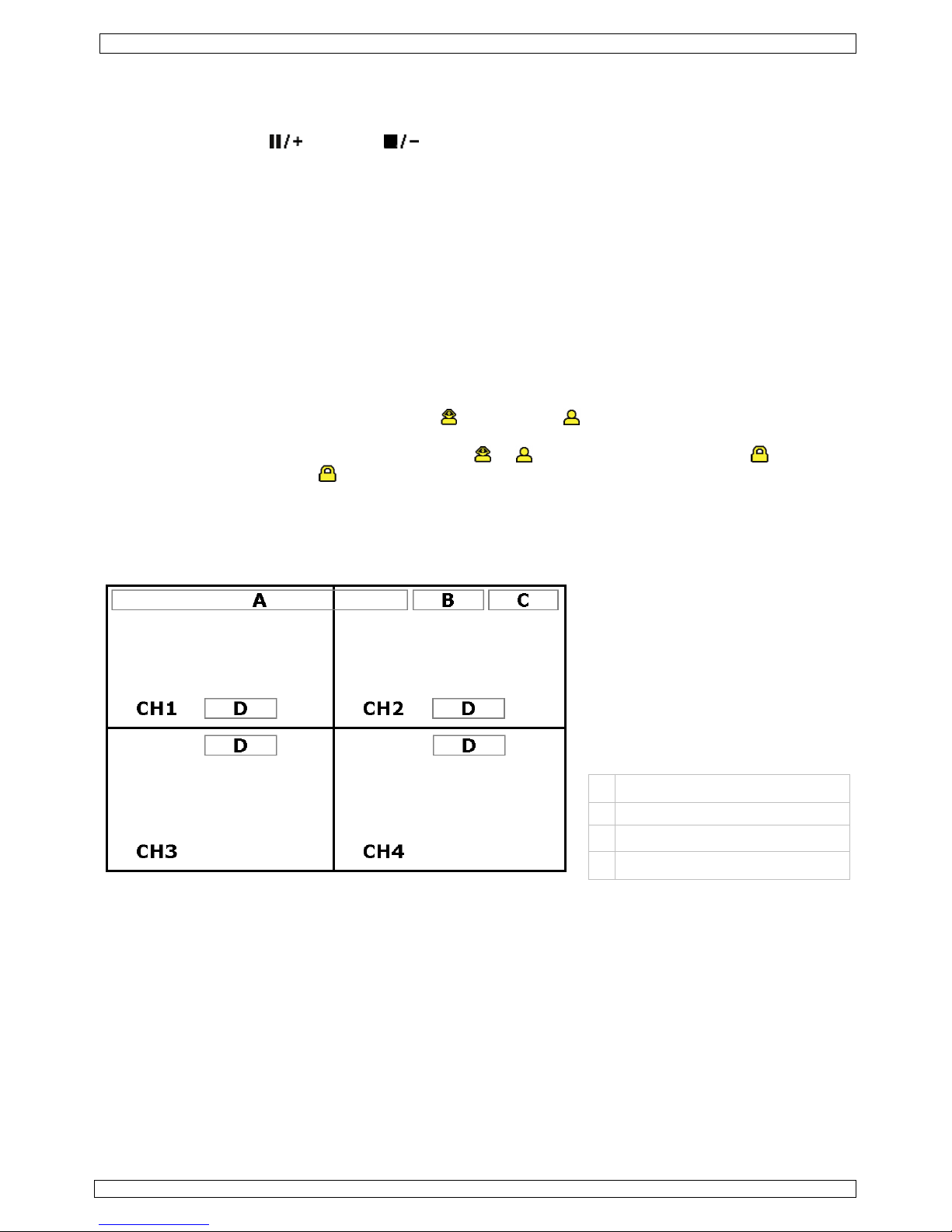

The following image shows the screen layout.

system date and time

general system status

available HDD capacity

channel status

DVR4H3 Rev. 01

18/01/2012 ©elleman nv

live audio channel 1 .. 4 enabled

playback audio channel 1 .. 4 enabled

(yellow)

audio channel disabled

timer recording

digital zoom on (yellow) / off

USB mouse connected

LAN connected / Internet connected / no network connection

USB flash drive connected

Hard disk overwrite (default)

key lock on

PTZ mode

sequence mode

motion mode

recording mode

alarm mode

administrator logged on

operator logged on

Note that actual screen icons might differ slightly from the ones shown above.

Quick menu bar

Note: only available when USB mouse is connected.

•Move the pointer towards the left of the monitor to open the quick menu bar:

Open channel switch panel.

Show playback control panel.

Zoom-in mode (select desired channel first before entering zoom-mode).

Select audio channel (live mode only live channels can be selected).

Enter PTZ mode and show PTZ control panel

Click to show the power off panel to either halt or reboot the system.

Recording

•Check whether the camera(s) is (are) properly connected and a HDD is present inside the device.

•When the auto-recording and pre-alarm functions are enabled, the device will start recording

images.

•Default the recording icon ( ) is shown.

•In case the motion or alarm detection is activated and a motion or alarm is detected, the motion

( ) resp. alarm ( ) icon is shown.

•When timed recording is enabled, the timed recording icon ( ) is showed and the timed recording

LED is on.

•Default, the device is in HDD overwrite mode and the icon ( ) is shown.

DVR4H3 Rev. 01

18/01/2012 ©elleman nv

Play-back

•Make sure the control panel is not locked and press the PLAY button on the control panel or use

the quick menu bar to open the playback control panel:

A progress bar D information

B playback control E close

C event search F set repeat function A→B / open backup menu

Note: play-back needs at least 8192 recorded images to work properly (e.g. with IPS=30, the

recording must be at least 273 seconds long).

•The fast forward ( ) and fast rewind ( ) buttons will increase resp. decrease the play-back

speed. Repeatedly pressing the button will increase/decrease speed to 4x, 8x 16x or 32x (max.).

•Press the pause button ( ) to temporary suspend video play-back.

•Press the stop button ( ) to return to live monitoring.

•Press the SLOW button once to set play-back speed to 1/4

and twice for 1/8

•There are four ways to search recorded files: by record list, motion list, alarm list or by timer list.

•To search an event, press the LIST button on the front panel (make sure the control panel is not

locked). An overview of the recorded file types (ALARM, MANUAL, MOTION, SYSTEM and FULL

LIST) is shown.

•Select the desired list and recording from the list.

•Press ENTER to start play-back.

Note: the recorded files can also be searched via the included ideo iewer software.

9. Technical specifications

video system PAL

video compression H.264 (FRAME)

video input 4 channels, composite video signal 1 pp / 75 ohms BNC

video output composite video signal 1 pp / 75 ohms BNC

GA – max. 1600 x 1200 pixels

maximum recording rate

(PAL)

frame 704 x 576 pixels with 100 IPS (PAL)

image quality setting best - high - normal - basic

hard disk storage built-in SATA type, support 1x HDD, support HDD capacity over

1TB (HDD not incl)

recording mode manual / timer / motion / network / alarm controlled

refresh rate 100 IPS for PAL

audio I/O 4x audio in, 1x audio out (mono)

motion detection area 16 x 12 grids per channel

motion detection sensitivity 4 adjustable parameters for accurate detection

pre-alarm recording 8MB

backup device USB 2.0 flash drive (for backup and firmware updates)

web transmitting / compression

format H.264

Ethernet 10/100 Base-T, supports network control and Live iew via

Ethernet

web interface supports licensed “video viewer” software (Windows & MAC OS)/

DVR4H3 Rev. 01

Internet Explorer, Mozilla Firefox, safari & Google Chrome web

browser

network connection supports TCP/IP, PPPoE, DHCP and DDNS function

digital zoom 2x (live & playback)

key lock

yes

video loss detection yes

camera title up to 12 characters

video adjustments hue / colour / contrast / brightness

date display format YY/MM/DD, DD/MM/YY, MM/DD/YY, and off

power source 19 DC

power consumption < 40W

operating temperature 10°C ~ 40°C (50°F ~ 104°F)

system recovery system auto recovery after power reconnected

dimensions 343 x 223 x 59mm

Use this device with original accessories only. Velleman nv cannot be held responsible in

the event of damage or injury resulted from (incorrect) use of this device. For more info

concerning this product, please visit our website www.velleman.eu. The information in

this manual is subject to change without prior notice.

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved.

No part of this manual or may be copied, reproduced, translated or reduced to any electronic

medium or otherwise without the prior written consent of the copyright holder.

Otros manuales para DVR4H3

Tabla de contenidos

Idiomas:

Otros manuales de Grabadora de voz de Velleman

Velleman

Velleman MVR1 Manual de usuario

Velleman

Velleman MVR6 Manual de usuario

Velleman

Velleman MVR2 Manual de usuario

Velleman

Velleman PCS10 Manual de usuario

Velleman

Velleman DVR4MQAE Manual de usuario

Velleman

Velleman K8047 Manual de usuario

Velleman

Velleman MVR3 Manual de usuario

Velleman

Velleman DVR4H5 Manual de usuario

Velleman

Velleman DVR4T1 Manual de usuario

Velleman

Velleman MVR4 Manual de usuario

Velleman

Velleman MVR3 Manual de usuario

Velleman

Velleman DVR8T2 Manual de usuario

Velleman

Velleman MVR4 Manual de usuario

Velleman

Velleman DVR4MQAEB Manual de usuario

Velleman

Velleman PCRU01 Manual de usuario

Velleman

Velleman MVR1N Manual de usuario

Velleman

Velleman DVM171THD Manual de usuario

Velleman

Velleman DVRSD1 Manual de usuario

Manuales populares de Grabadora de voz de otras marcas

Sony

Sony ICD-UX533F Manual de usuario

RCA

RCA VR5230 Manual de usuario

Ramsey Electronics

Ramsey Electronics BULLSHOOTER ENDLESS LOOP BS2C Guía del usuario

Sony

Sony TCM-400DV Manual de usuario

LogTag

LogTag TREL30-16 Manual de usuario

SVAT

SVAT CVP800 Manual de usuario

Marantz

Marantz PMD620 Manual de usuario

Zoom

Zoom H4next Manual de usuario

Roland

Roland BR-900CD Manual de usuario

JVC

JVC ProHD GY-HMZ1U Manual de operación y mantenimiento

Panasonic

Panasonic PQT8531-P Manual de usuario

Sanyo

Sanyo TRC-6400 Manual de usuario

Tascam

Tascam DR-07 Manual de usuario

Olympus

Olympus DW-90 Manual de usuario

Sanyo

Sanyo ICR-B150 Manual de usuario

Korg

Korg D4 Manual de usuario

Sony

Sony ICD-SX46 - Ic Recorder Manual de usuario

Olympus

Olympus DIGITAL VOICE RECORDER WS-200S Instrucciones de montaje
