ILLUSTRATED ASSEMBLY MANUAL H8101IP’1

ILLUSTRATED ASSEMBLY MANUAL

H8101IP’1

K8101

USB MESSAGE

BOARD

Forum

Participate our Velleman Projects Forum

Subscribing our newsletter?, visit www.vellemanprojects.eu

- 3 -

Features

• 4 downloadable example programs with source code supplied

• Twitter Display: displays the incoming feeds

• Mail Display: shows incoming mail subjects

• Drive Display: shows info of your HDD

• Eyes Display: mouse movement and click animation

• DLL supplied to easily code your own applications (VB.net - C#)

• 1 Button with 2 programmable functions (short & long press)

• Equipped with a buzzer that can be conﬁ gured through software

• A test program (with source code) can also be downloaded to

test all functions of the kit (button, backlight, buzzer, LCD draw

routines)

• Available commands:

• Send images to the display (.BMP 128x64)

• Draw or erase pixels

• Draw or erase a square

• Draw or erase a line

• Activate the buzzer by sending a beep amount (0-255)

• Activate the backlight by sending an “ON-time” (0-254 sec

/ 255 = always on)

• Send small or big text

• Change the contrast

• Invert the display

• Clear everything but the background image

• Clear everything

• Do something on a short button press

• Do something on a long button press

Speciﬁ cations

• LED - Backlight (white)

• LCD resolution: 128 x 64 pixels

• USB powered

• Max. power consumption: 35 mA

• dimensions: 77.5 x 60.5 x 38 mm (3.05” x 2.4” x 1.5”)

Add another screen to your computer that shows the information you want! Even if your main screen is off.

For software, visit www.vellemanprojects.eu

Supply voltage (V) - led voltage (V)

required current (A) = series resistance (ohms)

Required resistor power handling=

voltage over resistor x current passed trough resistor

9V - 1.7V

0.005A = 1460 ohm

9V - (3 x1.7V)

0.005A = 780 ohm

(9V - 1.7V) x 0.005A = 0.036W

closest value :

use a 1k5 resistor

use an

820 ohm resistor

a standard 1/4W resistor

will do the job

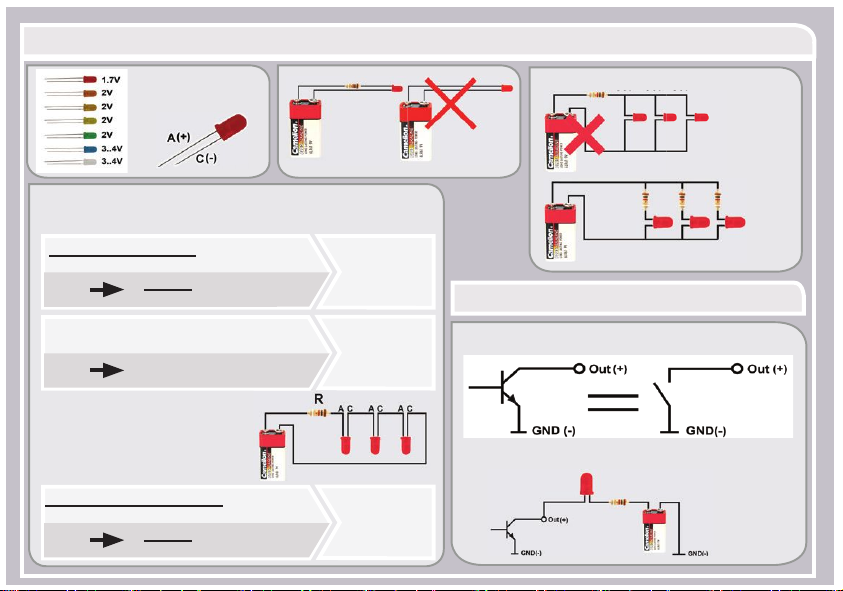

Supply voltage (V) - (number of leds x led voltage (V))

How to Calculate the series resistor:

Example: operate a red led (1.7V) on a 9Vdc source.

Required led current for full brightness: 5mA (this can be found in the datasheet of the led)

LEDs in series:

Example: 3 x red led (1.7V) on 9V battery

Required led current for full brightness: 5mA

(this can be found in the datasheet of the led)

Leds feature a speciﬁ c voltage

drop, depending on type and

colour. Check the datasheet for

exact voltage drop and rated

current !

Never connect leds in parallel

Leds and how to use them

An open collector output can be compared to a switch which switches to

ground when operated

Example: How to switch an LED by means of an open collector output

open collector outputs

assembly

hints 1. Assembly (Skipping this can lead to troubles ! )

Ok, so we have your attention. These hints will help you to make this project successful. Read them carefully.

1.1 Make sure you have the right tools:

• A good quality soldering iron (25-40W) with a small tip.

• Wipe it often on a wet sponge or cloth, to keep it clean; then apply solder to the tip, to give it a wet look. This is called ‘thinning’ and

will protect the tip, and enables you to make good connections. When solder rolls off the tip, it needs cleaning.

• Thin raisin-core solder. Do not use any ﬂ ux or grease.

• A diagonal cutter to trim excess wires. To avoid injury when cutting excess leads, hold the lead so they cannot

ﬂ y towards the eyes.

• Needle nose pliers, for bending leads, or to hold components in place.

• Small blade and Phillips screwdrivers. A basic range is ﬁ ne.

For some projects, a basic multi-meter is required, or might be handy

1.2 Assembly Hints :

• Make sure the skill level matches your experience, to avoid disappointments.

• Follow the instructions carefully. Read and understand the entire step before you perform each operation.

• Perform the assembly in the correct order as stated in this manual

• Position all parts on the PCB (Printed Circuit Board) as shown on the drawings.

• Values on the circuit diagram are subject to changes, the values in this assembly guide are correct*

• Use the check-boxes to mark your progress.

• Please read the included information on safety and customer service

* Typographical inaccuracies excluded. Always look for possible last minute manual updates, indicated as ‘NOTE’ on a separate leaﬂ et.

1.3 Soldering Hints :

1. Mount the component against the PCB surface and carefully solder the leads

2. Make sure the solder joints are cone-shaped and shiny

3. Trim excess leads as close as possible to the solder joint

0.000

- 5 -

- 6 -

DO NOT BLINDLY FOLLOW THE ORDER OF THE

COMPONENTS ONTO THE TAPE. ALWAYS CHECK THEIR

VALUE ON THE PARTS LIST!

- 7 -

Construction

* metalﬁ lm resistor !

R1 : 15Ω (1 - 5 - 0 - B)

R2 : 10KΩ (1 - 0 - 3 - B)

R3 : 10Ω (1 - 0 - 0 - B)

R4 : 680 (6 - 8 - 0 - 0 - 1)*

R5 : 1K (1 - 0 - 0 - 0 - 1)*

R6 : 10KΩ (1 - 0 - 3 - B)

R7 : 10KΩ (1 - 0 - 3 - B)

R8 : 4K7 (4 - 7 - 2 - B)

Resistors

1IC socket

Watch the popsition

of the notch!

R...

Ceramic Capacitors

C1 : 100nF (104)

C2 : 100nF (104)

C4 : 100nF (104)

C5 : 100nF (104)

C8 : 100nF (104)

IC1: 28p

c...

Diodes

CATHODE

D...

D1 : 1N4148

CATHODE

D...

CATHODE

D...

Vertical diodes

CATHODE

D...

CATH-

D2 : 1N4148

Voltage regulator

VR...

VR1 : LM317LZ

K8101B

BOTTOM

LCD

SW1

BUZ1

SK2

VR1

SK1

C10

IC1

C5 C2

K8101B’2

SK4

www.velleman.eu

() Break the three circuit boards from

each other.

SW1

BUZ1

SK2

VR1

SK1

C10

IC1

C5 C2

K8101B’2

SK4

www.velleman.eu

I. CONSTRUCTION

()

()Watch the polarity!

Watch the

polarity!

- 8 -

Construction

X1 : 12MHz

X. . . .

Quartz crystal

Male header

SK4 : 18p

C... Watch the polarity!

C3 : 4,7µF

C9 : 10µF

Electrolytic capacitors

12 K8101T

Solderside !

Ceramic Capacitors

C11...C20 : 1µF (105)

c...

R9: 1MΩ (1 - 0 - 5 - 9)

Resistors

R...

Transistor

T1 : BC547B

Ceramic Capacitors

C6 : 22pF (22)

C7 : 22pF (22)

C10 : 10nF (103)

c...

Push button

SW1

Buzzer

BUZ1

BUZ1

USB connector

SK1

LCD

Watch the position of

the notch!

IC1 :VK8101

(programmed PIC18F27J53-ISP)

- 9 -

Construction

Female header

SK3 : 18p

K8101T

Topside !

LCD

SOLDERSIDE

Solder on backside !

Be careful when soldering the LCD connections.

Overheating will damage the LCD screen.

- 10 -

Assembly

II. ASSEMBLY

LCD

M3 bolt

M3 nut

K8101T

Metal distance bolt

(20mm M3)

K8101B

M3 bolt

Bolts

(8x)

Nuts

(8x)

Distance bolts

(4x)
