Velleman DCM267N Manual de usuario

DCM267N

CAT II 600 V

USER MANUAL 3

HANDLEIDING 12

MODE D'EMPLOI 21

MANUAL DEL USUARIO 30

BEDIENUNGSANLEITUNG 39

INSTRUKCJA OBSŁUGI 48

MANUAL DO UTILIZADOR 59

DCM267N

V. 02 –20/08/2018 2 ©Velleman nv

DCM267N

V. 02 –20/08/2018 3 ©Velleman nv

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal

of the device after its lifecycle could harm the environment. Do

not dispose of the unit (or batteries) as unsorted municipal

waste; it should be taken to a specialized company for recycling.

This device should be returned to your distributor or to a local

recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before

bringing this device into service. If the device was damaged in transit, do

not install or use it and contact your dealer.

2. Used Symbols

AC (Alternating Current)

DC (Direct Current)

Both AC and DC

Risk of Electric shock. A potentially hazardous voltage is

possible.

Caution: risk of danger, refer to the user manual for safety

information.

Warning: a hazardous condition or action that may result in

injury or death

Caution: condition or action that may result in damage to the

meter or equipment under test

Double insulation (class 2-protection)

Earth

Fuse

Capacitor

Diode

Continuity

DCM267N

V. 02 –20/08/2018 4 ©Velleman nv

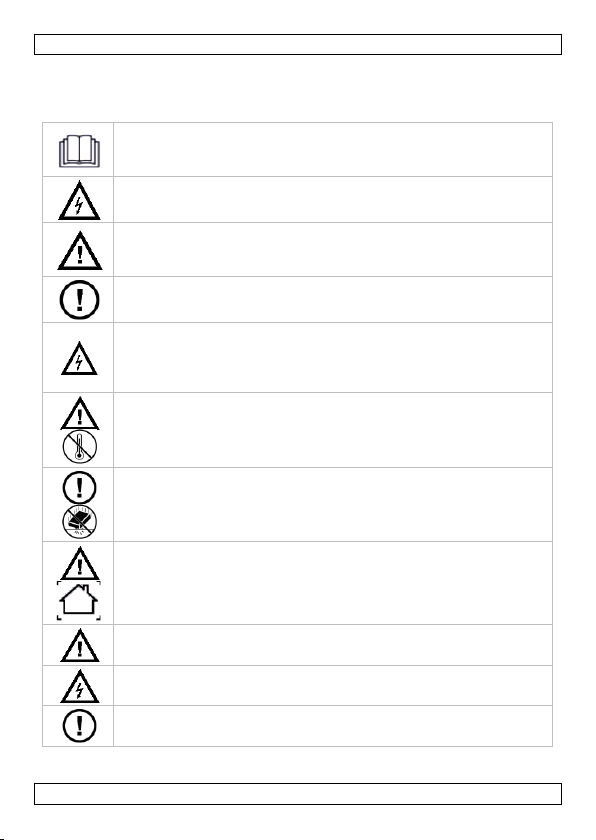

3. General Guidelines

Refer to the Velleman®Service and Quality Warranty on the last pages of

this manual.

This symbol indicates: Read instructions

Not reading the instructions and manual can lead to damage,

injury or death.

This symbol indicates: Danger

A hazardous condition or action that may result in injury or death

This symbol indicates: Risk of danger/damage

Risk of a hazardous condition or action that may result in

damage, injury or death

This symbol indicates: Attention; important information

Ignoring this information can lead to hazardous situations.

WARNING: To avoid electrical shock always disconnect the test

leads prior to opening the housing. To prevent fire hazards, only

use fuses with the same ratings as specified in this manual.

Remark: refer to the warning on the battery compartment

Avoid cold, heat and large temperature fluctuations. When the

unit is moved from a cold to a warm location, leave it switched

off until it has reached room temperature. This to avoid

condensation and measuring errors.

Protect this device from shocks and abuse. Avoid brute force

when operating.

Pollution degree 2-device. For indoor use only. Keep this device

away from rain, moisture, splashing and dripping liquids. Not for

industrial use. Refer to §8 Pollution degree.

Keep the device away from children and unauthorised users.

Risk of electric shock during operation. Be very careful when

measuring live circuits.

There are no user-serviceable parts inside the device.

Refer to an authorized dealer for service and/or spare parts.

DCM267N

V. 02 –20/08/2018 5 ©Velleman nv

This is an installation category CAT II measuring

instrument. Refer to §7 Overvoltage/installation category.

Read this addendum and the manual thoroughly. Familiarise

yourself with the functions of the device before actually using it.

All modifications of the device are forbidden for safety reasons.

Damage caused by user modifications to the device is not

covered by the warranty.

Only use the device for its intended purpose. Using the device in

an unauthorized way will void the warranty. Damage caused by

disregard of certain guidelines in this manual is not covered by

the warranty and the dealer will not accept responsibility for any

ensuing defects or problems.

4. Maintenance

There are no user-serviceable parts inside the device.

Refer to an authorized dealer for service and/or spare parts.

Before performing any maintenance activities, disconnect the test leads

from the jacks.

For instructions on replacing battery or fuse, refer to §11 Battery and fuse

replacement.

Do not apply abrasives or solvents to the meter. Use a damp cloth and mild

detergent for cleaning purposes.

5. During Use

Risk of electric shock during operation. Be very careful when

measuring live circuits.

Never exceed the limit value for protection. This limit value is listed

separately in the specifications for each range of measurement.

Do not touch unused terminals when the meter is linked to a circuit

which is being tested.

Never use the meter with CAT II installations when measuring voltages

that might exceed the safety margin of 600 V above earth ground.

Set the range selector at its highest position if the intensity of the

charge to be measured is unknown beforehand.

Disconnect the test leads from the tested circuit before rotating the

range selector in order to change functions.

When carrying out measurements on a TV set or switching power

circuits, always remember that the meter may be damaged by any high

amplitude voltage pulses at test points.

DCM267N

V. 02 –20/08/2018 6 ©Velleman nv

Always be careful when working with voltages above 60 VDC or 30 VAC

rms. Keep your fingers behind the probe barriers at all times during

measurement.

Never perform resistance, diode or continuity measurements on live

circuits. Make sure all capacitors in the circuit are depleted.

6. Overvoltage/Installation Category

DMMs are categorized depending on the risk and severity of transient

overvoltage that might occur at the point of test. Transients are short-lived

bursts of energy induced in a system, e.g. caused by lightning strike on a

power line.

The existing categories according EN 61010-1 are:

CAT I

A CAT I-rated meter is suitable for measurements on protected

electronic circuits that are not directly connected to mains power, e.g.

electronics circuits, control signals…

CAT

A CAT II-rated meter is suitable for measurements in CAT I-

environments and mono-phase appliances that are connected to the

mains by means of a plug and circuits in a normal domestic

environment, provided that the circuit is at least 10 m apart from a

CAT III- or 20 m apart from a CAT IV-environment. E.g. household

appliances, portable tools…

CAT

III

A CAT III-rated meter is suitable for measurements in CAT I- and

CAT II-environments, as well as for measurements on (fixed) mono-

or poly-phased appliances which are at least 10 m apart from of a

CAT IV-environment, and for measurements in or on distribution level

equipment (fuse boxes, lighting circuits, electric ovens).

CAT

A CAT IV-rated meter is suitable for measuring in CAT I-, CAT II- and

CAT III-environments as well as on the primary supply level.

Note that for all measurements on equipment for which the supply

cables run outdoors (either overhead or underground) a CAT IV

meter must be used.

Warning:

This device was designed in accordance with EN 61010-1 installation

category CAT II 600 V. This implies that certain restrictions in use apply that

are related to voltages and voltage peaks which can occur within the

environment of use. Refer to the table above.

This device is only suitable for measurements up to 600 V in CAT II

DCM267N

V. 02 –20/08/2018 7 ©Velleman nv

7. Pollution Degree

IEC 61010-1 specifies different types of pollution environments, for which

different protective measures are necessary to ensure safety. Harsher

environments require more protection, and the protection against the

pollution which is to be found in a certain environment depends mainly on

the insulation and the enclosure properties. The pollution degree rating of

the DVM indicates in which environment the device may be used.

Pollution

degree 1

No pollution or only dry, nonconductive pollution occurs. The

pollution has no influence. (only to be found in hermetically

sealed enclosures)

Pollution

degree 2

Only nonconductive pollution occurs. Occasionally, temporary

conductivity caused by condensation is to be expected.(home

and office environments fall under this category)

Pollution

degree 3

Conductive pollution occurs, or dry nonconductive pollution

occurs that becomes conductive due to condensation that is

to be expected.

(industrial environments and environments exposed to

outside air - but not in contact with precipitation)

Pollution

degree 4

The pollution generates persistent conductivity caused by

conductive dust or by rain or snow. (exposed outdoor

environments and environments where high humidity levels

or high concentrations of fine particles occur)

Warning: This device was designed in accordance with EN 61010-1

pollution degree 2. This implies that certain restrictions in use apply that

are related to pollution which can occur within the environment of use. Refer

to the table above.

This device is only suitable for measurements in Pollution

degree class 2 environments.

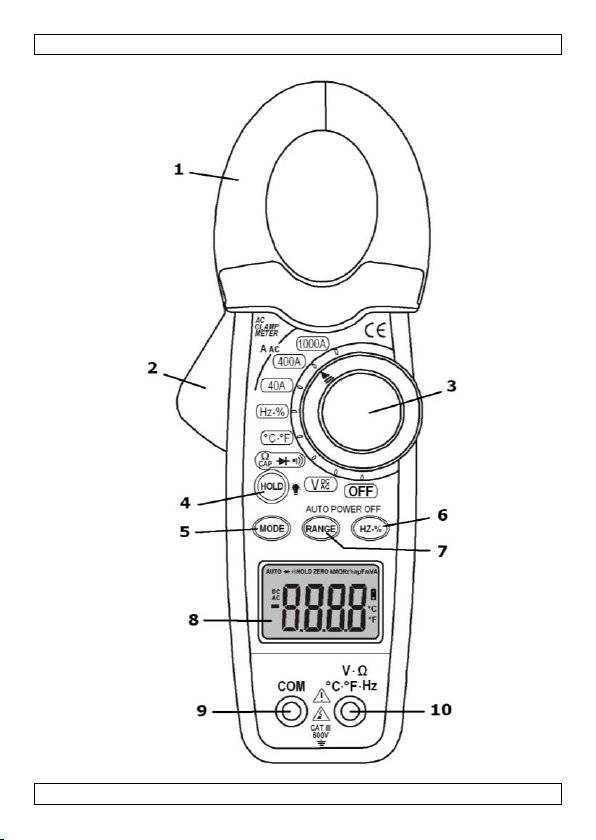

8. General Description

Refer to the illustration on page 2 of this manual:

1. Current clamp

2. Clamp trigger

3. Rotary function switch

4. Data hold + backlight button

5. Mode select button

6. Hz/% select button

7. Range select button

8. LCD display

9. COM jack

10. V//°C/°F jack

DCM267N

V. 02 –20/08/2018 8 ©Velleman nv

9. Operation

GENERAL

When the range of the measured signal is unknown, start measurement

in auto-range mode, and then select range according to indicated value.

The display shows “OL” when the present range limit is exceeded. Select

a higher range to continue measurement.

Do not measure voltages > 600 V or current higher than 1000A. Never

turn the rotary function switch [3] during measurement.

The device will go in sleep mode when no activity is detected for ±30

min.

For all measurements: pressing the data hold button [4] freezes the

currently measured value until the data hold button [4] is pressed again.

The hold-mode is indicated by the word “HOLD” in the display.

To switch on the backlight, press and hold the backlight button [4] for

about one second. To switch the backlight off, press and hold the

backlight button [4] again for ±1s. Note that the meter goes in HOLD

mode when switching the backlight on or off. Press the data hold button

[4] again to continue normal measurement.

The meter starts in auto ranging mode. To select the range manually,

press the range button [7] (not for AC current, diode and continuity

measurements). To return to auto ranging, press and hold the range

button [7] for ±2 seconds.

AC/DC VOLTAGE MEASUREMENT

Connect the red test lead to the "V Ω °C/°F" jack [10] and the black lead

to the "COM" jack [9].

Set the rotary function switch [3] in the position.

Use the mode button [5] to choose between AC and DC voltage.

Connect the test leads parallel to the source being measured.

Read the voltage value on the LCD display [8] along with the polarity of

the red lead connection.

AC CURRENT MEASUREMENT

Make sure no test leads are connected to the “V Ω °C/°F” [10] or “COM”

[9] jacks.

Set the rotary switch [3] in the desired range (40A, 400A or 1000A). If

the current to be measured is unknown beforehand, set the range switch

in the highest range position and then reduce gradually until the ideal

resolution is obtained.

Press the trigger [2] to open the jaws [1] of the clamp. Enclose a single

conductor within the clamp and release the trigger [2]. Enclosing

multiple conductors at the same time will result in faulty measurements.

Read the current value on the LCD display.

DCM267N

V. 02 –20/08/2018 9 ©Velleman nv

RESISTANCE, AUDIBLE CONTINUITY, DIODE and CAPACITY TEST

Connect the red test lead to the "V Ω °C/°F" jack [10] and the black lead

to the "COM" jack [9].

Set the rotary switch [3] in the " " position.

For resistance test and continuity test, press the mode button [5] until

the “Ω” symbol appears in the display. Connect the test leads to the

resistor to be measured and read the value in the LCD display.

Disconnect one side of the device under test to avoid interference from

the rest of the circuit. When the resistance is <100Ω, a continuity buzzer

will sound.

For diode measurements, press the mode button [5] until the " "

symbol appears in the display. When the diode passes the test, indicated

forward voltage will be 0.4~0.7V while reverse voltage will indicate “OL”.

When the diode is short circuited, both readings will be ±0mV; when

open, both measurements will shown “OL”.

Notes: forward DC current: ±0.3mA

open circuit voltage: ±1.5V

For capacity measurements, press the mode button [5] until “F” is shown

in the display. Warning: disconnect power to the device under test

(including batteries!) and discharge all capacitors before measuring

capacitance. Connect the test leads to the capacitor to be measured and

read the value in the LCD display.

FREQUENCY or % DUTY CYCLE measurement

Connect the red test lead to the "V Ω °C/°F" jack [10] and the black lead

to the "COM" jack [9].

Set the rotary switch [3] in the "Hz·%" position. Select Hz or % duty with

the Hz - % select button [6],the selection is indicated in the display.

Connect the test leads to the circuit under test and read the value in the

LCD display.

TEMPERATURE

Set the rotary switch [3] in the "°C·°F" position. Select °C or °F with the

mode select button [5],the selection is indicated in the display.

Insert the side of the temperature probe adapter marked with “+” in the

"V Ω °C/°F" jack [10] and the other side (“-”) in the "COM" jack [9].

Hold the probe head to the device under test for ±30s and read the value

in the LCD display.

Do not change the rotary function switch when the thermocouple is

connected to the meter.

10. Battery

When the low battery indication appears, replace the internal battery.

DCM267N

V. 02 –20/08/2018 10 ©Velleman nv

Always disconnect test leads when replacing the battery. Do not us the

device without batteries installed.

The battery cover is located on the back of the device and is closed with

one screw. Remove the screw and open the battery compartment.

Remove the battery and insert a new 9V battery following the polarity as

indicated in the battery holder. Only use a new battery of the same type

and specifications.

Reinstall the cover and secure it with the screw.

Remove the battery when the device will not be used for a long time to

avoid leakage.

Do not recharge non-rechargeable batteries and do not throw in fire as

they may explode.

WARNING: handle batteries with care, observe warnings on

battery casing. Dispose of batteries in accordance with local

regulations. Keep batteries away from children.

11. Specifications

DC voltage

0.4/4/40/400/600V

basic accuracy

±(1.5% of rdg + 3 digits) / ±(0.8% of rdg + 3

digits) for 0.4V range / ±(2.0% of rdg + 3 digits)

for 600V range

input impedance

7.8Mohm

maximum input

600V

AC voltage

0.4/4/40/400/600V

basic accuracy

±(1.8% of rdg + 5 digits) / ±(0.8% of rdg + 20

digits) for 0.4V range / ±(2.5% of rdg + 5 digits)

for 600V range

input impedance

7.8Mohm

frequency range

50-60Hz

maximum input

600V

AC current

40/400/1000A (max. line voltage 240V)

basic accuracy

±(2.5% of rdg + 10 digits) for 40A range / ±(2.5%

of rdg + 5 digits) for 400A range / ±(3.0% of rdg

+ 4 digits) for 1000A range

resistance

400/4K/40K/400K/4M/40M

basic accuracy

±(1.0% of rdg + 4 digits) for 400ohm range /

±(1.5% of rdg + 2 digits) for 4K~400K range /

±(2.5% of rdg + 3 digits) for 4M range / ±(3.5%

of rdg + 5 digits) for 40M range

overload protection

15s max. 250V (all ranges)

Otros manuales para DCM267N

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Instrumento de medición de Velleman

Velleman

Velleman 3472BPN Manual de usuario

Velleman

Velleman ED610D1 Manual de usuario

Velleman

Velleman DCM140 Manual de usuario

Velleman

Velleman AVM2050 Manual de usuario

Velleman

Velleman SHE16 Manual de usuario

Velleman

Velleman NETBPEM5 Manual de usuario

Velleman

Velleman DTP5 Manual de usuario

Velleman

Velleman DVM8681 Manual de usuario

Velleman

Velleman DVM125 Manual de usuario

Velleman

Velleman PEREL HMUSD2 Manual de usuario

Velleman

Velleman IREXT Manual de usuario

Velleman

Velleman VTUSD2 Manual de usuario

Velleman

Velleman MVR5 Manual de usuario

Velleman

Velleman DVM805 Manual de usuario

Velleman

Velleman PPS 10 Manual de usuario

Velleman

Velleman DTO6234 Manual de usuario

Velleman

Velleman DCM269 Manual de usuario

Velleman

Velleman AVM52ERT Manual de usuario

Velleman

Velleman DVM8080 Manual de usuario

Velleman

Velleman DVR4MQA Manual de usuario

Velleman

Velleman PersonalScope HPS5 Manual de usuario

Velleman

Velleman SHE7 Manual de usuario

Velleman

Velleman DCM266L Manual de usuario

Velleman

Velleman DCM269 Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
