Veilux VVIP-2L2812 Manual de usuario

User’s Manual

V1.4

VVIP-2L2812 Vandal Dome

Network Camera

The Art of Surveillance

--Content--

CHAPTER 1 PROFILE...................................................... - 1 -

1.1FUNCTIONS AND CHARACTERISTICS ............................... - 1 -

1.2APPLICATIONS........................................................... - 2 -

CHAPTER 2 INSTALLATION............................................. - 2 -

2.1CAUTIONS................................................................ - 2 -

2.2MEASUREMENTS ....................................................... - 3 -

2.3PACKING CONTENTS ................................................... - 4 -

2.4INSTALLATION VANDAL DOME......................................... - 6 -

2.5OPTIONAL ACCESSORIES ............................................. - 8 -

2.6HARDWARE CONNECT ................................................. - 9 -

CHAPTER 3 PARAMETER SETUP.................................. - 11 -

3.1SETUP PARAMETER BY IE BROWSER............................. - 12 -

APPENDIX..................................................................... - 12 -

This manual is suitable for IP DOME-IR series

- - 1 - -

Chapter 1 Profile

This network camera is an embedded digital surveillance product. It

adopts embedded Linux as the operation system and SOC hardware platform.

Has a characteristic of high efficiency and flexibility for system adjustment,

small size, high stability and long term reliability.

1.1 Functions and Characteristics

Basic Function

Video compression tech: adopts H 264 video compression tech, high

compression ratio.

Network functions: integrate TCP/IP protocols and video, alarm, voice data

supported, built-in WEB browser, IE live view supported.

PTZ control function: control for PTZ, kinds of decoder protocols and dome

cameras supported. Can be connected via the RS485 output.

Alarm function: signal parameter alarm input, on-off parameter alarm

output, motion detective, video lost, mask alarm, alarm link output.

Voice speech: Has audio input to give remote audio / recordings.

POE power supply supported. (optionally installed)

User management: multi-level user access management.

Compression Handling Function

Multi stream hardware compression, adopts H.264 compression standard

on video compression, not only support change code ratio, but also

support change frame ratio, while setting up video image quality, it’s able

to restrict compression bit rate of video image.

1920*1080p, 1600*1200p, 1280*720p, D1(PAL:704*576, NTSC:704*480),

CIF(PAL:352*288, NTSC:352*240), QCIF(PAL:176*144, NTSC:240*160)

supported

OSD supported for date and time, full user control setup.

Remote view andtransmission function

One self-compliant 10M/100M Ethernet interface as standard accessory.

PPPoE, DHCP, DDNS protocol supported.

Available to set parameter, browse real time video, check network camera

state through applications or IE browser. Available to realize alarm link and

save compressed bit rate through network.

Available to realize remote upgrade and maintenance through network.

- - 2 - -

1.2 Applications

Suitable for circumstances required for network remote surveillance

ATM, Bank Counter, Supermarket, Factory etc

Nursing House, Kindergarten, School etc.

Intelligent door management system

Intelligent Building, intelligent community management system

Electricity station, telecom base station etc unmanned on duty system

Outdoor bridge, tunnel, crossing traffic etc surveillance system

flowing line and warehouse surveillance

24h surveillance to road traffic

Remote surveillance to forest, fountain and river etc.

Chapter 2 Installation

2.1 Cautions

Please check carefully while unpacking, be sure articles inside accordance

to the list

Please read this chapter carefully before installation

Be sure to off all concerned power while installation

Check power and voltage in case to damage facility because of

unmatched voltage

Installation circumstance: do not install in circumstances of high humidity

or high temperature, please keep good ventilation, and pay attention to

defend rain, avoid installing in high vibrating installations.

In times of malfunction, do not attempt to dismantle and service the

camera yourself. Please refer to qualified serving personnel to repair or

contact our technical department to solve the problems.

Supplied accessories are optional with all model, please refer to your local

sales for details of any additional parts required. The Packing list may

indicate Junction box plate, this would only be suitable for some parts of

the world, so may not be available for your country, please check with your

sales for details on this.

- - 3 - -

2.2 Measurements

- - 4 - -

2.3 Packing contents

2.3.1 Packing contents list

2.3.2 Junction box plate

- - 5 - -

2.3.3 Junctionbox installation types

- - 6 - -

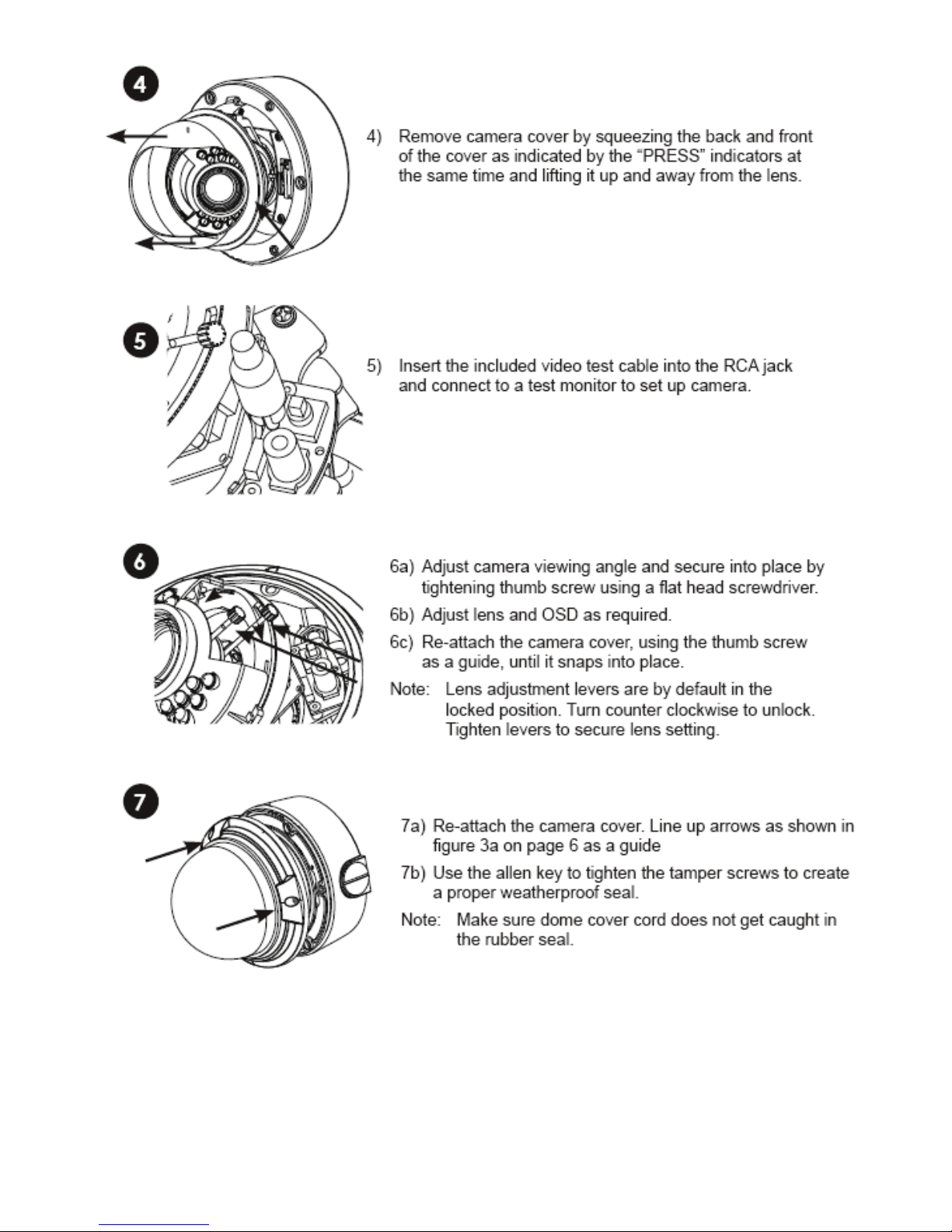

2.4 Installation vandaldome

- - 7 - -

- - 8 - -

2.5 Optional accessories
