Mag Plus Density Probe

Manual No: 577013-987 ●Revision: D

Assembly Guide

Notice

Veeder-Root makes no warranty of any kind with regard to this publication, including, but not limited to, the implied warranties of

merchantability and fitness for a particular purpose.

Veeder-Root shall not be liable for errors contained herein or for incidental or consequential damages in connection with the

furnishing, performance, or use of this publication.

Veeder-Root reserves the right to change system options or features, or the information contained in this publication.

may be photocopied, reproduced, or translated to another language without the prior written consent of Veeder-Root.

Contact TLS Systems Technical Support for additional troubleshooting information at 800-323-1799.

DAMAGE CLAIMS / LOST EQUIPMENT

Thoroughly examine all components and units as soon as they are received. If any cartons are damaged or missing, write a

complete and detailed description of the damage or shortage on the face of the freight bill. The carrier's agent must verify the

inspection and sign the description. Refuse only the damaged product, not the entire shipment.

Veeder-Root must be notified of any damages and/or shortages within 30 days of receipt of the shipment, as stated in our Terms

and Conditions.

VEEDER-ROOT’S PREFERRED CARRIER

1. Contact Veeder-Root Customer Service at 800-873-3313 with the specific part numbers and quantities that were missing

or received damaged.

2. Fax signed Bill of Lading (BOL) to Veeder-Root Customer Service at 800-234-5350.

3. Veeder-Root will file the claim with the carrier and replace the damaged/missing product at no charge to the customer.

Customer Service will work with production facility to have the replacement product shipped as soon as possible.

CUSTOMER’S PREFERRED CARRIER

1. It is the customer’s responsibility to file a claim with their carrier.

2. Customer may submit a replacement purchase order. Customer is responsible for all charges and freight associated with

replacement order. Customer Service will work with production facility to have the replacement product shipped as soon as

possible.

3. If “lost” equipment is delivered at a later date and is not needed, Veeder-Root will allow a Return to Stock without a restocking

fee.

4. Veeder-Root will NOT be responsible for any compensation when a customer chooses their own carrier.

RETURN SHIPPING

For the parts return procedure, please follow the appropriate instructions in the "General Returned Goods Policy” pages in the

"Policies and Literature" section of the Veeder-Root North American Environmental Products price list. Veeder-Root will not

accept any return product without a Return Goods Authorization (RGA) number clearly printed on the outside of the package.

Table of Contents

iii

Introduction

Important ...........................................................................................................................1

Contractor Certification Requirements ..............................................................................1

Related Manuals ...............................................................................................................1

Mag Plus Density Probe Installation Kits

Installation Kits ..................................................................................................................2

Assembling Probe Components

Attaching Probe Canister Insulator Sleeves (2-Inch Risers) .............................................4

Attaching Probe Canister Stabilizer Rings (3- & 4-Inch Risers) ........................................4

Assembling Floats onto Probe Shaft ................................................................................6

Attaching Cable Connector to Probe Canister ..................................................................6

Figures

Figure 1. Identifying Mag Plus Density Probe Installation Kit Components ...........3

Figure 2. Installing Probe Canister Insulator Sleeves ............................................4

Figure 3. Installing Probe Canister Spacer Rings ..................................................5

Figure 4. Example Installation of Density Probe Floats and Boot ............................6

Tables

Table 1. Installation Kit (with seal kit) - P/N 886002-XXX or P/N 886000-XXX .......2

Table 2. Installation Kit (without seal kit) - P/N 886001-XXX ..................................2

Table 3. Record of Installed Probe Float and Density Codes by Tank ....................7

Introduction

This manual describes how to identify and assemble the components of the Mag Plus Density Probes. Instructions

are included for assembling floats onto the probe’s shaft, attaching spacer rings to the probe’s canister, and

attaching the probe’s cable to the probe.

For guidelines on site preparation, instructions on installing the probe into a tank, and instructions on connecting

wiring from the probe to the console, you must refer to the appropriate Veeder-Root Site Preparation and

Installation manual.

For setup information, you must refer to the appropriate Veeder-Root Setup manual.

Important

Some of the installation kit components, such as epoxy packs, will be needed when installing the probe into the

tank. Do not discard any unused parts.

Make a record of the float size and Density Code that is installed on each probe. The installed float size and

Density Code will be required for each probe during system setup.

Contractor Certification Requirements

Veeder-Root requires the following minimum training certifications for contractors who will install and setup the

equipment discussed in this manual:

Installer (Level 1) Certification: Contractors holding valid Installer Certification are approved to perform wiring

and conduit routing; equipment mounting; probe, sensor and carbon canister vapor polisher installation; wireless

equipment installation; tank and line preparation; and line leak detector installation.

ATG Technician (Level 2/3 or 4) Certification: Contractors holding valid ATG Technician Certifications are

approved to perform installation checkout, startup, programming and operations training, system tests,

troubleshooting and servicing for all Veeder-Root Series Tank Monitoring Systems, including Line Leak Detection.

In addition, Contractors with the following sub-certification designations are approved to perform installation

checkout, startup, programming, system tests, troubleshooting, service techniques and operations training on the

designated system.

• Wireless 2

• Tall Tank

VR Vapor Products Certification: Contractors holding a certification with the following designations are

approved to perform installation checkout, startup, programming, system tests, troubleshooting, service techniques

and operations training on the designated system.

• ISD – In Station Diagnostics

• PMC – Pressure Management Control

• CCVP - Veeder-Root Vapor Polisher

• Wireless – ISD/PMC Wireless

• A current Veeder-Root Technician Certification is a prerequisite for the VR Vapor Products course.

Warranty Registrations may only be submitted by selected Distributors.

Related Manuals

After assemby, consult the appropriate Site Prep and Installation Manual for your console prior to installing the

probe in the tank.

Mag Plus Density Probe Installation Kits

Installation Kits

Available Mag Plus Density Probe installation kits are listed in Table 1 and Table 2. The kit components can be

identified in Figure 1.

Table 1. Installation Kit (with seal kit) - P/N 886002-XXX or P/N 886000-XXX

Qty. Description Part Number

1 Cable 330272-00X

1 Product Float 331XXX-001

1 Water /Density Float 33311X-00X

1 Boot 333202-001

2 Canister Spacers 332457-001 (2-inch riser),or

331555-001 (3 - 4-inch risers)

1 Cable Seal Kit 330020-121

Table 2. Installation Kit (without seal kit) - P/N 886001-XXX

Qty. Description Part Number

1 Cable 330272-00X

1 Product Float 331XXX-001

1 Water /Density Float 33311X-00X

1 Boot 333202-001

2 Canister Spacers 332457-001 (2-inch riser),or

331555-001 (3 - 4-inch risers)

Mag Plus Density Probe Installation Kits Installation Kits

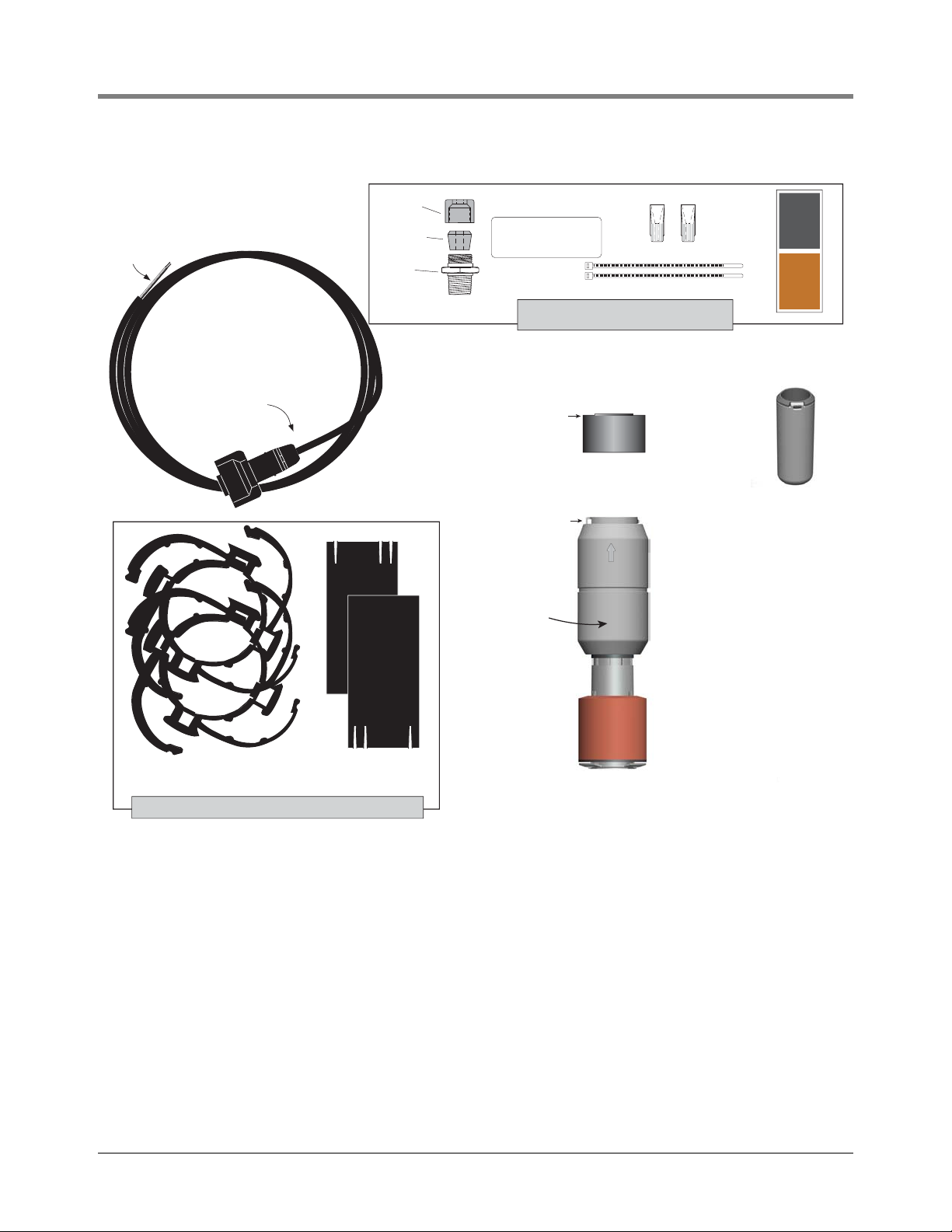

Figure 1. Identifying Mag Plus Density Probe Installation Kit Components

BOOT

PRODUCT FLOAT

Cable

Probe cable connector

(attaches to threaded connector

on the top of probe canister)

Insulating Sleeves

(2-Inch Risers)

Adjustable Spacers

(3- and 4-Inch Risers)

987-1.eps

Wire nuts

Tie wraps

Epoxy

sealant

Cord Grip Fitting

Note: watch orientation

of bevels and tapers

when assembling these

cord grip components.

Body

Nut

Bushing

CABLE SEAL KIT COMPONENTS

(886002-XXX and 886000-XXX kits only)

WATER/DENSITY FLOAT

These two wires

connect in the J-box to

the two field wires from

the console

This

end

Density Code

etched along

this surface

(example)

B7053686719512

This

end

CANISTER SPACERS (Type depends on kit ordered)

Assembling Probe Components

Attaching Probe Canister Insulator Sleeves (2-Inch Risers)

1. Open the Probe shipping carton so that you have access to the probe. Also open the installation kit.

2. Install the two canister sleeves onto the probe canister as shown in Figure 2.

Figure 2. Installing Probe Canister Insulator Sleeves

Attaching Probe Canister Stabilizer Rings (3- & 4-Inch Risers)

1. Open the Probe shipping carton so that you have access to the probe. Open the installation kit.

2. Set the adjustable arms of the rings for a 3- or 4-inch riser (see Figure 3) as required. Install the two stabilizer

rings onto the probe canister as shown in the figure. Note: you must slide the bottom ring up over the probe

shaft and onto the lower end of the canister.

123

987-3.eps

Assembling Probe Components Attaching Probe Canister Stabilizer Rings (3- & 4-Inch Risers)

Figure 3. Installing Probe Canister Spacer Rings

Probe

canister

Aftersetting arms (see insert) install top stabilizerring. Orient

locking tabs as shown, and thenslide ring overtop of canister

until tabs snap into groove incanister.

Afteradjustment (see insert) install bottomstabilizer

ring. Orient locking tabs as shown, and thenslide

ring up overprobe shaft and onto bottomof canister,

until tabs snap ingroove.

Probe shaft

set 4 arms of ring

as shown.

set 4 arms of ring

as shown.

3-inch riser

4-inch riser

CANISTER STABILIZER RINGSETTINGS

987-2.eps

Assembling Probe Components Assembling Floats onto Probe Shaft

Assembling Floats onto Probe Shaft

All sizes of the Product and Water/Density Floats and the Boot are assembled on the probe shaft in the exact

sequence and orientation shown in Figure 4.

IMPORTANT! Failure to push the boot as far as possible onto the probe shaft could cause the boot and float(s) to

fall into the tank. The boot must be pushed on until it “locks” on the probe shaft.

Handle the probe carefully. Striking or dropping the probe will result in loss of calibration and could cause

permanent damage.

Figure 4. Example Installation of Density Probe Floats and Boot

Attaching Cable Connector to Probe Canister

1. Make a record of the float size and Density Code (see Figure 4) for each probe (you can record float data in

Table 3). This information will be needed during console configuration.

NOTE: If the Density Code is not available or is not entered into the console during configuration, the density

measured accuracy will default to ±2 kg/m3.

Bottomof

probe shaft

Boot -

slide onprobe

shaft last

987-4.eps

Product float -

slide onprobe

shaft first.

Water/Density float -

slide onprobe

shaft second.

Density Code

etched along

this surface

(example)

B7053686719512

Assembling Probe Components Attaching Cable Connector to Probe Canister

2. Insert probe into the tank. Attach the existing cable connector to the threaded connector on top of the probe

canister and tighten down the integral nut.

3. Save the remaining kit components and refer to the appropriate Site Prep Manual to install the probe in the

tank and connect it to the field wiring from the console.

4. Refer to the appropriate console setup instructions to configure the Mag Plus Density Probe.

Jump back to Welcome.pd

Table 3. Record of Installed Probe Float and Density Codes by Tank

Tank/Product

Float

Size Density Code

10/

11/

12/

13/

14/

15/

16/

4/Diesel 2-inch B7053686719512

Example

Otros manuales para Mag Plus

Tabla de contenidos

Otros manuales de Instrumento de medición de Veeder-Root

Veeder-Root

Veeder-Root SERIES 7886 Manual

Veeder-Root

Veeder-Root TLS-50 Series Manual de usuario

Veeder-Root

Veeder-Root EMR3 XStream-PKG Manual de usuario

Veeder-Root

Veeder-Root RFMP Series Instrucciones de funcionamiento y mantenimiento

Veeder-Root

Veeder-Root TLS2 Manual de instalación y operación

Veeder-Root

Veeder-Root EMR4 Guía del usuario

Veeder-Root

Veeder-Root Series C628 Manual de usuario

Veeder-Root

Veeder-Root Mag-FLEX Manual de usuario

Veeder-Root

Veeder-Root TLS-350R PLUS Manual de usuario

Veeder-Root

Veeder-Root TLS-3 Series Manual de usuario

Veeder-Root

Veeder-Root Mag-FLEX Manual de usuario

Veeder-Root

Veeder-Root EMR3 XStream-PKG Manual de instrucciones

Veeder-Root

Veeder-Root EMR3 XStream-PKG Manual de usuario

Veeder-Root

Veeder-Root Series C628 Manual de usuario

Veeder-Root

Veeder-Root TLS RF Wireless 2 Manual del producto

Veeder-Root

Veeder-Root Mag Plus Manual de usuario

Veeder-Root

Veeder-Root EMR4 Manual de usuario

Veeder-Root

Veeder-Root EMR3 XStream-PKG Manual de instrucciones

Veeder-Root

Veeder-Root TLS-350R Manual de usuario

Veeder-Root

Veeder-Root TLS4/8601 Series Manual de programación

Veeder-Root

Veeder-Root TLS2 Manual de usuario

Veeder-Root

Veeder-Root TLS-450PLUS Manual de instrucciones

Veeder-Root

Veeder-Root DIS-51 Manual de instrucciones

Veeder-Root

Veeder-Root EMR4 Guía de referencia

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
