LET’S GET STARTED.

Power

Basic

safety

precautions

Do’s

Don’ts

Let’s talk safety

This vacuum cleaner is intended for household use only

and NOT for commercial or industrial use.

• Only use the vacuum cleaner indoors on dry surfaces and

keep the area you’re cleaning well lit.

• Keep ngers, hair and loose clothing away from moving parts

and openings whilst using the vacuum cleaner.

• Only Vax recommended tools and accessories should be used

with this vacuum cleaner.

• Don’t use the vacuum cleaner if it has been dropped, damaged

or left outdoors.

• Don’t run over the power cord or use vacuum cleaner if the

power cord or plug is damaged.

• Don’t handle the plug or use the vacuum cleaner with wet hands.

• Don’t pull or carry the vacuum cleaner by the power cord.

• Don’t use the power cord as a handle, pull the power cord

around corners, sharp edges or close a door over the power cord.

• Don’t unplug vacuum cleaner by pulling on the power cord.

• Turn o all controls on the vacuum cleaner before

disconnecting or connecting the power cord.

• Always make sure the lters are in place before use.

• Always switch o the vacuum cleaner before disconnecting

or connecting the hose and accessories.

• Keep all openings clear and free from debris as this may

aect the airow/suction.

• Always replace the fuse in the plug with a British 13amp

fuse. Always protect the power cable from heated surfaces

and open ames.

• This vacuum cleaner can be used by children aged from 8 years and above

and persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction

concerning use of the vacuum cleaner in a safe way and understand the

hazards involved. Children shall not play with the vacuum cleaner. Cleaning

and user maintenance shall not be made by children without supervision.

• Don’t vacuum up any ammable or combustible materials (lighter uid, petrol,

kerosene etc.) or use the vacuum cleaner in an area with explosive vapours

or liquid.

• Don’t vacuum up hot coals, cigarette butts, matches or smoking hot burning

items or use in an area where there may be harmful uids (chlorine, bleach,

and ammonia drain cleaner).

• Don’t attempt to remove blockages with sharp objects as this may cause

damage to the vacuum cleaner.

• Don’t vacuum up hard or sharp objects such as glass, nails, screws

or coins etc.

• Don’t use the vacuum cleaner with incorrect voltage as this may result in

damage or injury to the user. The correct voltage is listed on the ratings label.

• Take extra care when positioning and using the vacuum cleaner

on the stairs.

• Use only CE approved 13amp extension cords, non-approved extension

cords may overheat. Care should be taken to arrange the extension cord

as it can be a trip hazard.

• Store the vacuum cleaner in a cool, dry area. If lters have been cleaned

as per user guide instructions ensure they are thoroughly dry before

storing away.

Please keep instructions for further use.

Thank you for buying this Power product.

Taking care of your carpets and hard oors

The Power series is designed to make vacuuming carpets and hard oors regularly,

as eective and ecient as possible and this user guide will help you get the most out

of your machine.

Maintaining your carpets and hard oors will ensure they keep their appearance for longer.

You’ve chosen the carpets and hard oors for your home for a reason and Vax will help you

take good care of them.

Taking care of your Power product

Also inside this guide are instructions on maintaining your new machine, so that it’s always

ready when you are to tackle your carpets and hard oors.

Let us know what you think @VaxUK

Taking care of you

We’re here if you need us. Instead of taking me back

to the shop, simply visit our online support:

vax.co.uk/support

Still need to get in touch?

Our UK based Customer Care Team are here to support you - for help with assembly,

operational/performance problems or buying and tting new accessories. Whether you wish to chat,

use Facebook, Twitter or Email, you can nd all our contact details at vax.co.uk/contactus

This user guide can be found online at: vax.co.uk/support

Contents

Let’s talk safety

Getting to know your machine

Getting started

Using your machine

Taking care of your machine

Let’s talk technical

Accessories

What to do if it goes wrong

Getting in touch

Power Series

(Included with all models)

Included with

your machine

Initial Setup for normal operation

1. Use the base accessories.

a. Shortest hose.

b. Extension tube set to shortest practicable length.

2. Clean lters installed.

3. Dust receptacle empty.

4. All air vents must be closed.

5. Floorheads/tools set to Carpet Mode for carpet cleaning.

6. Mechanical Agitation turned ON for carpet cleaning.

7. Floorheads/tools set to Hard Floor Mode for hard oor cleaning.

8. Mechanical Agitation turned OFF for hard oor cleaning.

TurboTool

Combination oorhead

Hose

Telescopic

extension tube

3-in-1 Tool

Included with some models

(Check the contents panel on the

back of the box to nd out what’s

included with your model)

Stretch hose

Mattress Tool

Soft Dusting Brush

Getting to know your machine

Technical Specication

Name Power

Voltage See rating label on machine for details

Wattage See rating label on machine for details

Cord Length 5-6m

Weight 4.3kg

Subject to technical change without notice.

Accessories & Consumables

Filter Kit (Type 95)

1-1-134231

3-in-1 Tool

1-9-130815

TurboTool (Type 6)

1-1-134419

Carbon Filter (Pet Odour Filter)

1-7-138825

Mattress Tool

1-9-138879

Soft Dusting Brush

1-9-138880

*To purchase consumables and accessories, please visit vax.co.uk

On/O button

Dirt container lid

Dirt container

Separator

and shroud

Carry handle

Hose entry point

Dirt container

release button

Parking slot

Post-motor

lter cover

Post-motor lter (hidden)

Cord rewind button

Images are illustrative only.

Getting started

Assembling your vacuum cleaner

Using your accessories

Before you begin cleaning

PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE

CAUTION: Always switch o the vacuum cleaner before connecting or disconnecting the hose/attachments, or

removing and emptying the dirt container.

IMPORTANT: The vacuum cleaner is equipped with a thermal cut-out. If for any reason the vacuum cleaner does

overheat the thermostat will automatically turn the vacuum cleaner o. If this happens, switch the vacuum cleaner o

and unplug. Remove and empty the dirt container also check the vacuum cleaner for blockages. Allow the vacuum

cleaner to cool for approximately 1 hour (if you have cleaned the lters please wait 24 hours for the lters to fully dry

before putting back into the machine).

Clean the pre-motor lter every time the dirt container is emptied and replace the lters every 12 months.

Press both buttons at the

end of hose and insert into

hose entry point.

Insert the other end of

the telescopic tube into

the oorhead.

Insert hose grip into

telescopic extension tube.

Press button on telescopic

extension tube and adjust

to required length.

Push the accessory onto

the telescopic extension

tube or hose end.

Choose an accessory.

IMPORTANT: The base of the vacuum cleaner should always be positioned at on the oor when starting and in use.

The dirt container should be locked into place before lifting the vacuum cleaner by the carry handle.

IMPORTANT: The power cord must always be completely unwound, do not pull further than the yellow marker.

Using your machine

Operating the appliance and accessories

Unwind the power cord.

Do not pull further than

the yellow marker.

Plug into mains and press

the On/O button to switch

the machine on.

For use on carpets, click

rocker switch forward.

For use on hard oors

click rocker switch back.

Slide vent cover on hose grip open

to reduce suction if required.

Lower brushes for hard oors.Raise brushes for carpets.

TIP

Brushes on the

oorhead should be

visible when using

on hard oors.

Turn the dirt container

lid anti-clockwise

to remove.

Wash pre-motor lter

under running water.

Lift to remove the

pre-motor lter out

of dirt container.

Tap the lter against a bin

to remove excess debris.

Leave to dry for 24 hours or

until fully dry before placing

back in the machine.

Using your machine Taking care of your machine

MAX

40˚C

TAP

24hr

Emptying and cleaning the dirt container

Cleaning the pre-motor lter

Hold dirt container over the bin.

Press release clip at the bottom

of the container, the dirt release

door will open allowing dirt/debris

to fall out.

Press dirt container

release button. Lift to

remove dirt container

from machine.

IMPORTANT: Unplug and switch o vacuum cleaner before performing maintenance or troubleshooting checks.

NOTE: Clean the pre-motor lter every time the dirt container is emptied and replace the lters every 12 months.

Filters available at www.vax.co.uk

TIP

Don’t over ll the dirt

container to avoid

blocking the air

ow through the

vacuum cleaner.

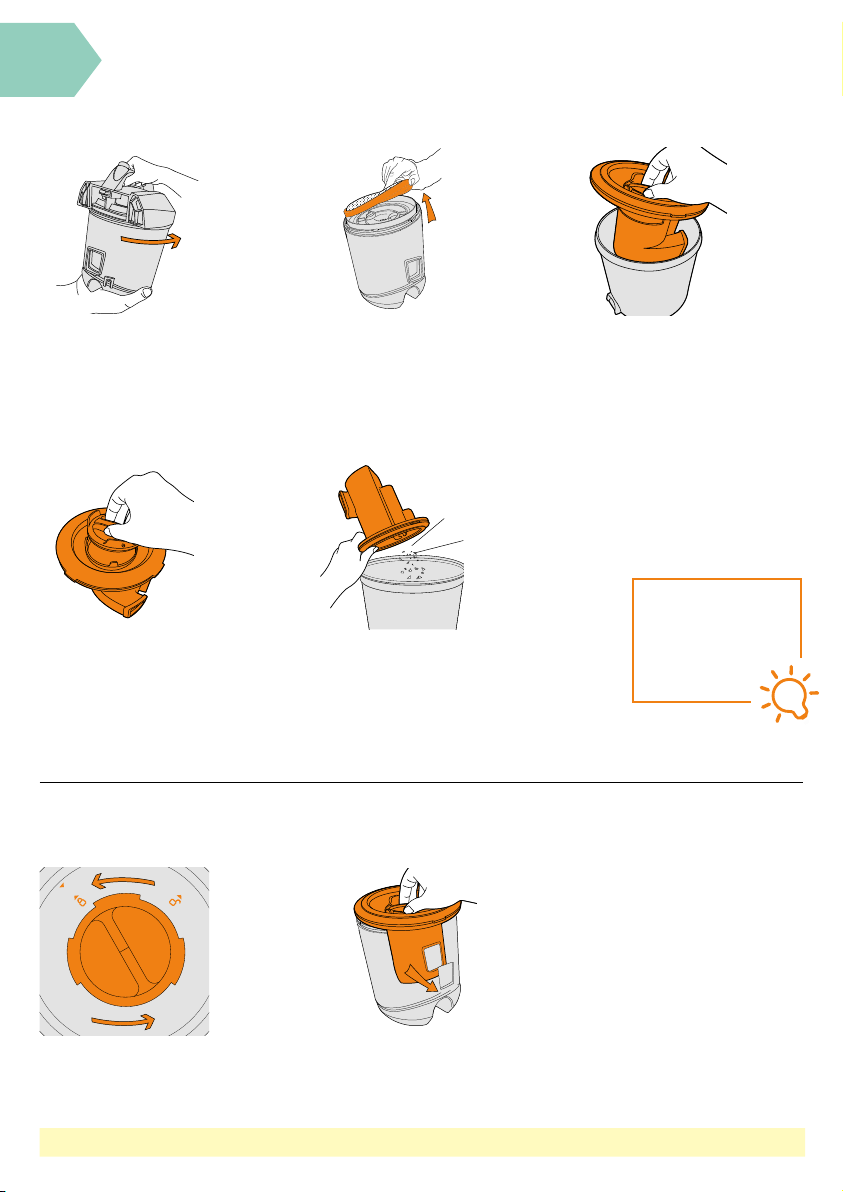

Cleaning the separator

Taking care of your machine

Turn the dirt container

lid anti-clockwise.

to remove.

Tap the separator

against a bin to

remove any dirt

or debris.

Using central grips lift

to remove separator

from dirt container.

Replace the separator cap,

twist clockwise to lock.

Lift to remove the

pre-motor lter out

of dirt container.

Replace separator into dirt container, make sure the

rectangular hole in the dirt container lines up with the

rectangular hole on the separator.

Twist grips clockwise

and remove cap

from separator.

IMPORTANT: Incorrect tting of the separator will reduce suction.

Retting the separator

TIP

For any stubborn dirt/

debris remaining

in the separator,

use a soft brush

to remove.

Este manual sirve para los siguientes modelos

Otros manuales de Aspiradora de Vax

Vax

Vax ALL TERRAIN V-125 Manual de usuario

Vax

Vax V-020U Manual de usuario

Vax

Vax Platinum SmartWash CDCW-SWXS Instrucciones de instalación

Vax

Vax U90-MVX-P Manual de usuario

Vax

Vax Dual Power Max VRS801 Instrucciones de instalación

Vax

Vax V-093TT Manual de usuario

Vax

Vax Rapide Spruce V-022 Manual de usuario

Vax

Vax X-004 Hoja de información del producto

Vax

Vax VAXAIR Force 2 VUAFT1600 Manual de usuario

Vax

Vax Power7 VCP7P2400 Manual de usuario

Vax

Vax Powerplus pet 18 V Manual de usuario

Vax

Vax VC-H4510E-1/2/3 Manual de usuario

Vax

Vax U89-MAF SERIES Manual de usuario

Vax

Vax Mach FUSION VMFUS1600 Manual de usuario

Vax

Vax Rapide Ultra W90-RU Manual de usuario

Vax

Vax VZL-6013 Manual de usuario

Vax

Vax V-2300U Manual de usuario

Vax

Vax W88-CX4 Centrix Manual de usuario

Vax

Vax turbo force zero VZL-501 Manual de usuario

Vax

Vax VRS14W Manual de usuario

Vax

Vax VX37 Manual de usuario

Vax

Vax h85-ga-b10 Instrucciones de instalación

Vax

Vax VZ-701 Manual de usuario

Vax

Vax bliss Bagged Cylinder Manual de usuario

Manuales populares de Aspiradora de otras marcas

Bissell

Bissell LittleGreen Proheat 1425 Series Manual de usuario

Panasonic

Panasonic MC-YL637S147-AE Manual de usuario

NEFF

NEFF N17XH10 0 Series Manual de usuario

LG A9 Series Manual de usuario

Oreck

Oreck Cordless Captura BK51700 Series Manual de usuario

Kogan

Kogan KAVACROBVWA Manual de usuario

Kränzle

Kränzle VENTOS 50 ID Guía del usuario

EVVO

EVVO Ai35 Manual de usuario

DeWalt

DeWalt DWH200D Manual de usuario

Pontec

Pontec Pondomatic Vacuum Cleaner Manual de usuario

Cleanmaxx

Cleanmaxx PC-P007E Manual de usuario

Exido

Exido 240-114 Manual de usuario

RIDGID

RIDGID WD1685AU0 Manual de usuario

Ezviz

Ezviz RE4P Manual de usuario

STG global

STG global TANVAC HDV3000 Manual de usuario

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manual de usuario

Factory

Factory M3340 Manual de usuario

Shop-Vac

Shop-Vac VN92 SERIES Manual de usuario
