VARON NT-04 Manual de usuario
Oxygen Concentrator
Instruction manual
Model :NT-04
Please read the instruction manual carefully before using the product.
The picture is for reference only.Please refer to the actual product！
CONTENTS
Precautions
Working Principle
Product Description
List of Attachments
Technical Specifications
External View
Operation Steps
Instructions for the Panel
Instructions for the Remote Control
Specific Functions
Maintenance and Repair
Trouble Shooting
Other Matters
02
03
04
04
05
06
07
10
11
12
13
16
17
1. Precautions
Warning: This is not a medical device and is not considered life-sup-
port or life-sustaining equipment.
Warning signs on the product are designed to help users understand and
use this product correctly to prevent damage and a property loss.The
main warning signs and meanings are as follows:
▲The machine shall be placed indoors. Keep the room well-ventilated
and avoid direct sunlight. Keep the product more than 30 meters away
from the walls and other objects.
▲Do not place miscellaneous items and liquid containers on the machine
case.
▲It is prohibited to stack sundries at the ventilation hole on the back of
the machine to prevent clogging of intake and exhaust, which may lead to
excessive temperature and thus cause improper shutdown or a decrease
in oxygen concentration.
▲To avoid the machine being interfered by strong electromagnetic
environment or interfering with other electrical appliances, please keep it
at least 3 meters away from other household appliances when using.
▲Do not place the machine upside down or laid it horizontally.
▲If the voltage is unstable and exceeds the range of 220±15V, please
connect the voltage regulator before use.
▲Please use a safe and qualified socket and a terminal block with safety
electrician certification.
▲Oxygen is a combustion-supporting gas. Therefore, when using the
machine,do not smoke and keep away from the fire source to avoid a fire
hazard.
▲Do not turn on and off the machine too often. Turn off the machine for
3-5 minutes before restarting to maintain the normal service life of the
machine.
Prohibited action
Required action
Keep dry
Caution (Warnings and dangers)
Class II equipment
This side up
2. Working Principle
▲No oil or greasy substance should be used in any part of the machine.
▲Do not use the machine without an air filter.
▲Do not bend the oxygen-inhalation tube when using the machine,
otherwise, it will affect the normal output of oxygen.
▲Unauthorized personnel should not disassemble the cover.
▲Do not bend the oxygen-inhalation tube when using The machine
otherwise it will affect the normal output of oxygen.
▲Unauthorized personnel should not disassemble the cover.
Air enters the compressor after being filtered through the inlet filter device,
and is compressed into the molecular-sieve tower for oxygen-nitrogen
separation. Oxygen passes through the molecular-sieve tower and enters
the fine sieve tower, while nitrogen is adsorbed by the molecular sieve
and discharged into the atmosphere through the separation valve. With
the increase of oxygen concentration in the fine sieve tower, oxygen is
finally delivered to the user through the oxygen delivery pipe under the
control of the electronic flow control valve.
Schematic Diagram of Oxygen Machine
Air
Filter
Separating
Valve
Oil free air compressor
Cooling System
Molecular Sieve
Tower
Oxygen Gas
Control
Valve
3. Product Description
4. List of Attachments
This product is applicable to AC 230V/50Hz(110V/60Hz) voltage. It is
equipped with a pure copper oil-free compressor and a high-quality
molecular sieve. It uses air as raw material to produce high-purity oxygen
through a new Pressure Swing Adsorption method (PSA) at room
temperature, which can be used for household supplementary oxygen
absorption.
The product is designed according to a standard higher than the standard
for household appliances. It is fitted with a large clear LED display screen.
With intelligent chips controlling the circuit, the machine has automatic
fault alarm function, timing function and overheating circuit protection
function. When the working temperature of the compressor is too high, it
will automatically stop working to better protect the safety of the compres-
sor and the whole machine.
This product is easy to operate, lightweight and portable. It is not only
suitable for home use, but also can be used in a car by using the automo-
bile power supply.Suitable for household oxygen supplement.
Main machine
Oxygen inhaler kit
Parts for nebulization (NT-04 model only)
Remote control (NT-04 model only)
Instruction manual
Certificate of Conformity (attached to the manual)
Power cord
X1
X1
X1
X1
X1
X1
X1
After unpacking, please first check whether the appearance of the product
is intact. Then count the items in the package one by one according to the
list of attachments above. In case of any omission, please contact the
after-sales customer service.
5. Technical Specifications
Product name: Oxygen Concentrator Model: NT-04
Oxygen production method: Pressure Swing Adsorption method (PSA)
Rated voltage: AC230V/50Hz; AC110V/60Hz
Input power: 120VA
Oxygen flow rate: 1-7L/min adjustable
Oxygen concentration: 28-90%
Oxygen output pressure: 20-70kPa
Carbon dioxide: Qualified according to the specified test
Carbon monoxide: Qualified according to the specified test
PH.: Qualified according to the specified test
Morphological identification: Colorless and odorless combustive gas
Voice speaker: 0.5W/8Ω (NT-04 model only)
Operating Time: Maximum 180 minutes
Atomization rate: ≥0.2mL/min(NT-04 model only)
Operating noise: ≤42dB(A weighting)
Electrical classification: Class II
Product size: 204x214x280mm
Net weight: 4.8kg
Normal working conditions
Ambient temperature: 5℃~40℃
Relative humidity: ≤80%RH
Atmospheric pressure: 86kPa-106kPa
※When the temperature is lower than 5 ℃, the equipment shall be
placed under normal working conditions for more than four hours before
use.
Transportation and storage conditions
Ambient temperature: -20℃~60℃
Relative humidity: <93%RH
ON/OFF
Oxygen concentration display
Timing & Total
running time
Power jack
Timer
Flow rate
Oxygen flow rate
Oxygen Outlet
Handle
Nebulizing Outlet
(Only available for NT-04)
Power switch
Fuse
mins
1
L/min
2
3
4
5
6
7
Nebulizing Outlet
TI MEFLOW
Oxygen Outlet
6. External View
Nebulizing Outlet
mins
1
L/min
2
3
4
5
6
7
Oxygen Outlet
Oxygen inhalation tube

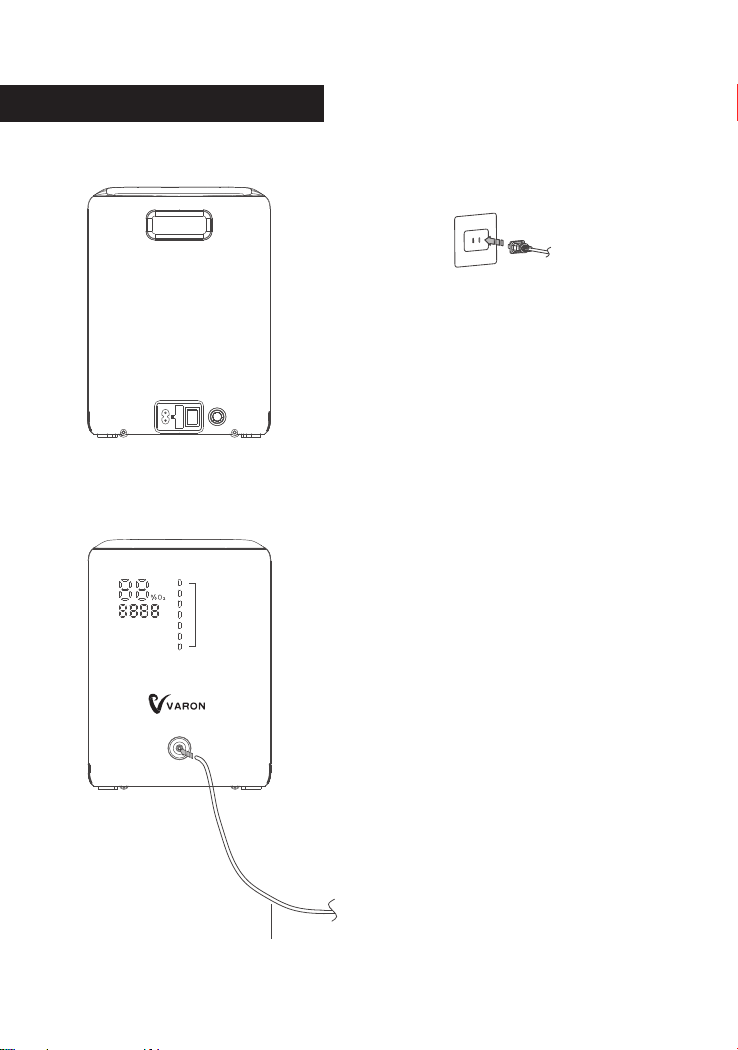

① Connect the power cord
Insert the output terminal of the power cord
into the power port on the machine first (as
shown in the left figure), and then insert the
other terminal of the power cord into the
socket.
②Connect the oxygen tube
Insert the large diameter end of the oxygen
inhalation tube into the "Oxygen outlet"
port.
7. Operation Steps
Nebulizing Outlet
Atomizing tube
Nasal cannula

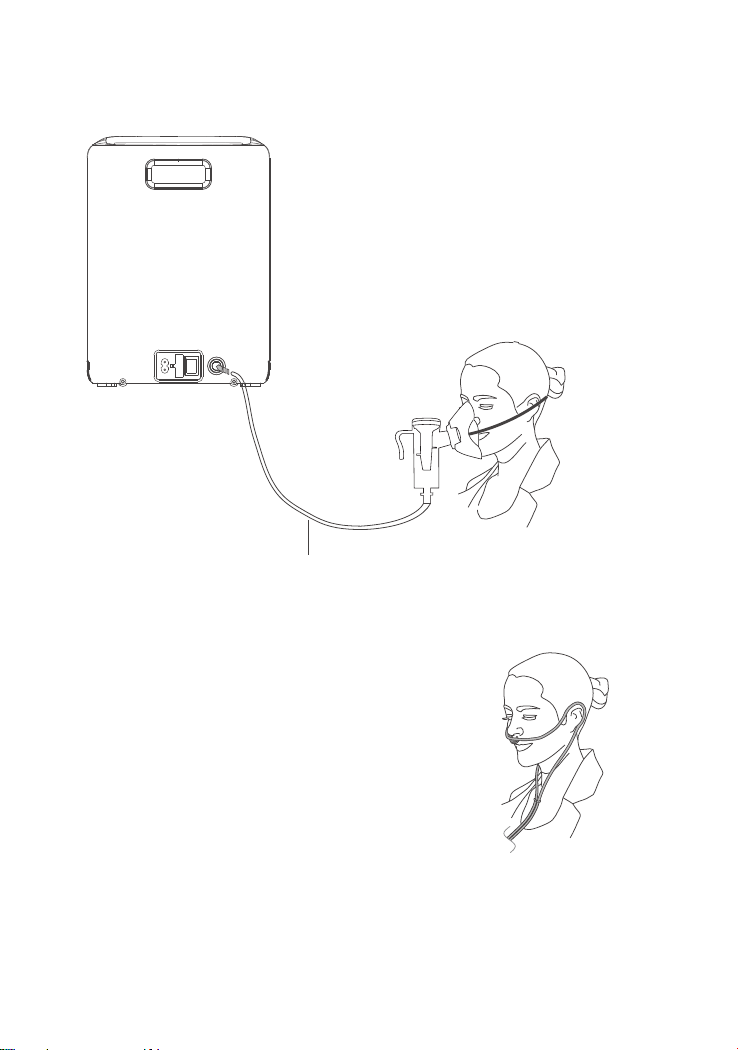

③ Connect the atomizing tube.(NT-04 only)
As shown in the figure, connect the atomiz-
er to the "Nebulizing outlet". Adjust it to the
right position, and wear it well.
④ Wear the oxygen inhaler
Wear the oxygen inhaler correctly as shown.
When using a Nasal cannula, align the two
vents with the nostrils and tighten the rubber
ring.
ON/OFF
⑥ Check the "Air filter"
Open the air inlet cover and check.
Make sure the air filter is clean and is
installed in place.
⑤ Start the oxygen machine
Turn on the "Power switch" and touch the
“ON/OFF” button, the machine will start to
produce oxygen.
※Please adjust the oxygen concentration to the appropriate gear
according to your own conditions. The recommended oxygen
concentration: 70%~90% for special people (if not recommended
by a doctor, do not inhale high concentrations of oxygen); 50%~70%
for the elderly and pregnant women; 30%~50% for office workers
and students. Please consult a physician for specific use.
