Vantrue Mirror 3 Manual de usuario

User Manual

3-Channel Mirror Dash Cam

Mirror 3

00:10:15

󾗺

9-1

Fri

English/Espanol/日本語/中文

装订方式：胶装

单页尺寸：103*145MM

封面：157G双铜纸过哑胶

内页：80G双胶纸

Always a surprise in Vantrue

Hey, find us here:

www.vantrue.net/contact facebook.com/vantrue.live

Installation

Instalación

取り付け案内とメニュー紹介

安装及菜单说明

Camera Overview

Información general de la cámara

カメラの概要

机身部件说明

107

Warranty & Support

Garantía y soporte

保証とアフターサービス

售后服务

106

Specifications

Especificaciones

製品仕様

产品规格参数

Basic Operation

Operación básica

機能

功能亮点

What's in the box?

¿Qué hay en la caja?

梱包内容

盒内物品清单

CONTENTS

ÍNDICE

- 1 -

1. What’s in the Box?

A. Vantrue M3 Mirror

Dash Cam

B. Docking Station

C. Type-C Power Cable

D. Car Charger

E. Hardwire Kit

G. Interior Camera

I. Rubber Mounting Straps*2 Set

J. Rear Camera Bracket *2 Set

K. Rear Camera 3M Adhesive

Pad*1

L. Interior Camera 3M Adhesive

Pad*1

M. Docking Station 3M Adhesive

Pad*1

N. User Manual

H. Backup Camera

Extension Cable

E F

C D

F. Backup Camera

User Manual

3-Channel Mirror Dash Cam

Mirror 3

00:10:15

󾗺

9-1

Fri

K L M N

- 2 -

2. Camera Overview

2 SD Card Slot Supports Micro SD Card up to 512GB

in FAT32, Class 10;

3 Button Power ON/OFF; long press to turn on/

off the dash cam;

No.

1 Power Port Connect to Type C cable or car

charger for external power supply;

Name Description

ENEN

1 2 3

9 10 11

- 3 -

4 Button Short press for screen off;

5 Screen 12(11.88)inch LCD Display Screen;

Front Camera7

Speaker Delivers sound during video playback;

8 Interior

Camera

Camera for in-car video recording;

Front Facing Camera for video

recording road Events;

Screen Overview

00:10:15

Return to the previous menu;

Go back DVR interface;

Menu Setting;

Start/Stop Recording;

File Browsing;

Snapshot;

Recording Lock;

Emergency File Locked;

Recording Time (current clip);

Interior Image;

Rear Image;

00:10:15

󾗺

9-1

Fri

External Camera External Camera for video recording

rear road events.

Interior Camera

interface

Video stream port for streaming

interior camera’s recording;

Docking station

power interface

Type-C USB port for charging the

front camera.

- 4 -

3. Installation

3.1 Installing a Memory Card (Recommended: Vantrue U3 high-

speed microSD card).

Please insert a memory card (memory card capacity:

32GB-512GB, card speed: U3/Class10/A2). The dashcam

has certain requirements on the card speed of the memory

card. For reliable operation, we recommend using a

VANTRUE SD card(sold separately).

Memory Card Installation: There is an icon indicating the

insertion direction of the memory card. Please push the

memory card into the card slot according to the direction

indicated by this icon, until a "click" sound is heard in the

card slot, indicating that the memory card is inserted

properly.

Motion Detection ON; Collision Detection ON

Low Framerate Mode ON; Time Lapse ON.

Device sound ON; Device sound OFF;

GPS Signal Locked; GPS Signal Connecting;

NO memory card inserted; Memory card inserted;

Mic is ON; Mic is OFF;

Recording; Stop Recording; Video Locked;

ENEN

Current Time (24H);

Current Date (MM/DD/YY);

- 5 -

The docking station perfectly connected the front, inside,

and rear cameras, making the installation of the dash cam

more convenient and flexible. The M3 dash cam comes with

a car charger and a hardwire kit. If connecting the car

charger, the dash cam will power off after the car engine is

off; if connecting the hardwire kit, the car will continue to

supply power to the dash cam in parking mode.

Reminder:

Before using the SD card, please format it to FAT32 on the

camera.

We recommend turning on the format reminder setup,

and formatting the card regularly. Too many files on the

memory card will affect its read and write performance.

3.2 All Accessories Installation

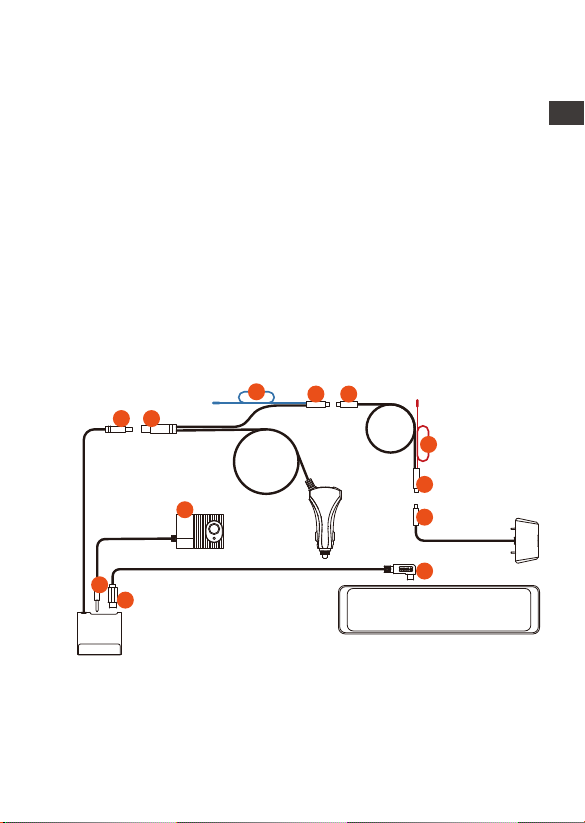

3.2.1 Car Charger Installation

Connect the docking station ①to the car charger ②;

Connect the car charger ③with the rear lens extension

cable ④;

Connect the rear lens extension cable ⑥to the rear lens

⑦;

1 2

534

- 6 -

3.2.2 Hardwire Kit Installation(For 24 Hours Parking Mode)

Note:

⑤is the reversing light wire, which is connected to the

reversing light in the fuse box;

⑧is the rear reversing light wire, which is connected to the

rear reversing light of the car.

Please connect one of the reversing light wires as needed.

Connect the docking station ①to the Hardwire kit②;

Connect the Hardwire kit ③with the rear lens extension

cable ④;

Connect the rear lens extension cable ⑤to the rear lens ⑥;

The hardware kit ⑦is the same as the installation method

of the normal ACC hardwire kit:

The black wire is the negative wire, which is connected to

the metal of the car; The red line is the ACC signal line,

which is connected to the ACC fuse of the car fuse box;

Connect the docking station ⑨with the M3 main dash

cam ⑩via the TYPE-C power cable;

Plug the interior camera ⑪ into the docking station

headphone jack ⑫ .

1 2

3 4

ENEN
