TALKBACK INTERCOM SYSTEM
V-2928 OPTION BOARD
The V-2928 Option Board is an add-on feature for the V-2924A Expandable Zone Talkback Intercom
System. The addition of this board provides the following supplemental features:
Time sync output
Custom page groups
Enhanced Caller ID
Flexible Architectural numbering plan
Interface to the PC Programming Tool
Store user data to EEROM
Real time clock for SMDR printer
Auto detect for Com Port or Modem
Evacuation tone to specified groups
Time tones to any of the Pre-Determined
Groups selected
Read software/firmware revision numbers
Dimensions/Weight
5.3" L x 3.00" W x 1.10" D
(13.46cm L x 7.62cm W x 2.79cm D)
0.9 lbs (0.41 kg)
The V-2924A Programming Tool is a windows based
software tool designed to interface with the V-2928
Option Board. The Option Board and the Programming Tool must both be installed to access the
additional features provided by the Option Board. All features must be set with the Programming Tool
when the Option Board and Programming Tool are installed.
CONTENTS
INSTALLATION OF THE OPTION BOARD 2
INSTALLATION OF THE PROGRAMMING TOOL 2
Figure 1 - Option Board Location on the Control Board 3
USING THE PROGRAMMING TOOL 4
System Configuration 4,5
Architectural Number and CLID Programming 6,7
Audio Connection 7,8
Class of Service 8
Clock 9
Custom Page Groups 10
Master Clock Schedule 11,12
System 13,14
Save Programmed Data to File 14
COMMUNICATING WITH THE V-2924A 15
Initiating Communications 15
Direct Connect, Modem Connect 15
Select Dialing Method
Modem Connect, Manual Connect 15,16
Send Data to V-2924A/Receive Data from V-2924A 16,17
Set System Date and Time 17
Read Software and Firmware Revision Number 17
Ending Communications 17
SETUP OF THE V-2924A MODEM 18-21
MENU OPTIONS 21-23
Print, Window, Help, Exit
TECHNICAL ASSISTANCE, WARRANTY 23
ADDITIONAL HARDWARE CONNECTIONS 24
2
INSTALLATION OF THE OPTION BOARD
The Option Board must first be installed on the Control Unit Board (See Figure 1).
WARNING: Disconnect main power before servicing.
Remove the side plate and top cover of the Control Unit and set aside.
Slide small side plate upward to provide opening for Option Board connector (See Figure 1).
Align J3 on the Option Board directly over J1 on the Control Board.
Align J4 on the Option Board directly over JP2 on the Control Board.
Press Option Board firmly in place to make sure connectors are seated properly.
Replace the top cover and side plate of the Control Unit and plug in the power supply.
Plug PC Communication Cable (included) into P1, PC Programming Port (located on the Option
Board - See Figure 1).
The V-2928 Option Board requires the use of the PC Programming Tool to access the various features it
provides.
INSTALLATION OF THE PROGRAMMING TOOL
Minimum Computer Requirements for the Valcom V-2924A Programming Tool:
Hardware:
Pentium (higher is recommended)
Hard drive with 60 Mbytes free
Mouse
64 Mbytes of RAM (more is recommended)
1 available serial communication port
Operating System:
The Programming Tool is compatible with Windows 98, ME, NT.4.0,Windows 2000 and
Windows XP, Windows 7.
Rev 2 Programming Tool is compatible with previous versions of hardware, however, the new
hardware is not compatible with previous versions of the Programming Tool.
The programming tool software is furnished on CD and must be installed to the hard drive. To install the
software:
Insert Programming Tool CD.
CD will Auto Run.
Follow on-screen instructions for full installation.
The Valcom V-2924sc Programming Tool will automatically appear in the Programs list.
3
HIGH VOLTAGE AREA
DISCONNECT POWER
BEFORE SERVICING
J1
JP2
Option
Board
Location
Align J3 on the Option Board directly over J1 on the Control Board
Align J4 on the Option Board directly over JP2 on the Control Board
Press Option Board firmly into place.
FIGURE 1 - OPTION BOARD LOCATION ON THE V-2928 CONTROL BOARD
Side View
Top View
P10 P1
RS232 Serial Port
for SMDR (DB9
Connector)
PC Programming
Port (located on
Option Board)
Slide plate covering
connector ports up
to provide opening
for connector
J3 and J4 are located on the
under side of the Option Board.
4
USING THE PROGRAMMING TOOL
On the taskbar, click the Start button, point to Programs and select VALCOM V-2924sc
Programming Tool.
The V-2924 Programming Tool splash screen appears momentarily and then the Programming
screen comes into view.
System Configuration
To begin the programming process, click on File. A pull-down menu appears allowing selection of a previously
programmed file (click on Open) or the ability to create a new file (click on New). The following instructions
assume a New configuration file is being created. Click on New from the pull-down menu. A System
Configuration screen is displayed to allow selection of the installed components within the system.
Select one of the following from the list:
For a 24-station system select Main Board.
For a 48 station system select Main Board + Expansion 1.
For a 72 station system select Main Board + Expansion 1, 2.
For a 96 station system select Main Board + Expansion 1, 2, 3.
Click in the box next to Clock Board if the V-2927 Clock Control Card is installed.
Press OK to accept the present selection or Cancel to re-select. When selection is complete, the Programming
Window Screen will be displayed. (To display the configuration of the system press the Details button).
5

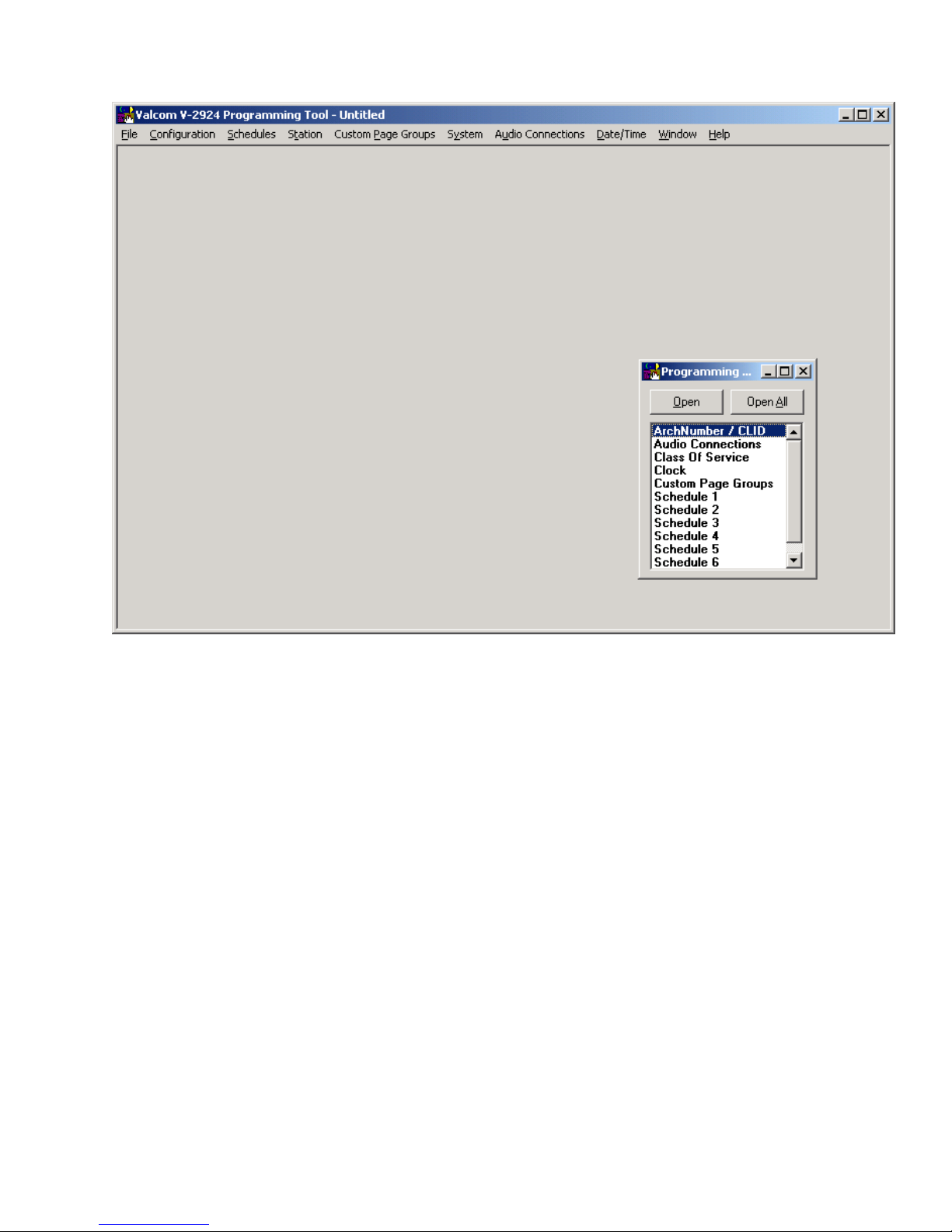

When OK is selected from the System Configuration screen, the Programming Window appears - see below. The
Programming Window allows each option to be accessed by selecting the option and pressing Open or by double
clicking on the selected option. All functions can be listed at once by pressing Open All. (All of the options
accessed through the Programming Window can also be accessed from the pulldown menus).
6
Architectural Number and CLID (Caller ID) Programming
The first function to configure is the Architectural Number and CLID Programming.
The Architectural Number is a 1 to 4 digit number that is dialed by the phone to connect to a specific speaker.
Flexible architectural numbering is often selected to allow speakers and room numbers to match. The CLID
Programming allows a name or up to 15 characters description to be entered for each station.
The information entered in the CLID description field will be displayed on the phone or Caller ID unit if provided as
part of the system.
The Edit Station Entry allows a CLID description to be entered for each station. Example: 105 would be the
Arch # and MR. HALL would be the CLID description (15 character limit).
The Delete Station Entry allows removal of selected architectural and CLID descriptions.
Auto Numbering assigns the Arch # in sequential order. The beginning number is the currently selected station;
an ending number must be specified.
To Auto Number – Highlight station where architectural numbering begins.
Select Edit Station Entry. Enter beginning architectural number and select OK.
Select Auto Numbering and enter last architectural number (must be a higher number).
Select OK.
Enter information for the Main Board as well as each Expansion Unit being used and press OK to accept.
7
Audio Connections
This screen allows selection of groups to receive Background Music, Time Tones and Emergency Tones.
This sample system consists of a "Main Board + Expansion 1" so eight groups are available to receive audio
connections. (Each group contains six stations).
Group 1 Stations 1, 2, 3, 4, 5, 6 Main Board
Group 2 Stations 7, 8, 9, 10, 11, 12 Main Board
Group 3 Stations 13, 14, 15, 16, 17, 18 Main Board
Group 4 Stations 19, 20, 21, 22, 23, 24 Main Board
Group 5 Stations 25, 26, 27, 28, 29, 30 Expansion 1
Group 6 Stations 31, 32, 33, 34, 35, 36 Expansion 1
Group 7 Stations 37, 38, 39, 40, 41, 42 Expansion 1
Group 8 Stations 43, 44, 45, 46, 47, 48 Expansion 1
Click on the tab of the desired feature to program zones. Click on each group button to receive the audio
connection. If all groups are to receive an audio connection for the specific feature, select Include All.
The zones for each feature:
BGM, Time Tone and Emergency, are selected in the same manner.
Defaults: BGM - All Off
Time Tone - All On
Emergency - All On
After zones for each feature have been selected, press the OK button.
8
The Audio Connections screen disappears, with the Programming Window still being active to allow selection
of other options.
Class of Service.
Class of Service defines how a call originated by a button press will be queued for answer by the attendant.
Emergency Only - Top priority. Stations programmed as Emergency Only are moved to the top of the
priority list to be answered first.
Normal/Emergency - Calls from stations programmed as Normal/Emergency are received in the queue as
they are made. 1 button press from the station, the call is received as a normal call; 4 button presses from
the station, the call is received as an emergency call.
Normal Only - Calls from stations programmed as Normal Only are received in the queue as Normal priority
whether 1 or 4 button presses are made at the calling station.
Set the Class of Service for all Groups on the Main Board as well as any Expansion Boards. Press the down
arrow at the end of the Class of Service field to display the available types of service for selection.
When finished, press the Close button.
Default option of all stations, with or without the Option Board installed, is Normal/Emergency.
9
Clock
Note: Clock programming option is available if Clock Board has been checked on System Configuration screen.
Clock correction is only available with the V-CLK2924 Clock Correction Kit.

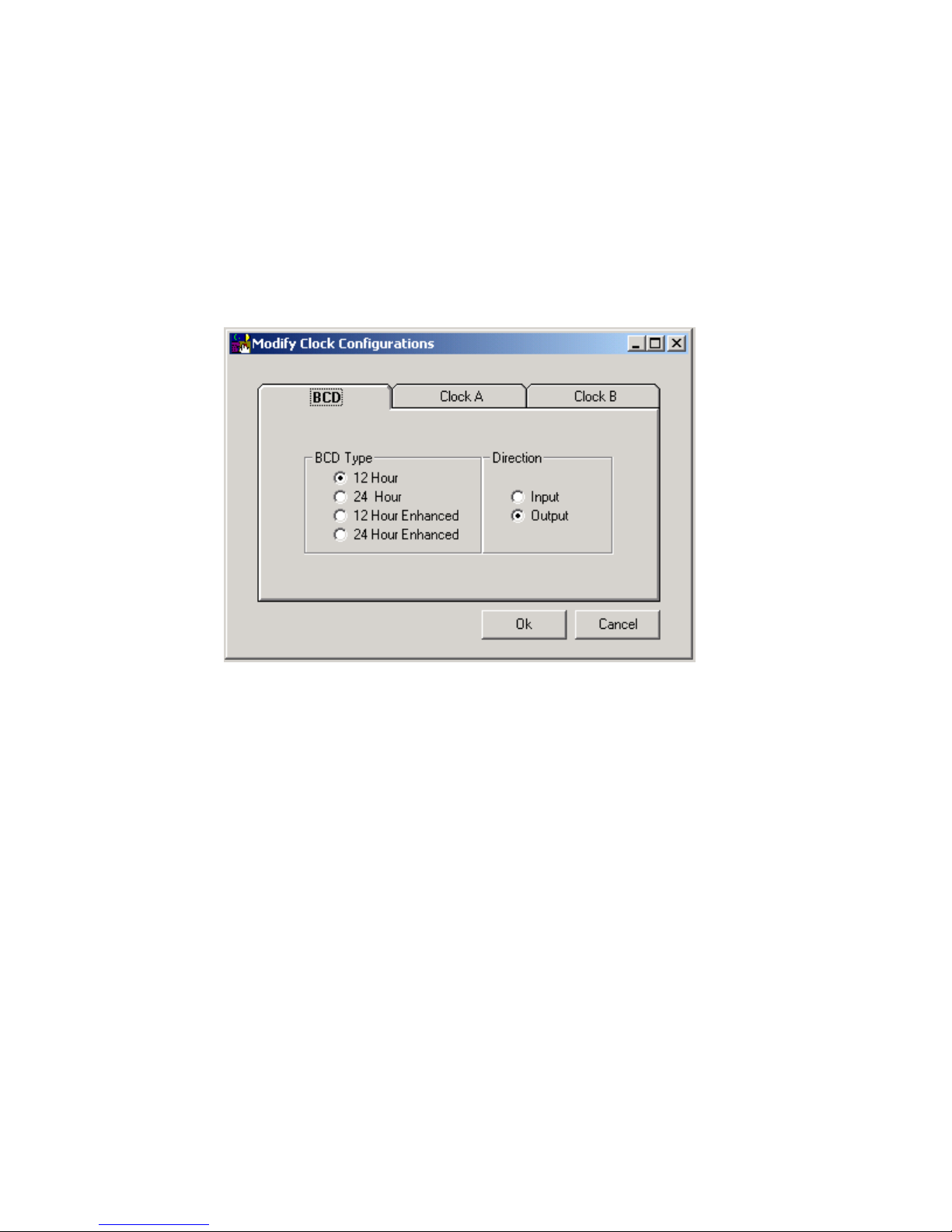

When Clock is selected, the following screen is displayed.
Click on the tab for Clock A. Then click on the down arrow next to Clock Type, and select the clock type code
(codes are defined in the V-2927 manual) for the Clock Circuit 1 connections on the V-CIO. If using the Clock
Circuit 2 connections on the V-CIO, click on the Clock B tab, and select the clock type code for those connections.
10
Custom Page Groups
When Custom Page Groups is selected, the following screen is displayed.
There are 4 Custom Page Groups available.
Select the Page Groups to receive custom paging by clicking on the desired box. Each Custom Page Group
can contain all groups or a combination of groups. (Example: Custom Page Group 50 could contain page
groups 1, 2 and 3, and Custom Page Group 52 could contain page groups 1, 2, 7 and 8).
Select OK after all desired page groups are defined.
