VADO IND-Z143 Series Manual de usuario

1 way wall mounted concealed stop valve

Keep for future reference

Installation Guide

ZONE

Vado

Wedmore Road, Cheddar, Somerset, England BS27 3EB

tel 01934 744466 fax 01934 744345

aftersales@vado.com

www.vado.com

Version 2, 1-1-23

where inspiration flows

ZON-143-CP

ZON-143-H-CP

IND-Z143-☓☓☓

IND-Z143-H-☓☓☓

Please read these instructions carefully before starting installation and keep for future

reference.

Remove all packaging and check the product for missing parts or damage before

starting installation.

Any alterations made to this product and fittings may infringe water regulations and

will invalidate the guarantee.

The installation must comply with all Local/National Water Supply Authority

Regulations/Byelaws and Building and Plumbing Regulations.

To be installed in accordance with BS EN806.

We strongly recommend that you use a qualified and registered plumber.

General installation

Important - please read

When installed, the fitting must comply with the requirements of the Water Supply

(Water Fittings) Regulations 1999 and Scottish Byelaws 2004.

For further information, contact the Water Regulations department of your local water

supplier (see the WRAS website www.wras.co.uk for details) or the Water Regulations

Advisory Scheme by email (info@wras.co.uk) or telephone: 01495848454.

The fitting of an isolating valve to the inlet feed is advised for ease of maintenance.

Please take great care when installing this product not to damage its surface.

Please note if installing in an enclosed environment, access should be left for servicing

and maintenance. No costs relating to inadequate access can be accepted.

Contents of Packaging

Installation guide &

User manual Cover

Valve with Tiling Guide

Fixing nut, rubber washer and two screws

Collar

Extension rod with cap

Keep for future reference

Installation Guide

ZONE

1 way wall mounted concealed stop valve

4 5

Dimensions

78-113mm

52mm

121mm

1/2"

65mm

Ø57mm

80mm

Installation - Quick guide

x 2

113mm78mm

6 7

910

Installation - Quick guide

14 15a

Installation - Quick guide

- X mm

X mm

ZON-143-H-CP

ZON-143-CP

8 9

15b

Installation - Quick guide

Installation

Select the position for the shower valve and offer the shower valve to the wall, make

sure the valve is level and mark the 2 fixing points with a suitable pencil. Remove the

shower valve from the wall, drill the holes to a suitable depth for the wall plugs and

secure with suitable screws.

Valve

Tiling guide

Final wall surface

On opposite side

of tiling guide

Maximum 113mm

Fixing

screws

Minimum 78mm

Tiling

guide

Outlet arrow on

valve

Maximum

wall mark

Minimum

wall mark

x 2

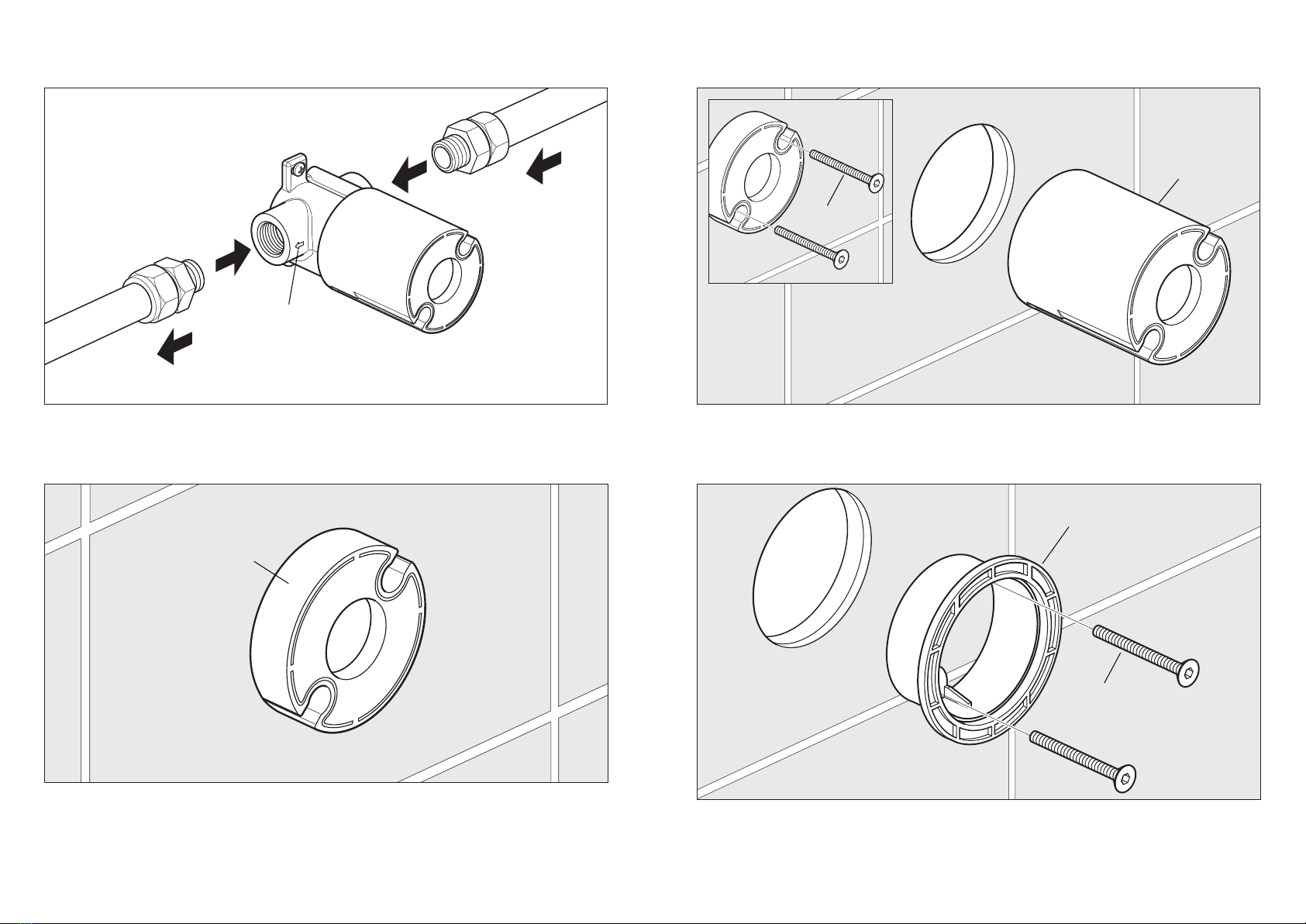

Installation

Slide the collar into the hole. Line up the holes and secure in position using the screws

from the previous step.

Collar

Tiling guide

Installation

Tile around the tiling guide as tight as possible. Keep the final finished wall surface

between the min and max marks.

Outlet

Inlet from

ZON-128

Tiling guide

Outlet arrow on

valve

Screws

Remove the 2 screws using the suitable hex key provided with the ZON-128 and pullout

the tiling guide.

After removing the blanking plug and adding the outlet adaptor to the ZON-128 connect

the water supply to the right inlet of the valve. Connect the outlet (arrow on valve) to the

desired channel e.g. shower head and handset.

Installation

Insert the spacer plate into the step of the

collar.

There is a spacer plate incorporated into the end of the tiling guide. Remove this by

snapping it at the four points. Remove any burrs.

Tiling guide

Spacer plate

Step of collar

Extension rod

Spacer plate

Screw the extension rod onto the spindle

of the cartridge.

Installation

Measure the distance (X mm) the rod protrudes from the level of the spacer plate

and then unscrew the rod and remove the spacer plate. Note: Ensure the cartridge is

pushed in (the off position).

X mm

Rod

Spacer plate

Extension rod

Cap

Hex key

Screw the cap onto the rod until it's flush

and tighten the grub screw on the cap

using the smaller hex key provided with

the ZON-128.

Cut away the measured distance

from the end of the rod as well as the

2 screws

provided with the ZON-143 trim.

(X mm)

Installation

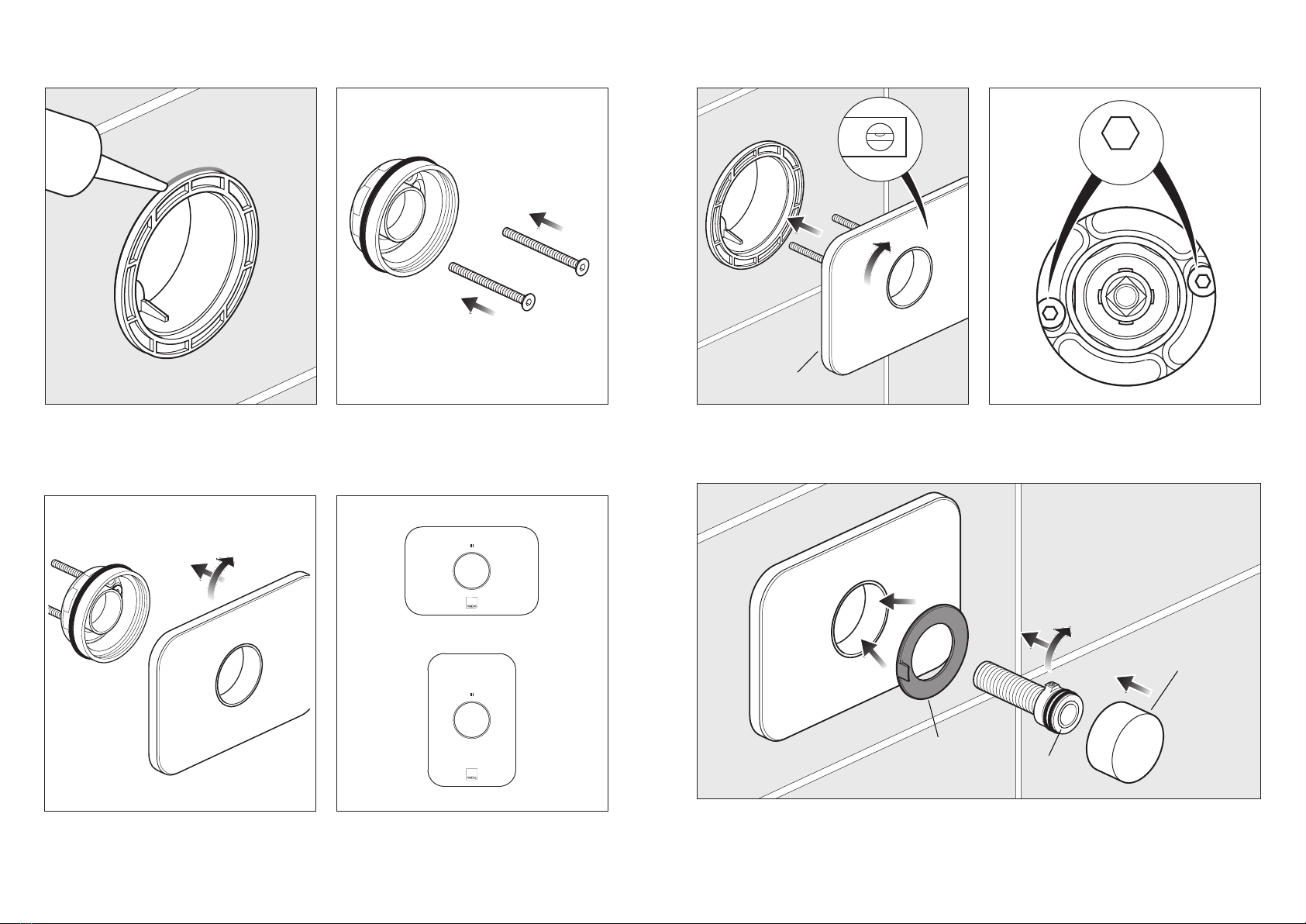

Apply a thin bead of silicone between

the collar and the tiles.

Screw the cover onto the fixing nut. Cover orientation

Place the screws inside the fixing nut on

opposite sides

Installation

With the correct cover orientation, use

the screws to locate the holes in the valve

body.

Fit the rubber washer, place the button onto the cap of the extension rod and screw the

rod onto the spindle of the cartridge.

Make sure the cover is level and tighten

Cover

Button

x 2

Cover

Rubber

washer Cap

ZON-143-CP

ZON-143-H-CP

the screws using the suitable hex key

provided with the ZON-128 to secure the

cover.
