vacuubrand VACUU-SELECT Manual de usuario
Imprint
2 20901171_EN_VACUU·SELECT-Komp_V1.4_291021
Original instructions
Keep for further use!
This manual is only to be used and distributed in its complete and original form. It is strictly the user's responsibility to
carefully check the validity of this manual with respect to the product.
Manufacturer:
VACUUBRAND GMBH + CO KG
Alfred‑Zippe‑Str. 4
97877 Wertheim
GERMANY
Phone:
Head ofce +49 9342 808‑0
Sales +49 9342 808‑5550
Service +49 9342 808‑5660
Fax: +49 9342 808‑5555
Email: [email protected]
Web: www.vacuubrand.com
Thank you for purchasing this product from VACUUBRAND GMBH + CO KG. You have chosen a modern and
technically high quality product.
Contents
320901171_EN_VACUU·SELECT-Komp_V1.4_291021
TABLE OF CONTENTS
1 Introduction 6
1.1 User information .................................6
1.2 Manual structure.................................7
1.3 About this document..............................8
1.3.1 Display conventions ..........................8
1.3.2 Symbols and icons ...........................9
1.3.3 Handling instructions (action steps)..............10
1.3.4 Abbreviations ..............................11
1.3.5 Term denitions.............................12
2 Safety information 13
2.1 Usage........................................13
2.1.1 Intended use ...............................13
2.1.2 Improper use...............................14
2.1.3 Foreseeable misuse .........................14
2.2 Target group description..........................15
2.2.1 Personnel qualication .......................15
2.2.2 Responsibility matrix.........................15
2.2.3 Personal responsibility .......................16
2.3 Safety precautions ..............................16
2.3.1 Safety precautions, general ...................16
2.3.2 Awareness of potential dangers ................17
2.3.3 ATEX equipment category (sensor) .............18
2.4 Disposal ......................................19
3 Product description 20
3.1 VACUU·SELECT Complete .......................20
3.2 Product views ..................................22
3.2.1 VACUU·SELECT Complete (schematic design) ......22
3.2.2 VACUU·SELECT Sensor .....................25
3.2.3 Chemically resistant in‑line solenoid valve ........26
3.3 VACUU·BUS peripheral devices (option) .............27
3.4 Example ......................................28
3.5 Remote control and interfaces . . . . . . . . . . . . . . . . . . . . . 29
3.5.1 RS‑232 serial interface .......................29
3.5.2 Modbus TCP...............................29
4 Installation and connection 30
4.1 Transport .....................................30
4.2 Installation ....................................30
4.2.1 Benchtop version ...........................31
4.2.2 Lab scaffold version .........................31
Contents
4 20901171_EN_VACUU·SELECT-Komp_V1.4_291021
4.2.3 Built‑in version .............................34
4.3 Electrical connection ............................36
4.4 Vacuum connection .............................38
4.5 Venting connection (option) .......................40
5 User interface 41
5.1 Switch on controller .............................41
5.1.1 Touchscreen ...............................42
5.1.2 Gestures for operation .......................42
5.2 Set up device ..................................42
5.2.1 Data storage message .......................42
5.3 Screen orientation ..............................43
5.4 Display and operating elements ....................44
5.4.1 Process screen (main screen) .................44
5.4.2 Display elements............................45
5.4.3 Operating elements and symbols ...............47
6 Operation 51
6.1 Applications ...................................51
6.1.1 Select and start application....................51
6.1.2 Adjust pressure setpoint . . . . . . . . . . . . . . . . . . . . . . 52
6.1.3 Vent .....................................54
6.1.4 Stop application ............................55
6.2 Application parameters (parameter list) ..............55
6.3 Pressure graph.................................57
6.4 Main menu ....................................58
6.4.1 Applications ...............................59
6.4.2 Favorites ..................................60
7 Main menu 61
7.1 Advanced operation .............................61
7.1.1 Application editor ...........................61
7.1.2 Menu bar and description .....................62
7.1.3 Overview of process steps ....................63
7.1.4 Process end ...............................64
7.1.5 Edit application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
7.1.6 Remove process step ........................67
7.1.7 Settings...................................68
7.1.8 Settings/administration .......................70
7.1.9 Administration – import/export .................72
7.1.10 Administration – VACUU·BUS .................73
7.2 Data logger....................................76
7.3 Service .......................................77
7.3.1 Service information..........................77
7.3.2 Diagnostic data .............................78
Contents
520901171_EN_VACUU·SELECT-Komp_V1.4_291021
8 Troubleshooting 79
8.1 Error messages ................................79
8.1.1 Error indication .............................79
8.1.2 Acknowledge error indication ..................80
8.2 Error – Cause – Remedy .........................80
8.2.1 Pop‑up message ...........................80
8.2.2 General faults ..............................81
8.3 Device fuse....................................83
9 Appendix 85
9.1 Technical information ............................85
9.1.1 Technical data..............................85
9.1.2 Rating plate................................88
9.1.3 Wetted materials............................89
9.1.4 Vacuum data...............................89
9.2 Ordering information.............................90
9.3 Licensing information and data protection ............91
9.4 Service .......................................92
9.5 Index.........................................93
9.6 EC Declaration of conformity ......................94
6 20901171_EN_VACUU·SELECT-Komp_V1.4_291021
Introduction
11 IntroductionIntroduction
This manual is part of your product.
1.11.1 User informationUser information
Safety
Read this manual thoroughly and completely before using the
product.
Keep this manual in an easily accessible location.
Correct use of the product is essential for safe operation.
Comply with all safety information provided!
In addition to this manual, adhere to the accident prevention
regulations and industrial safety regulations applicable in the
country of use.
General
For easier readability, the general term controllercontroller is used
as an equivalent to and instead of the product name
VACUU·SELECTVACUU·SELECT CompleteComplete.
If passing the product on to a third party, also give them this
manual.
The illustrations in this manual are only intended to facilitate
comprehension.
We reserve the right to make technical and design changes in
the course of continuous product improvement.
Copyright
The content of this manual is protected by copyright. Only copies
for internal use are allowed, e.g., for professional training.
© VACUUBRAND GMBH + CO KG
General
information
Instructions for use
and safety
Copyright © and
copyright law
720901171_EN_VACUU·SELECT-Komp_V1.4_291021
Introduction
Contact
If your manual is incomplete, you can request a
replacement. Alternatively, you can use our download portal:
www.vacuubrand.com
When contacting our Service Department, please have the
serial number and product type at hand see Rating plateRating plate on
the product.
You are welcome to contact us at any time in writing or by
telephone if you would like more information, have questions
about our products or wish to share feedback with us.
1.21.2 Manual structureManual structure
The manuals have a modular structure with separate instruction
modules for the controller, vacuum pumps, pumping units, and
any accessories.
Instruction modules
123
1Safety information for vacuum equipment
2Description: Vacuum controller – control and operation
3Optional description: vacuum pump, accessories, etc.
Contact us
Modular instructions
for use
Example
Breakdown of the
instructions for use
8 20901171_EN_VACUU·SELECT-Komp_V1.4_291021
Introduction
1.31.3 About this documentAbout this document
1.3.11.3.1 Display conventionsDisplay conventions
Warning levels
DANGERDANGER
Indicates an imminent hazardous situation.
Disregarding the situation could result in extremely
serious injury or death.
> Take appropriate action to avoid dangerous situations!
WARNING
Warns of a potentially hazardous situation.
Disregarding the situation could result in serious injury
or death.
> Take appropriate action to avoid dangerous situations!
CAUTION
Indicates a potentially hazardous situation.
Disregarding the situation could result in minor injury or
damage to property.
> Take appropriate action to avoid dangerous situations!
NOTENOTE
Indicates a potentially harmful situation.
Disregarding the situation could result in damage to property.
Additional notes
>Information or specic recommendation which must be
observed.
>Important information for trouble‑free operation of your
product.
> Helpful tips + tricks
> Additional information
IMPORTANT!
Display conventions
920901171_EN_VACUU·SELECT-Komp_V1.4_291021
Introduction

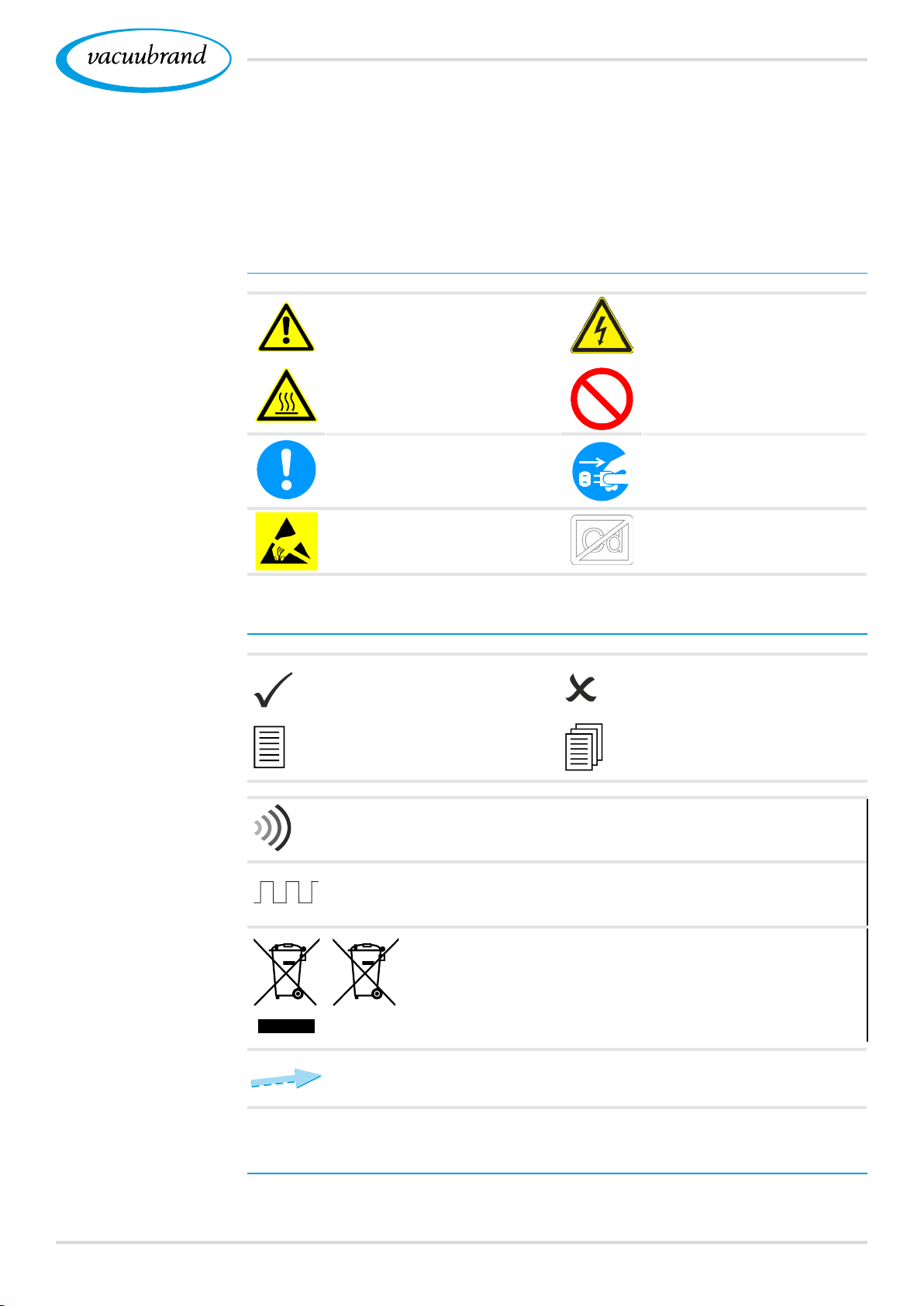

1.3.21.3.2 Symbols andSymbols and iconsicons
This manual uses symbols and icons. Safety symbols indicate
specic risks associated with handling the product. Symbols and
icons are designed to help you identify risks more easily.
Safety symbols
General
warning symbol. Danger: electricity.
Warning: hot surface. General
prohibition sign.
General
mandatory sign. Disconnect power plug.
Electrostatically sensitive
components ESD. Cadmium free
Additional symbols and icons
Positive example – Do this!
Result – OK
Negative example –
Don't do this!
Refers to content in this
manual.
Refers to content in other
supplementary documents.
Acoustic signal – signal sound/warning sound.
Frequency of beeping, frequency of acoustic signal
Electric/electronic devices and batteries must not be
disposed of in the domestic waste at the end of their
service life.
Flow arrow
Vacuum
Symbols and gestures for operation
See chapter: 5.1.2 Gestures for operation on page 425.1.2 Gestures for operation on page 42
Explanation of
safety symbols
Additional symbols
10 20901171_EN_VACUU·SELECT-Komp_V1.4_291021
Introduction
> Additional detailed descriptions of symbols (icons) and
signals on the display can be found in chapter 5.4 Display5.4 Display
and operating elementsand operating elements.
1.3.31.3.3 Handling instructions (Handling instructions (action steps)action steps)
Instructions (single step)
>Perform the step described.
5Result of action
Instructions (multiple steps)
1. First step
2. Next step
5Result of action
Perform the steps in the order described.
Instructions (shown graphically)
1. First step
2. Next step
5Result of action
Action steps as text
Schematic diagram
Action steps as
graphics
Otros manuales para VACUU-SELECT
3
Tabla de contenidos
Otros manuales de Controladores de vacuubrand
vacuubrand
vacuubrand CVC 3000 Manual de usuario
vacuubrand
vacuubrand VACUU-SELECT Manual de usuario
vacuubrand
vacuubrand CVC 3000 Manual de usuario
vacuubrand
vacuubrand CVC 2 Manual de usuario
vacuubrand
vacuubrand CVC 3000 Instrucciones de montaje
vacuubrand
vacuubrand CVC 3000 Manual de usuario
vacuubrand
vacuubrand CVC 3000 Manual de usuario
vacuubrand
vacuubrand CVC 3000 Manual de usuario
vacuubrand
vacuubrand VACUU-SELECT Manual de usuario
