TABLE OF CONTENTS

SECTION PAGE

Symbols……………….......……….....................................................................................................

Safety Information.............................................................................................................................

Unpacking & Checking Carton Contents...........................................................................................

Assembly……………….......………..................................................................................................

Operation……………….......………................................................................................................

Maintenance………….......………....................................................................................................

Troubleshooting………….......………...............................................................................................

Technical Data………….......……….................................................................................................

Recycling and Disposal………….......………...................................................................................

Plug/Fuse Replacement (UK & Ireland Only ).................................................................................

Thank you for purchasing this Vacmaster® wet and dry vacuum cleaner. Feel condent that with

Vacmaster®you are obtaining a high quality product engineered for optimal performance. This

vacuum cleaner is suitable for use with both liquids and dry materials.

FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS.

SYMBOLS

Vacuum cleaners of dust category L according to IEC/EN 60335-2-69 for dry vacuuming

of materials with an exposition limit value > 1mg/m3that are hazardous to one's health.

The vacuum cleaner contains materials

that are hazardous to one's health. Have the emptying

and maintenance, incl. the disposal of dust-collection

container, carried out by specialists. Appropriate protective

equipment is required. Do not operate the vacuum cleaner

without the complete lter system. Otherwise there is danger to

your own health.

WARNING:

SAFETY INFORMATION

When using the equipment, a few safety precautions must be

observed to avoid injuries and damage. Please read the complete

operating manual with due care. Keep this manual in a safe

place so that the information is always available. If you give

the equipment to any other person, give them these operating

instructions as well. We cannot accept any liability for damage or

accidents which arise due to a failure to follow these instructions

and the safety information.

READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE

USING THIS VACUUM CLEANER.

• Never leave the appliance switched on unattended, if you leave

the work area, switch the appliance off or unplug it from the

power supply.

• Do not vacuum or use this Wet and Dry Vacuum cleaner near

ammable liquids, gases or explosive vapours like gasoline

or other fuels, lighter uids, cleaners, oil-based paints, natural

gas, hydrogen, or explosive dusts like coal dust, magnesium

dust, grain dust or gun power. Sparks inside the motor can

ignite ammable vapours or dust.

• This vacuum cleaner is not suitable for the vacuuming of

asbestos or asbestos dust.

• Do not vacuum anything that is burning or smoking, such as

cigarettes, matches, or hot ashes.

• Ensure the hose and connections are always pointed away

from the users face, hair, ears and eyes during operation and

never direct the nozzle towards persons or animals.

• Clear the working area of any items or precessions that you do

not wish to be vacuumed before operation.

• Keep cord away from heated surfaces.

• Do not expose to rain. Store indoors.

• Do not unplug by pulling on the cord. To unplug, grasp the plug,

not the cord.

• Do not use with damaged cord, plug or other parts.

• Do not pull or carry by cord, use cord as handle, close a door

on cord, or pull cord around sharp edges or corners.

• Do not handle the plug or vacuum cleaner with wet hands.

• To reduce the risk of health hazards from vapours or dusts, do

not vacuum toxic materials.

• Frequently check that the oat valve positioned underneath the

motor is able to move freely.

• Do not use or store near hazardous materials.

• Do not use this vacuum cleaner with a torn lter or without the

lter installed.

• Do not allow to be used as a toy. Close attention is necessary

when used by or near children.

• To reduce the risk of injury from accidental starting, unplug

power cord before changing or cleaning lter.

• Do not leave vacuum cleaner unattended when plugged in.

Unplug from power supply when not in use and before carrying

out maintenance.

• Turn off Wet and Dry Vacuum cleaner before unplugging.

• Do not cover the ventilation openings. Do not vacuum with any

ventilation openings blocked; keep free of dust, lint, hair or

anything that may reduce air ow.

• Keep hair, loose clothing, ngers, all parts of body away from

openings and moving parts.

• If the supply cord is damaged, it must be replaced by the

manufacturer, a qualied service agent or similarly qualied

persons in order to avoid a hazard.

• This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance

by a person responsible for their safety.

• Children should be supervised to ensure that they do not play

with the appliance.

• For additional protection: It is recommended that this vacuum

cleaner can be used in conjunction with residual current device

(RCD) with a rated residual current of 30mA or less.

• Always unplug the appliance after use and before cleaning or

changing the lters or accessories.

When carrying out service or repair

operations, all contaminated items which cannot be

satisfactorily cleaned are to be disposed of; such items shall

be disposed of in impervious bags in accordance with any

current regulation for the disposal of such waste.

WARNING:

UNPACKING AND CHECKING CARTON

CONTENTS

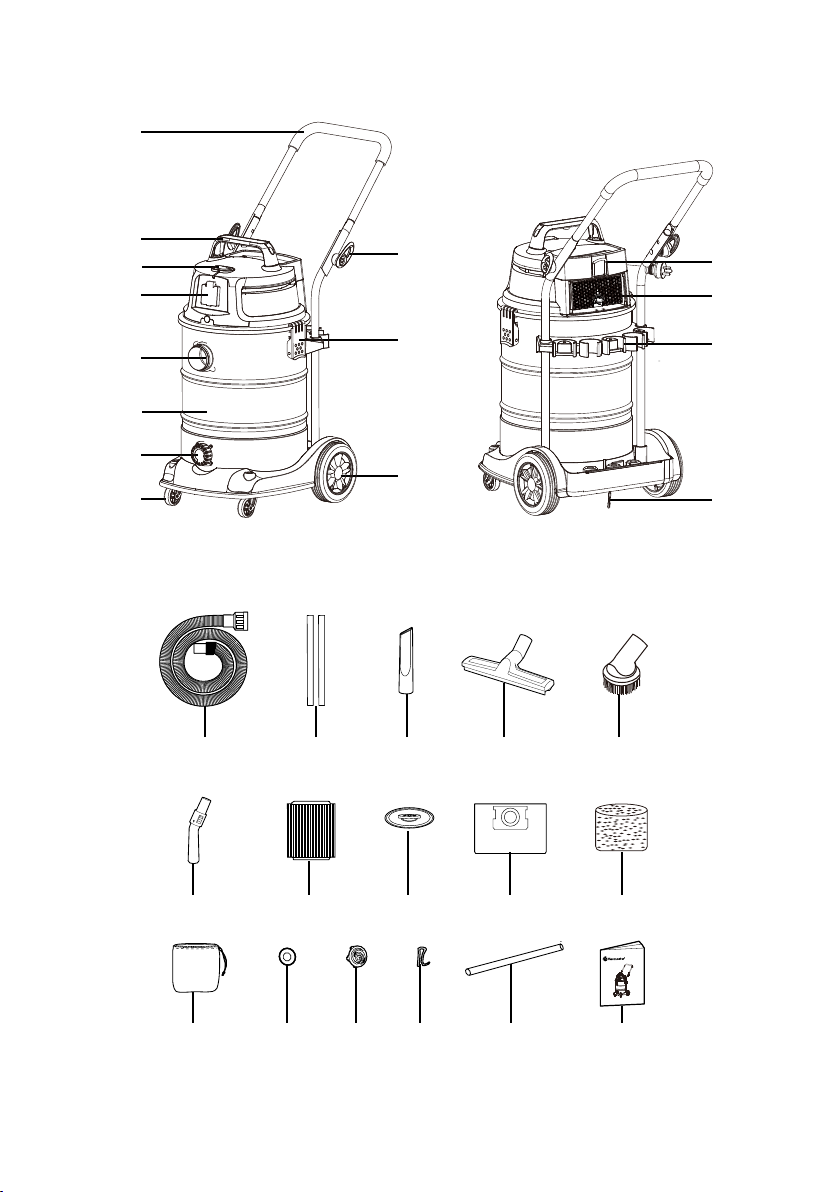

1 Push/Pull Handle 17 Extension Wand (x2)

2 Carry Handle 18 Crevice Tool

3 On/Off Switch 19 Floor Nozzle

4Power Take-off Socket 20 Round Dust Brush

5 Suction Port 21 Handle with Air Flow Regulation

6 Container 22 Cartridge Filter

7 Drainage Port 23 Filter Retainer

8 Front Caster 24 Dust Bag

9 Wing Knob 25 Foam Filter

10 Latch 26 Nylon Pre-lter

11 Rear Wheel 27 Washer (x4)

12 Hook / Power Cable Hook 28 Hub Cap (x2)

13 Exhaust Filter 29 Wheel Retaining Pin (x2)

14 Accessory Storage 30 Wheel Axle

15 Anti- static Chain 31 Instruction Manual

16 Hose

OPERATION

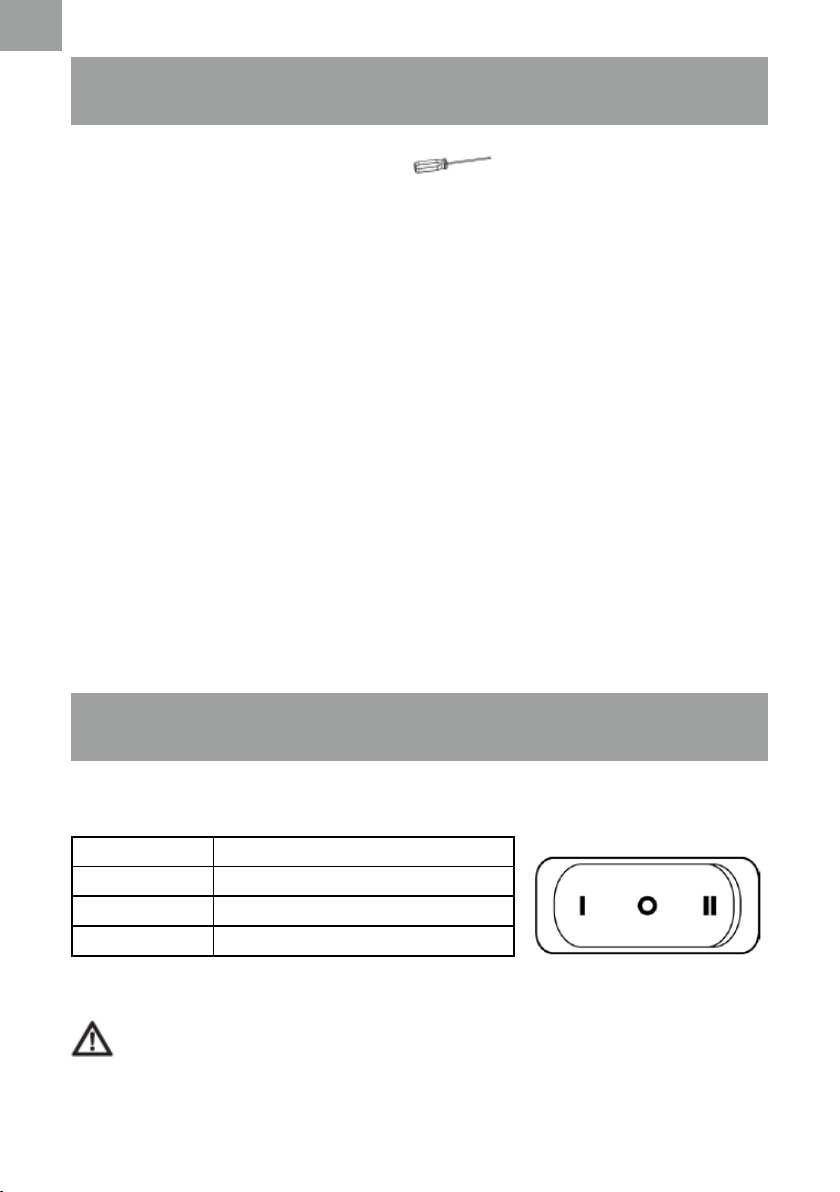

1. Switching On/Off

Connect the mains plug to a suitable a power outlet.

2. Power Tool Take-Off Operation (Fig. 6)

Position Status

I on

Ooff

II automatic synchronized start-up

WARNING: Always check the maximum wattage compatibility of the power tool take

off socket against the desired power tool before connecting to prevent overloading.

1) Connect the power cable of your power tool to the power take-off socket.

2) If applicable, connect the vacuum suction hose to the dust extractor connector on your tool with

the supplied adaptor.

4. Unfold the upper handle assembly into the upright position. The upper handle has two

adjustable height positions. Secure in place by tightening the wing knobs clock-wise (Fig. 3).

5. Your vacuum cleaner comes ready for dry vacuum cleaning with the cartridge lter. If the

cartridge lter and nylon pre-lter are not installed, refer to page 10.

6. Optionally, for improved dust ltration, fully t the dust bag ange onto the inlet stub (Fig. 4).

7. For wet vacuuming, replace the cartridge lter and pre-lter with the foam lter supplied. Do not

use a dust bag when wet vacuuming. If foam lter is not installed, refer to page 11.

8. Secure the power head back on the container, using the 2 side latches. Insert the locking end

of the hose into the suction port of the container and turn clockwise to lock into place (Fig. 5).

9. Choose the desired accessories and/or extension wands and push t onto the hose nozzle.

ASSEMBLY

NOTE: A Phillips screwdriver is required.

1. Remove all the contents from inside of the vacuum cleaner container.

2. Turn the container upside down and insert the feet with casters into the slots and apply

pressure until they click into place (Fig. 1).

3. Insert the wheel axle into the rear wheel housing on the base. Insert a washer onto the axle

followed by the rear wheel and another washer. Insert the wheel retaining pin into the hole on

the end of the axle to lock into place. Push t the hub cap onto the wheel. Repeat the same

steps on the other end of the axle (Fig. 2).
