User’s manual
VNT832
4-Port Ethernet Router
Congratulations
on your purchase of this VTech product. Before using this product, please read
the Important safety information.
This user’s manual provides you with the complete installation, setup and
operation instructions.
For customer service or product information, visit our website at
businessphones.vtech.com or call 1 (888) 370-2006.
Model number: VNT832
Type: 4-Port Ethernet Router
Serial number:
Purchase date:
Place of purchase:
Both the model and serial numbers of your VTech product can be found on the
bottom of the router.
Save your sales receipt and original packaging in case it is necessary to return
your router for warranty service.
i
Important safety information
When using your equipment, basic safety precautions should always be followed to
reduce the risk of fire, electric shock and injury, including the following:
Read and understand all instructions.
Do not use this product near water such as near a bath tub, wash bowl, kitchen
sink, laundry tub or a swimming pool, or in a wet basement or shower.
Do not place this product on an unstable table, shelf, stand or other unstable
surfaces.
CAUTION: Use only the adapters included with this product. Incorrect adapter
polarity or voltage can seriously damage the product.
Power adapter: Input 100-240V AC 500mA 50/60Hz; Output: 12V DC 1000mA
The power adapters are intended to be correctly oriented in a vertical or floor mount
position. The prongs are not designed to hold the plug in place if it is plugged into a
ceiling, under-the-table or cabinet outlet.
For pluggable equipment, the socket-outlet shall be installed near the equipment
and shall be easily accessible.
Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol
cleaners. Use a damp cloth for cleaning.
Do not cut off the power adapters to replace them with other plugs, as this causes a
hazardous situation.
Do not allow anything to rest on the power cords. Do not install this product where
the cords may be walked on or crimped.
This product should be operated only from the type of power source indicated on
the marking label. If you are not sure of the type of power supply in your home,
consult your dealer or local power company.
Do not overload wall outlets or use an extension cord.
This product should not be placed in any area where proper ventilation is not
provided. Slots and openings in the back or bottom of this product are provided for
ventilation. To protect them from overheating, these openings must not be blocked
by placing the product on a soft surface such as a bed, sofa or rug. This product
should never be placed near or over a radiator or heat register.
Never push objects of any kind into this product through the slots because they may
touch dangerous voltage points or create a short circuit. Never spill liquid of any
kind on the product.
To reduce the risk of electric shock, do not disassemble this product, but take it
to an authorized service facility. Opening or removing parts of the product other
than specified access doors may expose you to dangerous voltages or other risks.
Incorrect reassembling can cause electric shock when the product is subsequently
used.
Periodically examine all components for damage.
The equipment is to be supplied from an identified USB port complying with the
requirements of Limited Power Source.
SAVE THESE INSTRUCTIONS
1.
2.
3.
4.
5.
6.
7.
8.
.
10.
11.
12.
13.
14.
15.
16.
Important safety information
Electromagnetic fields (EMF)
This VTech product complies with all standards regarding electromagnetic fields (EMF).
If handled properly and according to the instructions in this user’s manual, the product is
safe to be used based on scientific evidence available today.
ii

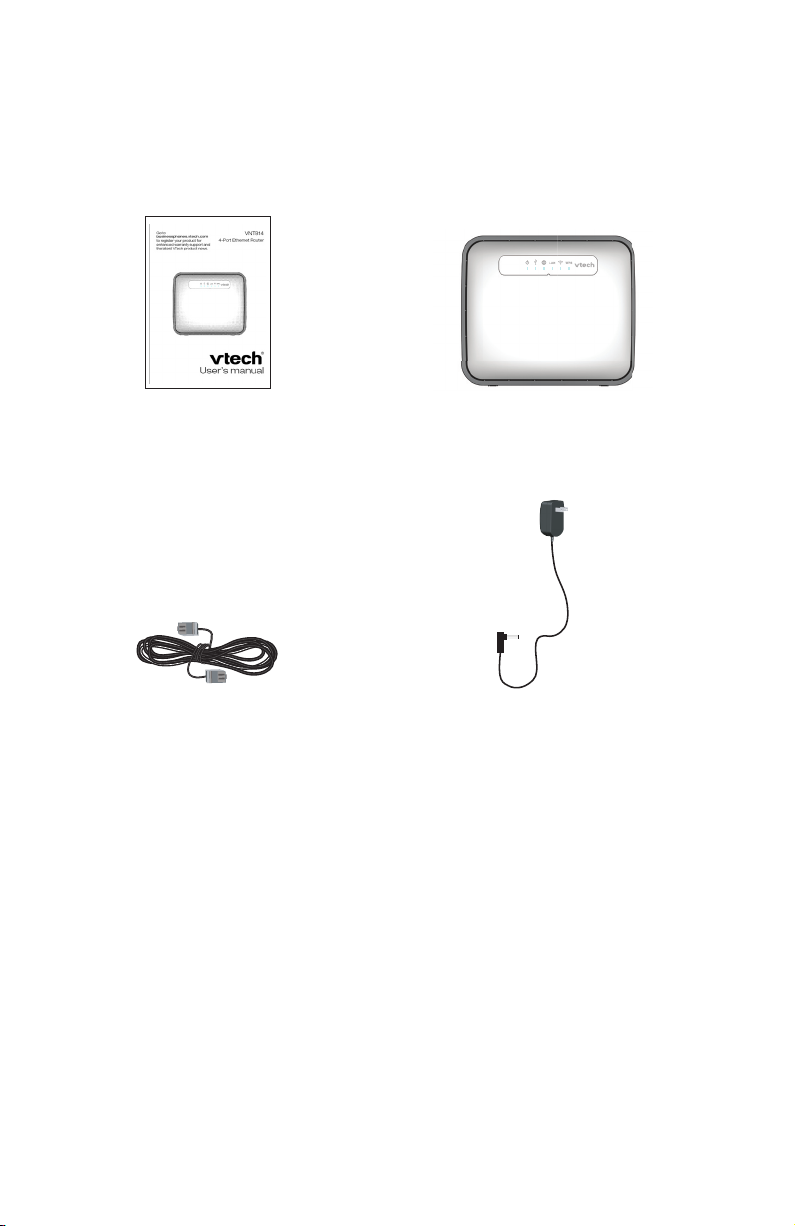

Parts checklist
Your router package contains the following items. Save your sales receipt and
original packaging in the event warranty service is necessary.
iii
Router
Power adapter
Ethernet cable
Abridged user’s
manual
iv
Table of contents
Getting started
Router overview ........................................1
Connect your system ................................3
Configure your computer network ............4
For Windows XP/2000 ...........................4
For Windows Vista/7/8 ..........................7
Configure your router
Login to the web management page ......10
Web management page overview ..........11
Appendix
Frequently asked questions ....................12
FCC part 15 ............................................13
For cETL compliance only ......................14
Limited warranty .....................................16
Technical specifications ..........................18
Index.......................................................19
1
Getting started

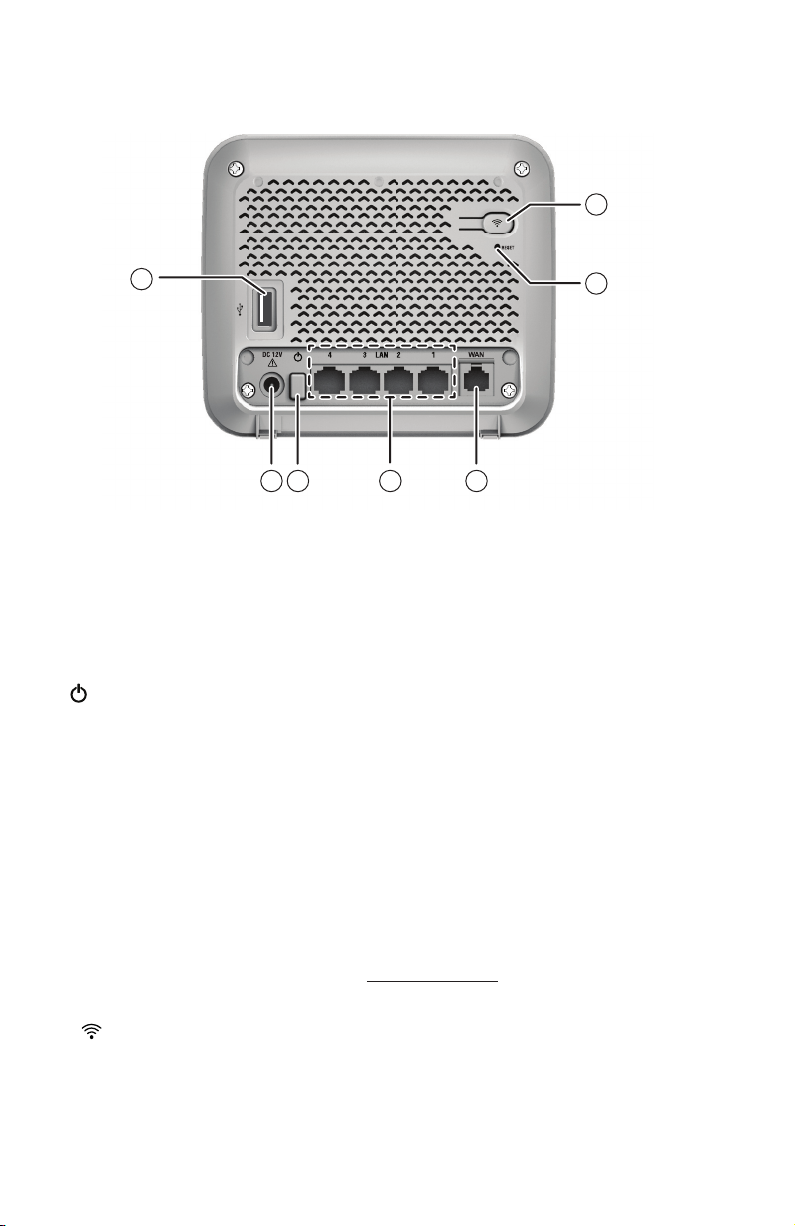

Router overview
1 – (On/Off) light
On when the router is powered on.
2 – USB light
On when there is a device connected to the USB port.
Flashes when the USB port receives data.
Off when there is not any device connected to the USB port.
3 – WAN light
On when the Internet connectivity is established as the DSL port is
connected to internet.
4 – LAN light
On when any LAN port is connected.
Flashes when any LAN port receives data.
5 – Wi-Fi light
On when the Wi-Fi is turned on.
Off when the Wi-Fi is turned off.
6 – WPS light
On when WPS is in progress.
Off when the WPS is not in progress.
•
•
•
•
•
•
•
•
•
•
•
11 12 13 14 15 16 17 18 19
123 4 56
7
8 9 10 11
12
13
2 3 4 5 6 7 8 9
20
10
2
7 – USB port
Connect to USB device for file sharing.
8 – Power jack
Connects to the power adaptor.
9 – (On/Off) button
Press to power on the router.
Press once again to power it off.
10 – LAN ports
Connect to Ethernet devices such as computers and SIP phones.
11 – WAN port
Connects to the wide area network.
12 – RESET button
Using narrow-pointed object to press and hold for five seconds to reset
the router to default settings.
13 – Wi-Fi button
Press to turn the Wi-Fi on or off.
•
•
•
•
•
•
•
•
Getting started
Router overview
11 12 13 14 15 16 17 18 19
123 4 56
7
8 9 10 11
12
13
2 3 4 5 6 7 8 9
20
10
3
Getting started
Connect your system
The VNT832 router has four LAN ports to connect with Ethernet devices such
as computers and SIP phones. Before you start setting up your system, plan it
carefully. Consider the number of Ethernet device(s) you need to connect with
before you start planning your system.
NOTES
Use only the adapter provided.
Make sure the electrical outlet is not controlled by a wall switch.
The adapter is intended to be correctly oriented in a vertical or floor mount position.
The prongs are not designed to hold the plug in place if it is plugged into a ceiling,
under-the-table or cabinet outlet.
To power on, press button at the back of the router. The light will light up.
•
•
•
Connects to
Computer
Connects to
SIP Phone
Power
on/off
button
Connects
to power
Connects to the
internet via
Cable/DSL Modem
4
In order to view or change the settings of the VNT832 router, you need to login
to the web management page of the router. Before that, connect your computer
to the LAN port of the router, and then set the computer to obtain IP address
automatically according to the steps below.
For Windows XP/2000
Click Start, then open the Control Panel.
2. Double-click Network Connections.
1.
Getting started
Configure your computer network
