Urmet domus IPerVoice 1716 Manual del sistema

DS 1716-009 LBT 8845

Mod.

1716

MONITOR AIKO

AIKO MONITOR

MONITEUR AIKO

MONITOR AIKO

Sch./Ref. 1716/3-/4

LIBRETTO INSTALLAZIONE

INSTALLATION HANDBOOK

NOTICE DE MISE EN OUVRE

MANUAL DE INSTALACIÓN

4DS1716-009

Aiko video door phones Ref. 1716/3 and /4 are designed to be used in Ipervoice systems.

COMPONENTS DESCRIPTION AND CHARACTERISTICS

716

910111213

15 8

1 2 3 4

1 2

ENGLISH

1- Display

2- Microphone

3- Indication of “mute function” active (green

led)

4- Indication of automatic door lock release

active (green led)

5- Indication of present messages (green led)

6- Indication of open door or absence active

(red led)

7- Door lock release button - Contextual button

8- Navigation buttons

9- Open main entrance button

10 - Mute ringer button (MUTE)

11 - Switchboard call button

12 - Automatic activation button

13 - Menu button

14 - Loudspeaker

15 - Button used to activate/deactivate audio -

Contextual button X

16 - Terminal pins for connection to additional

ringer and panic button

17 - RJ connectors for connection to the system

18 - Conguration dip switch (see system

manual)

Aiko video door phone is provided with an embedded device for hard of hearing.

INSTALLATION

Fix the ush mounting box at the height shown in the following gure.

Fasten the bracket to the embedding box.

1,50m

1,45m

DS1716-009

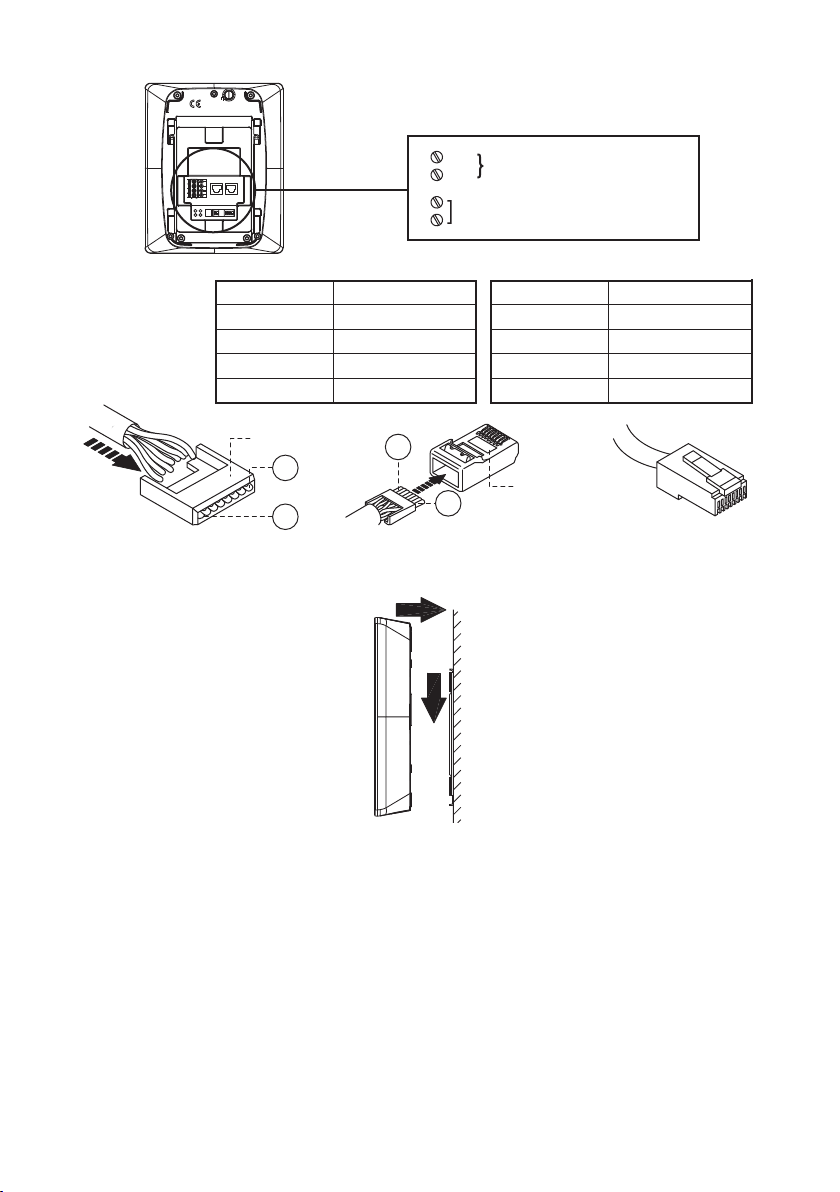

Perform connections and dip-switch settings.

Wire No. Wire colour

1White-Orange

2Orange

3White-Green

4Blue

Wire No. Wire colour

5White-Blue

6Green

7White-Brown

8Brown

Guide

1Plug

NO LAN

1 2 3 4

1 2

S-

S+ Additional ringer

PANIC Panic input

At the end of programming, fasten the video door phone to the bracket.

TECHNICAL CHARACTERISTICS

Power supply voltage:....................................................................................................................48 ÷ 54Vdc

Current consumption in standby:...................................................................................................... 1mA max

Max. current consumption: ........................................................................................................... 160mA max

Operating temperature range:.....................................................................................................-5°C ÷ +45°C

Compliant with .................................................................................................... EN61000-6-3, EN61000-6-1

10 DS1716-009

DS1716-009

DS 1716-009 LBT 8845

Area tecnica

servizio clienti +39 011.23.39.810

http://www.urmet.com

e-mail: [email protected]

Fabbricato da Urmet Electronics Limited

(azienda del gruppo Urmet) - Made in P.R.C.

Manufactured by Urmet Electronics Limited

(an Urmet group company) - Made in P.R.C.

URMET S.p.A.

10154 TORINO (ITALY)

VIA BOLOGNA 188/C

Telef. +39 011.24.00.000 (RIC. AUT.)

Fax +39 011.24.00.300 - 323
