Uplus Lighting 280 LED BSW Manual de usuario

User manual

280 LED BSW

Please read the instructions carefully before use

TABLE OF CONTENTS

1. Safety Instructions………………………………………………………………………………3

Technical Specifications…………………………………………………………………………4

Control Menu ……………………………………………………………………………………5-8

DMX Channel ……………………………………………………………………………………8-10

Dimension…………………………………………………………………………………………10

Trouble Shooting…………………………………………………………………………………11

Fixture Cleaning………………………………………………………… ………………………11

STATEMENT

The product has well capability and intact packing when leave factory. All of the user should

comply with warning item and manual, any misuse cause of the damages are not included in our

guarantee, and also can not be responsible for any malfunction & problem owing to ignore the

manual.

1.Safety Instructions

Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that

they also receive this instruction booklet.

•Unpack and check carefully there is no transportation damage before using the unit.

•Before operating, ensure that the voltage and frequency of power supply match the power

requirements of the unit.

•It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.

•The unit is for indoor use only. Use only in a dry location.

•The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent

surfaces. Be sure that no ventilation slots are blocked.

•Disconnect main power before replacement or servicing.

•Make sure there are no flammable materials close to the unit while operating as it is fire hazard.

•Use safety cable when fixes this unit. DO NOT handle the unit by taking its head only, but always

by taking its base.

•Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the temperature is higher

than this Unit surface temperature may reach up to 85℃. DO NOT touch the housing bare-hand

during its operation. Turn off the power and allow about 15 minutes for the unit to cool down before

replacing or serving.

•the event of serious operating problem, stop using the unit immediately.Never try to repair the unit

by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please

contact the nearest authorized technical assistance center. Always use the same type spare parts.

•DO NOT touch any wire during operation as high voltage might be causing electric shock.

Warning:

•To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.

•The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.

Caution:

•There are no user serviceable parts inside the unit. DO NOT open the housing or attempt any

repairs yourself. In the unlikely event your unit may require service, please contact your nearest

dealer.

Installation:

•The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly

fixed to avoid vibration and slipping while operating. And make sure that the structure to which you

are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also

always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture.

•The equipment must be fixed by professionals. And it must be fixed at a place where is out of the

touch of people.

2.Technical Specifications

280W LED BSW 3-in-1 moving head

Optics:

Light Source:280W white LED

beam angle:6°-28°

power:380W

LED color temperature: 8000K

Input voltage:AC100-240V 50-60HZ

Pan movement:540° (16bit precision scan) electronic error correction

Tilt movement:270°(16bit precision scan) electronic error correction

Color: 9 colors + Open，Split Color ,continue bi-directional rotating

Fixed patterns: 12 fixed patterns + white light

Static gobo wheel：9Gobo+Open and gobo shake , gobo continue bi-directional rotating

rotating gobo wheel: 7 gobo + open ,and gobo shake , gobo continue bi-directional rotating

Prism: 8 facet and 6-faced linear facet rotatable prisms

Frost filter for wash effect

fan cooling(fan speed up as per temperature change)

Dimming system: 0-100% linear adjustment

Display mode:2.4inch 180°Reversible color display screen

Features:

Appearance material: high temperature resistant plastic

DMX Channels:20 channels

Control: DMX 512/ master-slave/self-propelled/console reset/RDM

Dimension: 320×236×538 mm, NW:18 kg

3.Control Menu

Configuring the Starting Address

Each fixture requires a starting address from 1~512. A fixture requiring one or more channels for control

begins to read the data on the channel indicated by the starting address. For example, a fixture that uses

seven DMX channels and is addressed to start on DMX channel 100, will read data from channels: 100, 101,

102, 103, 104, 105 and 106. Choose the starting addresses for each fixture so that the channels used do not

overlap. In addition, you should note the starting address selected for future reference.

Control Panel Functions

The Control Panel shows the current state of the unit. It is used to select the operating mode, as well as the

sub-features. For a detailed layout of the control panel functions, please see the “menu map” section on the

following page.

[BACK] menu selection or return to previous menu.

[UP] press [UP] through the menu list to increase/change the value of the current function.

[DOWN] press [DOWN] through the menu list to decrease/change the value of the current function.

[RIGHT] press [RIGHT] through the menu list to increase/change the value of the current function.

[OK] confirm & quit out current function setting.

1. Sub Menu（Parameter）

Chick item of main menu, enter corresponding sub menu, shown in figure3, total 6 sub menu, includes class of

parameter and status:

ADDRESS：Set light DMX address.

WORKMOD：Set light work mode, master or slave mode when in auto run mode.

DISPLAY：Set display parameter, eg. select language.

TEST ：Used for test light, modify DMX channel data to test function ，the corresponding function of

reference channel function table.

ADVANCE：Set light running parameter.

STATUS：view light current status.

2 Operation and parameter instruction

Via following operation, enter sub menu(parameter menu) shown in figure3

In main menu, click [UP] [DOWN] [RIGHT] [OK] button into corresponding parameter menu.

3Set DMX Address

Click and select the "ADDR", can enter the page of DMX address setting, range from 1 to 512, the address code

shouldn’t is not greater than (512- channels quantity), otherwise the light will not been controlled. Following is the

operation:

Enter the page of DMX address, as shown in Figure4, click [UP] OR [DOWN] chose the address code area,click

[OK] key confirm and then click [UP] and [DOWN] again to modify value, then click ‘ENTER’ to confirm and save

DMX address code.

4 Set Light work mode

Enter the page of ‘WORK MOD’ as shown in figure5 and modify setting. Can set light work mode, control lamp

and DMX channel mode..

Light includes 3 work mode: DMX MODE, AUTO RUN and SOUND MODE, Parameter definition as following:

DMX Mode：Under this mode, the light receive data from the DMX controller and move.

AUTO RUN：Under this mode, light will run with inside code(data), ignore data from DMX controller.

SOUND Ctrl：Under this mode, light ignore data from DMX controller., When there is a strong sound in stage,

the light will run a scene, otherwise it will keep the last scene.

M/S Choose：’M/S Choose’ is available when light just in ‘AUTO RUN’ or ‘SOUND Ctrl’ mode. If this item is

set as ‘OFF’, the light don’t send data to other light via DMX Cable. When ‘ON’, the data will send to other

slave light immediately.

5 Set display

Light support 2 language, rotation display，Enter page as shown in figure 6 to set parameter following:

Language：Select display as simplified Chinese or English.

Screen Saver ：when panel is idle(these is no operation in 10 second), displayer will enter saver status.

When set as ‘mode 1’，saver status is close display, as ‘mode 2’ saver status will display DMX address

code(DMX MODE) or display LOGO(AUTO RUN or SOUND CTRL). As ‘OFF’, keep light up displayer and

show main menu。

Screen Rotation：rotate displayer.

Touch enable ：Disable or enable touch function, when disable, use encoder to operate light and set

parameter.

Touch adjust：adjust touch function, normally, not enter this item.

6 Test light

Enter the page as shown in figure 7, Light will into test mode, in this mode, the light does not receive the data for

DMX controller.:

PAN: range for 0 to 255;

TILT: range for 0 to 255;

FOCUS: range for 0 to 255;

COLOR: range for 0 to 255;

GOBO: range for 0 to 255;

PRISM: range for 0 to 255;

FROST: range for 0 to 255;；

STROBE: range for 0 to 255;。

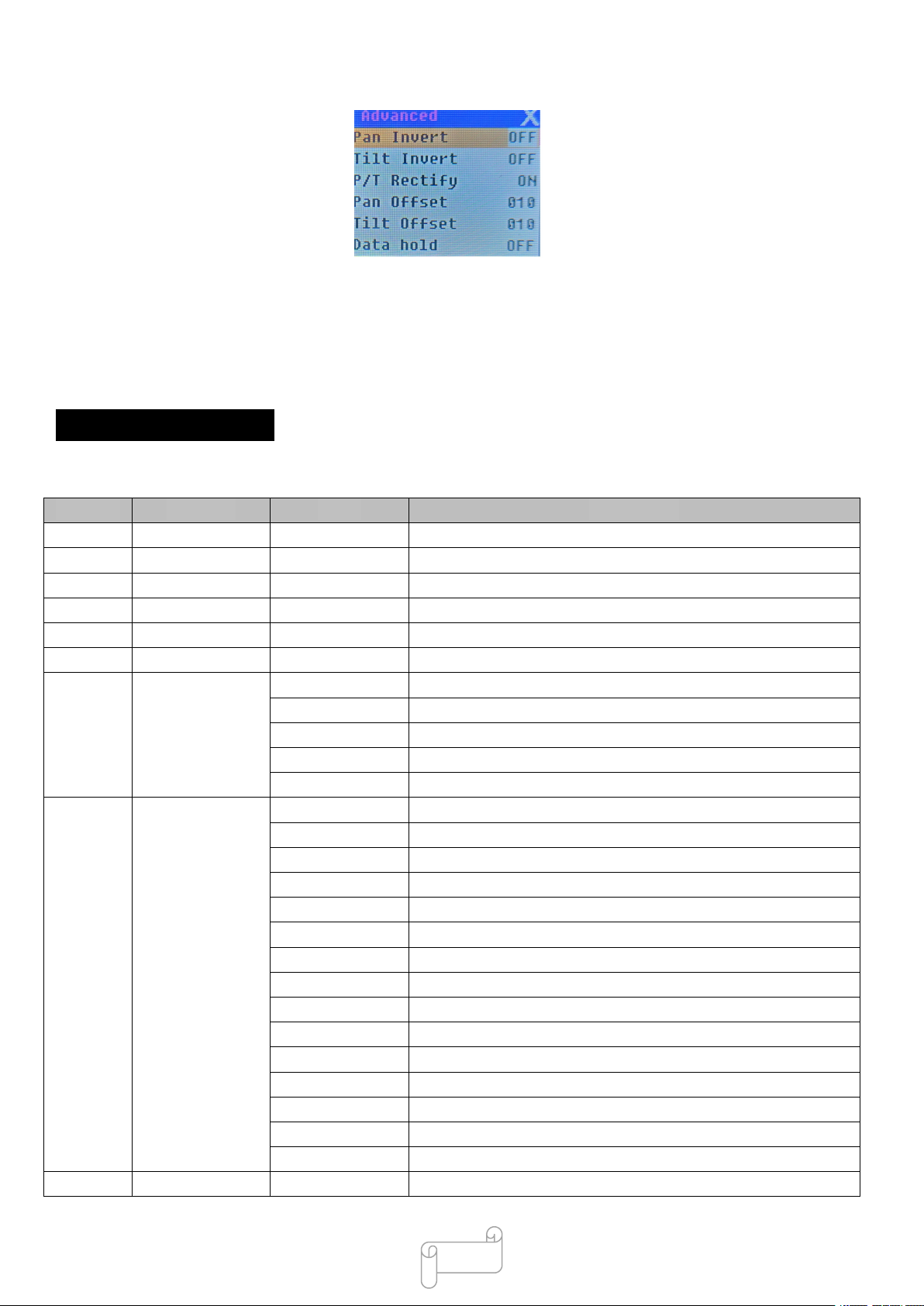

7 Set light run parameter

Enter the page as shown in fugure 8 , set the parameter of light:

Pan Invert: Reverse PAN move.

Tilt Invert: Reverse TILT mover.

Rectify enable：set as ‘OFF’, PAN or TILT will disable position rectify function. As ‘ON’, when PAN or TILT lose

steps, light will rectify auto.

Pan Offset: Set PAN original position.

Tilt Offset: Set TILT original position.

Lamp up when: Select lamp on mode, includes 3 mode: power on, after reset done and manual；

Factory setting: restore all parameter to factory setting.

8 View status

Enter the page as shown in figure 3 ,

View light current status, version；

DMXClr: Click to clear all DMX data to ‘0’.

SysRst：Click to reset light.

4.DMX Channels

DMX channel´s functions and values (20DMX channels)

Channel

Function

Value

Description

CH1

Pan

0-255

0-540 degree

CH2

Pan Fine

0-255

0-2 degree

CH3

Tilt

0-255

0-270 degree

CH4

Tilt Fine

0-255

0-1 degree

CH5

Pan/Tilt speed

0-255

From fast to slow

CH6

Dimmer

0-255

Dimmer 0-100%

CH7

Strobe

0-3

No function

4-127

Strobe at linearly variable frequency from slow to fast

128-191

Pulsation at linearly variable speed

192-251

Random strobe

252-255

No function

CH8

Color

0-127

Open/White

128-134

white

135-140

Color 1

141-145

Color 2

146-150

Color 3

151-155

Color 4

156-160

Color 5

161-165

Color 6

166-170

Color 7

171-175

Color 8

176-180

Color 9

181-216

Color auto changing from fast to slow

217-220

stop

221-255

Forwards rainbow effect from fast to slow

201-255

Backwards rainbow effect from slow to fast

CH9

Color fine

0-255

CH10

Fix Gobo

0-9

Open

10-19

Gobo 1

20-29

Gobo 2

30-39

Gobo 3

40-49

Gobo 4

50-59

Gobo 5

60-69

Gobo 6

70-79

Gobo 7

80-89

Gobo8

90-99

Gobo 9

100-109

Gobo 1 shake from slow to fast

110-119

Gobo 2 shake from slow to fast

120-129

Gobo 3 shake from slow to fast

130-139

Gobo 4 shake from slow to fast

140-149

Gobo 5 shake from slow to fast

150-159

Gobo 6 shake from slow to fast

160-169

Gobo 7 shake from slow to fast

170-179

Gobo 8 shake from slow to fast

180-189

Gobo 9 shake from slow to fast

190-221

forwards gobo rotation from slow to fast

222-223

stop

224-255

Backwards gobo rotation from slow to fast

CH11

Rot Gobo

0-9

Open

10-19

Gobo 1

20-29

Gobo 2

30-39

Gobo 3

40-49

Gobo 4

50-59

Gobo 5

60-69

Gobo 6

70-79

Gobo 7

80-89

Gobo 1 shake from slow to fast

90-99

Gobo 2 shake from slow to fast

100-109

Gobo 3 shake from slow to fast

110-119

Gobo 4 shake from slow to fast

120-129

Gobo 5 shake from slow to fast

130-139

Gobo 6 shake from slow to fast

140-149

Gobo 7 shake from slow to fast

150-200

Forwards gobo rotation from slow to fast

201-204

STOP

205-255

Backwards gobo rotation from slow to fast

CH12

Gobo Rot

0-127

Rotation from 0-400degree

128-190

Forwards gobo rotation from fast to slow

191-192

Stop

193-255

Backwards gobo rotation from slow to fast

CH13

Gobo rot fine

0-255

CH14

Prism

0-127

No function

CH14

prism

128-187

Prism 1

188-195

Prism 2

CH15

Prism rot

0-127

Rotation from 0-400 degree

128-187

Forwards rotation from fast to slow

188-195

Stop

196-255

Backwards rotation from slow to fast

CH16

Frost

0-127

No function

128-255

Frost

CH17

Zoom

0-255

CH18

Focus

0-255

CH19

Focus fine

0-255

CH20

0-49

No function

Auto

50-127

Auto

Reset

128-255

Reset after 6 second

5.Dimension

Tabla de contenidos

Otros manuales de Equipo de iluminación de Uplus Lighting

Uplus Lighting

Uplus Lighting 400 BLINDER Manual de usuario

Uplus Lighting

Uplus Lighting 750 BSWF Manual de usuario

Uplus Lighting

Uplus Lighting LED PROFILE FIX Manual de usuario

Uplus Lighting

Uplus Lighting 200 LED BSW Manual de usuario

Uplus Lighting

Uplus Lighting COB400 ZOOM Manual de usuario

Uplus Lighting

Uplus Lighting 300 MZ-SPOT PR Manual de usuario

Uplus Lighting

Uplus Lighting IP MATRIX 5 Manual de usuario

Uplus Lighting

Uplus Lighting 250 LED BEAM Manual de usuario

Uplus Lighting

Uplus Lighting BSW 350 Manual de usuario

Uplus Lighting

Uplus Lighting W1925 Manual de usuario

Uplus Lighting

Uplus Lighting 400 IP BLINDER Manual de usuario

Uplus Lighting

Uplus Lighting BR360 Manual de usuario

Uplus Lighting

Uplus Lighting 37X15ZWASH Manual de usuario

Uplus Lighting

Uplus Lighting PF350 Manual de usuario

Uplus Lighting

Uplus Lighting MIX560 Manual de usuario

Uplus Lighting

Uplus Lighting RETRO 360 Manual de usuario

Uplus Lighting

Uplus Lighting 20 MINI SPOT Manual de usuario

Uplus Lighting

Uplus Lighting 19X15Z WASH Manual de usuario

Uplus Lighting

Uplus Lighting 200 BLINDER Manual de usuario

Uplus Lighting

Uplus Lighting W3725 Manual de usuario

Uplus Lighting

Uplus Lighting DUAD540 STROBE Manual de usuario

Uplus Lighting

Uplus Lighting 460LED BSW Manual de usuario

Uplus Lighting

Uplus Lighting BL6 Manual de usuario

Uplus Lighting

Uplus Lighting 200 MZ-SPOT PR Manual de usuario

Manuales populares de Equipo de iluminación de otras marcas

Brizo

Brizo 8SP-MU-4 Manual de usuario

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manual de usuario

IKEA

IKEA BJÖRKSPIREA Manual de usuario

Laserworld

Laserworld Evolution Series ES-400RGB Manual de usuario

Alien

Alien RG STAR Manual de usuario

EuroLite

EuroLite LED B-40 Manual de usuario

Qazqa

Qazqa Suplux SL 3 Black 103062 Manual de usuario

Commercial Electric

Commercial Electric 54568141 Manual de usuario

CREE LIGHTING

CREE LIGHTING 304 Series Manual de usuario

Goobay

Goobay 49867 Manual de usuario

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manual de usuario

Alkalite

Alkalite Krypton KT-81 Manual de usuario

Clas Ohlson

Clas Ohlson GU10 Manual de usuario

DTS

DTS DELTA 10 F Manual de usuario

ring

ring Solar Steplight Manual de usuario

One Stop Gardens

One Stop Gardens 57696 Instrucciones de montaje

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manual de usuario

SIREM

SIREM Swimeo A2 Manual de usuario
