Congratulations
You’ve purchased a unique synthesis
of hardware and software engineer-
ing, the Complete Control MX-6000i.
The twin goals of the design team
were to improve the elegance and
usability of touch screens through the
physical design while providing a
new standard in brightness, clarity
and animation for the touch screen
itself.
Easy peration
By assigning the important home theater operational buttons to the
natural resting place of the end users thumbs, the MX-6000i
achieves a new standard in use and comfort.
Automatic Backlighting
The integral motion sensor detects any movement of the touch
screen and automatically backlights the screen. You do not have to
press any button to display the screen. Any movement of the MX-
6000i renews the backlighting. To adjust the backlighting, see page
11.
Programming the MX-6000i
To fully automate an audio/video system and integrate two way
automation of servers etc. the programmer must have a detailed
knowledge of each component, LAN configuration, WiFi optimiza-
tion and how the system is connected and operated. Only a trained
and certified professional audio/video installer can install an MX-
6000i automation system in a timely and efficient manner.
Integrated Stylus
Stowed away in the top right hand corner storage slot, is a custom
made stylus for your convenience.
Page 5
MX-6000iTW WAY TUCH SCREEN
Connecting the Battery Pack
Unlock the rear cover by pressing down on the two locking tabs
and sliding the battery cover forward.
Remove the cover. For shipment from the factory, the battery is left
out of the MX-6000i. Place the battery into the battery compart-
ment, making sure you align the contacts on the battery to the con-
tacts on the MX-6000i. The battery will snap into place when
aligned properly.
Replace the cover and snap it into place.
Using the Charging Base
Plug the 6V DC adapter into a power outlet and into the back of
the charging base.
Gently place the MX-6000i
into the cradle of the charging
base. It automatically aligns
itself to the contacts on the
charging base.
The Status light should imme-
diately light. Red indicates
that it is charging. Blue shows
that it is fully charged. There is
no harm in leaving the MX-
6000i on its charging base
whenever it is not in use.
Two Way via WiFi
To use the MX-6000i with any two way companion product, the
MX-6000i must be configured by your installer to be part of a LAN
(local area network) via a WiFi b/g access point or router. This is
not user configurable. If you have any questions, consult with your
custom installer.
Red indicates charging, Blue that the remote is fully
charged.
Page 6
MX-6000iTW WAY TUCH SCREEN
ptional RF “No Rules” peration
In combination with an MSC-400 Master System Controller, or an
RF Base Station, the MX-6000i can control your system without
being in line-of-sight of the equipment.
The MSC-400 enhances the capabilities of the MX-6000i by storing
and issuing Smart Macros to your main system components. It is
triggered by RF Smart Macro commands via RF (radio frequency). In
addition, your MX-6000i can control components in secondary
rooms and systems via MRF-350i or MRF-260i RF base stations.
4. Self-adhesive “Flashers” affix to the
Infrared sensors on the front panels of
your components. Uniquely, all
Complete Control base stations can also
connect to components with rear panel
IR Inputs via adjustable IR Line
Outputs. The MSC-400 offers RS-232
control via rear panel connections as
well.
3. The MSC-400 can control IR, RS232 and Relay con-
trolled devices.
1. The MX-6000i sends radio
waves in every direction, so
you don’t have to point the
remote anymore!
2. The RFX-250i RF Sensor can be
freely positioned for optimal recep-
tion.
Page 7
MX-6000iTW WAY TUCH SCREEN
perating Your System

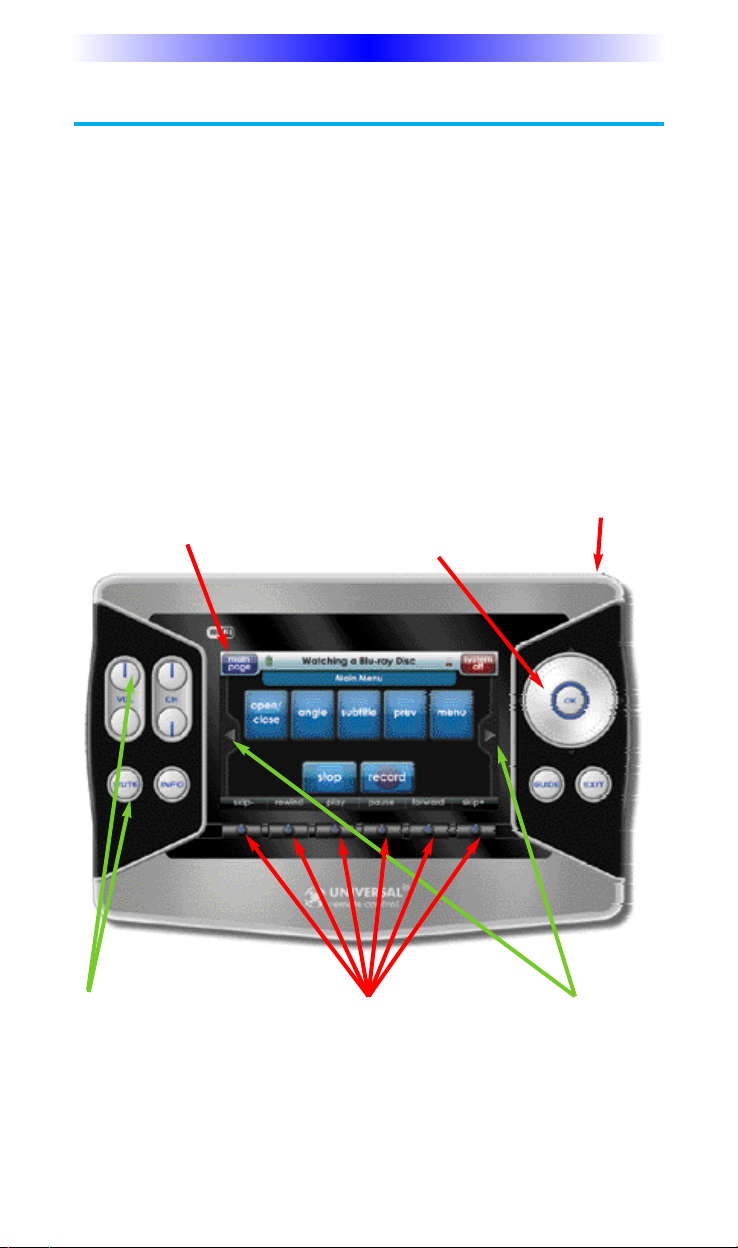

The MX-6000i’s main pages display the activities and devices in
your system. Press the main page button to see what your choices
are. Large systems may have more than one page. Press either of
the Page buttons if you don’t see all your devices.
Gently press any screen button with your finger to select an activity
or a device. The screen will change to a display of the buttons
you
need for that activity/device. The Page buttons may reveal
additional
buttons for some devices and activities.
When you would like to control another device, press the main
page button and select a new device from the main page.
The Volume and
Mute buttons are
always available
regardless of what
screen is displayed.
The screen buttons are
labeled dynamically and
make commonly used func-
tions easy to find by feel.
The Page buttons
display additional
pages of controls.
The combination Scroll Wheel and 4
way cursor buttons enable you to both
scroll lists of artists, albums or songs
from your Music Server or to navigate
on screen guides and menus with ease.
Stylus
storage
slot
The main page but-
ton in the upper left
always displays the
main menu pages.
Page 8
MX-6000iTW WAY TUCH SCREEN
Using Two Way Personal Server Features
Step 1 – Insert an iPod into the PSX-1. The
Universal Remote Control screen appears on the
iPod. This means it’s connected to the dock and
ready for use with the MX-6000i remote control.
Step 2 – Select the dock you want to listen to
from the Main page of your MX-6000i.
Step 3 – If the system has just been turned on, you may see the mes-
sage, “Connecting to iPod
Dock”. Once the MX-6000i has
connected to the iPod Dock, the
iPod menu screen appears. If the
iPod is already playing, the
“Now playing screen” appears.
Step 4 – When you browse for
new content, operate the MX-6000i as you would the iPod. Press the
Menu button, then place your thumb on the scroll wheel and rotate
to navigate, then press the “OK” button to make your selection. The
iPod Now Playing Screen appears after a selection is made.
Rotate the Scroll wheel
to navigate.
Press the Menu button
to display iPod menus.
Press the K button
to select content.
Page 9
MX-6000iTW WAY TUCH SCREEN
Shortcuts:
The “Shortcuts” button makes navi-
gating your iPod easier than ever
before. Touch any button to jump
directly to that menu. Example:
Touch the “Artists” button to jump
directly to the Artists menu.
Shuffle:
The “Shuffle” button opens an
expanded menu of shuffle
options. Touch any of the choices
to enjoy your music in a
random order.
Your unique personal server features are accessed from the left side
of the screen of your MX-6000i. Simply tap the feature you want:
Shortcuts to finding playlists,
albums, artists, etc. without
using the Menu button.
Shuffle exactly what you
want (this album, this artist,
this genre, etc.)
More from this artist, this
album, this genre, even this
composer...
Jukebox lets you build and
manage your own playlist
without accessing your PC.
Page 10
MX-6000iTW WAY TUCH SCREEN
Using the Alpha Search Feature:
The “search” button appears in
the upper right whenever you are
looking at a Menu or ukebox
screen. Once you click on Search,
an alphabetical keyboard appears.
Simply type in what you’d like to
search for and touch “Go”.
The 1, 2, 3 icon opens the numeric keypad screen.
The qwerty keyboard icon toggles between a qwerty style key-
board and a simple a,b,c keyboard.
The “Go Back” icon takes you back to the menu screen.
Play More From:
The ”Play More From” button
opens up a menu of choices to
add to your current selection. By
touching the “More from this
Artist” button, all the additional
songs, from the current Artist, will
be added to the song queue.
ukebox:
The “ ukebox” button opens a
menu of choices allowing you to
create a jukebox playlist in real
time. Touch the “add song to
ukebox” icon or “add album to
jukebox” to add the currently
playing song or album to the
jukebox. To play the jukebox, touch the “play jukebox” icon. To edit
the jukebox, touch the “view jukebox” icon. Note: the ukebox
playlist is cleared when the iPod is replaced or in the event of a
power failure.
Edit ukebox:
Songs can be moved up,
down or deleted from the jukebox
list by using the control keys on
the right of the “view jukebox”
screen. To exit from the “View
ukebox” screen, touch either the”
Go Back” button or the “Now
Playing” icon.
