TRC-780 OWNER’SMANUAL

Congratulations!

You’ve purchased a unique synthesis of hardware and software engi-

neering, the Total Control TRC-780. The TRC-780 achieves a magnifi-

cent combination of power and flexibility by simplifying and

automating the operation of even the most complex systems.

The MRX-10 controller is required to make the TRC-780 work. The

combination of the TRC-780 and MRX-10 create a robust and power-

ful system.

Backlit Color OLED Screen Buttons

When any button is pressed, the color OLED screen as well as the

remote buttons light up. Once the screen is lit, each of the six buttons

on either side of the screen will have a label. These button labels

change based on what you are watching or listening to. Thus, if you

have selected Watch TV, you will see a list of buttons that are useful to

that activity. If you are listening to your iPod through a PSX-2, you will

be able to browse the iPod content.

RF “No Rules” Operation

The TRC-780 communicates directly to the MRX-10 via 2.4 GHz

bidirectional RF. This gives the TRC-780 the ability to control your

system without being in direct line of sight of the equipment.

Your custom installer may have installed a ZR-1 Repeater to improve

communication between the TRC-780 remote controls and the

MRX-10 in your system.

Replacing the Batteries

Unlock the battery cover by pushing up on the spring lock at the

bottom of the cover. Remove the cover.

Observe the + and – polarity indi-

cators inside the battery compart-

ment and the batteries. Place the

four AA batteries into their posi-

tions in the battery compartment.

Now, replace the battery cover and

snap it into place.

Page 2

TRC-780 OWNER’SMANUAL

Displaying the Settings Screen

You can adjust settings of the TRC-780 whenever

you like by pressing and holding the MAIN + ENT

button for three seconds. When you do the screen

will change to the Settings Menu. If you do not press

any button on the Settings screen, the TRC-780 will

beep signifying a time-out after 30 seconds and

return to the previous setting or main screen.

There are two pages of Settings screens. To access

the other page, press either of the page buttons.

To select a setting, press the corresponding button.

To go back a step or to get out of the settings screen,

press either the MAIN button or the EXIT button on

the TRC-780.

Color Screen

Color screen settings give two configurable options.

1. Brightness: Adjust the screen brightness by

pressing the screen buttons on the left and right

side of the slider bar. Once the brightness is

adjusted, press the Save button.

Pressing the Cancel button will revert to the

remotes last saved brightness setting.

Note: The higher the brightness, the faster the

batteries will deplete.

2. Automatic Turn Off: Adjust the duration the

OLED screen will stay illuminated after a button

is pressed. Pressing the left and right screen

buttons, next to the slider bar, will change how

long the OLED screen will stay on.

Pressing the Less side will decrease the time in

TRC-780 OWNER’SMANUAL

steps down to a minimum time of 5 seconds.

Pressing the More side will increase the time in

steps up to a maximum of 60 seconds. Once the

setting is adjusted, press the Save button. Pressing

the Cancel button will revert the remote’s Automatic

Turn Off setting to the last saved setting.

Note: The longer the OLED screen stays on, the faster

the batteries will deplete.

Button Light

The Button Light settings page provides two

configurable options for how the TRC-780’s

hard buttons should behave.

1. Automatic ON: Adjusting this setting will

control when the hard button backlight

turns on.

a. Automatic Light Yes: Every time a

button is pressed the button back light will automati-

cally turn On.

b. Automatic Light No: The only way to turn on the hard

button back-light is to press the dedicated Lights button

located on the right side of the remote control.

Once all changes have been made, press the Save button.

Pressing the Cancel button will revert to the remotes last saved

setting.

Note: The more often the back light turns On, the faster the

batteries will deplete.

2. Automatic Turn Off: You can adjust the amount of time the back-

light will remain after a button is pressed.

Press the left and right screen buttons next

to the slider bar to change the duration.

Pressing the Less side will decrease the time

in steps down to a minimum of 5seconds.

Pressing the More side will increase the time

in steps up to a maximum of 60 seconds.

Once the setting has been adjusted, simply

press the Save button. Pressing the Cancel button will revert to

the remote’s last saved Automatic Turn off setting.

Note: The longer the backlight stays on, the faster the batteries

will deplete.

Page 3

Page 4

System

The System Settings page provides two options.

1. Power Remaining: This option shows you

how much battery life is remaining. You

can adjust when the low battery warning

screen will appear by pressing the screen

buttons to the left and right of the slider bar.

The battery indicator will blink when the

batteries are low and need to be replaced.

Once the setting is adjusted, press

the Save button. Pressing the Cancel button will revert to the

remotes last saved Power Remaining setting.

2. System Info: The System Info screen dis-

plays data about the TRC-780’s memory

usage, and operating system version.

Pressing the Next screen button will take

you to the Operating System information,

and pressing the Prev button will take you

back to the System Memory information.

Button Beep

Use the screen buttons to the left and right of

the slider bar to adjust the button sound.

Once the setting is adjusted, press the Save

button. Pressing the Cancel button will revert

to the remotes last saved button beep setting.

TRC-780 OWNER’SMANUAL

Page 5

TRC-780 OWNER’SMANUAL

Date/Time

The Date and Time are automatically sent from the

MRX-10 to the TRC-780. If you would like to

adjust the date or time you can do so on the

remote control. Note: Any Date or Time adjust-

ment made on the TRC-780 will automatically go

out to all the other remotes and keypads in the

system.

1. Change Date: Tap the button beside Day, Month,

or Year, then use the numeric keypad to enter

in the new date information. When you are

finished, press the Save button.

2. Change Time: Tap the button beside Hour of

Minutes, then use the numeric keypad to enter

in a new time. Set AM/PM by toggling the

button. When you are finished, press the Save

button.

3. Display Date/Time: The TRC-780 can display

either the Date or Time, but not both.

Select which one you would like to display.

Press the screen button next to Date or Time.

Once you are finished, press the Save button.

Erasing and Resetting

WARNING! Only use this button when instructed by Technical

Support. It resets the memory of the TRC-780 to

the factory condition. All your programming

will be lost!

To set the remote to its factory default setting,

press "Erase." A secondary screen opens and

requires your confirmation.

TRC-780 OWNER’SMANUAL

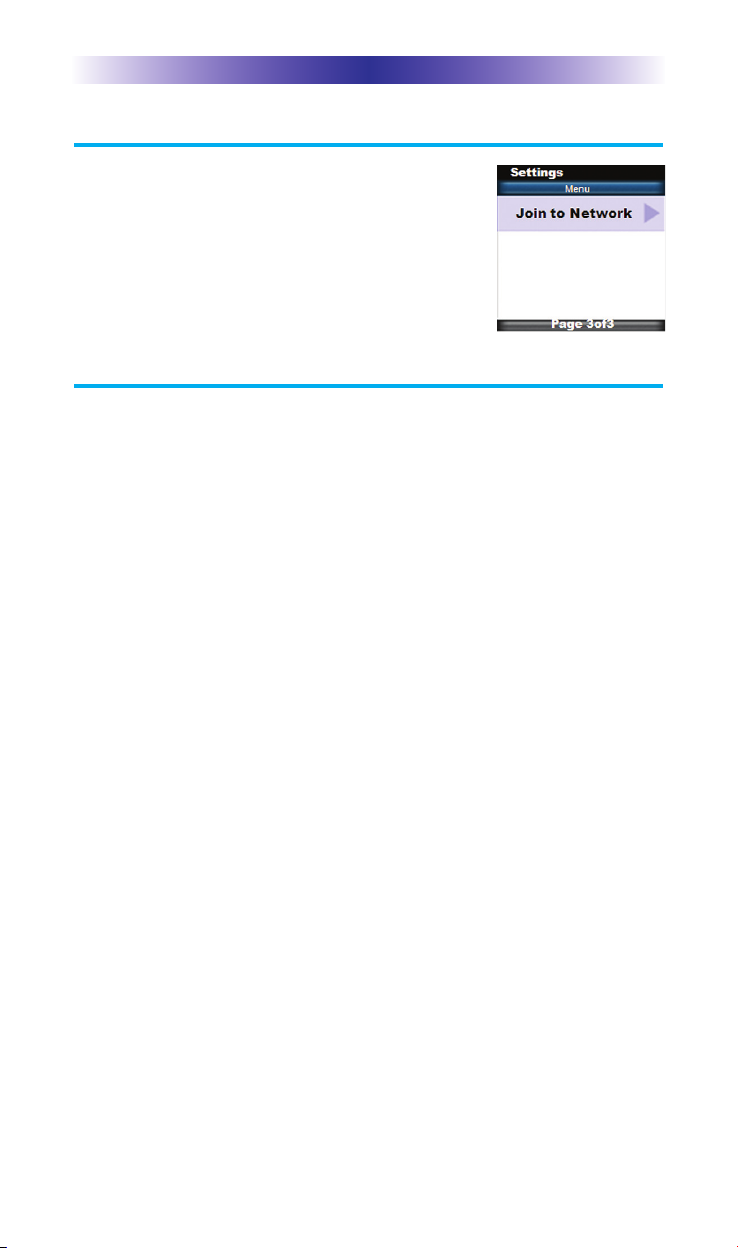

Join to Network

This feature is only used by the installer at the

remote's initial setup. You will only need to

access this screen if directed by your installer or

technical support. Press the main button to exit

the Join to Network screen. If you do not press a

button, it will timeout after 5 minutes.

Specifications

Microprocessor: ARM7TDMI

RAM: 8Mbit SRAM

FLASH: 32Mbit Nor FLASH

Display: 1.46” PMOLED (128 x 128)

RF Range (radio frequency): 50 to 100 feet, depending upon the

environment

RF Frequency: 2.45GHz (Two-way RF)

Provides: 2-Way communication with MRX-10 (or higher) network

system controller.

Weight: 8.5 oz. (with battery)

Size: 8.7”H x 2.2”W x 1.3”D

Battery Life: 18 Hours of continuous button pressing with back-

lighting and LCD ON (months of use for most users).

Users should expect some variation based on the

brand of alkaline batteries used.

Note: In actual use, the TRC-780 protects itself if it gets stuck

between couch cushions (with a button being continuously

pressed). After 30 seconds the TRC-780 will turn off, and will

not turn on again until the button is released.

Page 6

TRC-780 OWNER’SMANUAL

Page 7

Limited Warranty Statement

1. Limited Warranty and Disclaimers

Universal Remote Control, Inc. (“URC”) warrants that the URC equipment

shall be free from defects in material and workmanship under normal usage

for one (1) year from purchase when such is purchased from URC. This

limited warranty is valid only in the United States of America. URC warrants

that the software will substantially conform in any material respect to its

functional speciﬁcations at the time of delivery. URC SHALL NOT BE LIABLE

FOR OPERATIONAL, TECHNICAL OR EDITORIAL ERRORS AND/OR

OMISSIONS MADE IN THE URC DOCUMENTATION. URC DOES NOT

WARRANT THAT THE URC SOFTWARE IS BUG-FREE OR ERROR FREE

OR THAT THERE ARE NO ERRORS/BUGS IN THE URC SOFTWARE.

URC warrants that at the time of purchase the URC equipment and the URC

software complied with all applicable regulations and policies of the Federal

Communications Commissions (“FCC”) regarding electromagnetic

interference caused by electronic/computing devices and to the extent that the

URC equipment and/or the URC software fails to so comply, URC shall, at its

own expense, take all reasonable measures to promptly cause such to

comply.

URC equipment purchases from other than an authorized URC dealer or

distributor are without warranty.

THIS LIMITED WARRANT DOES NOT COVER TECHNICAL ASSISTANCE

FOR HARDWARE OR SOFTWARE USAGE EXCEPT AS EXPRESSLY

PROVIDED FOR HEREIN, THE EQUIPMENT, SOFTWARE AND

DOCUMENTATION OF URC ARE SUPPLIED “AS IS” WITHOUT ANY

WARRANTY, EXPRESS, STATUTORY OR IMPLIED, OF ANY KIND. TO

THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, URC

EXPRESSLY DISCLAIMS ALL WARRANTIES, EXPRESS, STATUTORY OR

IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. URC

DOES NOT WARRANT, GUARANTEE, OR MAKE ANY

REPRESENTATIONS REGARDING THE USE OF, OR THE RESULTS OF THE

USE OF, THE EQUIPMENT, SOFTWARE OR DOCUMENTATION IN

TERMS OF CORRECTNESS, ACCURACY, RELIABILITY OR OTHERWISE.

EXCEPT AS EXPRESSLY PROVIDED FOR HEREIN, TECHNICAL SERVICES

ARE SUPPLIED “AS IS”, WITHOUT ANY WARRANTY, EXPRESS,

Otros manuales para total control TRC-780

Tabla de contenidos

Otros manuales de Mando a distancia de Universal Remote Control

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8500 Manual de usuario

Universal Remote Control

Universal Remote Control COMPLETE CONTROL MXW-920 Manual de usuario

Universal Remote Control

Universal Remote Control UR4-EXP-CHD1 Manual de usuario

Universal Remote Control

Universal Remote Control PHAZR-5 UR5L-9000L-IP Manual de usuario

Universal Remote Control

Universal Remote Control INSIGHT M2067BX3 Manual de usuario

Universal Remote Control

Universal Remote Control UR2-DTA Manual de usuario

Universal Remote Control

Universal Remote Control UR2-DTA Manual de usuario

Universal Remote Control

Universal Remote Control UR5-8400A Manual de usuario

Universal Remote Control

Universal Remote Control UR4U-MDVR-CHD2 - MOTOROLA AND SCIENTIFIC ATLANTA... Manual de usuario

Universal Remote Control

Universal Remote Control ONE FOR ALL 9800CMN Manual de usuario

Universal Remote Control

Universal Remote Control Easy Clicker UR2-211 Manual de usuario

Universal Remote Control

Universal Remote Control UR4U-MDVR2 Manual de usuario

Universal Remote Control

Universal Remote Control UR2-DTA Manual de usuario

Universal Remote Control

Universal Remote Control COMPLETE CONTROL MX-450 Manual de usuario

Universal Remote Control

Universal Remote Control COMPLETE CONTROL MXW-920 Manual de usuario

Universal Remote Control

Universal Remote Control UR5U-8720L Manual de usuario

Universal Remote Control

Universal Remote Control RF30 MASTERCONTROL Manual de usuario

Universal Remote Control

Universal Remote Control Total Control Manual de usuario

Universal Remote Control

Universal Remote Control Complete Control MX-880 Manual de usuario

Universal Remote Control

Universal Remote Control UR4-P360SI Manual de usuario

Universal Remote Control

Universal Remote Control Complete Control MX-980 Manual del propietario

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8500 Manual de usuario

Universal Remote Control

Universal Remote Control UR4U-MDVR-CHD2 - SPECS SHEET Manual de usuario

Universal Remote Control

Universal Remote Control Easy Clicker UR3-SR3 Manual de usuario

Manuales populares de Mando a distancia de otras marcas

Panasonic

Panasonic EUR7622KB0 Manual de usuario

Bang & Olufsen

Bang & Olufsen Beo4 Manual de usuario

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manual de usuario

Multiplex

Multiplex PROFI TX 9 Manual de usuario

One Remote

One Remote RMB4 Manual de usuario

FUTABA

FUTABA 9ZAP - PART2 Manual de usuario

HR Matic

HR Matic HR MULTI 3 Manual de usuario

Yamaha

Yamaha ACC-GNRST-30-20 Manual de usuario

EisSound

EisSound KBSOUND Manual de usuario

Marantz

Marantz RC101 Manual de usuario

Conrad

Conrad FS20 TC6 Manual de usuario

Anritsu

Anritsu MP1777A Manual de usuario

Niles

Niles WVC100 Guía de solución de problemas

RCA

RCA RCU1300 Manual de usuario

Bang & Olufsen

Bang & Olufsen BEO6 Manual de usuario

GE 94901 Manual de usuario

Onbon

Onbon YQ1-75 Manual de usuario

FUTABA

FUTABA R7108SB Instrucciones de instalación

Universal Remote Control total control TRC-780 Manual de usuario

Manuales populares de Mando a distancia de otras marcas
