Universal Remote Control MX-1200 Manual de usuario

MX-1200 Color Touch Screen

Owner’s Manual

MX-1200 COLOR TOUCH SCREEN

500 Mamaroneck Avenue, Harrison, NY 10528

Phone: (914) 835-4484 Fax: (914) 835-4532

This remote control was Custom Programmed for you by:

For questions about your Custom Programming call:

Custom Programming of a complex home theater and/or a multi-room

system is one of the most challenging tasks within an audio/video

installation. It involves an intimate knowledge of how the components

interact and exact details on the proper sequences of control.

Only a Complete Control dealer has the requisite experience and training

to quickly and effectively customize a remote control for true automated

operation.

Congratulations on your choice!

The information in this manual is copyright protected. No part of this manual may be

copied or reproduced in any form without prior written consent from Universal

Remote Control, Inc.

UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPERATIONAL,

TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN THIS MANUAL.

The information in this manual may be subject to change without prior notice.

Complete Control is a registered trademark of Universal Remote Control, Inc.

All other brand or product names are trademarks or registered trademarks of their

respective companies or organizations.

MX-1200 COLOR TOUCH SCREEN

Congratulations! 1

Using the MX-1200 2

Connecting the Battery Pack 3

Using the Charging Base 3

Displaying the Settings Screen 4

Sleep Settings 5

System 5

Brightness 5

Power 5

Button Light 6

Date and Time 6

Calibration 6

Pickup Settings 6

Sound 7

Factory Default 7

Exit 7

Maintaining Your MX-1200 8

Specifications 8

USA Limited Warranty Statement 9

Federal Communication Commission

Interference Statement 11

Page 1

MX-1200 COLOR TOUCH SCREEN

Congratulations

Thank you for purchasing the

Complete Control MX-1200 touch

screen universal remote control.

This remote can wirelessly control

your devices throughout the home

using an RF base station.

Controlling your home is simple

with the MX-1200 remote.

Brilliant 2.4" color touch screen with audible button presses

The MX-1200 has a programmable 2.4” color touch screen. When any

button is pressed, an audible response is heard and the color LCD

screen, as well as the remote buttons, will light up.

Fast setup of complex systems via Complete Control PC Program

To fully automate your audio/video system, the programmer must

have detailed knowledge of each component and how the system is

connected and operated. Only a trained and certified professional

audio/video installer can install an MX-1200 remote control in a

timely and efficient manner.

User interface customizable for any activity

Each button is customizable for activities such as Watch TV or

Listen to Radio. These activities can contain multiple commands

(macros) which enable a single button press to turn the needed

devices ON or OFF.

Ultra-reliable narrow band RF - compatible with URC 418 MHz

RF Base Stations.

The MX-1200 can communicate directly to RF base stations, such

as the MRF-350 and the MRF-260. It also natively communicates to

URC Lighting via 418 MHz RF. This gives the MX-1200 the ability to

control your system without being in direct line-of-sight.

Interchangeable Buttons

The MX-1200 has two interchangeable "hard" buttons. Choose from

any of the supplied buttons to fill these spaces.

Page 2

MX-1200 COLOR TOUCH SCREEN

The 5 way cursor

enables you to

navigate through a

variety of on-screen

menus with ease.

The Main button

always displays

main menu pages.

The Page buttons

display additional

pages of controls.

Use the supplied

buttons to

interchange

these two

“hard” buttons.

The Volume and

Mute buttons are

always available

regardless of what

screen is displayed.

Using the MX-1200

The MX-1200's main pages display the activities and devices in your system.

Press the MAIN button to view your devices or the activities placed here by

your custom installation specialist. Large systems may have more than one

page. Press either of the PAGE buttons if you don’t see all your devices.

Gently press any screen button with your finger to select an activity or a

device. The screen will change to display the buttons you need for that

activity/device. The PAGE buttons may reveal additional buttons for some

devices and activities.

When you would like to control another device, press the MAIN page

button and select a new device button.

MX-1200 COLOR TOUCH SCREEN

Connecting the Battery Pack

Unlock the rear cover by pressing down on the spring lock at the

top of the cover. Remove the cover. For shipment from the factory,

the battery is left out of the MX-1200. Place the battery into the

battery compartment, making sure you align the contacts on the

battery to the contacts on the MX-1200. The battery will snap into

place when aligned properly. Replace the cover and snap it into

place.

Using the Charging Base

Plug the 5V adapter into a power outlet and

into the back of the charging base.

Gently place the MX-1200 into the cradle of

the charging base. It automatically aligns itself

to the contacts on the charging base.

The Status light should immediately light. Red

indicates that it is charging. Blue shows that it

is fully charged. There is no harm in leaving

the MX-1200 on its charging base whenever

it is not in use.

Page 3

Red indicates charging, Blue that

the remote is fully charged.

Page 4

Displaying the Settings Screen

You can enter the Settings menu by pressing and holding the MAIN and

ENT button for three seconds. The MX-1200i will timeout after it is idle for

30 seconds and return to the previous setting or Main screen. There are

two pages of Settings screens. Select a setting by pressing a button on the

LCD screen. Press either of the PAGE buttons to access the other page. To

go back a step or to get out of the settings screen, press the MAIN button.

There are two pages of Settings screen. To access the other page press

either of the PAGE buttons.

MX-1200 COLOR TOUCH SCREEN

Page buttons reveal the

rest of the settings.

Page 2 of the Settings

Screen

Page 5

MX-1200 COLOR TOUCH SCREEN

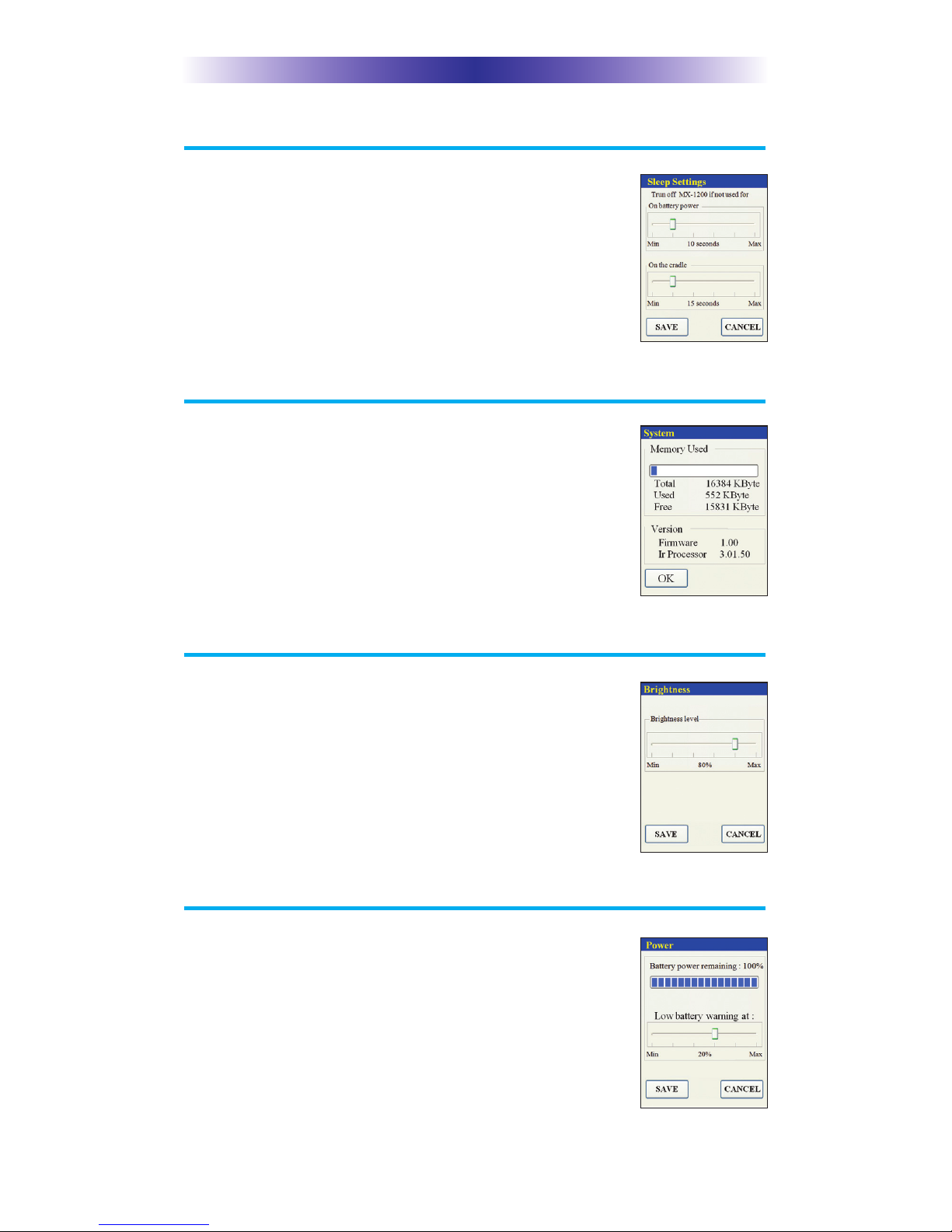

Sleep Settings

Conserve energy by conﬁguring the MX-1200 to

fall asleep after a speciﬁed amount of time. Select

an amount of time by adjusting the slide bar.

System

The System Information screen displays data about

your MX-1200's operating system, memory etc.

Brightness

Adjust the screen brightness by moving the slider.

Min (minimum) is the dimmest setting and Max

(maximum) is the brightest setting.

Power

You can display the remaining charge by selecting

Power. You can also adjust when the low battery

warning screen will appear.

Page 6

MX-1200 COLOR TOUCH SCREEN

Button Light

You can adjust the brightness of the LEDs that

backlight the buttons of the MX-1200. Move the

slider to the left to dim or move it to the right to

brighten the backlighting.

Date and Time

Your MX-1200 may have been programmed to

display the time or date on the touch screen.

If you need to, you can adjust the time displayed

by changing the settings on this screen.

Calibration

If you like, you can calibrate the screen by running

the calibration setting. You will need a pen top or

PDA stylus to do this. Do not attempt to calibrate

using your fingers.

Pickup Settings

You can set your MX-1200 to only turn on when

touched, or every time you move it. Adjust the

Pickup Sensor Level by sliding the bar to the

desired percentage.

MX-1200 COLOR TOUCH SCREEN

Page 7

Sound

You can adjust the button beep to Off or Loudest by

dragging the slider to your desired position.

Factory Default

WARNING! Only use this button when instructed

to by Technical Support. It resets the memory of

the MX-1200 to the factory condition. All your

programming will be lost!

Exit

When you have finished adjusting Settings, simply tap the Exit button to

return to normal operation.
