MX-900i OWNER MANUAL

Congratulations!

You’ve purchased a unique synthesis of hardware and software engineering, the

Complete Control MX-900i. The MX-900i achieves a magnificent combination of

power and flexibility, simplifying and automating operation of even the most

complex system.

One Touch Blue Backlighting

Simply press the L GHT button to backlight the screen.

Integrated ound ignaling

The MX-900i incorporates a small speaker for beeps. Anytime you press a

button, the MX-900i signals that it has understood your command with a

beep sound.

Custom Labeled Buttons

The MX-900i is equipped with a bright easy to read LCD screen which

labels the six buttons to the right of the screeen. These button labels

change based on what you are watching or listening to. Thus, if you have

selected Watching TV, you will see a list of buttons that are useful to that

activity, while if you select DVD, the buttons will control the DVD.

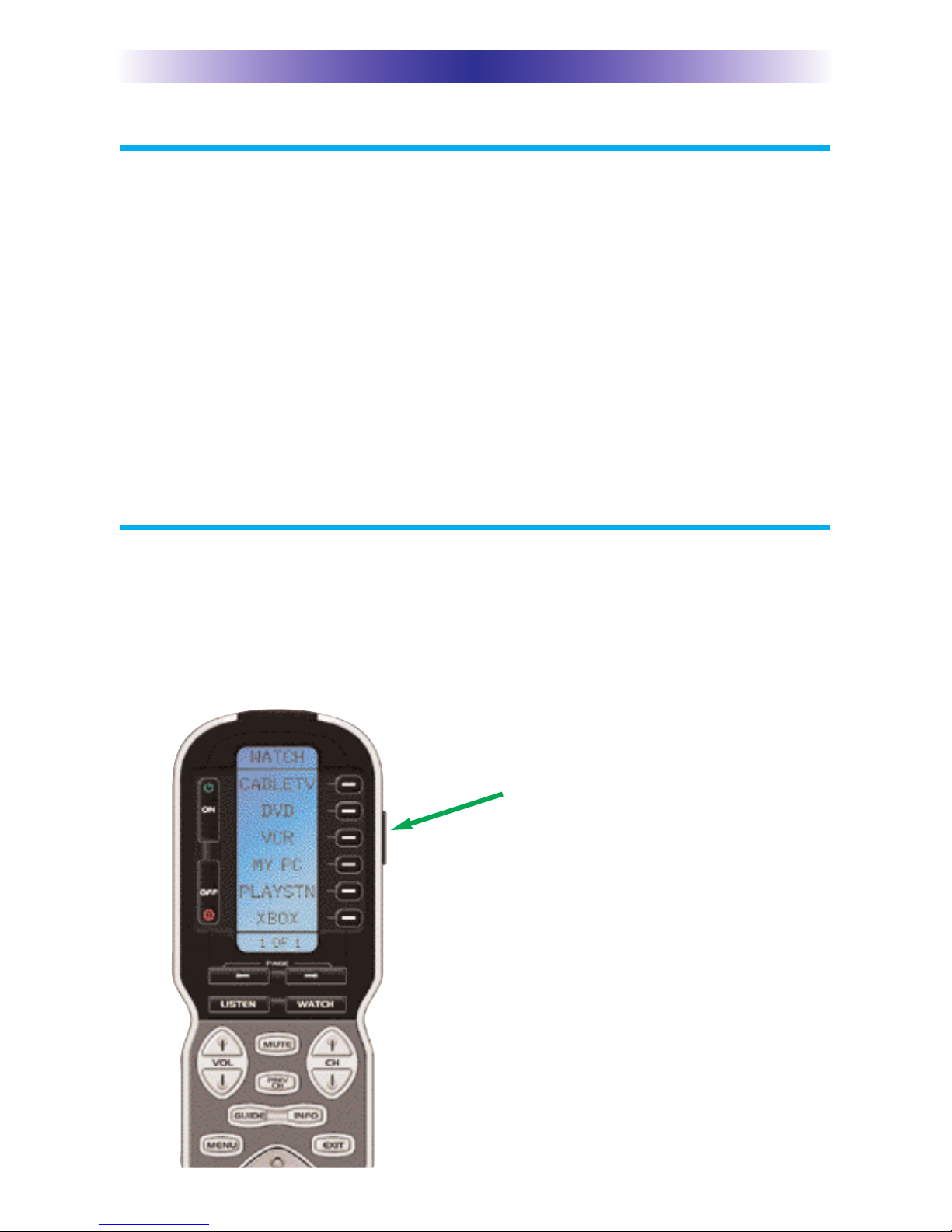

LIGHT Button

Press the Light button on the

side of the MX-900i to backlight

the LCD display and all of the

buttons.

Page 1

Page 2

MX-900i OWNER MANUAL

Optional RF “No Rules” Operation

n combination with a Complete Control RF Base Station, the MX-900i can

control your system without being in line-of-sight of the equipment.

3. The MRF-350i’s built-in Front Blaster sends co ands

4. Self-adhesive “Flashers” affix to the

Infrared sensors on the front panels of

your

co ponents. The Flashers relay co -

ands

to co ponents out of sight of the MRF-

350i’s Front Blaster. The flashers plug in

the MRF-350i’s rear flasher line outputs

2. The RFX-250i RF Sensor can be

freely

Either the MRF-350i or the RFX-250i RF base station is co patible with

the MX-900i. Both incorporate RF addressing. RF Addressing gives you

the ability to control equip ent locations throughout your ho e, even if

they are concealed in other roo s or are behind closed doors.

1. The MX-900i sends radio waves

in every direction, so you don’t

have to point the re ote any-

ore!

Installing Batteries

Open the battery cover by pressing

the release and pulling back the

cover on the back of the control.

Remove the cover.

Observe the + and - polarity

indications inside the battery

compartment.

Place the four AAA batteries into

their positions in the battery com-

partment observing the + and -

polarity indicators on the batteries.

Now, replace the battery cover by

inserting the hinged end in first,

then snapping the cover back into

place.

Page 3

MX-900i OWNER MANUAL

Programming the MX-900i

The MX-900i is programmed via a Windows PC equipped with a USB port

(programming cable included), using our proprietary software, MX-900i

Editor. You can download this software from our website:

www.universalremote.com

Basic setup takes only a few minutes with this software. However, to fully

automate an audio/video system the user must have a detailed knowledge

of each component, you the user (and your preferences) and how the

system is connected and operated. We highly recommend that you use a

professional audio/video installer to program your MX-900i so you will be

able to enjoy all the benefits of the MX-900i as well as one touch operation

via macros.

Page 4

MX-900i OWNER MANUAL

Page 5

MX-900i OWNER MANUAL

electing a New “Activity”

The MX-900i’s WATCH and L STEN buttons display the activities you can

control with your MX-900i. When you want to watch something else (a

DVD movie, a videotape or an HDTV broadcast), simply press the WATCH

button and select the new activity. When you want to listen to the radio or

to a CD, touch the L STEN button and select what you would like to listen to.

Your installer will have programmed the button you pressed to totally config-

ure your system to watch or listen to whatever you selected. Now, the screen

will change, and all of the LCD buttons will be reconfigured to give you full

control of your system while watching or listening to your selection!

Press either of the PAGE buttons to see any other available choices.

PAGE DI PLAY

At the bottom of the LCD screen, the

page display informs you if there are

other pages of buttons available.

When you press the WATCH button,

you can see the most frequently used

activities you have for watching the

sources in your system.

When you press the L STEN button,

you can see the most frequently used

activities you have for listening in

your system.

Using the MX-900i to Control an “Activity”

Once you’ve selected a new activity, the MX-900i displays the title of the

activity at the top of the screen. Below the title, the LCD displays the cus-

tomized names of any special features you need for the activity. All the

hard buttons of the MX-900i have now changed to functions optimized for

this activity.

The Title displays

what activity you

can control.

The Channel and

Previous Channel

buttons will change

channels when you

have selected an

activity like Watch

CABLETV or

Watch SAT TV.

The Number keypad

will enter numbers for

the activity you’ve

selected. Thus, for

watching Cable TV,

you use the number

keypad to enter chan-

nel numbers, while

when listening to CD,

the number keypad

enters track numbers.

The LCD button

labels describe

special features

for this activity.

The transport buttons

(Play, Stop, Skip-, Skip+,

FF, REW and Pause)

operate when the select-

ed activity requires them

(for example, if you

watch CABLETV with a

TiVo type of DVR, these

buttons will control the

built-in DVR, while if

you are watching a

DVD, these buttons will

control the DVD player).

The Volume and

Mute buttons always

control the sound

regardless of what

screen is displayed.

Press either of the

PAGE buttons to see

any other available

choices.

The 4 way cursor

buttons enable you

to navigate on

screen guides and

menus with ease.

Page 6

MX-900i OWNER MANUAL

Displaying the etup creen

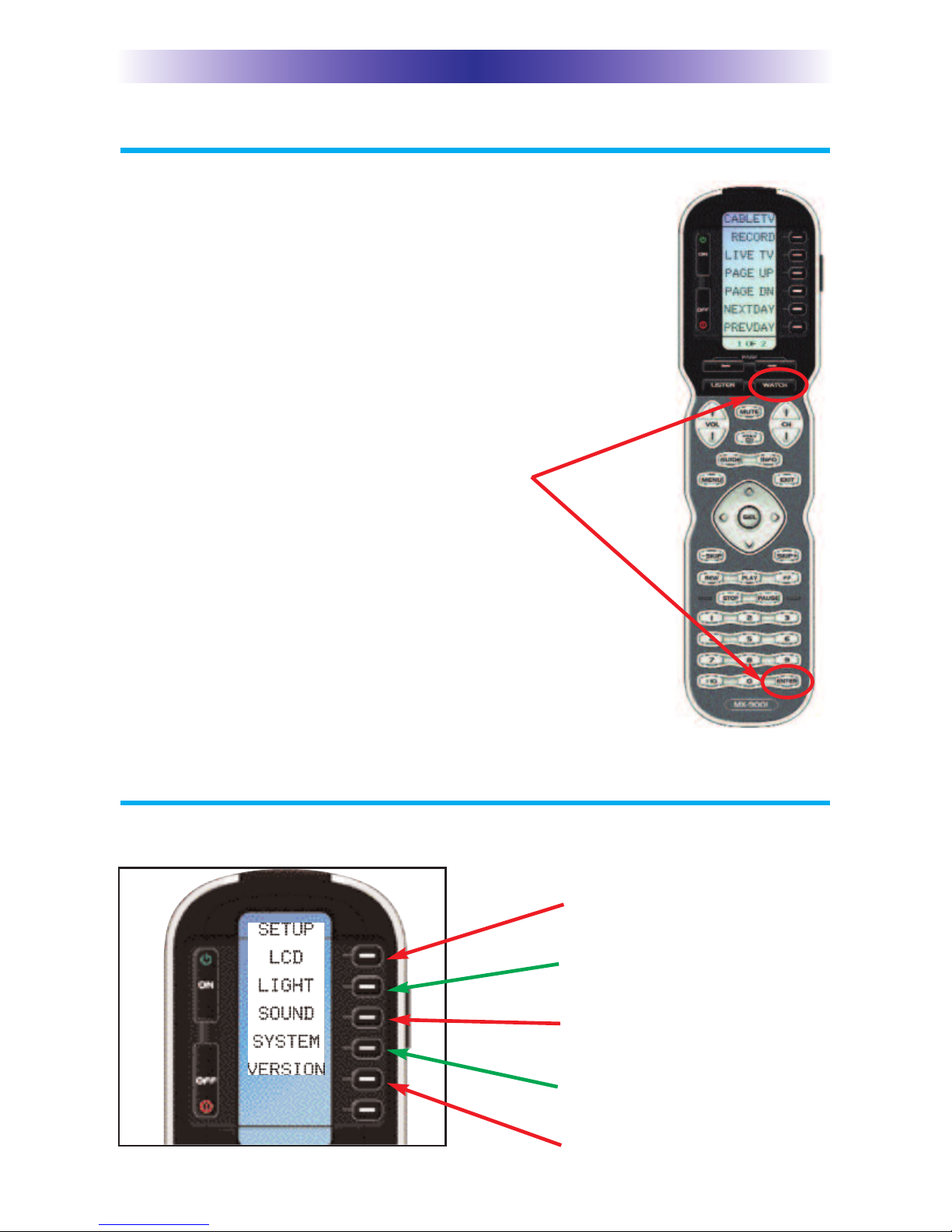

You can adjust the settings of the MX-900i whenever you

like by pressing and holding both the WATCH and the

ENTER button at the same time for three seconds. When

you do, the screen will change to the SETUP screen. f

you do not press any button on the SETUP screen within

30 seconds, the MX-900i will time out and automatically

return to normal operation. You can return to normal

operation before that by pressing either the WATCH or

the L STEN button.

At the same time, press and

hold both the WATCH but-

ton and the ENTER button.

When the SETUP screen

appears, you can release the

two buttons.

MX-900i OWNER MANUAL

Page 7

electing from the etup creen

Simply touch the button for the setting you’d like to adjust:

LCD - The appearance of the

screen.

L GHT - What the L GHT button

does.

SOUND - The volume of the

beeps.

SYSTEM - The battery low warn-

ing.

VERS ON - No adjustments are

possible. Displays factory info.

Tabla de contenidos

Otros manuales de Mando a distancia de Universal Remote Control

Universal Remote Control

Universal Remote Control UR3-SR3-DTA Manual de usuario

Universal Remote Control

Universal Remote Control Easy Clicker UR3L-SR4 Manual de usuario

Universal Remote Control

Universal Remote Control UR5-8400 Manual de usuario

Universal Remote Control

Universal Remote Control Complete Control KP-900 Manual de usuario

Universal Remote Control

Universal Remote Control Medius TX-1000 Complete Control Manual de usuario

Universal Remote Control

Universal Remote Control Easy Clicker UR2-211 Manual de usuario

Universal Remote Control

Universal Remote Control PCL-300 Manual de usuario

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8500 Manual de usuario

Universal Remote Control

Universal Remote Control RF30 MASTERCONTROL Manual de usuario

Universal Remote Control

Universal Remote Control Easy Clicker UR3L-SR4 Manual de usuario

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8500 Manual de usuario

Universal Remote Control

Universal Remote Control ONE FOR ALL 6200CMN Manual de usuario

Universal Remote Control

Universal Remote Control UR3-J22TWM Manual de usuario

Universal Remote Control

Universal Remote Control Star Light SL-7000 Manual de usuario

Universal Remote Control

Universal Remote Control PHAZR-5 - SPECS SHEET Manual de usuario

Universal Remote Control

Universal Remote Control TOTAL CONTROL FX-1 Manual de usuario

Universal Remote Control

Universal Remote Control MX-1200 Manual de usuario

Universal Remote Control

Universal Remote Control MX-1200 Manual de usuario

Universal Remote Control

Universal Remote Control UR5-8400 Manual de usuario

Universal Remote Control

Universal Remote Control UR5U-8520 Manual de usuario

Universal Remote Control

Universal Remote Control Easy Clicker UR3-SR Manual de usuario

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8800L Manual de usuario

Universal Remote Control

Universal Remote Control Easy Clicker UR3-SR3 Manual de usuario

Universal Remote Control

Universal Remote Control Easy Clicker UR3-SR3 Manual de usuario

Manuales populares de Mando a distancia de otras marcas

Panasonic

Panasonic EUR7622KB0 Manual de usuario

Bang & Olufsen

Bang & Olufsen Beo4 Manual de usuario

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manual de usuario

Multiplex

Multiplex PROFI TX 9 Manual de usuario

One Remote

One Remote RMB4 Manual de usuario

FUTABA

FUTABA 9ZAP - PART2 Manual de usuario

HR Matic

HR Matic HR MULTI 3 Manual de usuario

Yamaha

Yamaha ACC-GNRST-30-20 Manual de usuario

EisSound

EisSound KBSOUND Manual de usuario

Marantz

Marantz RC101 Manual de usuario

Conrad

Conrad FS20 TC6 Manual de usuario

Anritsu

Anritsu MP1777A Manual de usuario

Niles

Niles WVC100 Guía de solución de problemas

RCA

RCA RCU1300 Manual de usuario

Bang & Olufsen

Bang & Olufsen BEO6 Manual de usuario

GE 94901 Manual de usuario

Onbon

Onbon YQ1-75 Manual de usuario

FUTABA

FUTABA R7108SB Instrucciones de instalación
