MX-450:Auxiliary Remote

Macro Editing On Screen

No PC Required

Eliminate Programming Bottlenecks!

Specify MX-450’s for secondary rooms and areas.There is a very strong

demand for lower priced controllers to operate modest priced home

theaters and secondary rooms in larger installations, such as master

bedrooms, studies and kitchens. Many dealers do not provide all of

their installers with laptops, thus making in-home remote control

programming by a PC equipped programmer a bottleneck to pro-

duction. As a result, dealers utilize remotes that program stand-

alone, without a PC. Installers forced to setup these standalone

programming remotes are often frustrated in any attempt to

make the remote automate the system using macros.

View and Edit Macros on Screen

Macro programming is a critical function for delivering a specific

sequence of commands to a variety of components in order to

provide clients with an easy to use system. In all past standalone

programmed remotes, installers were faced with the challenging

task of programming macros without being able to modify their

work on the fly. Thus, if one step is wrong in the macro (for

example, one delay is too short); the entire macro had to be

deleted and completely re-programmed.

Until now, that is. The MX-450's most revolutionary feature is

Macro Editing. This has never been seen before in a standalone pro-

grammed remote. At last, the programmer can see the actual macro

steps clearly displayed on the remote controls' screen. Fine tuning, re-

ordering, adjusting delays and adding steps to the macros can nowbe

done without deleting previous work!

Delight Clients with Bright Color and

Great Ergonomics

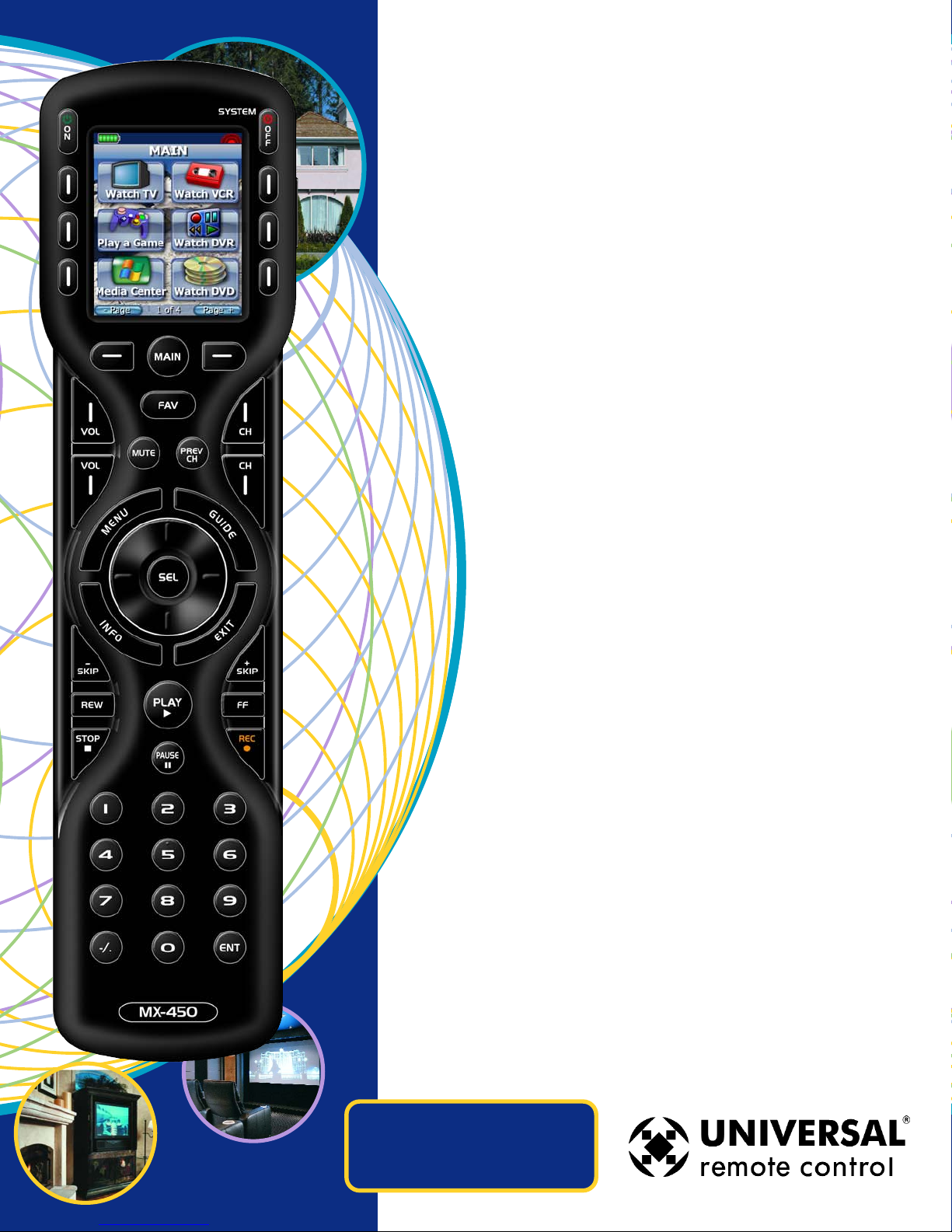

The new URC MX-450 delivers an easy to sell cutting edge form factor,

extraordinary functionality and a beautiful color display. The graphical user

interface is bright and easily backlit at the touch of the Light button.

Engaging graphical icons for devices, activities and the most popular chan-

nels are all pre-programmed.

COMPLETE

CONTROL

COMPLETE

500 Mamaroneck Avenue, Harrison, NY 10528

Phone: (914) 835-4484 Fax: (914) 835-4532

www.universalremote.com

Specifications

LCD Screen - 2” TFT Color LCD (176 x 220 Pixels)

Memory - 32 Megabits of Flash Memory

Total Customization Capability - Up to 18 devices

on 3 Main pages with up to 8 pages for each

device; plus up to eight pages of favorite channels

for a total of 155 pages.

Learning Capability - Standard frequencies (15kHz

to 460kHz)

Macro Capability - Up to 255 steps each

IR Range (Line of Sight via Infrared) - 30-50 feet,

depending on the environment

RF Range (radio frequency) - 50 to 100 feet, depend-

ing upon the environment

RF Frequency - 418MHz

Weight - 9 ounces (with battery loaded)

Size - 8” H x 2.25” W x 1.25” D

Batteries - Four AA Alkaline Batteries (included)

Battery Life - 18 Hours of continuous button press-

ing with backlighting and LCD ON (months of use

for most users). Users should expect some variation

based on the brand of alkaline batteries used.

Note: In actual use, the MX-450 protects itself if it

gets stuck between couch cushions (with a button

being continuously pressed). After 30 seconds the

MX-450 will turn off, and will not turn on again

until the button is released.

COMPLETE

™

CONTROL

COMPLETE

Adjust Delays on

the Fly

By simply selecting the Delay

you want to adjust, then using

the Left/Right Cursor buttons,

you can increase or decrease the

amount of delay in the macro.

Add/Insert Steps

or Jumps

At any time you can add a new

step to a macro.The step will be

inserted after the step you select

in the macro list. By selecting a

Jump step from the Add Menu,

you can reset the jump destina-

tion using the Left/Right cursor

buttons.

Move/Re-order

Steps Anywhere

Simply select a step with the

SEL button, then use the

Up/Down Cursor buttons to

move it to a new position.

Test Macros

While You Edit,

Save When It

Works!

Instead of constantly entering

and exiting setup mode to test,

simply test and keep working

until you have success. No

more wasted time.

The MX-450 Standalone Setup

Revolution - Macro Editing On Screen!
