Congratulations!

Congratulations on purchasing Universal Remote

Control’s AVEX™ R6 Pre--Programmed and Learning

remote control. You now have the power to control

your entire home entertainment system with one

easy--to--use remote. The AVEX R6 can be used with

thousands of audio/video components because of

the extensive library of codes that have already

been programmed into the remote. So... get ready

to sit back, relax, and simplify your home

entertainment experience.

This Owner’s Manual is designed to assist you in

programming your AVEX R6 remote to work with

your components by guiding you through an easy

step-by-step process. Everything you need to know

about programming the AVEX R6 is contained in

Universal Remote Control, Inc.

This document is protected by the copyright laws

of the United States and internationally by the

Berne Convention. No part of this manual may be

reproduced in any form without the express written

consent of Universal Remote Control, Inc. Although

reasonable care has been taken to assure the accu-

racy of the information herein contained, Universal

Remote Control, Inc. is not responsible for operational,

technical or editorial errors or omissions. The specifi-

cations and information in this manual may be

subject to change without notice. MacroPower,

SimpleSound and AVEX are trademarks of Universal

Remote Control, Inc. Entertainment Made Simple®

is a registered trademark of Universal Remote

Control, Inc. All other brand or product names

are trademarks or registered trademarks of their

respective owners.

UNIVERSALUNIVERSAL

remote controlremote control

500 Mamaroneck Avenue, Harrison, NY 10528

Phone: (914) 835-4484 Fax: (914) 835-4532

The Pioneer in Control Technology

AV-EXpertManual.qxd 7/12/07 6:41 PM Page 2

Table of Contents

Getting Started - Overview

• Control up to 6 Components ……………………5

•Activating Component Buttons …………………5

• Learning Capability ………………………………5

• Battery Installation ………………………………6

• Low Battery Warning ……………………………6

• Couch Mode………………………………………6

Special Advanced Features

• MacroPower™ & Other Macros ………………7

• ‘My Favorites’ - Favorite Channels ……………7

• SimpleSound™ & Other ‘Punch Throughs’ ……7

Keypad Layout & Button Functions …8

Programming AVEX R6 Using

Pre-Programmed Codes ……………………9

• Quick Set-Up Method ……………………………9

• Three-Digit Code Entry Method ………………10

• Auto-Search Method ……………………………12

Programming AVEX R6 Using the

Learning Method ……………………………14

Finding a Component’s Set-Up

Code Number …………………………………16

Programming Special Advanced

Features

• Programming Multi-Commands to

Macro Buttons …………………………………17

• MacroPower™ Total System On/Off …………17

• ‘My Favorites’ – Favorite Channels……………20

• SimpleSound™ Total System Volume

Control……………………………………………21

• Channel Control ‘Punch Through’ ……………23

• Transport Control ‘Punch Through’ ……………24

• OSD (On-Screen Display) Control

‘Punch Through’ …………………………………25

Erasing Commands-Overview..........26

• Erasing a Single Learned Command …………26

• Erasing All Learned Commands from

One Component…………………………………27

• Erasing MacroPower & Other Macro

Commands ………………………………………28

• Erasing SimpleSound & Other ‘Punch

Through’ Commands ……………………………29

• Factory Reset ……………………………………30

Page 3

AV-EXpertManual.qxd 7/12/07 6:41 PM Page 3

Pre-Programmed Code Tables .........31

• CABLE/SAT………………………………………32

• TV ……………………………………………33-34

• DVR/VCR ……………………………………35-36

• DVD ………………………………………………37

• AUDIO……………………………………………38

• AUX ………………………………………………39

FAQs ………………………………………………40

Warranty ………………………………………41

Specifications …………………………………41

Page 4

AV-EXpertManual.qxd 7/12/07 6:41 PM Page 4

Getting Started - Overview

Control up to 6 Components

The AVEX R6 remote control is designed to control

up to six different Audio/Video components and

operate virtually all brands of AUDIO, TV, DVD,

VCR/DVR, SAT/CABLE and AUX (Light, Music

Server, etc.) components.

Component Buttons

Once you have programmed the AVEX R6 for all

of your components, all you need to do is press a

component button and all the buttons on the AVEX

R6 will work with that component. For example,

when you press the TV component button, all the

buttons on your AVEX R6 will operate your TV.

If you press the DVD component button, all the

buttons on the AVEX R6 will operate your DVD.

Each time you press any of the buttons on the

remote, the LED light in the component button

will light up to indicate which component you

are controlling.

Page 5

TV BUTTON

Learning Capability

The AVEX R6 has the ability to ‘learn’ functions from

the original remote controls of other manufacturers,

even if they are not in the Pre-programmed database.

AV-EXpertManual.qxd 7/12/07 6:41 PM Page 5

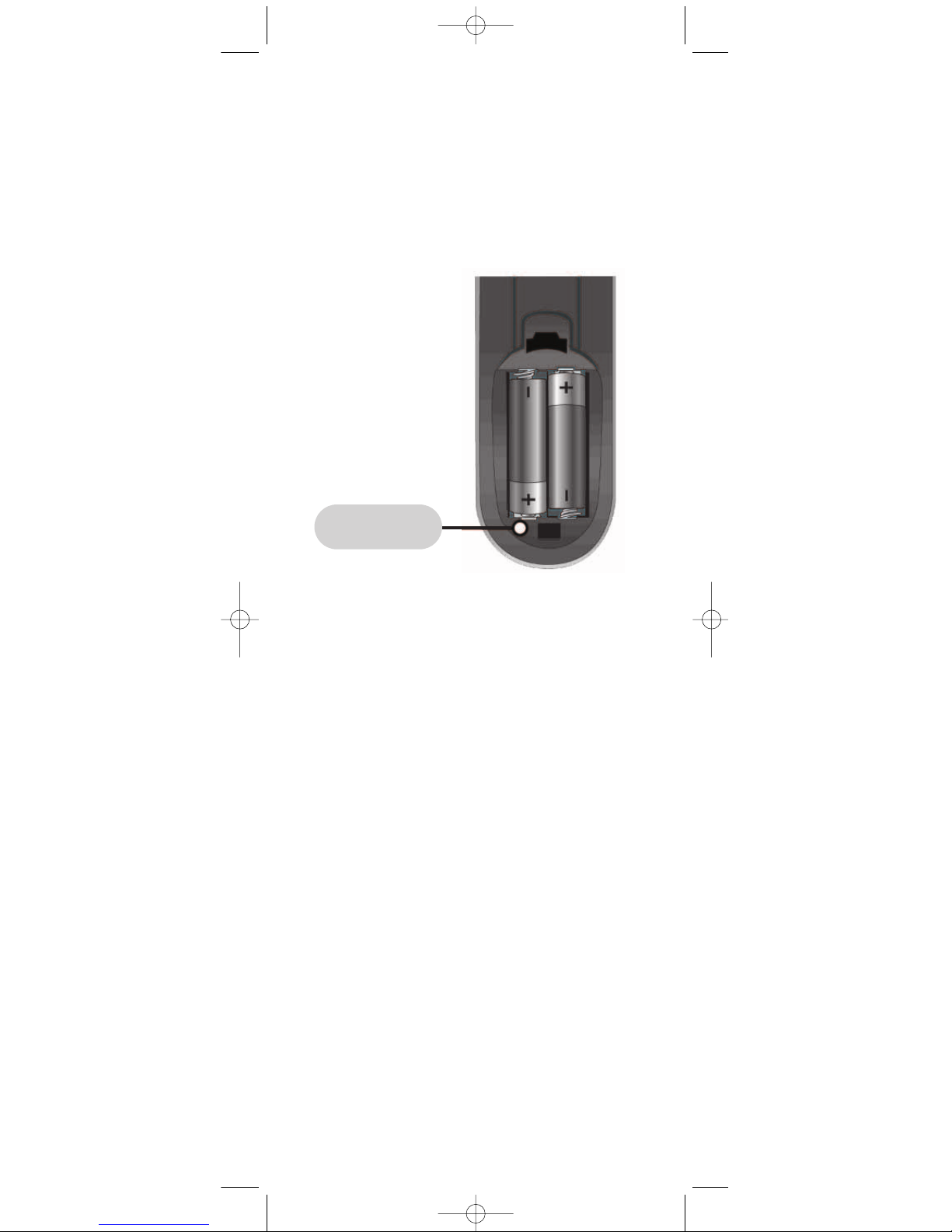

Battery Installation

Press the tab and remove the cover of the battery

compartment located in the back of your remote.

Insert the two AAA batteries (included in the pack-

age) making sure to match the positive (+) and

negative (-) symbols as shown in the diagram.

Place the cover back over the battery compartment.

Low Battery Warning

When the batteries are low and need to be

replaced the component LED will quickly blink

three times when you press the Power [ON] button.

Couch Mode

The AVEX R6 is designed to automatically turn itself

off if a button is pressed for more than 30 seconds.

This prevents battery power from being depleted

should the remote accidentally slip between the

couch cushions.

Page 6

INSERT BATTERIES

CORRECTLY

AV-EXpertManual.qxd 7/12/07 6:41 PM Page 6

Special Advanced Features

The AVEX R6 also offers the following special

advanced features that can offer you many time-saving

conveniences:

MacroPower™ & Other Macro Buttons

MacroPower is a unique feature that enables you

to turn all your components ON or OFF, all at the

same time, simply with the press of one button.

The AVEX R6 has six Macro buttons that are

designed to store up to 20 commands in each button.

Pressing any one of the Macro buttons will send out

the series of commands that are stored in that button.

‘My Favorites’ (Favorite Channels)

This is one of the most desirable features of the

AVEX R6 remote control. Once it’s set up, you can

select one of four favorite channels with the press of

one button – without the need to type in a channel

number. So, whether it’s CNN or the Food Network,

your favorite viewing spot is just one click away.

SimpleSound™ & Other ‘Punch Throughs’

SimpleSound Volume Control is a dynamic feature

that gives you total volume control over all the

components in your system, even those that do not

have their own built--in volume control, such as

TIVO, DVD and VCR... saving you the hassle and

inconvenience of constantly needing to switch

between component modes on the remote. As an

example, in order to increase the volume while

watching a DVD, you would typically have to pick

up the TV remote control to increase the volume.

With the AVEX R6, you do not even have to press

the TV component button. Once you program

SimpleSound in your DVD mode, you will

automatically have TV volume control in

DVD mode.

SimpleSound is what is called a ‘Punch Through’

feature and is not limited to volume control. It can

also be applied to Channel Control, Transport

Control, and OSD Control.

Page 7

AV-EXpertManual.qxd 7/12/07 6:41 PM Page 7

Page 8

Keypad Layout &

Button Functions

POWER

Allows you to turn the

selected component on

and off.

SYSTEM OFF

Designed to send Power

On/Off commands for up

to six components with

one button press.

Used to select the

component you want

to operate and signals

remote control activity.

Displays the Program

Guide listings through

the Cable Set Top Box.

Used for program-

ming steps and on-

screen navigation

and highlighting.

Selects highlighted

screen options.

Controls Picture-In-

Picture actions.

PIP

CONTROLS

Perform standard VCR

and DVD functions when

in VCR and DVD mode,

or VOD (Video-On-

Demand) and DVR

(Digital Video Recorder)

functions when in

Cable mode.

TRANSPORT

CONTROLS

Custom-programmable

Favorite Channel Buttons

FAVORITES

Raises or lowers the

sound volume.

VOLUME

Displays information about

the program currently play-

ing or highlighted in the

Program Guide through the

Cable Set Top Box.

INFO

Displays the Applications

Menu through the Cable

Set Top Box.

Use to enter code

numbers for program-

ming components and to

enter channel numbers

to tune in channels.

Also used to make

numeric entries on

on-screen menus.

NUMBER

PAD

TV, CBL,

VCR, AUDIO,

DVD, AUX

GUIDE

CURSOR

NAVIGATION

PAD

SELECT

EXIT

Exits from current

screen through the

Cable Set Top Box.

INPUT

Selects the video

source from available

components.

LAST

Returns to the previously

tuned channel through

the Cable Set Top Box.

MUTE

Silences the Audio.

Press to activate.

Press again to restore

sound to the previous

level.

AV-EXpertManual.qxd 7/12/07 6:41 PM Page 8

Programming AVEX R6 using

Pre-Programmed Codes

There are three ways you can program your AVEX

R6 using the component brand codes that are pre-

programmed into the remote.

• Quick Set-Up Method

• Three-Digit Code Entry Method

• Auto-Search Method

The Quick Set-Up Method is a unique new feature

that enables the fastest and easiest set-up by using

one-digit codes for up to 10 major brands for each

component. The Three-Digit Code Entry Method

allows you to set-up the AVEX R6 using 3-digit codes

for component brand names. It is also a fast and

easy way to program the remote. The Auto-Search

Method scans through all the brands in the remote

control, one at a time. It should be used when either

the Quick Set-Up or Three-Digit Code Entry Methods

do not work. * * *

Quick Set-Up Method

STEP 1: Manually or using your old remote, turn

on the component you want to program—for example,

to program your TV, turn on your TV set.

STEP 2: Point the AVEX R6 toward the component

that you want to program (in this case the TV set) and

press and hold the component button (in this case the

TV button). While holding down the component

button, begin to press numeric keys, one number at

a time, starting from 1, continuing to 2, 3 ... 0 until

component (in this case the TV) turns off.

STEP 3: Release the component button to save the

code. The component LED light will blink three times

to confirm that the code has been stored.

Repeat the above three steps for other components.

Page 9

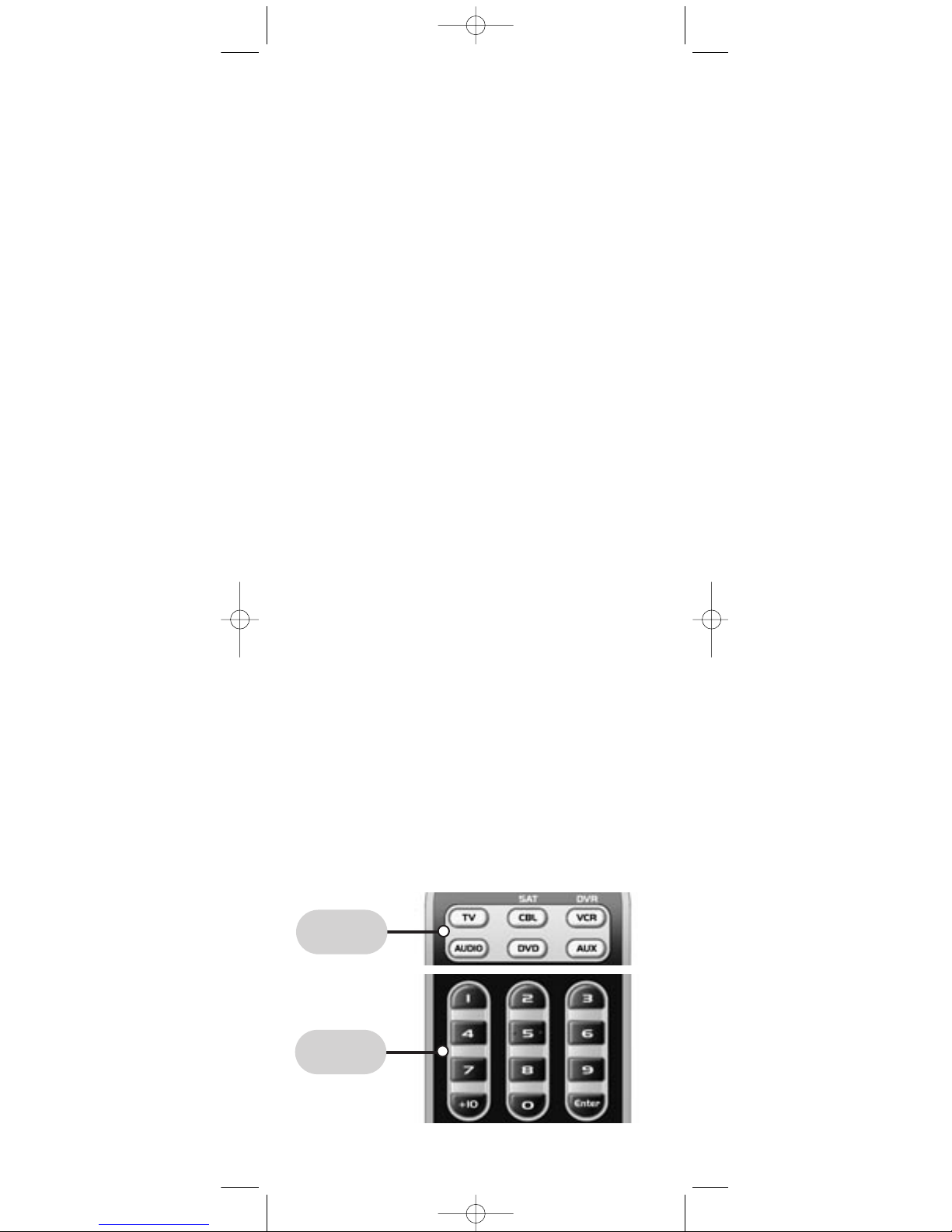

COMPONENT

BUTTONS

NUMBER

PAD

AV-EXpertManual.qxd 7/12/07 6:41 PM Page 9

Three-Digit Code Set-Up Method

STEP 1: Find the 3-digit code numbers assigned

to your brand from the lists in the back of this manual.

The codes are listed by component category (i.e.,

TV, VCR, DVD, etc.), then by brand name. For

instance, if you would like to locate a code for a

Sony television, first locate the TV category and

then look for the Sony brand.

STEP 2: Once you have located the 3-digit codes

for each of the components that you wish to operate

with your AVEX R6, write them ALL down on a

piece of paper. It’s important that you write down

all the codes listed for your brand because only

one code is going to work with your component.

STEP 3: Manually or using your old remote, turn

on the component you want to program—for exam-

ple, to program your TV turn on your TV set.

STEP 4: On the AVEX R6, press the Component

button that you want to program (in this case the

button that says TV) and the SELECT [SEL] button

at the same time. Hold down both buttons for 2

seconds until the TV Component LED light turns on.

This signals that you are in programming mode.

IMPORTANT: You have 30 seconds to perform

the next step while you are in programming mode.

If you do not press a button within 30 seconds,

the component LED light will turn off. The remote

will exit the programming mode and you will

have to start over.

Page 10

COMPONENT

BUTTONS

SELECT

BUTTON

AV-EXpertManual.qxd 7/12/07 6:41 PM Page 10

Tabla de contenidos

Otros manuales de Mando a distancia de Universal Remote Control

Universal Remote Control

Universal Remote Control URC 22?-7 Manual de usuario

Universal Remote Control

Universal Remote Control UR4U-MDVR2 Manual de usuario

Universal Remote Control

Universal Remote Control ONE FOR ALL 5650CMN Manual de usuario

Universal Remote Control

Universal Remote Control Easy Clicker UR3-SR Manual de usuario

Universal Remote Control

Universal Remote Control URC-A6 Manual de usuario

Universal Remote Control

Universal Remote Control UR-J550TVE Manual de usuario

Universal Remote Control

Universal Remote Control PHAZR-5 Manual de usuario

Universal Remote Control

Universal Remote Control RF10 MASTERCONTROL Manual de usuario

Universal Remote Control

Universal Remote Control PHAZR-5 series Manual de usuario

Universal Remote Control

Universal Remote Control Complete Control KP-900 Manual de usuario

Universal Remote Control

Universal Remote Control Aeros MX-850 Manual de usuario

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8780L Manual de usuario

Universal Remote Control

Universal Remote Control Easy Clicker UR3L-SR4 Manual de usuario

Universal Remote Control

Universal Remote Control Easy Clicker UR2-211 Manual de usuario

Universal Remote Control

Universal Remote Control Total Control TRC-1280 Manual de usuario

Universal Remote Control

Universal Remote Control CLIKR-5 UR5L-8720L Manual de usuario

Universal Remote Control

Universal Remote Control Easy Clicker UR3-SR3 Manual de usuario

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8780L Manual de usuario

Universal Remote Control

Universal Remote Control TOTAL CONTROL FX-1 Manual de usuario

Universal Remote Control

Universal Remote Control MX-500TM Manual de usuario

Universal Remote Control

Universal Remote Control PHAZR-5 - SPECS SHEET Manual de usuario

Universal Remote Control

Universal Remote Control Easy Clicker UR3-SR3 Manual de usuario

Universal Remote Control

Universal Remote Control PHAZR-5 Manual de usuario

Universal Remote Control

Universal Remote Control ONE FOR ALL 6200CMN Manual de usuario

Manuales populares de Mando a distancia de otras marcas

Panasonic

Panasonic EUR7622KB0 Manual de usuario

Bang & Olufsen

Bang & Olufsen Beo4 Manual de usuario

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manual de usuario

Multiplex

Multiplex PROFI TX 9 Manual de usuario

One Remote

One Remote RMB4 Manual de usuario

FUTABA

FUTABA 9ZAP - PART2 Manual de usuario

HR Matic

HR Matic HR MULTI 3 Manual de usuario

Yamaha

Yamaha ACC-GNRST-30-20 Manual de usuario

EisSound

EisSound KBSOUND Manual de usuario

Marantz

Marantz RC101 Manual de usuario

Conrad

Conrad FS20 TC6 Manual de usuario

Anritsu

Anritsu MP1777A Manual de usuario

Niles

Niles WVC100 Guía de solución de problemas

RCA

RCA RCU1300 Manual de usuario

Bang & Olufsen

Bang & Olufsen BEO6 Manual de usuario

GE 94901 Manual de usuario

Onbon

Onbon YQ1-75 Manual de usuario

FUTABA

FUTABA R7108SB Instrucciones de instalación
