X-Axis

Page | 54

X-Axis

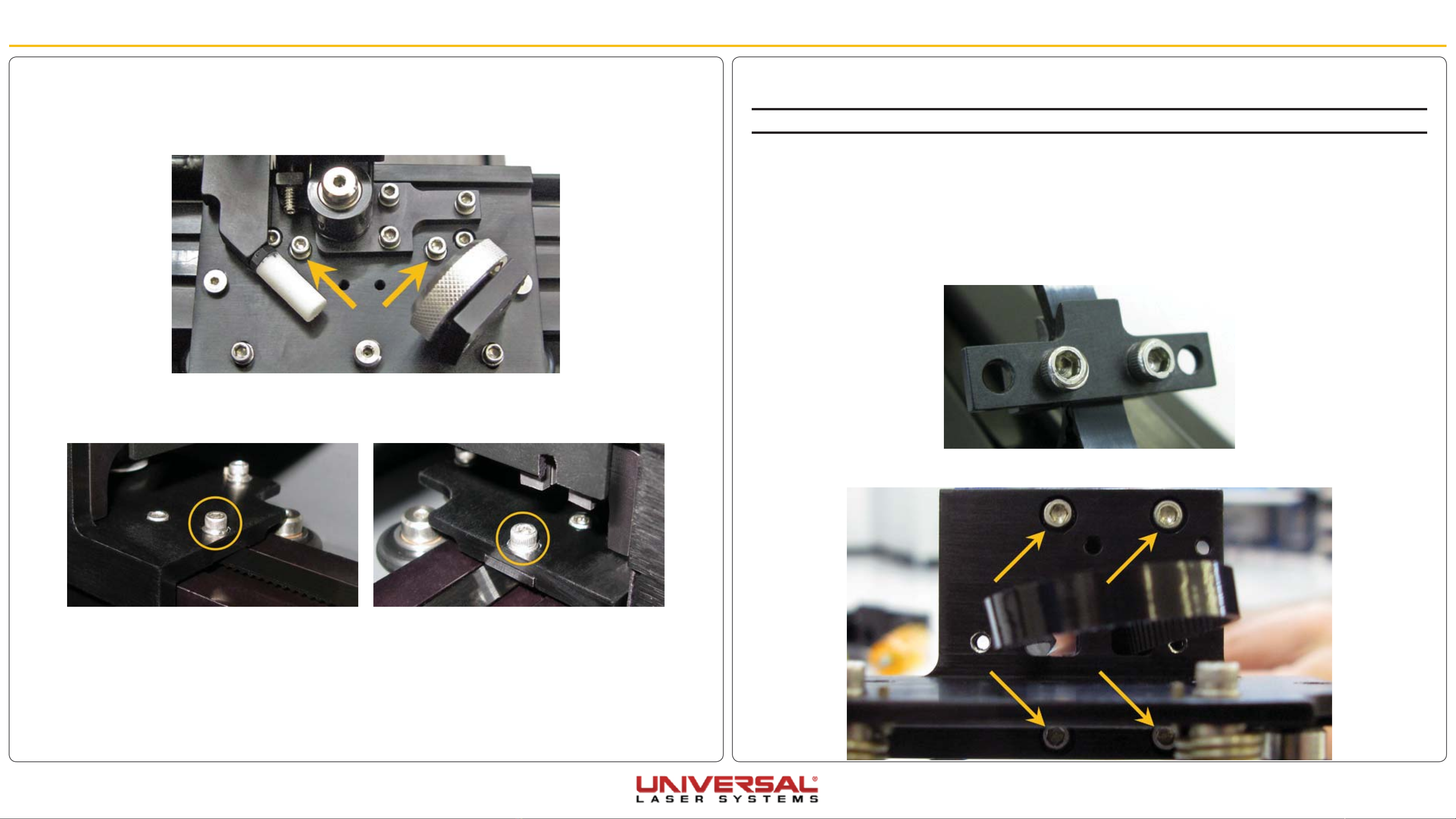

X-Axis Rail

NOTE: Place any hardware removed from the laser system and X-axis arm in a safe place.

1. Power OFF and unplug the VLS.

2. Remove the

X-Axis Arm and set it on a safe working surface.

3. Remove the X-Axis Motor.

4. Remove the X-axis Focus Carriage as shown in the X-Axis Bearings section.

5. Completely remove the X-axis Belt by removing the two screws holding the belt clamp and pulling the

belt out of the rail. Please note the path the belt follows through the rail.

6. Remove the right end support by removing the four screws located on the top (2) and bottom (2) of the

support.

5. Remove the #2 mirror cover (1) by removing the thumbscrew (2), sliding the cover to the right and then

off the rail.

6. Unscrew the two protruding screws on the left side of the X-axis Arm near the tensioning bracket. Each

screw that is removed has 2 washers. Set those aside in a safe place.

7. Unscrew the two protruding screws on the right side of the X-axis Arm. One screw is located in front of

the X-axis motor assembly and the other is located behind the X-axis motor assembly near the Y

Sensor. Each screw that is removed has 2 washers. Set those aside in a safe place.

8. Once all four screws are removed grab hold of the right support bracket, not the X-axis motor assembly,

and push the X-axis Arm to the left then tilt it toward you.

9. Installation is opposite of removal.

VLS Service Manual

Table of Contents

X-Axis

Page | 55

X-Axis

7. Remove the left end support by removing the four screws located on the top (2) and the bottom (2) of

the support.

8. Installation is opposite of removal.

NOTE: During reinstallation It is often easier to feed the belt through the X-Axis rail prior to installing the end

assemblies. Ensure that you do not have a twist in the belt. Failure to remove a twist will result in the laser

system not functioning correctly.

9. Once the

X-axis Arm has been reinstalled tension the X-axis belt as in X-Axis Belt Replacement.

10. To ﬁnish the installation make sure perform the X-Axis Arm Alignment Check and Adjust (Squaring).
