ATLAS

CABLE 4-DEVICE

Universal Remote Control

User’s Guide

Atlas Manual 4/8/02 9:37 AM Page 1

TABLE OF CONTENTS

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Features And Functions . . . . . . . . . . . . . . . . . . . . . . . . 4

Key Charts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Installing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Programming Device Control . . . . . . . . . . . . . . . . . . . 8

Programming TV/VCR Combo Control . . . . . . . . . . . . 9

Manufacturer’s Codes . . . . . . . . . . . . . . . . . . . . . . 11

Setup Codes for Audio Amplifiers. . . . . . . . . . . . . . . . . . . . 11

Setup Codes for Audio Receivers . . . . . . . . . . . . . . . . . . . . 11

Setup Codes for Cable Converters . . . . . . . . . . . . . . . . . . . 12

Setup Codes for DVD Players . . . . . . . . . . . . . . . . . . . . . . . 12

Setup Codes for VCRs and PVRs . . . . . . . . . . . . . . . . . . . . 13

Setup Codes for TVs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Setup Codes for TV/VCR Combos . . . . . . . . . . . . . . . . . . . . 19

Searching For Your Code . . . . . . . . . . . . . . . . . . . . . . 20

Checking The Codes . . . . . . . . . . . . . . . . . . . . . . . . . 21

Programming ID Lock . . . . . . . . . . . . . . . . . . . . . . 22

Programming Channel Control Lock. . . . . . . . . . . . . 23

To De-Activate Channel Control Lock . . . . . . . . . . . . . . . . . 23

To Re-Activate Channel Control Lock . . . . . . . . . . . . . . . . . 23

Using The Master Power Key . . . . . . . . . . . . . . . . . . . 24

To Program The Master Power Key . . . . . . . . . . . . . . . . . . . 24

To Clear The Master Power Key. . . . . . . . . . . . . . . . . . . . . . 24

To Operate The Master Power Key. . . . . . . . . . . . . . . . . . . . 24

Re-Assigning Device Keys . . . . . . . . . . . . . . . . . . . . 25

Using Macros . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Example – Programming A Favorite Channel . . . . . . . . . . 26

Example – Programming A Master Power Key With

Instant Channel Selection . . . . . . . . . . . . . . . . . . . . . . . . 27

To Clear A Macro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Changing Volume Lock . . . . . . . . . . . . . . . . . . . . . . . 28

To Unlock Volume Control For A Single Device . . . . . . . . . . 28

To Unlock All Volume Control . . . . . . . . . . . . . . . . . . . . . . . 28

To Lock Volume Control To One Mode . . . . . . . . . . . . . . . . . 29

Using Keymover. . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Programming Keymover. . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Restoring Keymoved Keys to Default Settings . . . . . . . . . . 30

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Additional Information . . . . . . . . . . . . . . . . . . . . . . . . 32

Atlas Manual 4/8/02 9:37 AM Page 2

INTRODUCTION

The Atlas Cable 4-Device Universal Remote Control by

Universal Electronics is our latest generation universal

remote control.Its sophisticated technology allows you to

consolidate all of your original home entertainment remote

controls into one easy-to-use product. Moreover, it’s packed

with advanced features such as:

• Preprogrammed to operate the cable converter

supplied by your cable system provider

• Master Power key for master on/off control of all of

your equipment with a single keystroke

• Macro key for instant tune-in of favorite channels

• Cable ID Lock to lock your remote control for use only

with the cable converter

• Channel Lock to lock channel selection only to the

cable converter

• Volume Lock to lock volume controls to one mode or

individual modes

• Device Key Re-Assignment to remotely control

a second (duplicate) device

• Color-coded keys to quickly locate popular functions

• Code library for popular video and audio devices

Before using the product, you will need to program it to

operate the specific home entertainment devices you wish

to control. Follow the instructions detailed in this manual

to set up your unit and then start enjoying your new

remote control.

Atlas Manual 4/8/02 9:37 AM Page 3

FEATURES AND FUNCTIONS

Use the illustration below to locate features on the Atlas

Universal Remote Control and then study the Key Charts (on

the next two pages) to learn how they function.

Atlas Manual 4/8/02 9:37 AM Page 4

Key Charts

Use SETUP for all programming

sequences.

Press POWER once to turn on or off

a home entertainment device.

Press AUD,VCR,TV,orCBL once

to select a home entertainment

device to control. Each device key

has an embedded LED (red light)

that blinks upon selection and

indicates that the remote control is

working and is sending signals.

Use GUIDE to display the program

guide.

Press MENU once to display the

available interactive services.

Use INFO to display the current

channel and program information.

Use SETTINGS to access additional

cable features (see your cable

converter’s manual).

Use PAGE+ (or PAGE-) to page up

(or page down) through menu

screens and the program guide.

Use the Cursor keys to move the

cursor in the program guide and

menu screens and to navigate

within the interactive service.

Use SELECT to choose options,PPV

events, and to tune programs from

the program guide.

continued on the next page...

Atlas Manual 4/8/02 9:37 AM Page 5

FEATURES AND FUNCTIONS

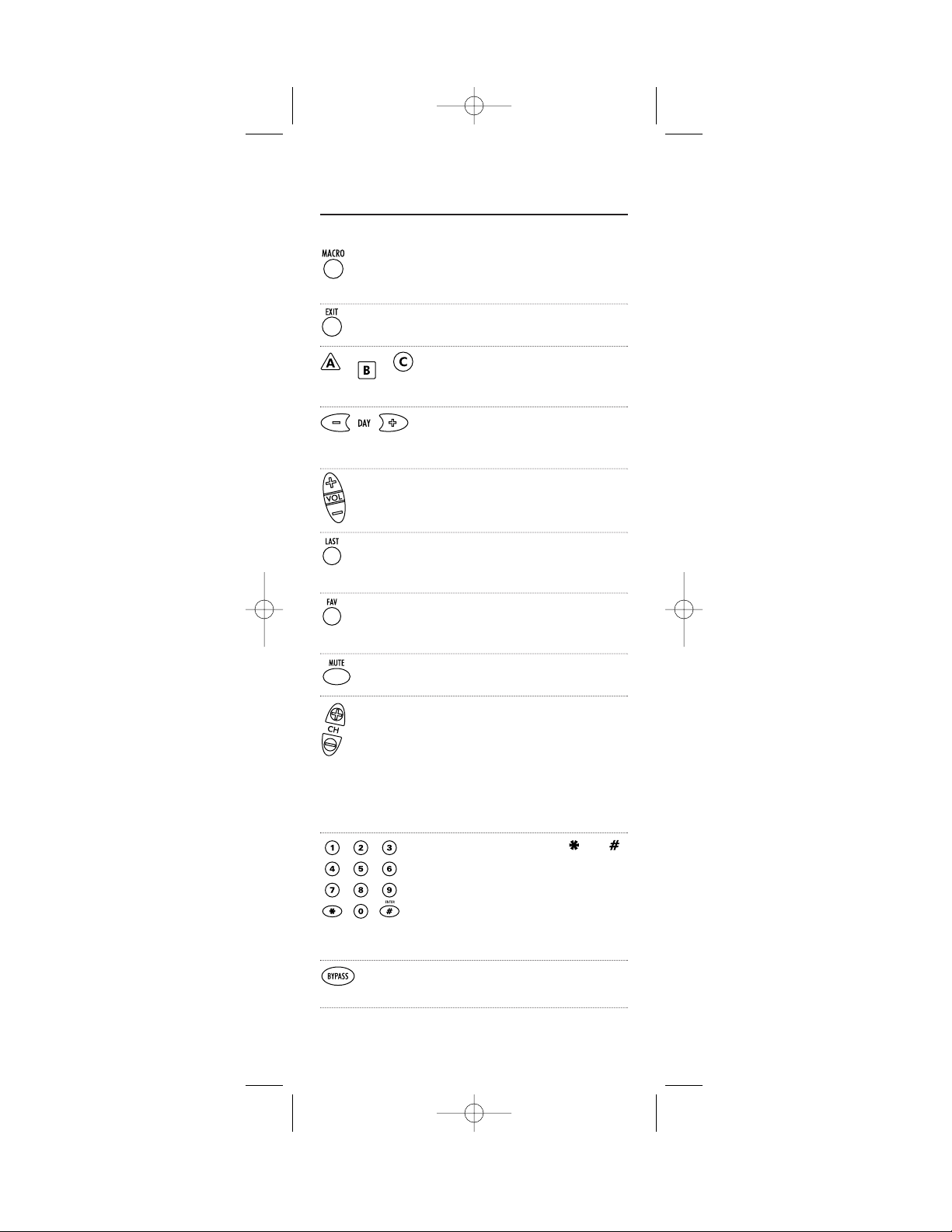

Key Charts (continued)

After programming, press MACRO

once to run a macro (see Using

Macros on page 26).

Use EXIT to exit out of your cable

converter’s menu and guide.

Use A,B,orCto access additional

cable features (see your cable

converter’s manual).

Use DAY+ (or DAY-) to move a day

forward (or back) on your cable

converter’s program guide.

Use VOL+ (or VOL-) to raise (or

lower) the audio volume.

Press LAST once to recall the last

channel. For PVRs, use LAST to

select live or recorded video.

Use FAV to cycle through your

favorite channels stored in your

cable converter.

Press MUTE once to turn the sound

off or on.

Use CH+ (or CH-) to select the

next higher (or lower) channel.

For DVD players, use these keys to

skip forward (or reverse) through

chapters. For amplifiers/receivers,

use these keys to select the next

higher (or lower) preset station.

Use the keypad (1~9,0,,and)

to directly select channels (e.g., 09).

Press ENTER once after entering

channel numbers on some TVs.

For amplifiers/receivers, use the

keypad to select inputs 1 through 10.

Use BYPASS to view other video

sources (A or B) instead of cable.

Atlas Manual 4/8/02 9:37 AM Page 6

Use TV/VCR to switch the TV input

to view video or TV programs.For

amplifiers/receivers,use this key to

select input or output.

In all modes except CBL, use these

keys to control a VCR, DVD player,

or PVR.To record in the VCR mode,

press REC twice.

In the CBL mode, use these keys

except REC to control VOD (Video

On Demand), if available.

INSTALLING BATTERIES

1. On the back of the remote control,push the tab

and lift off the battery cover.

continued on next page...

❶

❸

❷

Atlas Manual 4/8/02 9:37 AM Page 7

INSTALLING BATTERIES (continued)

2. Obtain two (2) new AA alkaline batteries.

Match the + and – marks with those in the

battery case, then insert the new batteries.

3. Align the cover’s keys with the case’s holes and

press the cover back into place. The tab should

click when the cover is locked.

4. Test the unit by pressing POWER and any mode

key (e.g., TV). If batteries are inserted correctly,

the selected mode key will blink once.

NOTE: When batteries need replacement, the remote control will

cease to operate. Replace the batteries and the unit will be restored

to its full functionality, complete with your favorite settings.

PROGRAMMING DEVICE CONTROL

The Atlas Universal Remote Control is preprogrammed to

operate a Scientific Atlanta cable converter, an RCA TV,

an RCA VCR, and a Pioneer audio receiver. To control

devices other than the default brands, perform the

following steps; otherwise skip this section:

NOTES: To control a DVD player, program the VCR key. To control

a PVR, program the VCR key. To control a stereo amplifier or

receiver, program the AUD key. For TV/VCR Combo control,skip

this section and perform the instructions on the next page.

If you have another brand of cable converter and interactive ser-

vice you would like to control, you’ll first need to unlock the cable

ID Lock before changing the converter code – see “Programming

ID Lock” on page 22.

1. Turn on a device and, if applicable, insert video

media, (e.g., cassette or disc).

NOTE: Please read steps 2-4 completely before pro-

ceeding. Highlight or write down the codes and device

you wish to program before moving on to step 2.

2. On the remote control, press a device key once

(e.g., AUD,VCR,TV,orCBL). Press and hold

SETUP until the selected mode key blinks

twice, then release SETUP.

3. Use the Manufacturer’s Codes (starting on

page 11) to locate the the type of device and

brand name and then enter the first four-digit

code for your device. If performed correctly, the

selected mode key will blink twice.

Atlas Manual 4/8/02 9:37 AM Page 8

NOTE: If the selected mode key emits a long blink, the

code is invalid. Repeat steps 2 through 3 and try

entering the same code again.

4. Aim the remote control at the device and press

POWER once. The device should turn off. If it

does not, repeat steps 2-3, trying each code for

your brand until you find one that works. If it

still does not work, try searching for the code

(see Searching For Your Code on page 20).

NOTE: If the device does not have a POWER key, press

the (Play) key.

5. Repeat steps 1 through 4 for each device you

want the the remote control to control. For

future reference, write down each working

device code in the following boxes:

AUD

Audio Device ____________________

VCR

CBL

PROGRAMMING TV/VCR COMBO CONTROL

If you own a TV/VCR Combo, perform the following

instructions to control this device:

1. Turn on your TV/VCR Combo and insert a

video cassette.

2. On the remote control,press VCR once.

Press and hold SETUP until the VCR key

blinks twice, then release SETUP.

3. Use the Setup Codes For TV/VCR Combos (on

page 19) to locate the brand name and then

enter the first four-digit code for your TV/VCR

Combo. If you perform this procedure correctly,

the VCR key will blink twice.

continued on next page...

Atlas Manual 4/8/02 9:37 AM Page 9

PROGRAMMING TV/VCR COMBO CONTROL

3. (continued)

NOTE: If the VCR key did not blink twice after enter-

ing the code’s last digit, then repeat steps 2 through 3

and try entering the same code again.

If you’ve located a TV/VCR setup code that

works your TV/VCR Combo and a separate TV

code is also listed, you’ll need to program this

code into the remote control to access volume

control (see Programming Device Control on

page 8).

4. Aim the remote control at your TV/VCR

Combo and press POWER once. The device

should turn off.If it does not respond,repeat

steps 2-3 (starting on the previous page), trying

each code listed for your brand until you find

one that works. If it still does not work,try

searching for the code (see Searching For Your

Code on page 20).

5. For future reference, write down each working

device code in the boxes below:

TV/VCR

TV (if used)

Atlas Manual 4/8/02 9:37 AM Page 10

Otros manuales para ATLAS

Tabla de contenidos

Otros manuales de Mando a distancia de Universal Electronics

Universal Electronics

Universal Electronics Millenium 4 Manual de usuario

Universal Electronics

Universal Electronics Potenza ST URC66950BA1 Manual de operación y mantenimiento

Universal Electronics

Universal Electronics Polaris 1090 Manual de usuario

Universal Electronics

Universal Electronics URC2068BC2 Manual de usuario

Universal Electronics

Universal Electronics Potenza ST Manual de usuario

Universal Electronics

Universal Electronics CERVINO Manual de usuario

Universal Electronics

Universal Electronics Millenium 4 Manual de usuario

Universal Electronics

Universal Electronics Watch Remote Control Manual de usuario

Universal Electronics

Universal Electronics ATLAS DVR 5, PVR 5 Manual de usuario

Universal Electronics

Universal Electronics URC1090 Manual de usuario

Universal Electronics

Universal Electronics Apple TV Remote for Video Service Providers Manual de usuario

Universal Electronics

Universal Electronics ATLAS CABLE 4-DEVICE Manual de usuario

Universal Electronics

Universal Electronics Delta M3068 Manual de usuario

Universal Electronics

Universal Electronics Potenza ST Manual de usuario

Universal Electronics

Universal Electronics Potenza ST Instrucciones de funcionamiento

Universal Electronics

Universal Electronics MediaRemote Manual de usuario

Universal Electronics

Universal Electronics Remote Control Manual de usuario

Universal Electronics

Universal Electronics CRICKET Manual de usuario

Universal Electronics

Universal Electronics URC2068 Manual de usuario

Universal Electronics

Universal Electronics Millennium 4 Manual de usuario

Universal Electronics

Universal Electronics NEVO PORTAL Manual de usuario

Universal Electronics

Universal Electronics Nebula Catalyst 34 Manual de usuario

Universal Electronics

Universal Electronics Potenza ST Manual de usuario

Universal Electronics

Universal Electronics ATLAS OCAP 5 Manual de usuario

Manuales populares de Mando a distancia de otras marcas

Panasonic

Panasonic EUR7622KB0 Manual de usuario

Bang & Olufsen

Bang & Olufsen Beo4 Manual de usuario

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manual de usuario

Multiplex

Multiplex PROFI TX 9 Manual de usuario

One Remote

One Remote RMB4 Manual de usuario

FUTABA

FUTABA 9ZAP - PART2 Manual de usuario

HR Matic

HR Matic HR MULTI 3 Manual de usuario

Yamaha

Yamaha ACC-GNRST-30-20 Manual de usuario

EisSound

EisSound KBSOUND Manual de usuario

Marantz

Marantz RC101 Manual de usuario

Conrad

Conrad FS20 TC6 Manual de usuario

Anritsu

Anritsu MP1777A Manual de usuario

Niles

Niles WVC100 Guía de solución de problemas

RCA

RCA RCU1300 Manual de usuario

Bang & Olufsen

Bang & Olufsen BEO6 Manual de usuario

GE 94901 Manual de usuario

Onbon

Onbon YQ1-75 Manual de usuario

FUTABA

FUTABA R7108SB Instrucciones de instalación
