Unitech MR550 Manual de usuario

MR550

Stationary

Terminal

AdventureJan

Battery Notice

NOTICE

This unit is equipped with a Lithium-Ion battery pack,

however it may not power-on due to battery discharge

as a result of storage.

In case of the above situation, connect the unit to the

MR550’s power adapter and recharge unit for at least 16

hours to fully charge the battery.

The MR550 can operate normally for about 6 hours

(without backlight) and can backup data for 7 days

without external power.

MR550 User’s Manual

Table of Contents

MR550 User’s Manual

Table of Contents

Chapter 1 - First Look 1. . . . . . . . . . . . . . . . . .

1.1 - MR550 and Accessories 2. . . . . . . . . . . . . . .

1.0 - Introduction 1. . . . . . . . . . . . . . . . . . . .

1.2 - Tour of the MR550 3. . . . . . . . . . . . . . . . .

1.3 - First Steps with the MR550 . . . . . . . . . . . . . . 4

1.4 - First Operation of the MR550 5. . . . . . . . . . . . .

Chapter 2 - Specifications . . . . . . . . . . . . . . . . . 7

2.1 - CPU / Memory 7. . . . . . . . . . . . . . . . . . .

2.2 - Input / Output 7. . . . . . . . . . . . . . . . . . .

2.4 - Magnetic Stripe Reader (MSR) 7. . . . . . . . . . . .

2.5 - Interface Port . . . . . . . . . . . . . . . . . . . 8

2.6 - Power 8. . . . . . . . . . . . . . . . . . . . . .

2.7 - OS and Programming Tools 8. . . . . . . . . . . . .

2.8 - Physical and Environmental Characteristics 8. . . . . . .

2.9 - Pin Assignments . . . . . . . . . . . . . . . . . . 9

Chapter 3 - User Input 11. . . . . . . . . . . . . . . . . .

3.1 - Keypad . . . . . . . . . . . . . . . . . . . . . 11

3.2 - Software Keyboard (WinCE Keyboard) 11. . . . . . . . .

3.3 - Using Proximity, MSR, or Barcode Reader . . . . . . . . 12

Chapter 4 - Useful Programs . . . . . . . . . . . . . . . . 13

4.1 - Bar2Key . . . . . . . . . . . . . . . . . . . . . 13

4.2 - BarSetup . . . . . . . . . . . . . . . . . . . . . 14

4.3 - MSR and Proximity Reader Setup 15. . . . . . . . . . .

4.3 - HockRS232 Event (Disable ActiveSync Driver for RS232 Port) 16

2.3 - Barcode / Symbology 7

. . . . . . . . . . . . . . . .

MR550 User’s Manual

1MR550 User’s Manual

Chapter 1 - First Look

The MR550 series is a stationary terminal. It utilizes the Windows CE®

3.0 operating system, and incorporates an integral barcode slot reader,

triple track magnetic stripe reader, Proximity reader or finger print

reader. Its PCMCIA type II slot provides wire or wireless communication

for LAN or WAN capability. It provides the user with a standard Win-

dows-based environment for customizing and operating the device.

The MR550 is well suited for Time & Attendance, Access Control,

Loyalty program, Work-in-Process application, Price checking ,Food

court system and many other data collection applications.

1.0 - Introduction

Chapter 1 - First Look

2 MR550 User’s Manual

Chapter 1 - First Look

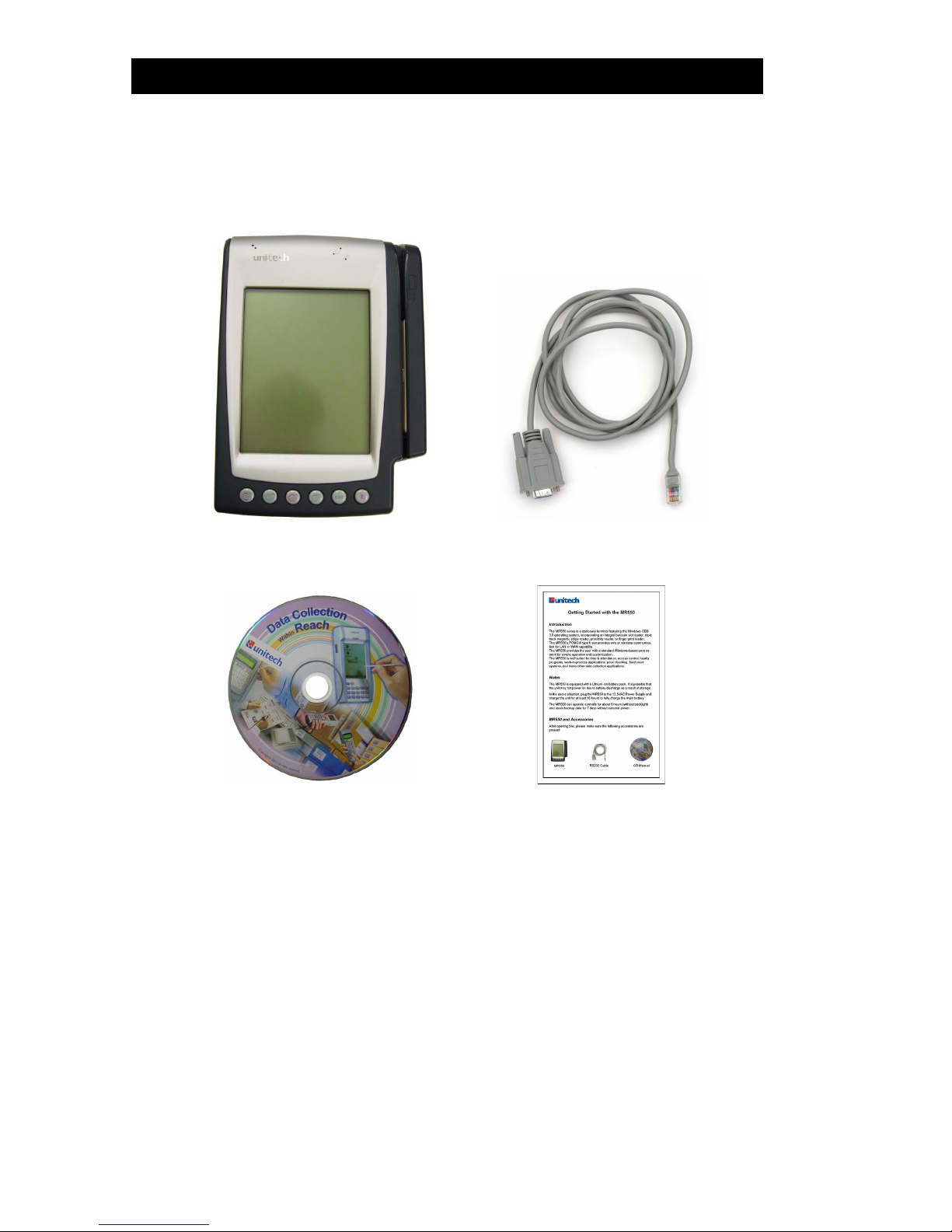

1.1 - MR550 and Accessories

After opening the box, please make sure all the following are present:

RS232 Cable

MR550

Getting Started

Guide

CD Manual

3MR550 User’s Manual

Chapter 1 - First Look

1.2 - Tour of the MR550

1.2.1 - MR550 Front

Proximity Reader

Speaker Bar Code or MSR Slot

Touch

Screen

Lock Keypad

Proximity Reader

Fingerprint Reader

4 MR550 User’s Manual

Chapter 1 - First Look

NOTE: UPS battery can be used for normal operation when

there is no main power and also as a data backup battery.

Data entered should not be considered properly stored until

the built-in backup battery has been adequately charged.

1.3 - First Steps with the MR550

Insert key into lock and turn

key with anti-clockwise

direction.

1. Lift up back-plate to about 45°.2.

3. Ensure the UPS

battery is connected

via the white connector.

Use a pen or screw driver to push the dip

switch to the side away from the connec-

tor (towards the bottom of the unit) to

enable the backup battery.

Charge the UPS battery for at

least 16 hours.

Plug the Power Supply into your

wall socket.

4. Plug the 13.5VAC Power Supply

into the MR550’s terminal

block’s AC connector on inner

side of back-plate
