Unitech PA600 Manual de usuario

PA600 Phone Edition

Quick Reference Guide

Unitech is a member of the Oracle Embedded Software

Licensing Program.

400647G Version 1.0

All manuals and user guides at all-guides.com

all-guides.com

Front View

Turning the PA600 on for the First Time

Charge the PA600 for at least 16 hours prior to intial use.

Powering On

1. Press the Power Button on the PA600’s front panel to start the device.

1Status Indicator. 5Universal Connector.

2Left Scanner Trigger Button. 6Keypad.

3Power Button. 7LCD Touch-screen.

4Microphone. 8Speaker.

English

All manuals and user guides at all-guides.com

Back View

9Battery Compartment. 14 Stylus.

10 Battery Compartment Release

Latch. 15 Strap Holder.

11 Reset Button. 16 Memory Card Slot.

12 Handstrap. 17 Bar Code Scanner Window.

13 Speaker.

English

All manuals and user guides at all-guides.com

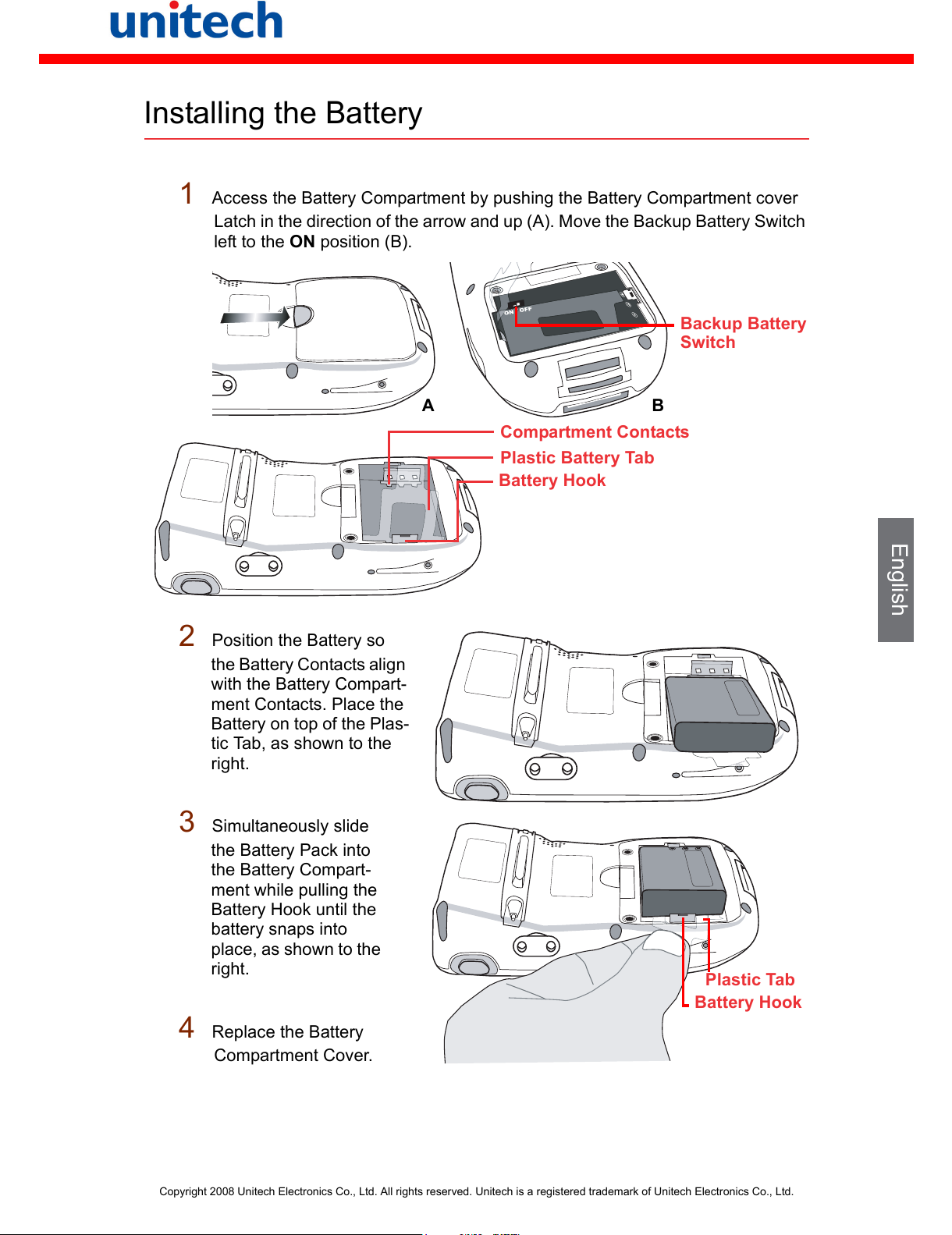

Installing the Battery

1 Access the Battery Compartment by pushing the Battery Compartment cover

Latch in the direction of the arrow and up (A). Move the Backup Battery Switch

left to the ON position (B).

2 Position the Battery so

the Battery Contacts align

with the Battery Compart-

ment Contacts. Place the

Battery on top of the Plas-

tic Tab, as shown to the

right.

3 Simultaneously slide

the Battery Pack into

the Battery Compart-

ment while pulling the

Battery Hook until the

battery snaps into

place, as shown to the

right.

4 Replace the Battery

Compartment Cover.

Compartment Contacts

Plastic Battery Tab

Battery Hook

Backup Battery

Switch

Plastic Tab

Battery Hook

English

All manuals and user guides at all-guides.com

Charging the Battery

Charge the PA600 for at least 16 hours prior to initial use. After the initial charge, the

PA600 will recharge to full capacity in about 4 hours. Only use the PA600 USB Charging

Cable or the PA600 Cradle for charging the device.

1 Press and hold the USB Charging Cable’s Release Buttons while connecting to

the PA600 (1).

2 Plug the AC Adapter Cable into the USB Charging Cable’s power jack (2).

3 Plug the other end of the AC Adapter Cable into an electrical outlet (3).

English

All manuals and user guides at all-guides.com

Using the SD/MMC memory card

1 Remove the SD Compartment Cover by rotating the screws counterclockwise

with a screwdriver as shown below:

2 Insert the SD Card with the notched end facing up and into the slot as shown

below:

3 Replace the SD Compartment Cover with the four compartment screws.

English

All manuals and user guides at all-guides.com

all-guides.com

Using the SIM card

The PA600’s GPRS SIM Card Slot is inside the Battery Compartment.

1 Remove the Battery Cover and the Main Battery. Insert the SIM Card with the

metallic gold side facing up, and with the notched corner facing right, as shown

below:

2 Push the SIM Card inside the slot until it clicks into place. Use a Stylus to push

the SIM Card Slot Lock to the right, as shown below:

Lock

All manuals and user guides at all-guides.com

Keypads and Function Buttons

Press FUNC to access the

function icon in the operat-

ing system.

Function Activated Icon

FUNC

ESC ghi jkl mno

wxyz

ENTER

TAB

tuvpqrs

key

abc Rs def

ALPHA

ESC

TAB

ENTER

ALPHA

key

ghi

pqrs

abc

jkl

tuv

Rs def

mno

wxyz

FUNC

Talk/Send.

Function.

Alpha.

End.

Turns the PA600 on and off.

Number 1, Left soft.

Alphanumeric 2, a, b, c, Up.

Alphanumeric 3, d, e, f, Right soft.

Tab, Windows Main Menu.

Backspace, Escape key.

Alphanumeric 4, g, h, i, Left.

Alphanumeric 5, j, k, l.

Alphanumeric 6, m, n, o, Right.

Alphanumeric 7, p, q, r, s, brightness-.

Alphanumeric 8, t, u, v, Down.

Alphanumeric 9, w, x, y, z, brightness+.

Asterisk, Illuminates keypad.

Number 0, space.

Period, Pound, Slash.

Enter key, OK.

English

All manuals and user guides at all-guides.com

Calibrating the PA600 Screen

The calibration screen automatically appears when the PA600 powers on for the first

time, or after the system is reset.

1 Tap the target firmly and accurately.

2 Tap the target as it moves across the corners of the screen.

3 Continue tapping the target until calibration is complete.

NOTE: Tap Getting Started on the operating systems main menu to

access links to help define system settings.

English

All manuals and user guides at all-guides.com
