Uni-Com FEP-30109T-C Manual de usuario
908 Canada Court
City of Industry, CA 91748 U.S.A.
Phone: 626.964.7873 or 800.346.6668 Fax: 626.964.7880
©UNICOM 2005. UNICOM and “A Network Systems Solution” are trademarks of UNICOM Electric, Inc.
All rights reserved. Specifications subject to change without notice.
Rev: 09.05
8 Port 10/100Base-TX Switch
with 100Base-FX
Smart-Switch/801
USER’S MANUAL
SC/MM FEP-30109T-C
ST/MM FEP-30109T-T
SC/SM FEP-30109T-C-SM
Model shown: FEP-30109T-C
Smart-Switch/801
1
Features
Conforms to IEEE 802.3, 802.3u, and 802.3x Ethernet Standards
Eight auto-sensing 10/100 bps Ethernet RJ-45 ports
Automatic DI/ DIX crossover for each 10/100Base-TX port
One Fixed 100 bps Fiber port (SC/ST- ulti- ode, SC-Single
ode)
Back-Pressure-Base flow control on Half-duplex mode
Pause-Frame-Base flow control on Full-duplex mode
Store-and-forward architecture for abnormal packet filtering
2K-entry AC address table
96Kbytes memory buffer sharing
Non-blocking and Full wire speed forwarding rate
One console port for VLAN configuration and Port Setting
LED-indicators for Power, 10/100, LK/ACT, and FD/COL
10" Desktop size design
Smart-Switch/801
2
Package Contents
Unpack the contents of the Smart-Switch/801 and verify them against the
checklist below.
Smart-Switch/801 Fast Ethernet Switch
Power Cord
Four Rubber Feet
RS-232 console management cable
User Guide
Smart-Switch/801 Power Cord
Rubber Feet RS-232 cable ser Guide
Figure 1-2. Package Contents
If any item is missing or damaged, please contact your local dealer for
service.
Smart-Switch/801
3
Hardware Description
This section describes the hardware of the Smart-Switch/801.
The physical dimensions of the Smart-Switch/801 are 250mm x 132mm x
37mm (L x W x H)
Front Panel
The Front Panel of the Smart-Switch/801 consists of eight auto-sensing
10/100 bps Ethernet RJ-45 ports with automatic DI/ DIX, one 100Base-
FX fiber port, and the LED indicators.

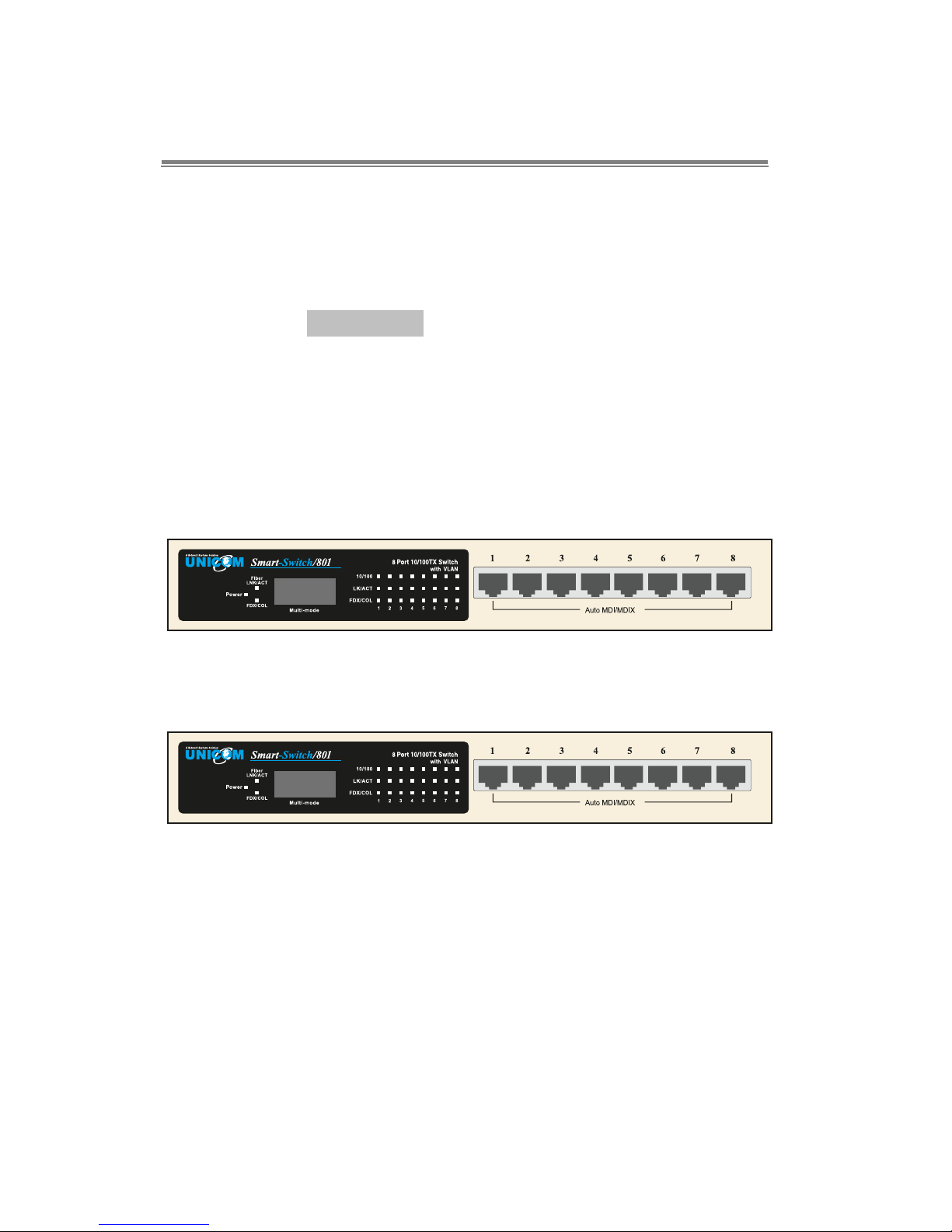

Smart-Switch/801 with SC Connector
Figure 2-2. The Front Panel of the Smart-Switch/801 with SC connector
Smart-Switch/801 with ST Connector
Figure 2-3. The Front Panel of the Smart-Switch/801 with ST connector
RJ-45 Ports (Auto MDI/MDIX): Eight 10/100 auto- sensing for
10Base-T or 100Base-TX connections.
100Base-FX Fiber Port: The operating range for the ulti- ode
fiber option is up to 2Km while the SC Single ode fiber variant can
support up to 30Km.
Smart-Switch/801
4
LED Indicators
Figure 2-4. LED Indicators
There are three LED Indicators (10/100 , LNK/ACT, FDX/COL) for each
UTP port and two LED Indicators (LNK/ACT, FDX/COL) for the fiber port.
The following table provides descriptions of the LED status. They provide
a real-time indication of systematic operation.
TP Ports
LED Status Color Description
Power On Green Power On
On Green The port is operating at 100 bps.
10/100
Off The port is operating at 10 bps
or no device attached
On Green The port is successfully connecting
with the device.
Blinks Green The port is receiving or transmitting
data.
LK /ACT
Off No device attached.
On Orange The port is operating in Full-duplex
mode.
Blinks Orange Collision of Packets occurring within
the port.
FDX /COL
Off The port is operating in Half-duplex
mode or no device attached.
Smart-Switch/801
5
Fiber Port
LED Status Color Description
On Green The port is successfully connecting with
the device.
Blinks Green The port is receiving or transmitting
data.
LK /ACT
Off No device attached.
On Orange The port is operating in Full-duplex
mode.
Blinks Orange Collision of Packets occurring within the
port.
FDX /COL
Off The port is operating in Half-duplex
mode or no device attached.
Table 2-1. Descriptions of LED Indicators
Smart-Switch/801
6
Rear Panel
The Console port and 3-pronged power plugs are located at the Rear
Panel of the Smart -Switch/801 as shown in Figure 2-8. This Switch will
work with AC in the 100-240V AC, 50-60Hz. Range.
Figure 2-5 The Rear Panel of the Smart-Switch/801
Console Port: Configuration is done through the console port connector.
This requires a direct connection between the switch and a device such
as a PC or terminal using the supplied RS-232 cable.
Desktop Installation
Set the switch on a sufficiently large flat space with a power outlet
nearby. The surface should be clean, smooth, level, and sturdy.
ake sure there is enough clearance around the Switch to allow air
circulation and the attachment of cables and the power cord.
Smart-Switch/801
7
Attaching Rubber Feet
A_ ake sure mounting surface on the bottom of the Switch is grease
and dust free.
B_ Remove adhesive backing from the Rubber Feet.
C_ Apply the Rubber Feet to each corner on the bottom of the Switch.
These footpads protect the Switch from shock and vibration.
Figure 2-6. Attaching Rubber Feet to each corner on the bottom of the Switch
Power On
Connect the power cord to the power socket on the rear panel of the
Switch. The other end of the power cord connects to the power outlet.
The internal power supply in the Switch works with AC in the 100-
240VAC, frequency 50~60Hz voltage range.
Check the power indicator on the front panel to ensure that power is
properly supplied.
Smart-Switch/801
8
Network Application
This section provides a few samples of network topology in which the
Switch is used.
Desktop Application
The Smart-Switch/801 can be used as a desktop switch, an ideal solution
for a small workgroup. Used as a standalone switch, personal computers,
servers, and printer servers are directly connected to form a small
workgroup.
Figure 3-1. Desktop Application
Smart-Switch/801
9
Segment Application
For enterprise networks where large data broadcast are constantly
processed, this switch is ideal for connecting workgroups or departments
to the corporate backbone.
Figure 3-2. Segment Applications
Connect PCs, workstations, and servers to each other by connecting
these devices directly to the Smart-Switch/801. All devices in this
network can communicate with one another as well as with central
servers.
The Switch automatically learns node addresses, which are subsequently
used to filter and forward all traffic based on the destination address. You
can interconnect each of your small, switched workgroups to form a
larger switched network through any of the RJ-45 ports of the Smart-
Switch/801.
